Topological Engine Monitor: Persistent Homology-Based Fault Detection in Finite-Time Quantum Engines

Mira\c{c} Kerem Maden , Asghar Ullah , Baris Coskunuzer , \"Ozg\"ur E. M\"ustecapl{\i}o\u{g}lu This is my paper

Pith reviewed 2026-05-10 15:37 UTC · model grok-4.3

classification 🪐 quant-ph
keywords persistent homologyquantum Otto enginefault detectionquantum frictiontopological data analysisfinite-time thermodynamicsweak measurementscontrol imperfections
0
0 comments X

The pith

Persistent homology on weak measurements detects control faults in finite-time quantum engines more reliably than statistical baselines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a geometric monitoring method for quantum Otto engines operated in finite time, where control imperfections create nonadiabatic phases and friction that cause energetic observables to fluctuate too strongly for reliable single-shot detection. By forming time-delay embeddings from weak measurements and extracting persistent homology diagrams, the authors define a scalar quality index from Wasserstein and Bottleneck distances that quantifies deviation from ideal cyclic behavior. They demonstrate that this index classifies degraded states robustly across noise types ranging from global jitter to localized correlated noise and coherence injection, while a multi-feature statistical monitor loses accuracy as the noise becomes more realistic. The approach also shows pixel-level correlations with microscopic quantum friction signatures. A reader would care because stable operation of small quantum thermodynamic devices requires diagnostics that work without extensive ensemble averaging.

Core claim

The central claim is that time-delay embeddings constructed from weak measurements of a finite-time quantum Otto engine, when mapped to persistent homology diagrams, yield Wasserstein and Bottleneck distances that serve as a robust scalar index for tracking control degradation, anticipating cyclic failure, and classifying non-ideal operation across realistic noise profiles, outperforming conventional spectral-statistical monitoring while also correlating with quantum friction at the microscopic level.

What carries the argument

The topological engine monitor (TEM), which converts weak-measurement time series into persistence diagrams and persistence images to compute distance-based quality indices that separate ideal from degraded thermodynamic cycles.

If this is right

  • The quality index tracks progressive control degradation and anticipates the onset of cyclic failure without requiring ensemble averaging.
  • Classification of degraded versus ideal operation remains accurate across global timing jitter, correlated adiabatic noise, and coherence injection.
  • The method stays robust as noise profiles become more localized and physically realistic, while statistical multi-feature monitoring degrades.
  • Pixel-wise Pearson correlations between the topological features and known friction indicators reveal that the approach registers microscopic signatures of nonadiabatic effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same embedding-plus-persistence pipeline could be tested on other driven quantum systems such as gates or sensors where energetic observables are similarly noisy.
  • Because the method is non-invasive and uses only weak measurements, it could be implemented on existing quantum hardware with minimal additional resources.
  • If the topological distances prove predictive in experiment, they might guide real-time feedback corrections that reduce effective friction without full state tomography.

Load-bearing premise

Time-delay embeddings from weak measurements must encode the topological signatures of control imperfections and quantum friction so that persistent homology distances reliably distinguish degraded cycles from ideal ones.

What would settle it

An experiment in which the Wasserstein distances between persistence diagrams fail to increase monotonically with calibrated increases in control noise strength, or in which classification accuracy falls below that of the statistical baseline for localized noise, would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.11289 by Asghar Ullah, Baris Coskunuzer, Mira\c{c} Kerem Maden, \"Ozg\"ur E. M\"ustecapl{\i}o\u{g}lu.

Figure 1
Figure 1. Figure 1: FIG. 1. Phase space trajectories of the quantum Otto cycle. (a) In the nominal regime ( [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Probability density histograms of three TDA-based metrics—QI, Wasserstein distance, and Bottleneck distance—for nominal (blue) [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Persistence images comparing cases with zero timing jitter [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Pixel-wise Pearson correlation heatmap. The positive corre [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. ROC curves for binary classification of nominal ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 7

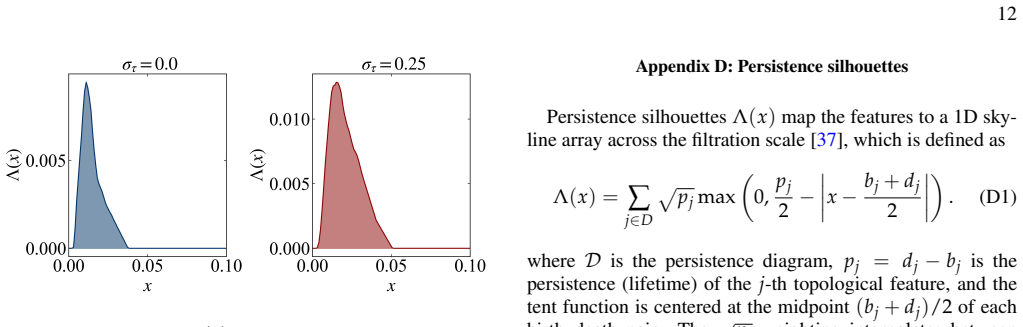

Figure 7. Figure 7: FIG. 7. Silhouette height [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
read the original abstract

The reliable operation of finite-time quantum heat engines is fundamentally limited by control imperfections that induce nonadiabatic phase accumulation and quantum friction, degrading the stability of the thermodynamic cycle. Traditional monitoring relies on energetic observables such as instantaneous cycle work; however, under finite-time driving, these quantities exhibit strong fluctuations, obscuring reliable single-shot fault detection without extensive statistical averaging. Here, we apply a topological data analysis (TDA)-based approach to establish a non-invasive, purely geometric framework for diagnosing control failures in finite-time quantum Otto engines. We construct time-delay embeddings from weak measurements and map the dynamics into persistent homology diagrams. We define a scalar quality index based on Wasserstein and Bottleneck distances that tracks control degradation and anticipates cyclic failure. By encoding topology via persistence images and silhouettes, we achieve highly robust classification of degraded operation across diverse noise profiles. We benchmark the TDA-based approach (topological engine monitor, TEM) against a standard multi-feature statistical baseline (spectral-statistical monitor, SSM) across progressively realistic noise settings, from global timing jitter to correlated adiabatic noise and coherence injection. We find that as noise becomes more localized and realistic, the conventional SSM approach degrades while the TEM remains robust. Finally, a pixel-wise Pearson correlation analysis reveals that the method captures microscopic signatures of quantum friction. Our results demonstrate the potential of topology-based diagnostics for non-ideal quantum thermodynamic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a topological data analysis framework, termed the Topological Engine Monitor (TEM), for non-invasive fault detection in finite-time quantum Otto engines. It involves constructing time-delay embeddings from weak measurements, applying persistent homology to generate diagrams, and defining a quality index using Wasserstein and Bottleneck distances to monitor control degradation and anticipate failures. The approach is compared to a spectral-statistical monitor (SSM) across noise profiles from global jitter to coherence injection, with claims of superior robustness for TEM and correlation with quantum friction via pixel-wise Pearson analysis.

Significance. Should the claims be substantiated with detailed methods, algorithms, and statistical evidence, this could represent a significant advance in applying TDA to quantum thermodynamics for practical device monitoring. The robustness to realistic localized noise and the geometric interpretation are promising, and the benchmarking progression is well-motivated. The absence of explicit implementations and data in the current manuscript, however, limits the immediate impact.

major comments (3)
  1. [Abstract] The assertion that 'as noise becomes more localized and realistic, the conventional SSM approach degrades while the TEM remains robust' lacks supporting quantitative data, error bars, or statistical tests, which are essential for validating the comparative performance claim.
  2. [Methods] The time-delay embedding construction and the mapping to persistent homology diagrams are described qualitatively without specifying embedding dimensions, delay parameters, or the exact computation of the scalar quality index from the distances, hindering reproducibility and assessment of the topological stability.
  3. [Results] The pixel-wise Pearson correlation analysis linking the method to microscopic signatures of quantum friction is mentioned but without details on the correlation coefficients, p-values, or how the persistence images are constructed for this analysis.
minor comments (2)
  1. [Abstract] The acronyms TEM and SSM are defined upon first use, which is good, but consider expanding on the quantum Otto engine cycle briefly for broader accessibility.
  2. Ensure that all claims in the abstract are backed by specific results or figures in the main text.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We are grateful to the referee for their thorough review and valuable suggestions. We address each of the major comments below, outlining the revisions we plan to implement to enhance the manuscript's clarity, reproducibility, and evidential support.

read point-by-point responses

  1. Referee: [Abstract] The assertion that 'as noise becomes more localized and realistic, the conventional SSM approach degrades while the TEM remains robust' lacks supporting quantitative data, error bars, or statistical tests, which are essential for validating the comparative performance claim.

    Authors: We acknowledge that the abstract statement would benefit from stronger quantitative backing. In the revised version, we will supplement the results section with detailed quantitative data, including error bars derived from ensemble averages over multiple independent runs, and include statistical significance tests (such as paired t-tests) comparing TEM and SSM performance metrics across the noise profiles. This will substantiate the robustness claims with concrete evidence. revision: yes

  2. Referee: [Methods] The time-delay embedding construction and the mapping to persistent homology diagrams are described qualitatively without specifying embedding dimensions, delay parameters, or the exact computation of the scalar quality index from the distances, hindering reproducibility and assessment of the topological stability.

    Authors: We agree that additional specificity is required here. The revised manuscript will include the precise embedding dimension, time delay parameter, and the mathematical definition of the quality index (a normalized combination of Wasserstein and Bottleneck distances). We will also provide a step-by-step algorithmic description or pseudocode to facilitate reproducibility. revision: yes

  3. Referee: [Results] The pixel-wise Pearson correlation analysis linking the method to microscopic signatures of quantum friction is mentioned but without details on the correlation coefficients, p-values, or how the persistence images are constructed for this analysis.

    Authors: Thank you for highlighting this omission. We will expand the relevant section to report the Pearson correlation coefficients and p-values explicitly. Additionally, we will detail the construction of persistence images, including the discretization grid, kernel functions, and any normalization applied, to clarify how the topological features correlate with quantum friction indicators. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper defines its quality index directly from standard Wasserstein and Bottleneck distances on persistence diagrams obtained via time-delay embeddings of weak measurements. This geometric construction does not fit parameters to fault labels, rename known results, or reduce to self-cited uniqueness theorems by definition. Benchmarking against the SSM baseline and the subsequent pixel-wise Pearson correlation are independent post-hoc analyses that do not enter the index definition. No load-bearing step in the described pipeline is equivalent to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review yields limited visibility into parameters or axioms; the primary unstated premise is that weak-measurement time series contain sufficient topological information about control errors.

axioms (1)
  • domain assumption Time-delay embeddings from weak measurements faithfully represent the underlying nonadiabatic dynamics and quantum friction of the finite-time Otto cycle.
    Invoked when constructing the point clouds that are fed into persistent homology.
