Geoparsing: Diagram Parsing for Plane and Solid Geometry with a Unified Formal Language

Peijie Wang , Ming-Liang Zhang , Jun Cao , Chao Deng , Dekang Ran , Hongda Sun , Pi Bu , Xuan Zhang
show 5 more authors
Yingyao Wang Jun Song Bo Zheng Fei Yin Cheng-Lin Liu
This is my paper

Pith reviewed 2026-05-10 15:23 UTC · model grok-4.3

classification 💻 cs.CV
keywords diagram parsingformal languagegeometry reasoningmultimodal large language modelsplane geometrysolid geometryreinforcement learningverifiable rewards
0
0 comments X

The pith

Parsed formal descriptions from geometry diagrams serve as cognitive scaffolds that boost multimodal language models on reasoning tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs a single formal language that represents both plane figures and solid objects along with their spatial relations. It assembles a dataset of 29,000 real-world diagram and description pairs, then trains a parser through supervised fine-tuning followed by reinforcement learning that rewards only syntactically and geometrically valid outputs. Experiments establish state-of-the-art accuracy on the parsing task itself. The resulting structured descriptions are shown to improve multimodal models when those models tackle downstream geometry reasoning problems.

Core claim

A unified formal language that integrates plane and solid geometry structures and semantic relations allows diagrams to be converted into accurate, verifiable textual representations; when these representations are supplied to multimodal large language models, they function as cognitive scaffolds that raise performance on geometry reasoning tasks.

What carries the argument

The unified formal language that comprehensively covers geometric structures and semantic relations in both plane and solid geometry.

If this is right

  • The same language and training approach yields state-of-the-art accuracy when converting diagrams into formal descriptions.
  • Supplying the parsed descriptions to multimodal models measurably raises their accuracy on geometry reasoning problems.
  • A single training pipeline handles both two-dimensional plane figures and three-dimensional solid objects.
  • Verifiable rewards during reinforcement learning enforce both syntactic validity and geometric consistency.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same scaffold idea might be tested on other visual domains that combine diagrams with logical deduction, such as mechanics or circuit analysis.
  • Measuring how often the parser produces descriptions that remain consistent when diagrams are rotated or projected would test the language's spatial completeness.
  • The formal output could be fed directly into symbolic theorem provers to check whether the model-generated steps are logically sound.

Load-bearing premise

The proposed formal language fully captures every geometric structure and relation that appears in plane and solid diagrams without loss or ambiguity.

What would settle it

A collection of previously unseen geometry diagrams for which the model's output descriptions either mismatch expert annotations or produce no measurable gain in multimodal model accuracy on corresponding reasoning questions.

Figures

Figures reproduced from arXiv: 2604.11600 by Bo Zheng, Chao Deng, Cheng-Lin Liu, Dekang Ran, Fei Yin, Hongda Sun, Jun Cao, Jun Song, Ming-Liang Zhang, Peijie Wang, Pi Bu, Xuan Zhang, Yingyao Wang.

Figure 1

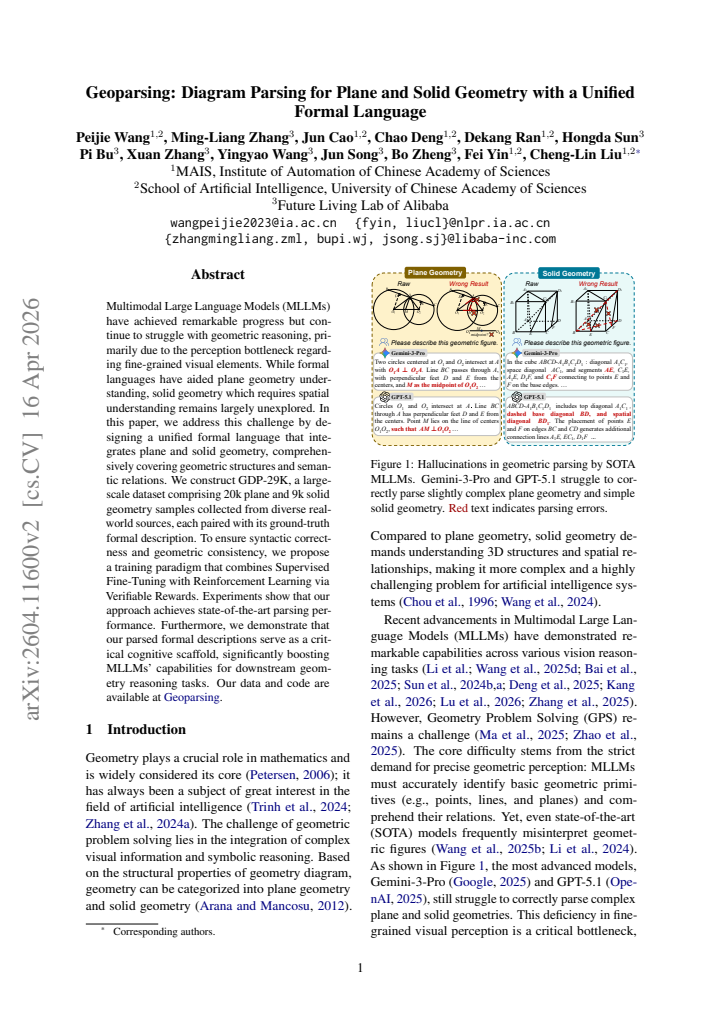

Figure 1. Figure 1: Hallucinations in geometric parsing by SOTA [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

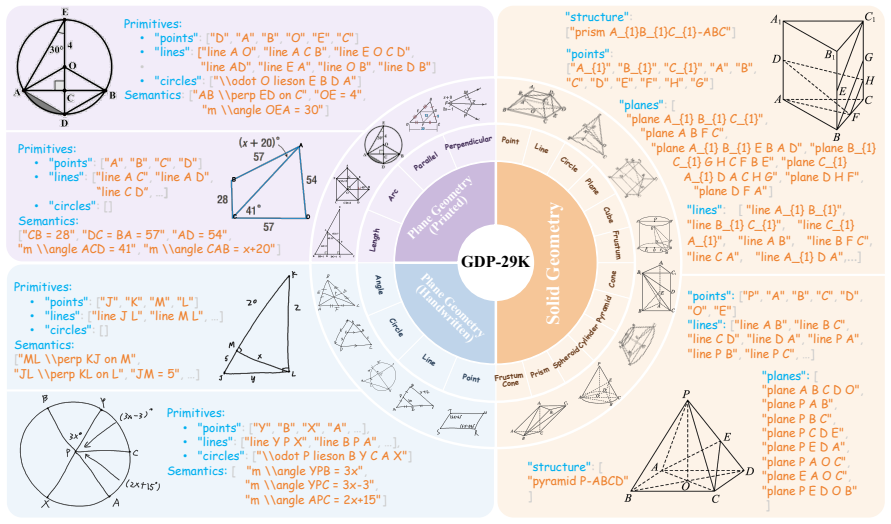

Figure 2. Figure 2: Overview of the GDP-29K dataset for geometry diagram parsing. The dataset spans plane geometry [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

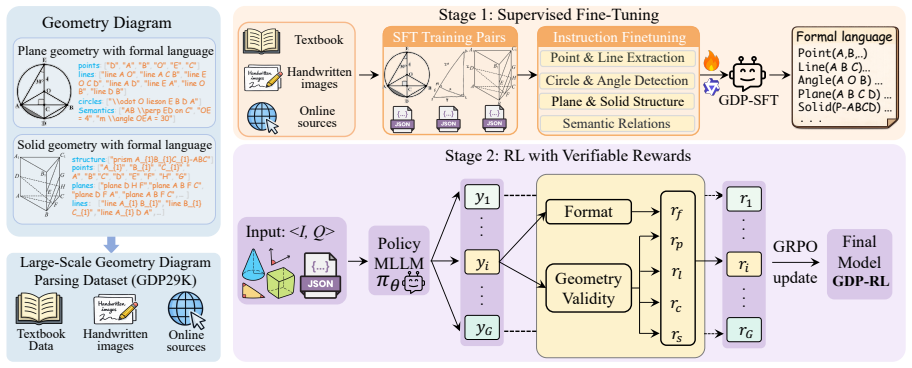

Figure 3. Figure 3: Overview of our geometry diagram parsing framework. We first construct SFT training pairs from [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

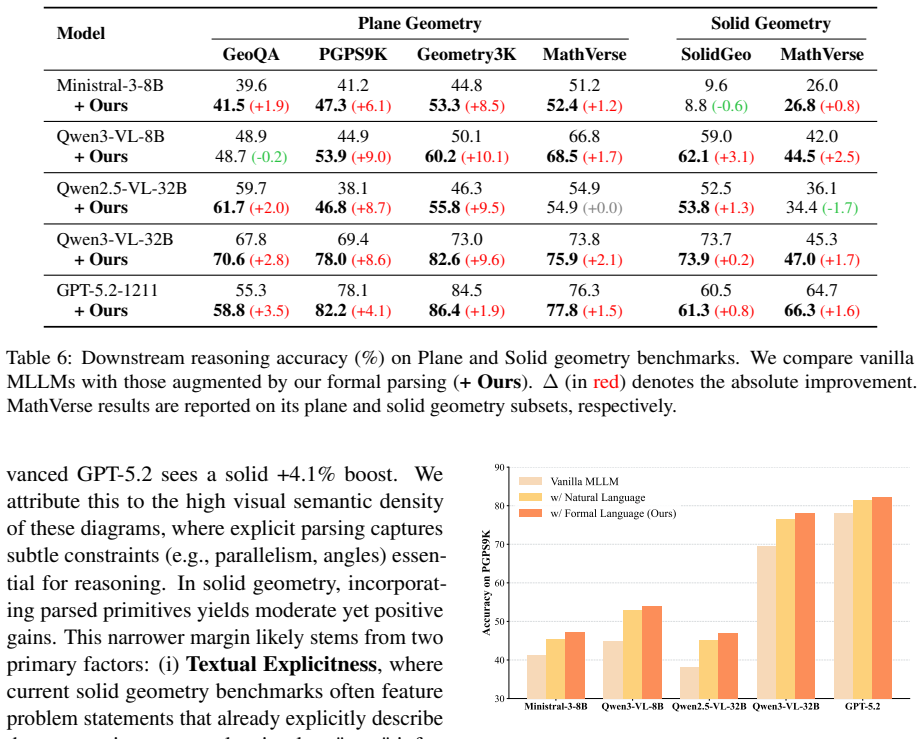

Figure 4. Figure 4: Effect of Representation Forms on PGPS9K [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

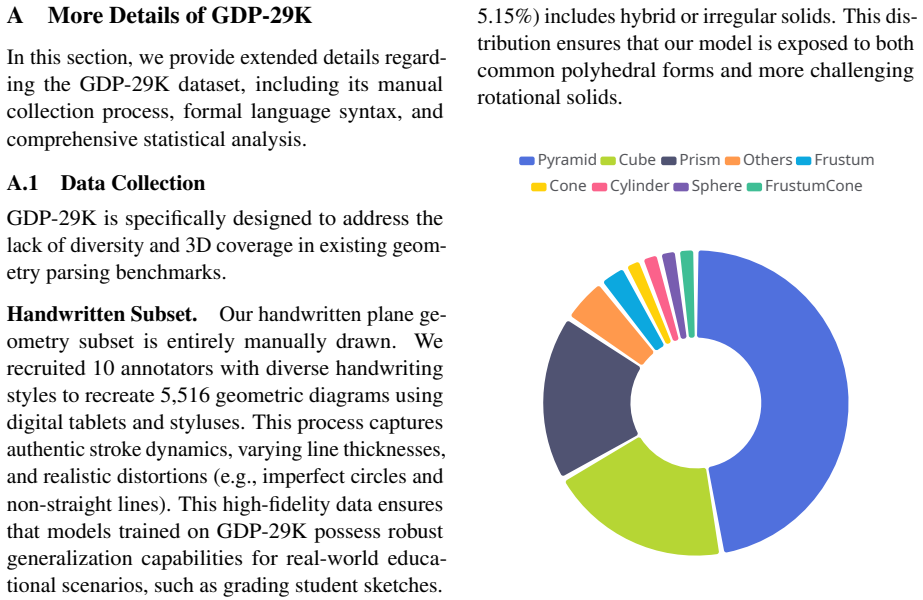

Figure 5. Figure 5: Distribution of 3D structures in the SGDP [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6

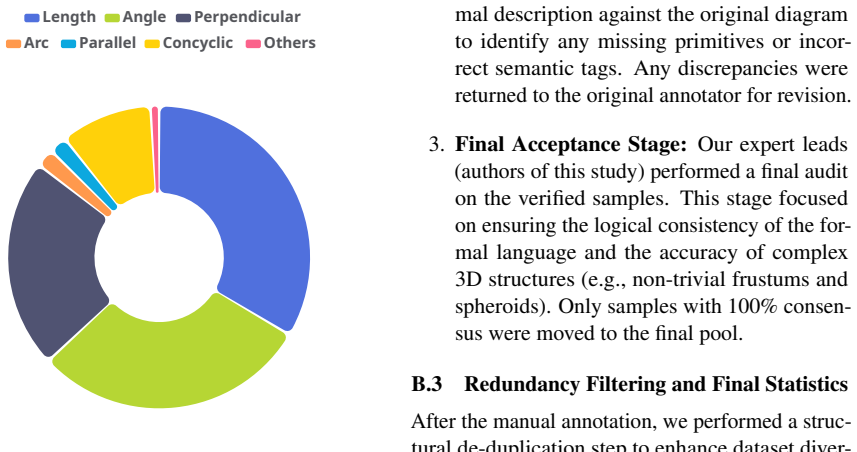

Figure 6. Figure 6: Distribution of semantic predicates across [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Prompts for geometric structural analysis. [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Prompts for 3D geometric structural analysis. [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Prompts for solid geometric plane extraction. [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Representative plane geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Representative plane geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14

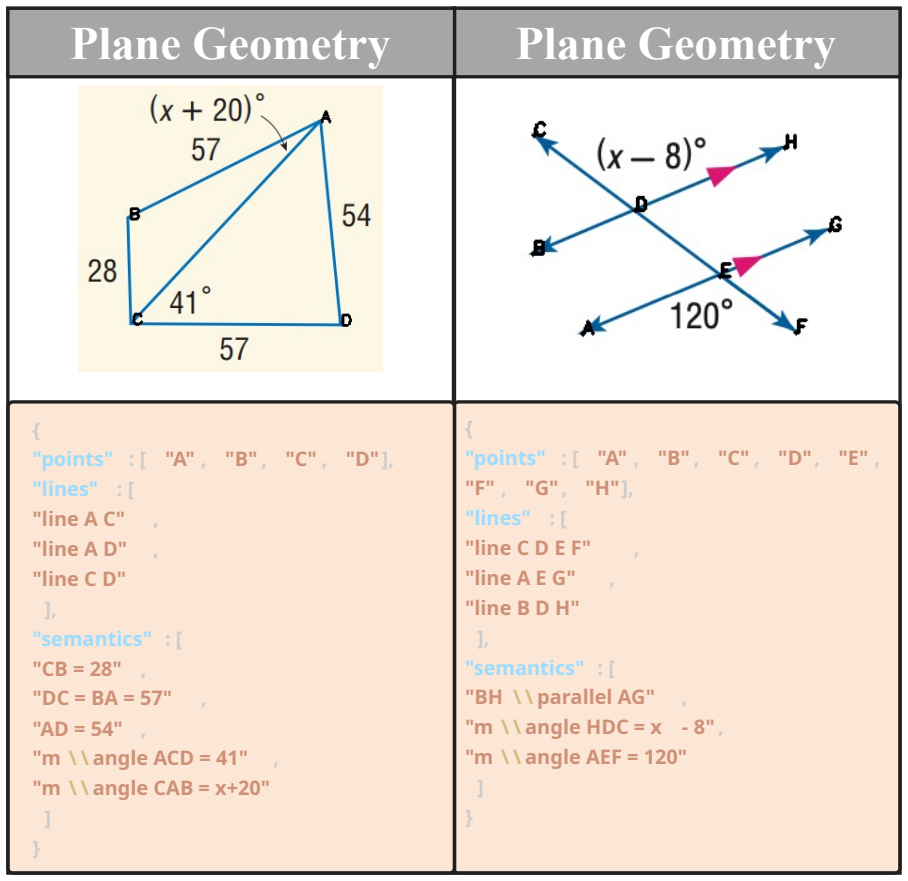

Figure 14. Figure 14: Representative plane geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p021_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Representative solid geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p022_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Representative solid geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p023_16.png] view at source ↗
Figure 17

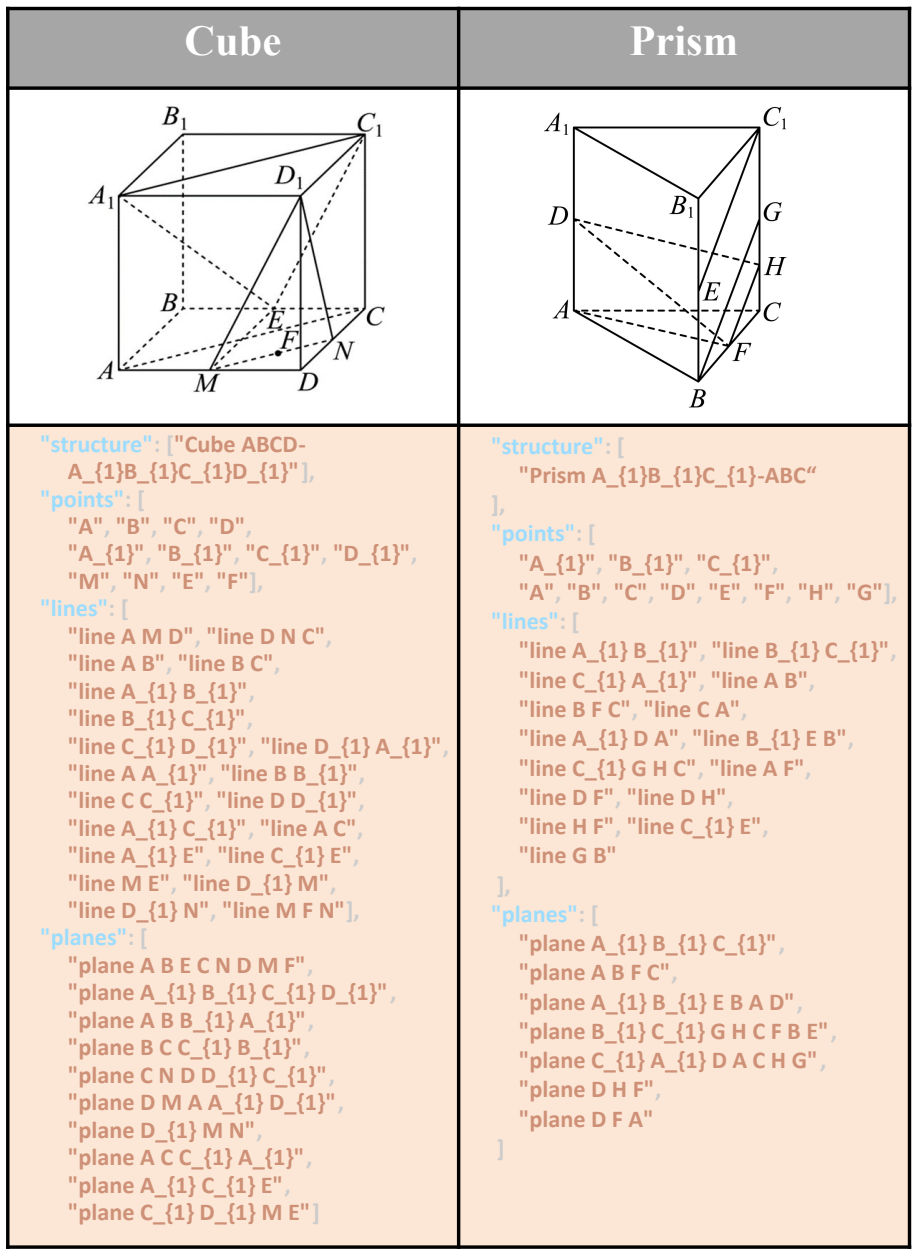

Figure 17. Figure 17: Representative solid geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p024_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Representative solid geometry samples from the GDP-29K dataset. [PITH_FULL_IMAGE:figures/full_fig_p025_18.png] view at source ↗
Figure 19

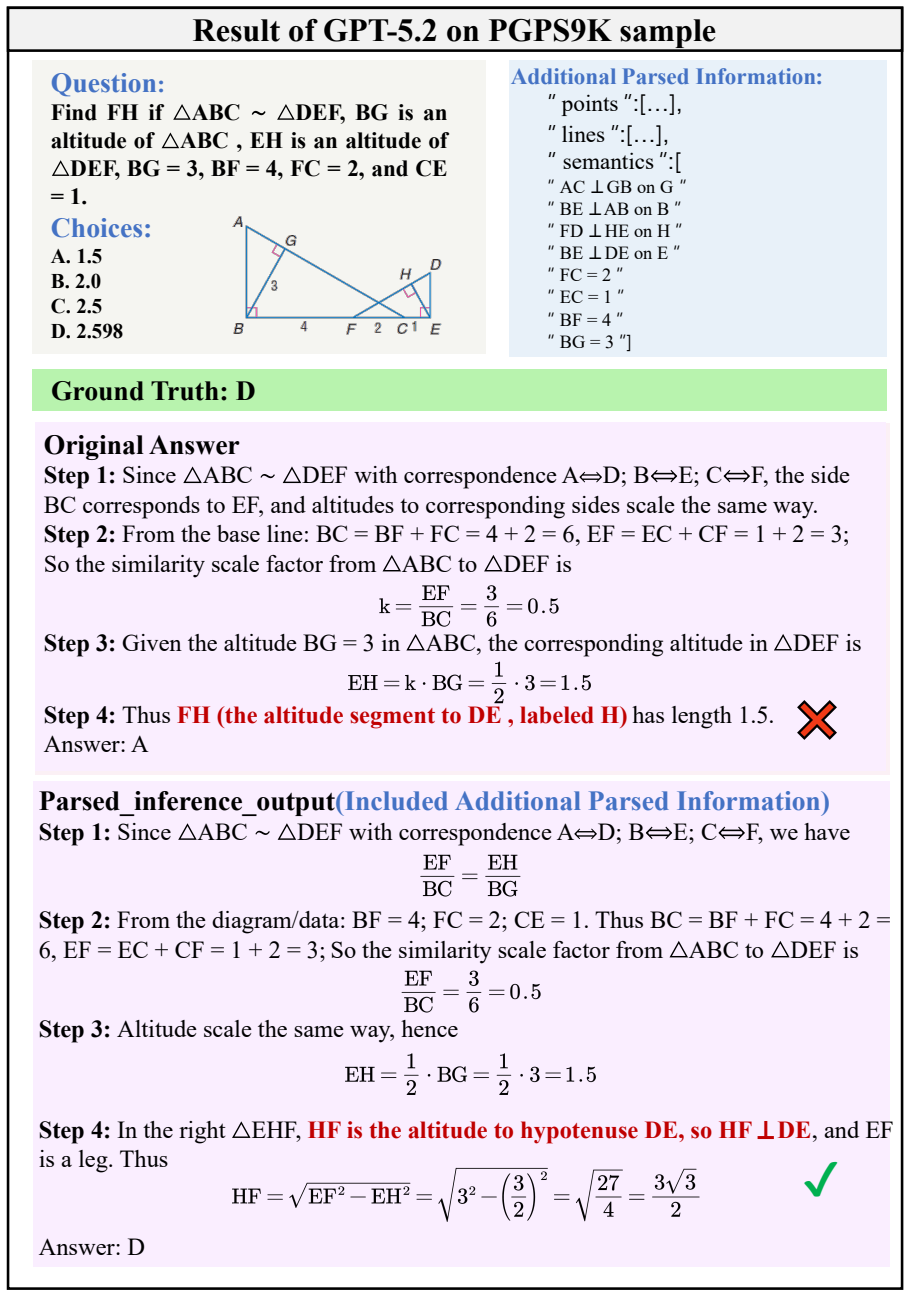

Figure 19. Figure 19: Qualitative comparison between Direct Inference and our method (+ Ours) on PGPS9K. Our formal [PITH_FULL_IMAGE:figures/full_fig_p026_19.png] view at source ↗
