An XMM-Newton Analysis of the Supermassive Black Hole Binary Candidate MCG+11--11--032

Yash A. Gursahani , Tingting Liu , Richard Mushotzky , Christopher S. Reynolds , Michael Koss This is my paper

Pith reviewed 2026-05-10 16:24 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords MCG+11-11-032supermassive black hole binariesX-ray spectraFe K alphaSeyfert galaxiesactive galactic nuclei
0
0 comments X

The pith

XMM-Newton spectra of MCG+11--11--032 show no double Fe Kα lines, undermining the supermassive black hole binary candidate.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines X-ray data from two XMM-Newton observations of the Seyfert 2 galaxy MCG+11--11--032 to test whether it hosts a pair of supermassive black holes. Earlier Swift data had suggested two iron emission lines that could arise from mini-disks around each black hole, but the new spectra fitted with the same models show only single lines or no such split. The measured spectral parameters match those from previous Chandra and Swift observations and fall within the range seen in ordinary single active galactic nuclei. This result indicates that the binary interpretation lacks support from the current X-ray evidence.

Core claim

The central claim is that the two epochs of XMM-Newton/EPIC spectra do not exhibit the double iron Kα lines at 6.16 keV and 6.56 keV reported in stacked Swift data. Fitting the spectra yields a photon index Γ ≈ 1.5 and absorbing column NH ≈ 1.7 × 10^23 cm^{-2}, consistent with prior single-AGN models and with the broader population of Seyfert 2 galaxies.

What carries the argument

The key mechanism is the search for a double-peaked Fe Kα line profile in the 5-8 keV band using spectral fitting models previously applied to Swift and Chandra data.

If this is right

  • The source properties align with those of typical single Seyfert 2 galaxies.
  • No confirmation of the binary system is found in these observations spaced six months apart.
  • The spectral parameters remain stable across multiple missions and epochs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Further monitoring at higher sensitivity could test if any line features are transient or below detection threshold.
  • This case illustrates how candidate binary AGNs require multi-epoch, multi-instrument verification before acceptance.
  • Non-detection here suggests that hydrodynamical predictions for line splitting may need refinement or that the binary separation differs from model assumptions.

Load-bearing premise

The hydrodynamical models for binary black holes accurately predict the presence and detectability of two distinct Fe Kα lines in the X-ray spectrum at the observed energies.

What would settle it

A higher signal-to-noise X-ray spectrum that either clearly resolves two lines at approximately 6.16 and 6.56 keV or demonstrates their absence at levels predicted by the binary models would confirm or refute the finding.

Figures

Figures reproduced from arXiv: 2604.11874 by Christopher S. Reynolds, Michael Koss, Richard Mushotzky, Tingting Liu, Yash A. Gursahani.

Figure 1
Figure 1. Figure 1: Rest-frame spectrum and data-to-model ratios from the first epoch of XMM /EPIC observations. We reproduce the models from P. Severgnini et al. (2018) and A. Foord et al. (2025), fitting them to the data. The main panel shows the spectrum and the best-fit model, S3, indicated with the dashed line. The panels below this show the ratio of the data to each model from the previous two papers, with the dashed li… view at source ↗
Figure 2
Figure 2. Figure 2: Same as [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

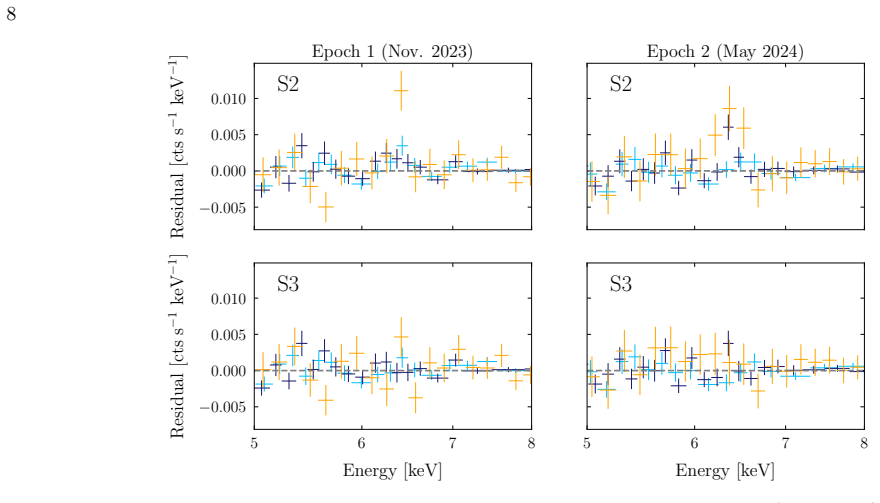

Figure 3. Figure 3: 5-8 keV residuals between models S2 and S3 for the first epoch in November 2023 (left column) and second epoch in May 2024 (right column). As in Figures 1 and 2, we show data from MOS1 (light blue), MOS2 (dark blue), and the pn (orange). Note the difference in residuals between the models at 6.4 keV, indicating the addition of a Gaussian Fe Kα emission line in model S3. (1) Model (2) (3) (4) (5) (6) (7) (8… view at source ↗
Figure 4

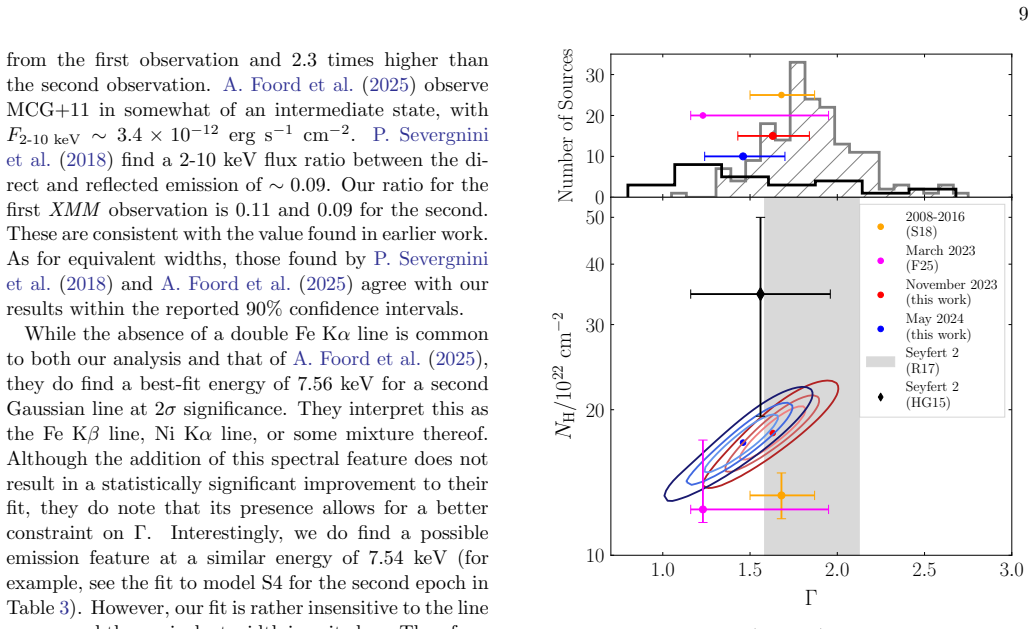

Figure 4. Figure 4: Top: In gray (hatched), we show a histogram of a sample of 179 Seyfert 2 photon indices, using the catalog from BASS DR1 (M. Koss et al. 2017) cross-matched with X-ray results presented in C. Ricci et al. 2017 (R17). In black, we plot a similar histogram for the 26 Seyfert 2 AGN in L. Hern´andez-Garc´ıa et al. 2015 (HG15). Over-plotted on the histograms are the values for MCG+11 obtained in this work, by P… view at source ↗

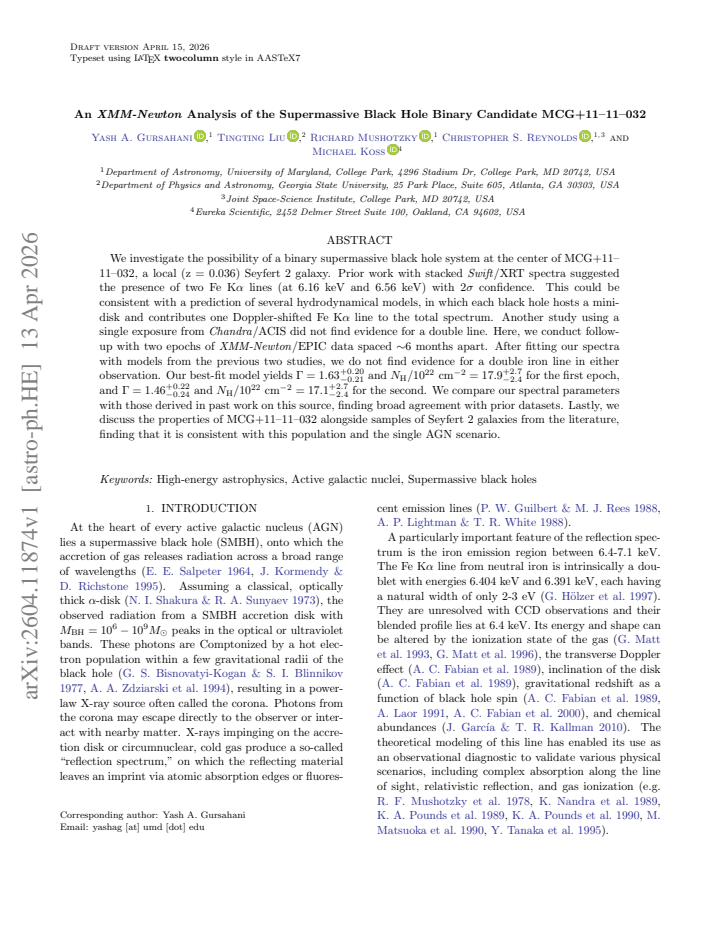

read the original abstract

We investigate the possibility of a binary supermassive black hole system at the center of MCG+11--11--032, a local (z = 0.036) Seyfert 2 galaxy. Prior work with stacked Swift/XRT spectra suggested the presence of two Fe K$\alpha$ lines (at 6.16 keV and 6.56 keV) with 2$\sigma$ confidence. This could be consistent with a prediction of several hydrodynamical models, in which each black hole hosts a mini-disk and contributes one Doppler-shifted Fe K$\alpha$ line to the total spectrum. Another study using a single exposure from Chandra/ACIS did not find evidence for a double line. Here, we conduct follow-up with two epochs of XMM-Newton/EPIC data spaced $\sim$6 months apart. After fitting our spectra with models from the previous two studies, we do not find evidence for a double iron line in either observation. Our best-fit model yields $\Gamma = 1.63^{+0.20}_{-0.21}$ and $N_\text{H}/10^{22} \text{ cm}^{-2} = 17.9^{+2.7}_{-2.4}$ for the first epoch, and $\Gamma = 1.46^{+0.22}_{-0.24}$ and $N_\text{H}/10^{22} \text{ cm}^{-2} = 17.1^{+2.7}_{-2.4}$ for the second. We compare our spectral parameters with those derived in past work on this source, finding broad agreement with prior datasets. Lastly, we discuss the properties of MCG+11--11--032 alongside samples of Seyfert 2 galaxies from the literature, finding that it is consistent with this population and the single AGN scenario.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript analyzes two epochs of XMM-Newton/EPIC observations of the Seyfert 2 galaxy MCG+11-11-032, a candidate supermassive black hole binary. By fitting the spectra with single and double Fe Kα line models from prior Swift and Chandra studies, the authors report no evidence for the double line at 6.16 and 6.56 keV in either observation. They provide best-fit values for the photon index Γ and hydrogen column density NH for both epochs, compare them to previous results, and place the source in the context of other Seyfert 2 galaxies, concluding consistency with the single AGN scenario.

Significance. If the non-detection is shown to be robust via explicit sensitivity metrics, the result would strengthen the single-AGN interpretation for this source and provide a useful benchmark for X-ray searches of binary-induced Fe Kα shifts. The multi-epoch coverage and direct parameter comparison to the literature sample are positive features that help contextualize the source within the broader Seyfert 2 population.

major comments (2)
  1. [Spectral Analysis] Spectral Analysis section: The central claim of no evidence for a double iron line after fitting prior models is not supported by 90% upper limits on the normalization or equivalent width of a second narrow Gaussian at the predicted energies (6.16 keV and 6.56 keV). Without these limits or equivalent-width constraints, the data's sensitivity to the line fluxes expected from hydrodynamical binary models remains unquantified, which is load-bearing for rejecting the binary scenario.
  2. [Results and Discussion] Results and Discussion sections: No injection-recovery tests, simulated spectra, or minimum-detectable-line-strength calculations are presented to demonstrate that the EPIC exposure, background, and ~6 keV resolution would have revealed the double-line signature if present at the strength suggested by the Swift stacked analysis. This omission weakens the non-detection assertion relative to the hydrodynamical model predictions.
minor comments (2)
  1. [Abstract] Abstract: The summary of the non-detection would be strengthened by briefly noting the background subtraction approach, the line-search method, and any upper limits derived, rather than stating only the best-fit Γ and NH values.
  2. The manuscript should clarify whether the reported NH and Γ uncertainties are purely statistical or include any systematic contributions from model choice or background treatment.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments, which identify clear opportunities to strengthen the quantitative basis for our non-detection of the double Fe Kα line. We address each major comment below and will revise the manuscript to incorporate the suggested analyses.

read point-by-point responses

  1. Referee: [Spectral Analysis] Spectral Analysis section: The central claim of no evidence for a double iron line after fitting prior models is not supported by 90% upper limits on the normalization or equivalent width of a second narrow Gaussian at the predicted energies (6.16 keV and 6.56 keV). Without these limits or equivalent-width constraints, the data's sensitivity to the line fluxes expected from hydrodynamical binary models remains unquantified, which is load-bearing for rejecting the binary scenario.

    Authors: We agree that explicit 90% upper limits on the normalizations and equivalent widths of additional narrow Gaussian components fixed at 6.16 keV and 6.56 keV would better quantify the sensitivity of the XMM-Newton data. In the revised manuscript we will derive and report these limits for both epochs from the spectral fits, allowing direct comparison with the line strengths in the Swift stacked analysis and the expectations from hydrodynamical binary models. revision: yes

  2. Referee: [Results and Discussion] Results and Discussion sections: No injection-recovery tests, simulated spectra, or minimum-detectable-line-strength calculations are presented to demonstrate that the EPIC exposure, background, and ~6 keV resolution would have revealed the double-line signature if present at the strength suggested by the Swift stacked analysis. This omission weakens the non-detection assertion relative to the hydrodynamical model predictions.

    Authors: We acknowledge the value of injection-recovery or minimum-detectable-line-strength calculations for rigorously demonstrating that the EPIC data would have detected the predicted double-line signature. While the direct spectral fits already show no statistical improvement when the second line is added and the normalizations are consistent with zero, we will add a quantitative estimate of the minimum detectable equivalent width based on the observed background, exposure, and EPIC resolution in the revised Results section. If feasible within the manuscript length, we will also include a brief injection-recovery test using simulated spectra matched to the observed count rates. revision: yes

Circularity Check

0 steps flagged

No circularity: direct observational fitting to independent prior models

full rationale

The manuscript reports new XMM-Newton/EPIC spectral fits to models taken from two earlier independent studies (Swift/XRT and Chandra/ACIS). The central result—no evidence for the predicted 6.16/6.56 keV double Fe Kα line—follows directly from the goodness-of-fit statistics on the new data without any re-derivation, parameter renaming, or self-referential prediction. No equations or steps reduce to fitted inputs by construction, and any citations to prior work are external rather than load-bearing self-citations. The analysis is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central non-detection claim rests on standard X-ray spectral modeling assumptions and the interpretive link between line absence and single AGN; no new entities are postulated.

free parameters (2)
  • Photon index Gamma
    Fitted power-law slope for each epoch's continuum
  • Hydrogen column density NH
    Fitted absorbing column for each epoch
axioms (2)
  • domain assumption Models from prior Swift and Chandra studies are appropriate for fitting the XMM-Newton spectra
    Explicitly used to test for the double line feature
  • domain assumption Absence of detectable double line rules out the binary scenario
    Underpins the final conclusion of consistency with single AGN
