arxiv: 2604.12050 · v1 · submitted 2026-04-13 · 🪐 quant-ph

Bell Nonlocality Test on Two-Mode Squeezed Output Generated in Double-Cavity Optomechanical

Souvik Agasti This is my paper

Pith reviewed 2026-05-10 15:27 UTC · model grok-4.3

classification 🪐 quant-ph
keywords optomechanicsBell inequalityCHSH violationtwo-mode squeezingreservoir engineeringquantum nonlocalitycontinuous-variable entanglementGaussian states
0
0 comments X

The pith

In double-cavity optomechanics, two-mode squeezed states violate Bell inequalities even at lower squeezing levels when state mixedness is higher.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines a double-cavity optomechanical system where two optical modes couple to a shared mechanical resonator to produce a two-mode squeezed output through reservoir engineering. The authors compute the steady-state covariance matrix and test it against the CHSH Bell inequality to check for nonlocal correlations. They find that the strongest squeezing does not automatically produce the largest violations; instead, nonlocal behavior appears in states with moderate squeezing but greater mixedness. Varying the cavity finesse shows that the range of parameters allowing CHSH violation can expand even while the squeezing region contracts. The results indicate that mixedness is the decisive factor linking squeezing to nonlocality in these continuous-variable Gaussian states.

Core claim

The central claim is that maximal squeezing does not necessarily imply nonlocality in the two-mode squeezed output generated by reservoir engineering in the double-cavity optomechanical system. Nonlocal correlations, witnessed by CHSH inequality violation, can emerge in states with lower squeezing. Across different cavity finesse values, the parameter region supporting nonlocality broadens even as the squeezing region shrinks, with the mixedness of the state playing the crucial role in determining the relationship between squeezing and nonlocality.

What carries the argument

The steady-state covariance matrix of the Gaussian two-mode squeezed output, derived from the linearized optomechanical Hamiltonian under reservoir engineering, which is used to evaluate the CHSH Bell correlator.

Load-bearing premise

The reservoir-engineering scheme produces a valid steady-state covariance matrix that accurately describes the quantum state without significant effects from unmodeled nonlinearities or thermal noise outside the included baths.

What would settle it

An experiment that measures the CHSH correlator on the output light fields for several values of mechanical damping and cavity finesse, checking whether violation persists or increases at squeezing levels below the maximum.

Figures

Figures reproduced from arXiv: 2604.12050 by Souvik Agasti.

Figure 1
Figure 1. Figure 1: FIG. 1. Block diagram of (a) an optomechanical system where two [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

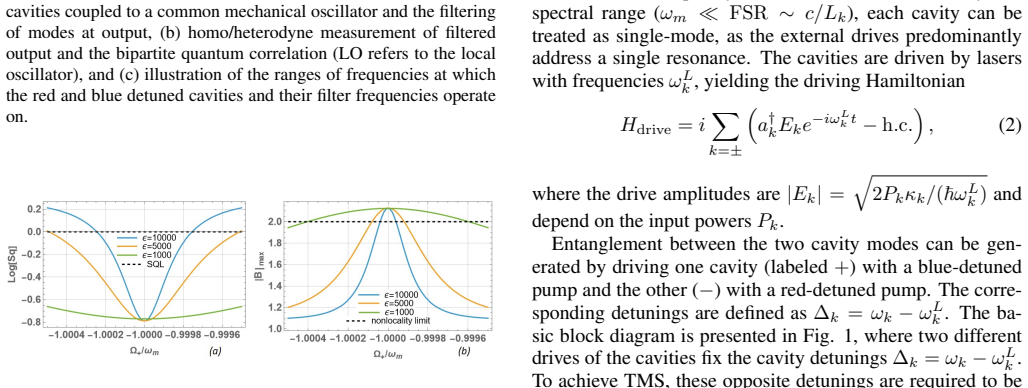

Figure 2. Figure 2: FIG. 2. (a) TMS and (b) maximal value of Bell function vs [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

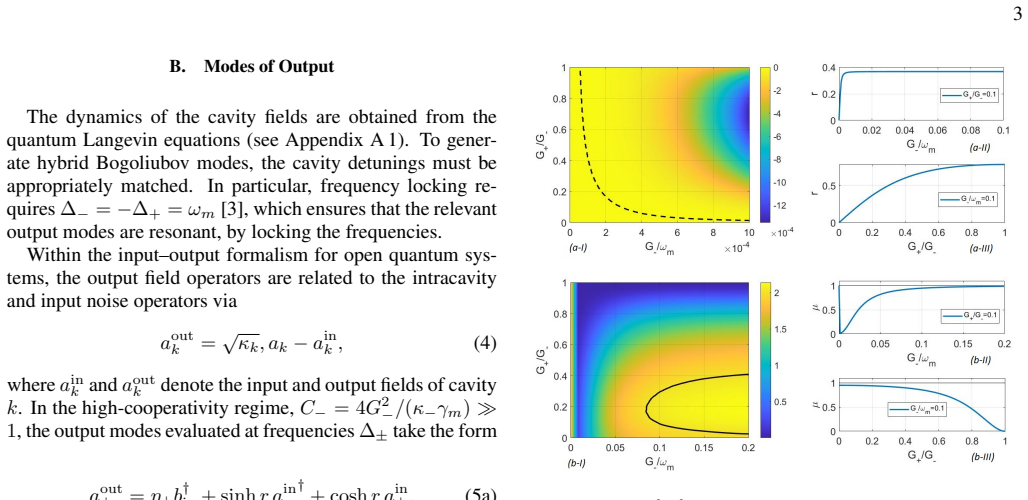

Figure 3. Figure 3: FIG. 3. (a-I) [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) SQL ( [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (a) SQL ( [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Stability of the system for [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

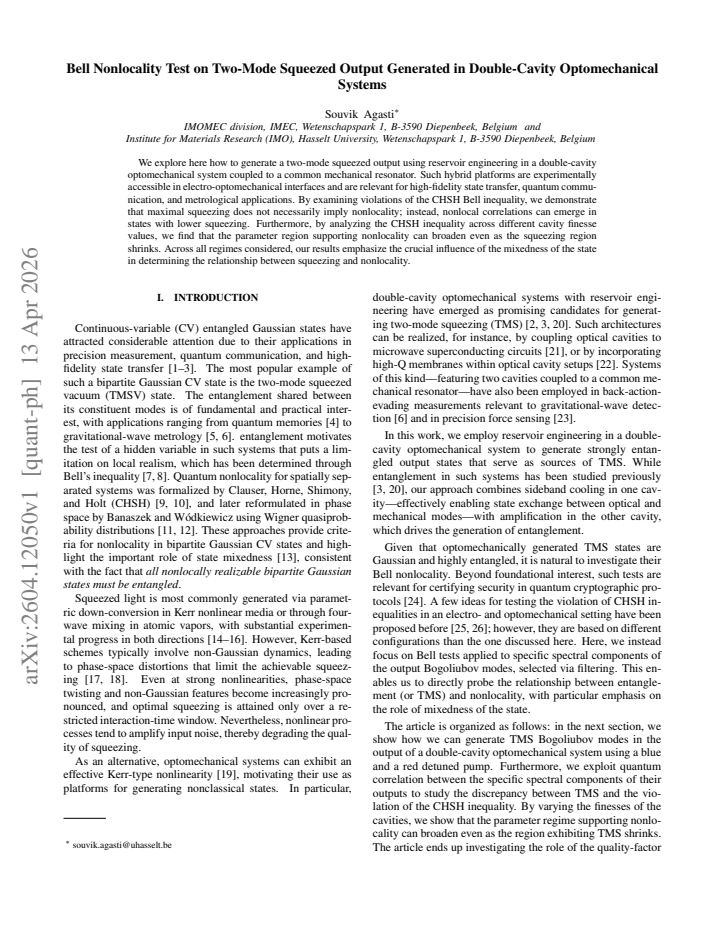

read the original abstract

We explore here how to generate a two-mode squeezed output using reservoir engineering in a double-cavity optomechanical system coupled to a common mechanical resonator. Such hybrid platforms are experimentally accessible in electro-optomechanical interfaces and are relevant for high-fidelity state transfer, quantum communication, and metrological applications. By examining violations of the CHSH Bell inequality, we demonstrate that maximal squeezing does not necessarily imply nonlocality; instead, nonlocal correlations can emerge in states with lower squeezing. Furthermore, by analyzing the CHSH inequality across different cavity finesse values, we find that the parameter region supporting nonlocality can broaden even as the squeezing region shrinks. Across all regimes considered, our results emphasize the crucial influence of the mixedness of the state in determining the relationship between squeezing and nonlocality.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript explores the generation of a two-mode squeezed output in a double-cavity optomechanical system coupled to a common mechanical resonator via reservoir engineering. It derives the steady-state covariance matrix from linearized Langevin equations and uses it to evaluate CHSH Bell inequality violations, demonstrating that maximal squeezing does not necessarily imply nonlocality, that nonlocal correlations can appear at lower squeezing levels, and that the nonlocality-supporting parameter region can broaden (while the squeezing region shrinks) as cavity finesse is varied, with state mixedness as the key determining factor.

Significance. If the central results hold, the work is significant for clarifying the conditions under which nonlocality emerges in experimentally accessible optomechanical platforms relevant to quantum communication and metrology. The numerical exploration across finesse values and the emphasis on mixedness rather than squeezing alone provide a useful distinction that could inform experimental parameter choices. The approach relies on standard quantum-optics methods for the covariance matrix, enabling reproducible numerical demonstrations of the squeezing-nonlocality trade-off.

major comments (1)
  1. [Covariance matrix derivation and numerical CHSH analysis] The CHSH correlators and squeezing variances are computed from the steady-state covariance matrix obtained via the linearized Langevin equations (reservoir-engineering scheme). No explicit validation of the linear approximation is reported for the specific operating points plotted (cavity finesse values, coupling strengths, detunings), e.g., via comparison to nonlinear spectra or purity bounds. This assumption is load-bearing for the central claim that the nonlocality region broadens while the squeezing region shrinks.
minor comments (1)
  1. [Abstract] The abstract states that 'the parameter region supporting nonlocality can broaden even as the squeezing region shrinks' but does not indicate the quantitative range of squeezing values or finesse parameters considered, which would aid assessment of the result's scope.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the importance of validating the linear approximation underlying our covariance matrix and CHSH analysis. We address the major comment below.

read point-by-point responses

  1. Referee: The CHSH correlators and squeezing variances are computed from the steady-state covariance matrix obtained via the linearized Langevin equations (reservoir-engineering scheme). No explicit validation of the linear approximation is reported for the specific operating points plotted (cavity finesse values, coupling strengths, detunings), e.g., via comparison to nonlinear spectra or purity bounds. This assumption is load-bearing for the central claim that the nonlocality region broadens while the squeezing region shrinks.

    Authors: We agree that the manuscript does not provide an explicit check of the linearization validity for the plotted parameters. The linearized Langevin equations are the standard framework for reservoir-engineered optomechanical squeezing in the weak-coupling regime, where mechanical fluctuations remain small relative to the mean displacements. To strengthen the presentation, the revised manuscript will include a new paragraph (or supplementary note) that quantifies this for the reported finesse values and detunings: we will compute the ratio of fluctuation variances to steady-state amplitudes and confirm that the states remain within the linear regime. We will also reference the resulting state purity to corroborate consistency with the linearized model. This addition directly supports the central claims without altering the numerical results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper derives the two-mode squeezed output via reservoir engineering in a double-cavity optomechanical system, linearizes the Langevin equations, obtains the steady-state covariance matrix by solving the Lyapunov equation, and evaluates CHSH correlators from that matrix. No equation or claim reduces to a self-definition, a fitted parameter renamed as prediction, or a load-bearing self-citation. The observation that maximal squeezing need not imply nonlocality follows directly from the computed Gaussian correlations under the model; the parameter-region broadening is likewise a numerical consequence of varying finesse and detunings within the same covariance. The approach uses standard quantum-optics methods without circular reduction.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard quantum-optics assumptions plus a specific reservoir-engineering protocol whose validity is taken as given.

free parameters (2)
  • cavity finesse values
    Varied across regimes to map nonlocality windows; exact numerical values not stated in abstract.
  • coupling strengths and detunings
    Chosen to realize the two-mode squeezing; typical free parameters in optomechanical models.
axioms (2)
  • standard math The system reaches a steady-state Gaussian state whose covariance matrix fully determines the CHSH value.
    Invoked implicitly when CHSH is evaluated from squeezing and mixedness parameters.
  • domain assumption Reservoir engineering produces the desired two-mode squeezing without additional decoherence channels.
    Core modeling choice for the double-cavity platform.

pith-pipeline@v0.9.0 · 5428 in / 1374 out tokens · 25725 ms · 2026-05-10T15:27:07.789055+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

34 extracted references · 34 canonical work pages

  1. [1]

    Equation of Motion The Heisenberg-Langevin equation of motion of the system is given by ˙u=Au+u in (A1) where 6 FIG. 6. Stability of the system forκ + = 2κat left,κ + =κat center andκ + =κ/2at right. Green is the stable region, and the blue region is unstable. All other parameters remain the same with Fig. 2 A=   −γm 0 0G + 0−G − 0−γ m G+ 0G − 0 0G...

    work page

  2. [2]

    Stability of the System The stability of the system can be determined by follow- ing Routh-Hurwitz stability criteria, yielding a nontrivial con- straint which says the real parts of all the eigenvalues of the matrixA, given in Eq. Eq. (A2) must be negative. In Fig. 6, we distinguish the regions where the system can reach a stable state from the region wh...

    work page

  3. [3]

    Filtered Output To determine the output correlation, we need to determine the filtered output quadratures. In the case of TMS output, the filtered quadratures can be determined as X f,out k (r, t) Y f,out k (−r, t) = Z t −∞ dt′ Tk(t−t ′) X out k (r, t) Y out k (−r, t) (A4) whereX out k = (a out k +a out k †)/ √ 2, Y out k =−i(a out k − aout k †)/ √ 2,X f,...

    work page

  4. [4]

    Maximally Optimized Two-Mode Squeezed Quadrature The weighted quadrature is X(ϕ+ϕ−) (µ+µ−) = 1q µ2 + +µ 2 − µ+e−iϕ+ f out + +µ +eiϕ+ f out + † +µ −e−iϕ− f out − +µ −eiϕ− f out − † (B1) 7 whereµ +, µ− ≥0are the weight parameters intro- duced as the scaling of two systems, andϕ +, ϕ− are the arbitrary phase angles of the filtered composite quadrature. The h...

    work page

  5. [5]

    In this pro- cess, one has to transform the correlation matrixV f,out given in Eq

    nonlocality-Maximized Bell’s function The generalized condition for CHSH nonlocality for a CV bipartite Gaussian system is done using the Banaszek- Wodkiewicz phase-space Wigner representation. In this pro- cess, one has to transform the correlation matrixV f,out given in Eq. (A8) to a standard form using a local linear unitary Bogoliubov operator, and af...

    work page

  6. [6]

    S. L. Braunstein and H. J. Kimble, Phys. Rev. Lett.80, 869 (1998)

    work page 1998

  7. [7]

    Wang and A

    Y .-D. Wang and A. A. Clerk, Phys. Rev. Lett.108, 153603 (2012)

    work page 2012

  8. [8]

    Barzanjeh, M

    S. Barzanjeh, M. Abdi, G. J. Milburn, P. Tombesi, and D. Vitali, Phys. Rev. Lett.109, 130503 (2012)

    work page 2012

  9. [9]

    Jensen, W

    K. Jensen, W. Wasilewski, H. Krauter, T. Fernholz, B. M. Nielsen, M. Owari, M. B. Plenio, A. Serafini, M. M. Wolf, and E. S. Polzik, Nature Physics7, 13 (2011)

    work page 2011

  10. [10]

    F. Y . Khalili and E. S. Polzik, Phys. Rev. Lett.121, 031101 (2018)

    work page 2018

  11. [11]

    Agasti, A

    S. Agasti, A. Shukla, and M. Nesladek, Classical and Quantum Gravity42, 065021 (2025)

    work page 2025

  12. [12]

    Agasti, Entanglement, squeezing and non-locality in filtered two-mode squeezed mixed states (2024), arXiv:2406.09134 [quant-ph]

    S. Agasti, Entanglement, squeezing and non-locality in filtered two-mode squeezed mixed states (2024), arXiv:2406.09134 [quant-ph]

    work page arXiv 2024

  13. [13]

    Agasti, Opt

    S. Agasti, Opt. Express33, 18709 (2025)

    work page 2025

  14. [14]

    J. F. Clauser, M. A. Horne, A. Shimony, and R. A. Holt, Phys. 8 Rev. Lett.23, 880 (1969)

    work page 1969

  15. [15]

    J. F. Clauser and M. A. Horne, Phys. Rev. D10, 526 (1974)

    work page 1974

  16. [16]

    Banaszek and K

    K. Banaszek and K. W ´odkiewicz, Phys. Rev. A58, 4345 (1998)

    work page 1998

  17. [17]

    Banaszek and K

    K. Banaszek and K. W ´odkiewicz, Phys. Rev. Lett.82, 2009 (1999)

    work page 2009

  18. [18]

    Agasti, All non-locally realized continuous variable bipartite gaussian states are entangled (2025), arXiv:2507.21264 [quant- ph]

    S. Agasti, All non-locally realized continuous variable bipartite gaussian states are entangled (2025), arXiv:2507.21264 [quant- ph]

    work page arXiv 2025

  19. [19]

    Vahlbruch, M

    H. Vahlbruch, M. Mehmet, S. Chelkowski, B. Hage, A. Franzen, N. Lastzka, S. Goßler, K. Danzmann, and R. Schn- abel, Phys. Rev. Lett.100, 033602 (2008)

    work page 2008

  20. [20]

    Wasilewski, T

    W. Wasilewski, T. Fernholz, K. Jensen, L. S. Madsen, H. Krauter, C. Muschik, and E. S. Polzik, Opt. Express17, 14444 (2009)

    work page 2009

  21. [21]

    T. N. Arge, S. Jo, H. Q. Nguyen, F. Lenzini, E. Lomonte, J. A. H. Nielsen, R. R. Domeneguetti, J. S. Neergaard-Nielsen, W. Pernice, T. Gehring, and U. L. Andersen, Optica Quantum 3, 467 (2025)

    work page 2025

  22. [22]

    Agasti, Physica Scripta98, 115103 (2023)

    S. Agasti, Physica Scripta98, 115103 (2023)

    work page 2023

  23. [23]

    Agasti, J

    S. Agasti, J. Opt. Soc. Am. B41, 1197 (2024)

    work page 2024

  24. [24]

    Aldana, C

    S. Aldana, C. Bruder, and A. Nunnenkamp, Phys. Rev. A88, 043826 (2013)

    work page 2013

  25. [25]

    Wang and A

    Y .-D. Wang and A. A. Clerk, Phys. Rev. Lett.110, 253601 (2013)

    work page 2013

  26. [26]

    J. D. Teufel, D. Li, M. S. Allman, K. Cicak, A. J. Sirois, J. D. Whittaker, and R. W. Simmonds, Nature471, 204 (2011)

    work page 2011

  27. [27]

    J. D. Thompson, B. M. Zwickl, A. M. Jayich, F. Marquardt, S. M. Girvin, and J. G. E. Harris, Nature452, 72 (2008)

    work page 2008

  28. [28]

    Ghosh, M

    S. Ghosh, M. A. Feldman, S. Hong, C. E. Marvinney, A. M. Marino, R. C. Pooser, and J. M. Taylor, Phys. Rev. A111, 062623 (2025)

    work page 2025

  29. [29]

    Ac ´ın, N

    A. Ac ´ın, N. Brunner, N. Gisin, S. Massar, S. Pironio, and V . Scarani, Phys. Rev. Lett.98, 230501 (2007)

    work page 2007

  30. [30]

    S. G. Hofer, K. W. Lehnert, and K. Hammerer, Phys. Rev. Lett. 116, 070406 (2016)

    work page 2016

  31. [31]

    V . C. Vivoli, T. Barnea, C. Galland, and N. Sangouard, Phys. Rev. Lett.116, 070405 (2016)

    work page 2016

  32. [32]

    L.-M. Duan, G. Giedke, J. I. Cirac, and P. Zoller, Phys. Rev. Lett.84, 2722 (2000)

    work page 2000

  33. [33]

    Zippilli, G

    S. Zippilli, G. D. Giuseppe, and D. Vitali, New Journal of Physics17, 043025 (2015)

    work page 2015

  34. [34]

    Simon, Phys

    R. Simon, Phys. Rev. Lett.84, 2726 (2000)

    work page 2000
