arxiv: 2604.12098 · v1 · submitted 2026-04-13 · ❄️ cond-mat.soft

Preserving elastic anisotropy with tessellations of granular packings

Annie Z. Xia , Dong Wang , Catherine La Riviere , Rebecca Kramer-Bottiglio , Mark D. Shattuck , Corey S. O'Hern This is my paper

Pith reviewed 2026-05-10 14:50 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords elastic anisotropygranular packingstessellationsmetamaterialsjammed materialsanisotropic elasticityvoxel configurations
0
0 comments X

The pith

Tessellated granular packings inherit the high elastic anisotropy of their voxels, reaching levels 100 times higher than in crystals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that bulk granular packings can start with strong elastic anisotropy but lose it as grains rearrange with increasing pressure or number. By dividing the material into connected voxels and forming homogeneous tessellations, the systems retain the anisotropy of the individual voxel configurations. The authors define two rotationally invariant measures, A_G and A_C, to track shear and compression anisotropy separately. This matters because it provides a practical route to metamaterials whose stiffness varies sharply with direction, exceeding what atomic crystals allow while still using disordered grains.

Core claim

Homogeneously tessellated granular systems can inherit the elastic response of the constituent voxel configurations with elastic anisotropy up to 100 times that of crystalline compounds over a range of pN². Bulk packings with N grains at pressure p reach maximum anisotropy near pN² ~ 1 and become isotropic at large pN², but the tessellations prevent this loss by limiting rearrangements.

What carries the argument

Tessellations of multiple connected grain-filled voxels that constrain grain rearrangements and allow the bulk response to match the anisotropy of the isolated voxel packings.

Load-bearing premise

The connections between voxels are strong enough to stop grains from rearranging freely and to prevent new boundary effects or inter-voxel interactions from erasing the inherited anisotropy.

What would settle it

A simulation or experiment on a large tessellated sample in which the measured A_G and A_C drop to the low values typical of bulk packings or crystals rather than staying close to the high values of the separate voxels.

Figures

Figures reproduced from arXiv: 2604.12098 by Annie Z. Xia, Catherine La Riviere, Corey S. O'Hern, Dong Wang, Mark D. Shattuck, Rebecca Kramer-Bottiglio.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Types of fixed boundary conditions (FIX) for [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

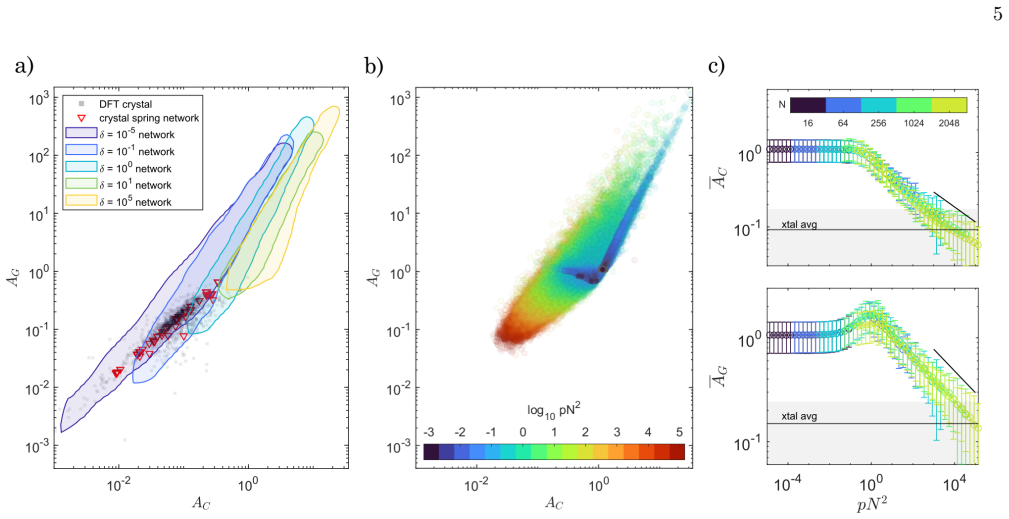

Figure 2. Figure 2: FIG. 2. (a) Shear anisotropy [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

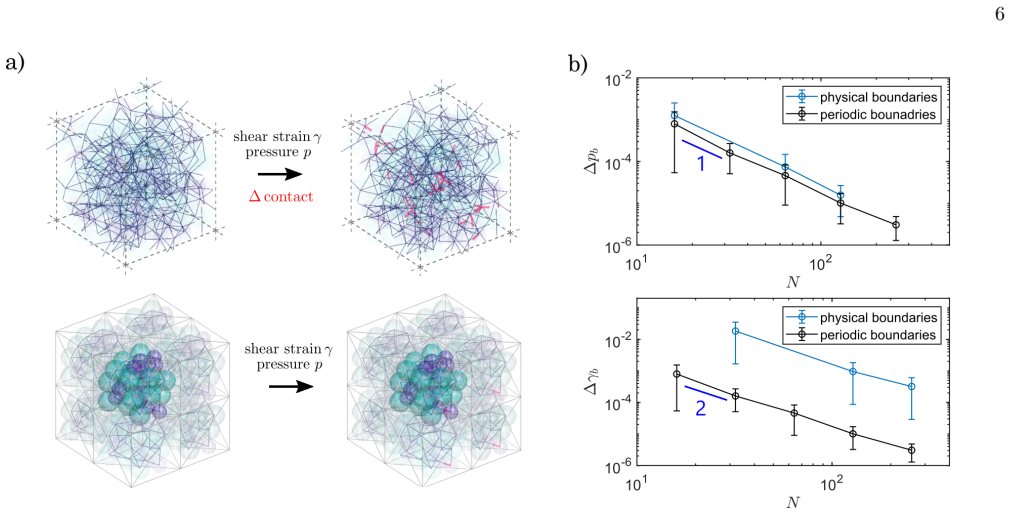

Figure 3. Figure 3: FIG. 3. (a) (Top) Granular packing with [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

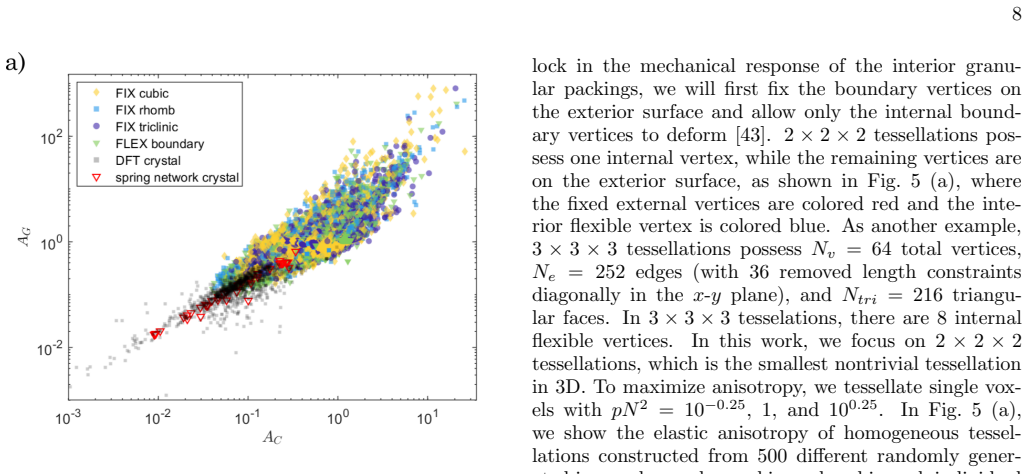

Figure 4. Figure 4: FIG. 4. Shear anisotropy [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

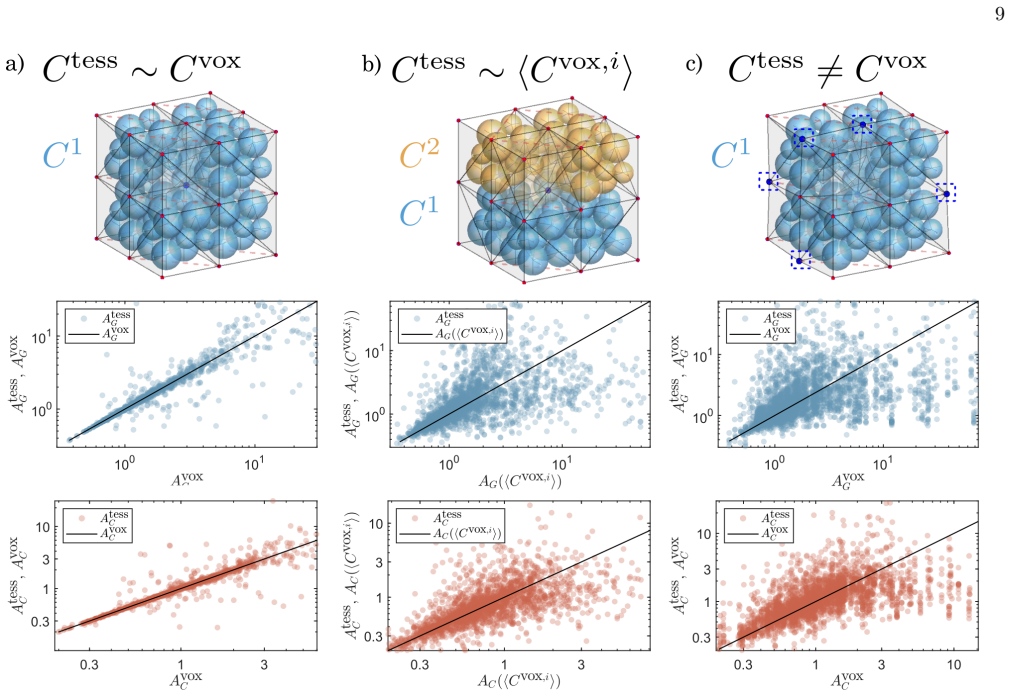

Figure 5. Figure 5: FIG. 5. (a) (Top) 2 [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. (a) The shear anisotropy [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7

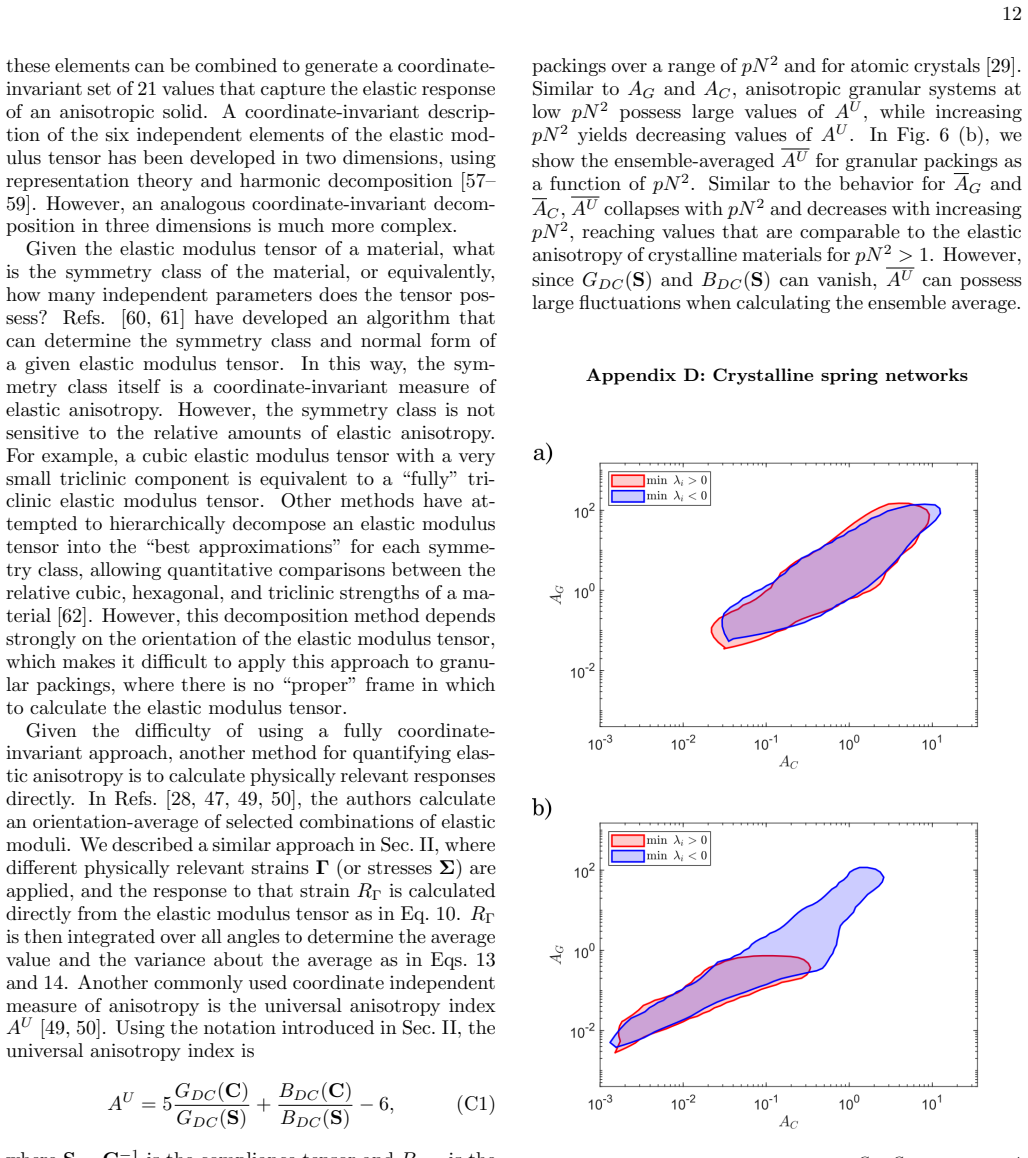

Figure 7. Figure 7: FIG. 7. (a) Probability distribution [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

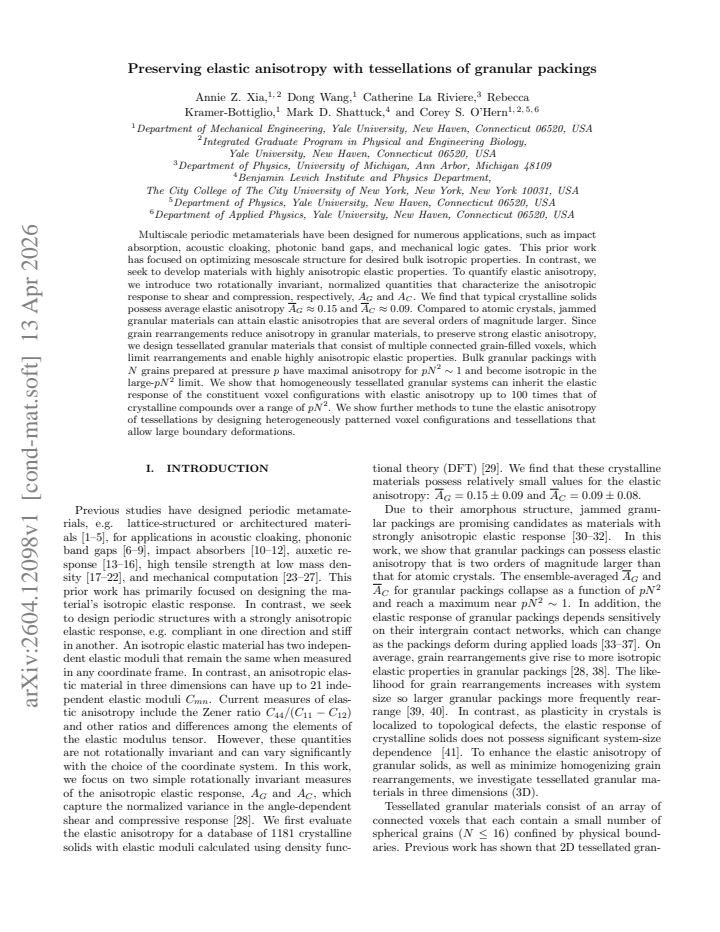

read the original abstract

Multiscale periodic metamaterials have been designed for numerous applications, such as impact absorption, acoustic cloaking, photonic band gaps, and mechanical logic gates. This prior work has focused on optimizing mesoscale structure for desired bulk isotropic properties. In contrast, we seek to develop materials with highly anisotropic elastic properties. To quantify elastic anisotropy, we introduce two rotationally invariant, normalized quantities that characterize the anisotropic response to shear and compression, respectively, $A_G$ and $A_C$. We find that typical crystalline solids possess average elastic anisotropy $\overline{A}_G \approx 0.15$ and $\overline{A}_C \approx 0.09$. Compared to atomic crystals, jammed granular materials can attain elastic anisotropies that are several orders of magnitude larger. Since grain rearrangements reduce anisotropy in granular materials, to preserve strong elastic anisotropy, we design tessellated granular materials that consist of multiple connected grain-filled voxels, which limit rearrangements and enable highly anisotropic elastic properties. Bulk granular packings with $N$ grains prepared at pressure $p$ have maximal anisotropy for $pN^2\sim1$ and become isotropic in the large-$pN^2$ limit. We show that homogeneously tessellated granular systems can inherit the elastic response of the constituent voxel configurations with elastic anisotropy up to $100$ times that of crystalline compounds over a range of $pN^2$. We show further methods to tune the elastic anisotropy of tessellations by designing heterogeneously patterned voxel configurations and tessellations that allow large boundary deformations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that homogeneously tessellated granular packings can inherit the high elastic anisotropy of their constituent grain-filled voxels, achieving values of A_G and A_C up to 100 times larger than those of crystalline solids (where averages are ~0.15 and ~0.09) over a range of pN^2. Bulk packings exhibit maximal anisotropy near pN^2 ~ 1 and isotropize at large pN^2 due to rearrangements; tessellations are proposed to limit such rearrangements while allowing tuning via heterogeneous voxel patterns and boundary deformations.

Significance. If validated, the result offers a practical route to engineering strongly anisotropic granular metamaterials without relying on atomic-scale crystals. The rotationally invariant, normalized measures A_G and A_C are a clear methodological advance for quantifying directional elastic response. The pN^2 scaling and its apparent preservation under tessellation provide concrete insight into the role of grain mobility, with potential relevance to impact-absorbing and logic-gate metamaterials.

major comments (2)
  1. [Results on tessellated systems] The inheritance claim is load-bearing for the 100x anisotropy result, yet the manuscript provides no quantitative comparison of contact networks or force-chain statistics between isolated voxels and their tessellated assemblies (e.g., in the results section discussing bulk response). Without this, it remains possible that inter-voxel grain contacts open additional shear or compression modes that reduce A_G and A_C, especially near pN^2 ~ 1 where maximal anisotropy is reported.
  2. [Abstract and Results] The abstract states that tessellations 'inherit the elastic response' over a range of pN^2, but no explicit bounds on that range, no error estimates on the anisotropy ratios, and no demonstration that boundary-induced softening is negligible appear in the main text or figures. This directly affects the central scaling claim and must be addressed with tabulated data or supplementary plots.
minor comments (2)
  1. [Methods] The explicit definitions and normalization procedures for A_G and A_C should be stated with equations in the main text (rather than deferred), including any assumptions about the stiffness tensor components used in their construction.
  2. [Figures] Figures illustrating tessellation geometries and corresponding anisotropy values would benefit from inclusion of multiple independent realizations with error bars to demonstrate reproducibility of the reported inheritance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review. We address each major comment below and agree that strengthening the evidence for inheritance via contact network comparisons and providing explicit bounds, errors, and boundary checks will improve the manuscript. We will incorporate these revisions.

read point-by-point responses

  1. Referee: [Results on tessellated systems] The inheritance claim is load-bearing for the 100x anisotropy result, yet the manuscript provides no quantitative comparison of contact networks or force-chain statistics between isolated voxels and their tessellated assemblies (e.g., in the results section discussing bulk response). Without this, it remains possible that inter-voxel grain contacts open additional shear or compression modes that reduce A_G and A_C, especially near pN^2 ~ 1 where maximal anisotropy is reported.

    Authors: We agree that direct quantitative comparisons of contact networks and force-chain statistics between isolated voxels and tessellated assemblies would strengthen the inheritance claim. The current manuscript demonstrates inheritance primarily through the close agreement of A_G and A_C values (and their pN² scaling) between voxels and bulk tessellations, as shown in the results figures. However, we did not include explicit contact statistics. In the revised manuscript, we will add a supplementary section with comparisons of coordination number distributions, force magnitude histograms, and force-chain visualizations for isolated voxels versus tessellated systems at pN² ≈ 1. These will show that inter-voxel contacts do not introduce modes that substantially reduce anisotropy. revision: yes

  2. Referee: [Abstract and Results] The abstract states that tessellations 'inherit the elastic response' over a range of pN^2, but no explicit bounds on that range, no error estimates on the anisotropy ratios, and no demonstration that boundary-induced softening is negligible appear in the main text or figures. This directly affects the central scaling claim and must be addressed with tabulated data or supplementary plots.

    Authors: We agree that the abstract and results section should provide explicit bounds on the pN² range, error estimates on A_G and A_C, and evidence that boundary softening is negligible. The manuscript shows the scaling behavior in plots but does not state numerical bounds or errors explicitly. In the revision, we will update the abstract and main text to specify the range (e.g., 0.1 < pN² < 10, where anisotropy is preserved within ~10% of voxel values), add error bars (standard deviations from ensemble averages) to the relevant figures, and include a supplementary plot of elastic moduli versus tessellation size to confirm boundary effects are negligible. A table summarizing anisotropy ratios with errors will also be added. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation relies on independent definitions and simulations

full rationale

The paper introduces two new rotationally invariant normalized anisotropy measures A_G and A_C that are defined from the elastic tensor without reference to the tessellation construction or target values. The central result that homogeneously tessellated granular systems inherit voxel-level anisotropy is obtained from direct numerical simulations of the bulk response under varying pN^2, not from any algebraic reduction, fitted parameter, or self-citation chain. No load-bearing step equates the output to its inputs by construction, and the comparison to crystalline solids uses externally known low anisotropy values as a benchmark.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 2 invented entities

The claims rest on the domain assumption that rearrangements destroy anisotropy and that voxel inheritance holds at the bulk scale; the scaling parameter pN^2 is identified as the regime of interest.

free parameters (1)
  • pN^2 = ~1
    Scaling parameter identified for maximal anisotropy in bulk packings and for the range where tessellations preserve high anisotropy.
axioms (1)
  • domain assumption Grain rearrangements reduce anisotropy in granular materials
    Invoked to explain why tessellations are needed to preserve strong elastic anisotropy.
invented entities (2)
  • A_G no independent evidence
    purpose: Rotationally invariant normalized quantity characterizing anisotropic shear response
    Newly introduced measure to quantify elastic anisotropy.
  • A_C no independent evidence
    purpose: Rotationally invariant normalized quantity characterizing anisotropic compression response
    Newly introduced measure to quantify elastic anisotropy.
