2D quantum-path interference in high-harmonic generation driven by highly-bichromatic fields
Pith reviewed 2026-05-10 16:03 UTC · model grok-4.3
The pith
Orthogonally-polarized bichromatic laser fields produce two-dimensional quantum-path interference in high-harmonic generation.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the highly-bichromatic regime of orthogonally-polarised driving fields, the measured harmonic intensity modulations with respect to the relative phase encode two-dimensional quantum-path interference (2D-QPI) among multiple quantum orbits. The dipole response for both odd and even harmonics inherits the dynamic symmetry of the driving field, with odd harmonics showing monomodal and even harmonics bimodal modulation patterns.
What carries the argument
Two-dimensional quantum-path interference (2D-QPI) among multiple quantum orbits, revealed through phase-dependent intensity modulations in the strong-field approximation and saddle-point calculations.
If this is right
- The intensity modulations of odd harmonics follow a monomodal pattern with relative phase.
- Even harmonics exhibit a bimodal modulation structure.
- The dipole response inherits the dynamic symmetry of the orthogonally-polarised bichromatic field.
- This provides a novel route to HHG spectroscopy of attosecond electron dynamics by increasing the dimensionality of interfering quantum paths.
Where Pith is reading between the lines
- Similar phase control could be applied to other nonlinear optical processes involving multiple colors to probe electron dynamics.
- Extending this to higher dimensions or more colors might further enhance spectroscopic resolution in attosecond science.
- Macroscopic effects in HHG might need careful separation from the microscopic 2D-QPI in future experiments.
Load-bearing premise
The observed phase-dependent intensity modulations are caused solely by two-dimensional quantum-path interference and are not significantly modified by propagation effects, detector response, or other experimental factors.
What would settle it
If saddle-point calculations that omit the interference between multiple orbits fail to reproduce the measured monomodal and bimodal phase modulations for odd and even harmonics, the 2D-QPI interpretation would be falsified.

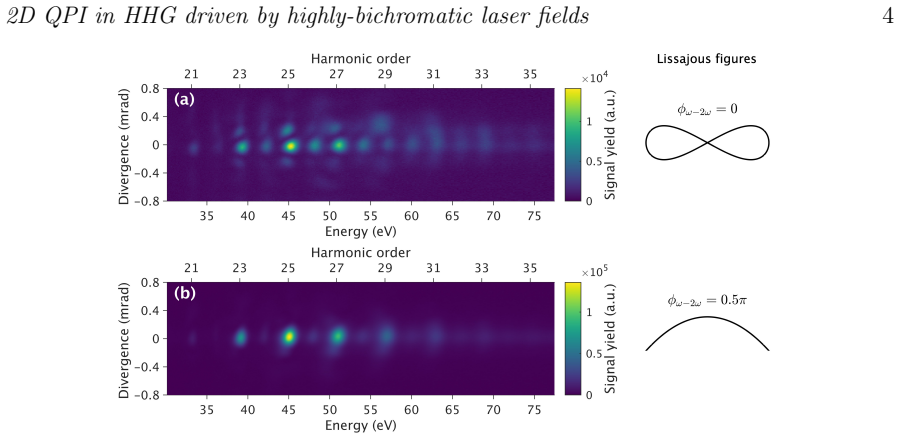

Figures
read the original abstract
We experimentally observe a new type of quantum-path interference, in two-dimensions (2D-QPI), in high-harmonic generation (HHG) driven by an orthogonally-polarised highly-bichromatic field. This regime is marked by comparable intensities of the two orthogonal colours. In this highly-bichromatic regime, we demonstrate that 2D-QPI is encoded in the measured harmonic intensity modulations with respect to the relative phase of the two-colour field. The modulations of the odd-order harmonics show a monomodal behaviour, whereas the even harmonics are modulated in a bimodal structure. Our calculations using the strong-field approximation and saddle-point method disentangle contributions from multiple quantum orbits in this HHG regime, revealing that the dipole response for both odd and even harmonics inherits the dynamic symmetry of the orthogonally-polarised driving field. This new type of 2D-QPI offers a novel route to HHG spectroscopy of attosecond electron dynamics by lifting up the dimensionality of the quantum paths involved in the interference.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims to experimentally observe a new type of two-dimensional quantum-path interference (2D-QPI) in high-harmonic generation driven by an orthogonally polarized highly-bichromatic field with comparable intensities. Odd-order harmonics exhibit monomodal intensity modulations and even-order harmonics bimodal modulations versus the relative phase of the two colors. Strong-field approximation and saddle-point calculations at the single-atom level are used to attribute these patterns to the dipole response inheriting the driving field's dynamic symmetry, proposing 2D-QPI as a novel route to attosecond HHG spectroscopy via increased path dimensionality.
Significance. If the central claim holds, the result would be significant for attosecond science by introducing a higher-dimensional quantum-path interference mechanism that could improve spectroscopic access to electron dynamics. The combination of direct experimental measurements with established theoretical tools (SFA and saddle-point method) is a strength, as is the focus on symmetry properties of the dipole response. However, the current lack of macroscopic propagation analysis limits the immediate impact and falsifiability of the interpretation.
major comments (2)
- The theoretical calculations section performs SFA and saddle-point analysis only at the single-atom level and reproduces symmetry properties, but provides no phase-matching simulations, gas-pressure scans, or propagation modeling. Since the experiment is performed in a gas jet and the relative phase can alter wave-vector mismatch and Gouy-phase contributions, this leaves open whether the monomodal/bimodal modulations could be imprinted or distorted by macroscopic effects rather than arising exclusively from 2D-QPI among multiple orbits. This is load-bearing for the central claim.
- The experimental results lack quantitative details on error bars, data averaging, selection criteria, or explicit checks excluding alternative explanations such as detector response. This is critical because the evidence for the new 2D-QPI rests on the specific form of the phase-dependent intensity modulations reported for odd and even harmonics.
minor comments (2)
- The abstract and introduction could more explicitly define the intensity ratio and frequency ratio that characterize the 'highly-bichromatic' regime to aid reproducibility.
- Figure captions and axis labels should consistently specify the harmonic orders shown and the range of relative phases scanned.
Simulated Author's Rebuttal
We thank the referee for their careful reading of the manuscript and for the constructive comments. We address each major point below and have revised the manuscript to incorporate additional details and discussion where appropriate.
read point-by-point responses
-
Referee: The theoretical calculations section performs SFA and saddle-point analysis only at the single-atom level and reproduces symmetry properties, but provides no phase-matching simulations, gas-pressure scans, or propagation modeling. Since the experiment is performed in a gas jet and the relative phase can alter wave-vector mismatch and Gouy-phase contributions, this leaves open whether the monomodal/bimodal modulations could be imprinted or distorted by macroscopic effects rather than arising exclusively from 2D-QPI among multiple orbits. This is load-bearing for the central claim.
Authors: We acknowledge the value of macroscopic propagation analysis for a complete picture. However, the monomodal and bimodal phase-dependent modulations are a direct signature of the dynamic symmetry of the orthogonally polarized driving field as imprinted on the single-atom dipole response, which our SFA and saddle-point calculations explicitly demonstrate for both odd and even harmonics. Propagation effects in a gas jet primarily modulate the overall conversion efficiency through phase-matching but do not selectively generate or invert the distinct modulation symmetries observed between odd and even orders. To strengthen the manuscript, we have added a dedicated paragraph discussing the expected role of wave-vector mismatch and Gouy phase in this regime and explaining why the single-atom interpretation remains robust for the reported interference patterns. revision: partial
-
Referee: The experimental results lack quantitative details on error bars, data averaging, selection criteria, or explicit checks excluding alternative explanations such as detector response. This is critical because the evidence for the new 2D-QPI rests on the specific form of the phase-dependent intensity modulations reported for odd and even harmonics.
Authors: We agree that quantitative experimental details are essential for establishing the reliability of the observed modulations. In the revised manuscript we have added error bars (standard deviation from repeated scans), a description of the data-averaging protocol, explicit selection criteria for the harmonics, and supplementary checks confirming that the monomodal and bimodal patterns persist under varied detector settings and are independent of detector response functions. revision: yes
Circularity Check
No significant circularity: experimental observation supported by standard theory
full rationale
The paper's central claim is an experimental observation of 2D-QPI patterns in HHG intensity modulations, reproduced via the established strong-field approximation and saddle-point method applied at the single-atom level. These methods are standard in the field and not derived from or fitted to the present data; the calculations are used to interpret symmetry properties inherited from the driving field rather than to predict or define the measured modulations. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the provided derivation chain. The result remains self-contained against external benchmarks of SFA/Saddle-point validity.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The strong-field approximation remains valid for describing electron dynamics in the highly-bichromatic orthogonal regime.
- domain assumption The saddle-point method correctly identifies the dominant quantum paths contributing to the observed interference.
invented entities (1)
-
2D quantum-path interference (2D-QPI)
no independent evidence
Reference graph
Works this paper leans on
-
[2]
M. Hentschel et al. “Attosecond metrology”. In:Nature414.6863 (2001), pp. 509– 513.doi:10.1038/35107000
-
[3]
Shining the shortest flashes of light on the secret life of electrons
M. Khokhlova, E. Pisanty, and A. Za¨ ır. “Shining the shortest flashes of light on the secret life of electrons”. In:Adv. Photonics5.6 (2023), p. 060501.doi: 10.1117/1.AP.5.6.060501
-
[5]
Dynamics of Short-Pulse Excitation, Ionization and Harmonic Conversion
K. C. Kulander, K. J. Schafer, and J. L. Krause. “Dynamics of Short-Pulse Excitation, Ionization and Harmonic Conversion”. In:Super-Intense Laser-Atom Physics. Springer US, 1993, pp. 95–110.doi:10.1007/978-1-4615-7963-2_10
-
[6]
K. Schiessl et al. “Enhancement of high-order harmonic generation by a two- color field: Influence of propagation effects”. In:Physical Review A74.5 (2006), p. 053412.doi:10.1103/PhysRevA.74.053412
-
[7]
High-order harmonic generation by two linearly polarized laser fields with an arbitrary angle between their polarization axes
D. Habibovi´ c, W. Becker, and D. B. Miloˇ sevi´ c. “High-order harmonic generation by two linearly polarized laser fields with an arbitrary angle between their polarization axes”. In:Physical Review A106.2 (2022), p. 023119.doi:10.1103/ PhysRevA.106.023119
2022
-
[8]
Highly Efficient High-Harmonic Generation in an Orthogonally Polarized Two-Color Laser Field
I. J. Kim et al. “Highly Efficient High-Harmonic Generation in an Orthogonally Polarized Two-Color Laser Field”. In:Physical Review Letters94.24 (2005), p. 243901.doi:10.1103/PhysRevLett.94.243901
-
[9]
Highly versatile, two-color setup for high-order harmonic generation using spatial light modulators
A.-K. Raab et al. “Highly versatile, two-color setup for high-order harmonic generation using spatial light modulators”. In:Review of Scientific Instruments 95.7 (2024).doi:10.1063/5.0212578
-
[10]
Generation of a strong attosecond pulse train with an orthogonally polarized two-color laser field
C. M. Kim, I. J. Kim, and C. H. Nam. “Generation of a strong attosecond pulse train with an orthogonally polarized two-color laser field”. In:Physical Review A 72.3 (2005), p. 033817.doi:10.1103/PhysRevA.72.033817
-
[11]
Resolving the time when an electron exits a tunnelling barrier
D. Shafir et al. “Resolving the time when an electron exits a tunnelling barrier”. In:Nature485.7398 (2012), pp. 343–346.doi:10.1038/nature11025
-
[12]
H. Niikura et al. “Probing the Spatial Structure of a Molecular Attosecond Electron Wave Packet Using Shaped Recollision Trajectories”. In:Physical Review Letters107.9 (2011), p. 093004.doi:10.1103/PhysRevLett.107.093004
-
[13]
Atomic wavefunctions probed through strong-field light–matter interaction
D. Shafir et al. “Atomic wavefunctions probed through strong-field light–matter interaction”. In:Nature Physics5.6 (2009), pp. 412–416.doi:10 . 1038 / nphys1251
2009
-
[14]
Towards enabling femtosecond helicity-dependent spectroscopy with high-harmonic sources
G. Lambert et al. “Towards enabling femtosecond helicity-dependent spectroscopy with high-harmonic sources”. In:Nature Communications6.6167 (2015), pp. 1–6. doi:10.1038/ncomms7167
-
[15]
L. Brugnera et al. “Trajectory Selection in High Harmonic Generation by Controlling the Phase between Orthogonal Two-Color Fields”. In:Physical Review Letters107.15 (2011), p. 153902.doi:10.1103/PhysRevLett.107.153902
-
[16]
Divergence and efficiency optimization in polarization-controlled two-color high-harmonic generation
S. D. C. Roscam Abbing et al. “Divergence and efficiency optimization in polarization-controlled two-color high-harmonic generation”. In:Scientific Reports 11.24253 (2021), pp. 1–11.doi:10.1038/s41598-021-03657-2
-
[17]
Determination of Ionization and Tunneling Times in High- Order Harmonic Generation
J. Zhao and M. Lein. “Determination of Ionization and Tunneling Times in High- Order Harmonic Generation”. In:Physical Review Letters111.4 (2013), p. 043901. doi:10.1103/PhysRevLett.111.043901. REFERENCES12
-
[18]
Chiral Discrimination through Bielliptical High-Harmonic Spectroscopy
D. Baykusheva and H. J. W¨ orner. “Chiral Discrimination through Bielliptical High-Harmonic Spectroscopy”. In:Phys. Rev. X8.3 (2018), p. 031060.doi:10. 1103/PhysRevX.8.031060
2018
-
[19]
Theory of high-harmonic generation by low-frequency laser fields
M. Lewenstein et al. “Theory of high-harmonic generation by low-frequency laser fields”. In:Physical Review A49.3 (1994), pp. 2117–2132.doi:10.1103/ PhysRevA.49.2117
1994
-
[20]
P. Sali` eres et al. “Feynman’s Path-Integral Approach for Intense-Laser-Atom Interactions”. In:Science292.5518 (2001), pp. 902–905.doi:10.1126/science. 108836
-
[21]
High-harmonic generation from hydrogen atoms driven by two-color mutually orthogonal laser fields
M. Murakami, O. Korobkin, and M. Horbatsch. “High-harmonic generation from hydrogen atoms driven by two-color mutually orthogonal laser fields”. In:Physical Review A88.6 (2013), p. 063419.doi:10.1103/PhysRevA.88.063419
-
[22]
M. V. Frolov et al. “Control of threshold enhancements in harmonic generation by atoms in a two-color laser field with orthogonal polarizations”. In:Physical Review A93.2 (2016), p. 023430.doi:10.1103/PhysRevA.93.023430
-
[23]
Interference effects in two-color high-order harmonic generation
X. He et al. “Interference effects in two-color high-order harmonic generation”. In: Physical Review A82.3 (2010), p. 033410.doi:10.1103/PhysRevA.82.033410
-
[24]
Quantum-orbit analysis of high-order harmonic generation by bicircular field
D. B. Miloˇ sevi´ c. “Quantum-orbit analysis of high-order harmonic generation by bicircular field”. In:Journal of Modern Optics(2019).doi:10.1080/09500340. 2018.1511862
-
[25]
Generation of circularly polarized high-order harmonics by two-color coplanar field mixing
D. B. Miloˇ sevi´ c, W. Becker, and R. Kopold. “Generation of circularly polarized high-order harmonics by two-color coplanar field mixing”. In:Physical Review A 61.6 (2000), p. 063403.doi:10.1103/PhysRevA.61.063403
-
[26]
Spin conservation in high-order- harmonic generation using bicircular fields
E. Pisanty, S. Sukiasyan, and M. Ivanov. “Spin conservation in high-order- harmonic generation using bicircular fields”. In:Physical Review A90.4 (2014), p. 043829.doi:10.1103/PhysRevA.90.043829
-
[27]
Signature of grav ity waves in the polarization of the mi- crowave background
A. Za¨ ır et al. “Quantum Path Interferences in High-Order Harmonic Generation”. In:Physical Review Letters100.14 (2008), p. 143902.doi:10.1103/PhysRevLett. 100.143902
-
[28]
High-flux source of coherent XUV pulses for user applications
O. Hort et al. “High-flux source of coherent XUV pulses for user applications”. In:Optics Express27.6 (2019), pp. 8871–8883.doi:10.1364/OE.27.008871
-
[29]
L1 Allegra laser at ELI Beamlines facility as a driver for electron acceleration at 1 kHz repetition rate (Conference Presentation)
R. Antipenkov et al. “L1 Allegra laser at ELI Beamlines facility as a driver for electron acceleration at 1 kHz repetition rate (Conference Presentation)”. In: High-power, High-energy Lasers and Ultrafast Optical Technologies. SPIE. 2023, PC1257704
2023
-
[30]
A. Nayak et al. “Saddle point approaches in strong field physics and generation of attosecond pulses”. In:Physics Reports833 (2019), pp. 1–52.doi:10.1016/j. physrep.2019.10.002. REFERENCES13
work page doi:10.1016/j 2019
-
[31]
Multielectron high harmonic generation: simple man on a complex plane
O. Smirnova and M. Ivanov. “Multielectron high harmonic generation: simple man on a complex plane”. In:Attosecond and XUV Physics: Ultrafast Dynamics and Spectroscopy. Ed. by T Schultz and M Vrakking. Weinheim: Wiley-VCH, 2014, pp. 201–256. eprint:http://arxiv.org/abs/1304.2413
-
[32]
A. Le et al. “Strong-field approximation and its extension for high-order harmonic generation with mid-infrared lasers”. In:J. Phys. B: At. Mol. Opt. Phys.49.5 (2016), p. 053001.doi:10.1088/0953-4075/49/5/053001
-
[33]
E. Pisanty and A. Jim´ enez-Gal´ an. “Strong-field approximation in a rotating frame: High-order harmonic emission frompstates in bicircular fields”. In:Phys. Rev. A 96.6 (2017), p. 063401.doi:10.1103/PhysRevA.96.063401
-
[34]
D. B. Miloˇ sevi´ c and W. Becker. “X-ray harmonic generation by orthogonally polarized two-color fields: Spectral shape and polarization”. In:Physical Review A100.3 (2019), p. 031401.doi:10.1103/PhysRevA.100.031401
-
[35]
Laser-Induced Recollision Phenomena: Interference Resonances at Channel Closings
S. V. Popruzhenko et al. “Laser-Induced Recollision Phenomena: Interference Resonances at Channel Closings”. In:Phys. Rev. Lett.89.2 (2002), p. 023001. doi:10.1103/PhysRevLett.89.023001
-
[36]
Role of long quantum orbits in high-order harmonic generation
D. B. Miloˇ sevi´ c and W. Becker. “Role of long quantum orbits in high-order harmonic generation”. In:Physical Review A66.6 (2002), p. 063417.doi:10 . 1103/PhysRevA.66.063417
2002
-
[37]
L. E. Chipperfield et al. “Conditions for the reliable production of attosecond pulses using ultra-short laser-generated high harmonics”. In:J. Mod. Opt.52.2–3 (2005), pp. 243–260.doi:10.1080/0950034042000275379
-
[38]
The imaginary part of the high- harmonic cutoff
E. Pisanty, M. F. Ciappina, and M. Lewenstein. “The imaginary part of the high- harmonic cutoff”. In:Journal of Physics: Photonics2.3 (2020), p. 034013.doi: 10.1088/2515-7647/ab8f1e
-
[39]
Spectral caustics in attosecond science
O. Raz et al. “Spectral caustics in attosecond science”. In:Nature Photonics6.3 (2012), pp. 170–173.doi:10.1038/nphoton.2011.353
-
[40]
D. B. Miloˇ sevi´ c and W. Becker. “Negative-travel-time quantum orbits in strong- field ionization by an elliptically polarized laser field”. In:Phys. Rev. A105.3 (2022), p. L031103.doi:10.1103/PhysRevA.105.L031103
-
[41]
A universal approach to saddle-point methods in attosecond science
A. Weber, J. Feldbrugge, and E. Pisanty. “A universal approach to saddle-point methods in attosecond science”. In:arXiv(2025). under review. eprint:2510 . 12545.url:https://arxiv.org/abs/2510.12545
-
[42]
Index formulae for singular lines of polarization
M. V. Berry. “Index formulae for singular lines of polarization”. In:Journal of Optics A: Pure and Applied Optics6.7 (2004), p. 675.doi:10 . 1088 / 1464 - 4258/6/7/003
2004
-
[43]
Selection Rules for the High Harmonic Generation Spectra
O. E. Alon, V. Averbukh, and N. Moiseyev. “Selection Rules for the High Harmonic Generation Spectra”. In:Physical Review Letters80.17 (1998), pp. 3743–3746.doi:10.1103/PhysRevLett.80.3743
