Fast measurement of neutral atoms with a multi-atom gate

Yotam Vaknin , Ran Finkelstein , Ofer Firstenberg , Alex Retzker
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:03 UTC · model grok-4.3

classification 🪐 quant-ph
keywords neutral atomsRydberg blockadequantum measurementancilla atomsfast readoutmulti-atom gateCs-Rb platformqubit measurement
0
0 comments X

The pith

A multi-atom Rydberg gate with N ancillae speeds neutral-atom qubit measurement by collecting N times more photons while cutting loss sensitivity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a protocol to overcome the measurement bottleneck in neutral-atom quantum computers by entangling one data qubit with N ancilla atoms inside a shared Rydberg blockade volume. This produces an N-fold boost in detectable fluorescence photons and makes the readout less vulnerable to individual atom loss, all while using only global laser pulses and global photon collection. Spectral separation between the data qubit and ancillae is obtained either by using two atomic species or by applying a targeted light shift. Simulations for a cesium-rubidium platform show that N equals five already yields measurement infidelity below 10 to the minus three in 6 microseconds.

Core claim

The authors establish that a register of N ancilla atoms, driven together with the data qubit by a single multi-atom Rydberg gate inside one blockade radius, produces an N-fold increase in collected photons and a corresponding reduction in the effect of loss, thereby shortening the required integration time for high-fidelity readout while remaining compatible with global operations and without atom shuttling.

What carries the argument

The multi-atom Rydberg gate operating on the data qubit plus N ancillae within a single blockade region, which converts the internal state of the data qubit into a collective excitation that amplifies fluorescence during readout.

If this is right

  • Measurement time drops linearly with N while loss sensitivity falls, allowing faster cycles without parallel detectors.
  • The scheme needs no atom movement and only global drives, so it integrates directly into existing large-scale neutral-atom arrays.
  • Infidelity below 10^{-3} is reachable with only five ancillae in 6 microseconds on a Cs-Rb platform.
  • The same global-pulse structure works for any qubit that can be paired with spectrally distinct ancillae.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Faster measurements could shorten the duration of quantum error-correction cycles and lower the overhead needed for fault tolerance.
  • The approach may generalize to other atomic or molecular platforms where collective excitation can amplify weak signals.
  • If N can be increased further without degrading blockade fidelity, real-time mid-circuit measurements become more practical.

Load-bearing premise

Spectral separation between the data qubit and ancilla atoms can be maintained so that the multi-atom Rydberg gate works as simulated without extra decoherence or loss channels.

What would settle it

An experiment on a Cs-Rb array that measures infidelity above 10^{-3} or requires longer than 6 microseconds for N=5 ancillae under the described global-pulse protocol would contradict the simulated performance.

Figures

Figures reproduced from arXiv: 2604.13158 by Alex Retzker, Ofer Firstenberg, Ran Finkelstein, Yotam Vaknin.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

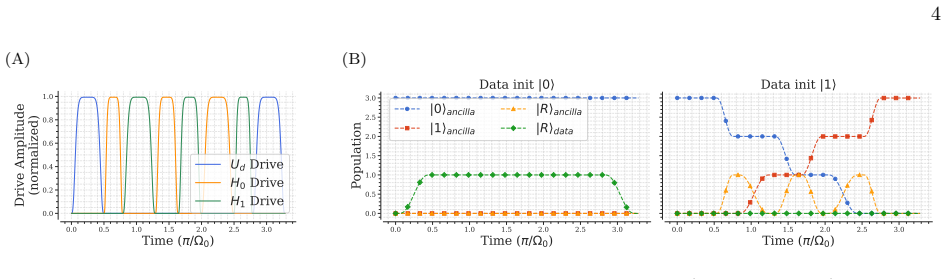

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

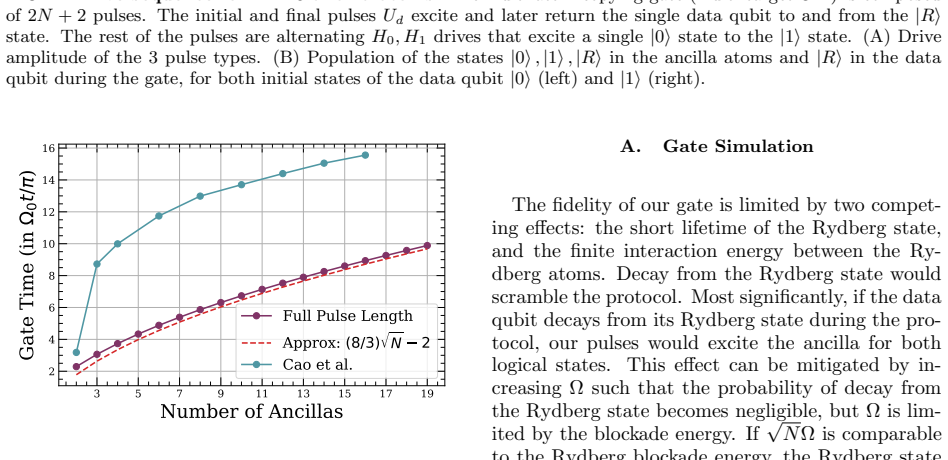

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

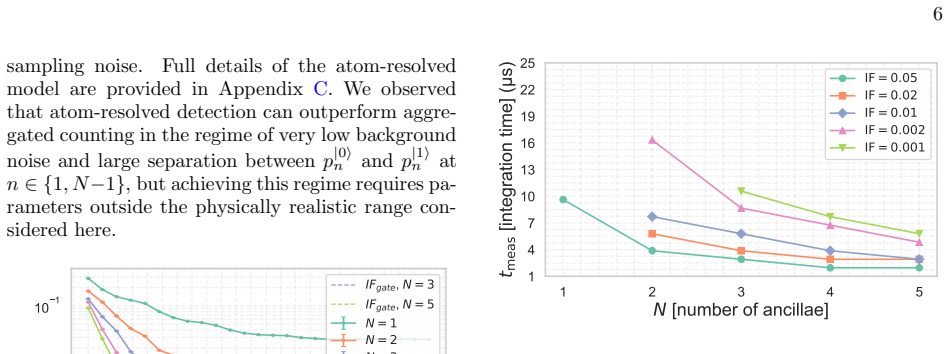

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

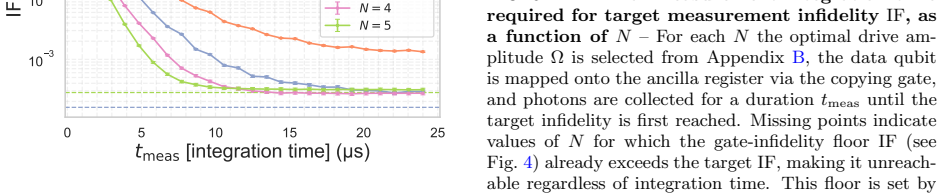

Figure 4
Figure 4. Figure 4: ) already exceeds the target IF, making it unreach￾able regardless of integration time. This floor is set by the finite trapping lifetime during readout. to local connectivity, with long-range links requiring dedicated hardware. This constrains superconduct￾ing architectures to codes with limited connectivity [37–39], though their fast clock speed enables effi￾cient execution within those codes. Neutral at… view at source ↗

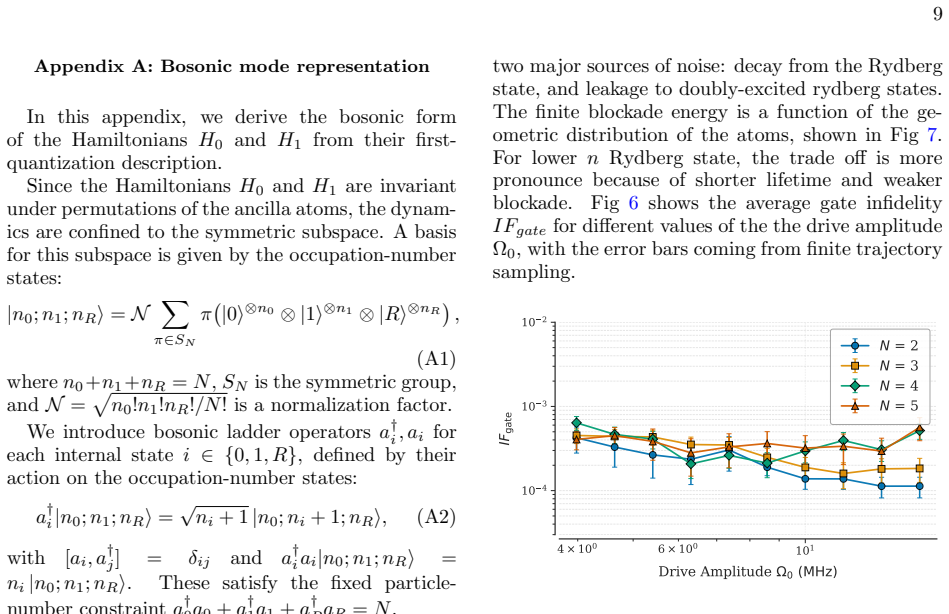

Figure 6
Figure 6. Figure 6: FIG. 6. Monte-Carlo trajectory simulations of gate in [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Spatial arrangement of the Cs ancilla atoms (blue) and the Rb data qubit (red) for [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Measurement infidelity as a function of measurement time for the indistinguishable (left) and atom-resolved [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
read the original abstract

Measurement time represents a critical bottleneck limiting the operational speed of neutral atom quantum computers, as it cannot be accelerated through parallelization like other quantum operations. We present a protocol for fast measurement of neutral atoms based on a new, fast multi-atom Rydberg gate that significantly reduces the measurement integration time and improves the measurement fidelity. Our approach employs a multi-qubit register of $N$ ancilla atoms within a single Rydberg blockade region to measure a single data qubit. This enables an $N$-fold enhancement in photon emission collections, while reducing the measurement's sensitivity to loss. The scheme requires spectral separation between the data qubit and the ancillae, achievable through either a dual-species architecture or a targeted light shift. Beyond this, the scheme is straightforward to implement: it relies only on global pulses, global photon collection, and avoids both atom shuttling and numerically optimized pulses. Simulations of a Cs--Rb platform demonstrate that with only five ancillae ($N=5$), measurement infidelity below $10^{-3}$ within $6\ \mu\text{s}$ is achievable.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a fast measurement protocol for neutral-atom qubits that uses a multi-atom Rydberg gate to couple a single data qubit to N ancilla atoms within one blockade volume. This yields an N-fold increase in collected photons and reduced loss sensitivity while employing only global pulses and global collection; spectral separation between data and ancilla species is required and can be realized either by dual-species architecture or targeted light shifts. Forward simulations of a Cs–Rb platform are reported to achieve measurement infidelity below 10^{-3} in 6 μs with N=5.

Significance. If the simulation results hold under realistic conditions, the protocol would directly address the measurement-time bottleneck in neutral-atom quantum processors without requiring atom shuttling or numerically optimized pulses. The approach is conceptually simple and leverages existing Rydberg hardware, giving it potential for near-term experimental implementation. The provision of concrete performance numbers from simulation is a positive feature.

major comments (2)
  1. [Simulations section] Simulations section (and abstract): the headline infidelity <10^{-3} in 6 μs with N=5 is obtained from forward simulation of the multi-atom gate and photon collection; however, the manuscript does not present an exhaustive error budget or sensitivity analysis for residual inter-species couplings, differential light shifts, blackbody-induced Rydberg decay, or position-dependent collection efficiency inside the shared blockade volume. These terms directly affect the claimed N-fold advantage and must be quantified before the performance claim can be considered robust.
  2. [Protocol description] Protocol description (likely §2–3): the requirement for spectral separation is stated as a prerequisite, yet no quantitative estimate is given for the light-shift magnitude or dual-species detuning needed to suppress unwanted Rydberg interactions to the level required for the quoted fidelity; without this, it is unclear whether the separation is experimentally realistic within the stated 6 μs window.
minor comments (2)
  1. Figure captions and axis labels should explicitly state the error model (e.g., which decay channels and pulse imperfections are included) so readers can assess the simulation assumptions at a glance.
  2. The abstract claims the scheme 'avoids both atom shuttling and numerically optimized pulses'; a brief sentence confirming that all pulses are global and analytic would strengthen this claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments. We address the two major comments point by point below.

read point-by-point responses

  1. Referee: [Simulations section] Simulations section (and abstract): the headline infidelity <10^{-3} in 6 μs with N=5 is obtained from forward simulation of the multi-atom gate and photon collection; however, the manuscript does not present an exhaustive error budget or sensitivity analysis for residual inter-species couplings, differential light shifts, blackbody-induced Rydberg decay, or position-dependent collection efficiency inside the shared blockade volume. These terms directly affect the claimed N-fold advantage and must be quantified before the performance claim can be considered robust.

    Authors: We agree that an exhaustive error budget and sensitivity analysis would strengthen the robustness of the quoted performance numbers. The original forward simulations incorporated the dominant error channels associated with the multi-atom Rydberg gate and photon collection. In the revised manuscript we have added a new subsection to the Simulations section that quantifies the impact of residual inter-species couplings, differential light shifts, blackbody-induced Rydberg decay, and position-dependent collection efficiency. The analysis shows that, for realistic Cs–Rb parameters, these contributions remain small enough to preserve infidelity below 10^{-3} at 6 μs and to retain the N-fold photon-collection advantage. revision: yes

  2. Referee: [Protocol description] Protocol description (likely §2–3): the requirement for spectral separation is stated as a prerequisite, yet no quantitative estimate is given for the light-shift magnitude or dual-species detuning needed to suppress unwanted Rydberg interactions to the level required for the quoted fidelity; without this, it is unclear whether the separation is experimentally realistic within the stated 6 μs window.

    Authors: We accept that explicit quantitative bounds on the required spectral separation improve clarity. The revised protocol section now contains concrete estimates: for the dual-species (Cs–Rb) route we specify the minimum inter-species detuning needed to keep unwanted Rydberg interactions below the threshold set by the target fidelity; for the single-species light-shift route we give the required differential light-shift magnitude. Both values are shown to be attainable with existing laser intensities and detunings while remaining comfortably inside the 6 μs measurement window. revision: yes

Circularity Check

0 steps flagged

No circularity: performance claims arise from forward simulation of an independently specified protocol

full rationale

The manuscript presents a measurement protocol that uses a multi-atom Rydberg gate on N ancillae plus a data qubit, with spectral separation enforced by dual-species or light-shift means. The headline infidelity bound (<10^{-3} in 6 μs for N=5) is obtained by direct numerical simulation of the gate dynamics and photon-collection process under explicitly stated assumptions; no equation or result is defined in terms of the target infidelity, no parameter is fitted to the final metric and then re-labeled as a prediction, and no load-bearing uniqueness theorem or ansatz is imported via self-citation. The derivation chain therefore remains self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review limits visibility; the protocol rests on standard Rydberg blockade physics and photon-collection statistics but provides no explicit free parameters or new entities.

axioms (1)
  • domain assumption The multi-atom Rydberg gate and blockade region behave according to the idealized model used in the simulations.
    Invoked to reach the quoted 6 μs and 10^{-3} infidelity numbers.

pith-pipeline@v0.9.0 · 5491 in / 1192 out tokens · 63236 ms · 2026-05-10T15:03:36.888774+00:00 · methodology
