arxiv: 2604.13638 · v2 · submitted 2026-04-15 · 💻 cs.PL

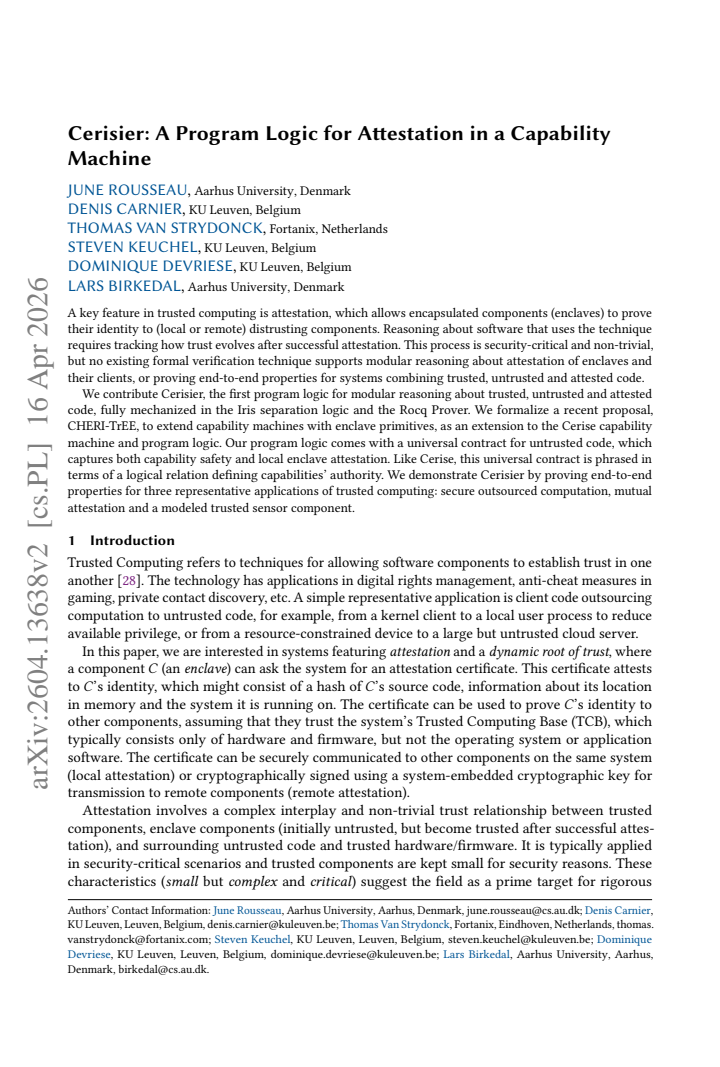

Cerisier: A Program Logic for Attestation in a Capability Machine

June Rousseau , Denis Carnier , Thomas Van Strydonck , Steven Keuchel , Dominique Devriese , Lars Birkedal This is my paper

Pith reviewed 2026-05-10 12:10 UTC · model grok-4.3

classification 💻 cs.PL
keywords program logicattestationcapability machinesIris separation logicenclavestrusted computingformal verificationCHERI-TrEE
0
0 comments X

The pith

Cerisier is the first program logic for modular reasoning about trusted, untrusted, and attested code on capability machines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Cerisier supplies a program logic that lets developers prove security properties across systems that mix trusted enclaves, untrusted components, and attestation steps. The logic tracks how trust changes after attestation succeeds and supplies a single universal contract that handles both capability safety and attestation for any untrusted code. It is built as an extension of the Cerise capability machine logic and is fully mechanized in Iris and Rocq. This matters because attestation is security-critical yet hard to reason about modularly, and prior techniques could not handle the combination of trusted, untrusted, and attested code in one framework. The paper shows the approach works by verifying three concrete applications: secure outsourced computation, mutual attestation, and a trusted sensor model.

Core claim

Cerisier is the first program logic for modular reasoning about trusted, untrusted and attested code, fully mechanized in the Iris separation logic and the Rocq Prover. It formalizes the CHERI-TrEE proposal to extend capability machines with enclave primitives as an extension to the Cerise machine and logic. The logic includes a universal contract for untrusted code that captures both capability safety and local enclave attestation; the contract is expressed via a logical relation that defines the authority of capabilities. End-to-end properties are proved for secure outsourced computation, mutual attestation, and a modeled trusted sensor component.

What carries the argument

The universal contract for untrusted code, expressed as a logical relation that defines the authority of capabilities and thereby captures both capability safety and the effects of local enclave attestation.

If this is right

  • Developers can prove end-to-end security properties for secure outsourced computation that uses attestation.
  • Mutual attestation protocols between distrusting components can be verified modularly.
  • Properties of modeled trusted sensor components that rely on attestation can be established without inspecting every line of untrusted client code.
  • Reasoning about how trust evolves after successful attestation becomes possible inside a single modular framework.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same logical-relation style could be adapted to other enclave hardware extensions beyond CHERI-TrEE.
  • Larger systems that combine remote attestation with local enclave use might become verifiable by extending the contract.
  • The mechanized proofs could serve as a starting point for verifying real-world trusted-execution environments that expose similar primitives.

Load-bearing premise

The formalization of CHERI-TrEE enclave primitives as an extension to Cerise accurately reflects the intended hardware behavior, and the universal contract adequately encodes both capability safety and local enclave attestation.

What would settle it

A concrete program using the CHERI-TrEE primitives that satisfies the universal contract yet violates one of the claimed end-to-end security properties in secure outsourced computation, mutual attestation, or the trusted sensor example.

Figures

Figures reproduced from arXiv: 2604.13638 by Denis Carnier, Dominique Devriese, June Rousseau, Lars Birkedal, Steven Keuchel, Thomas Van Strydonck.

Figure 1
Figure 1. Figure 1: Interaction scenario for the secure outsourced computation (SOC) example. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Simplified pseudocode of Secure Outsourced Computation (SOC) using CHERI-TrEE primi [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The base Cerise capability machine’s words, state, and instructions. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Excerpt of the operational semantics for of a single instruction. The complete operational [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Syntax of the Cerisier program logic. U K (a) Scenario 1: pass￾ing control to untrusted code U K (b) Scenario 2: being called by untrusted code (possibly many times) [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 4
Figure 4. Figure 4: Two scenarios: a trusted component (K) interacts with an un￾trusted context (U). For reasoning, we start from the Cerise program logic [18], formalized and mechanized in Iris [26] and Rocq. It supports modular reasoning about systems combining both trusted and adversarial code. The syntax of the program logic is presented in [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: WP rule for a valid load. Changes between the pre- and postcondition are marked in orange. E (𝑤) ≜    pc Z⇒ 𝑤 ∗ © ­ « (𝑟,𝑤 ∗𝑟 ) ∈regs 𝑟 Z⇒ 𝑤𝑟 ∗ V (𝑤𝑟) ª ® ¬    ⇝ • V (𝑤) ≜    V (𝑧) ≜ True for 𝑧 ∈ Z V (o, −, −, −) ≜ True V (e, 𝑏, 𝑒, 𝑎) ≜ ⊲ □ E (rx, 𝑏, 𝑒, 𝑎) V (rw/rwx, 𝑏, 𝑒, −) ≜ ∗𝑎∈ [𝑏,𝑒 ) ∃𝑤 . 𝑎 ↦→ 𝑤 ∗ V (𝑤) 𝑎 V (ro/rx, 𝑏, 𝑒, −) ≜ ∗𝑎∈ [𝑏,𝑒 ) ∃𝑃 . ∃𝑤 . 𝑎 … view at source ↗
Figure 8
Figure 8. Figure 8: Logical relation defining “safe to share” ( [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Excerpt of the operational semantics with capability sealing extensions, extending Figure [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Excerpt of the operational semantics with revocation-related extensions, extending Figure [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗

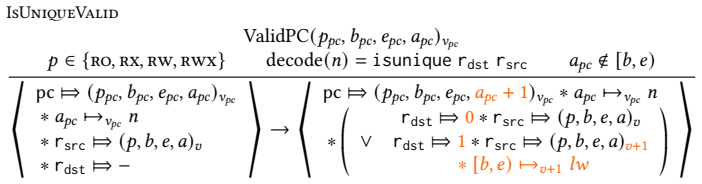

Figure 11
Figure 11. Figure 11: WP rule for a valid case of the isunique instruction with distinct PC, source, and destination registers. The postcondition asserts that either the sweep was unsuccessful, writing 0 to the destination register, or it was successful and we increment the version number of the capability and all addresses within its bounds. operation: the revocation affects the global state, whereas separation logics like Ir… view at source ↗
Figure 12
Figure 12. Figure 12: Excerpt of the operational semantics containing secure hashing extensions and assumptions, [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗

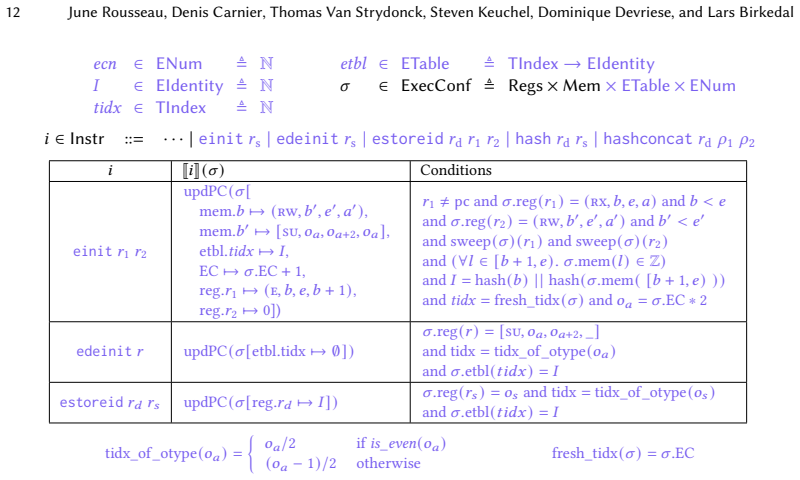

Figure 13
Figure 13. Figure 13: Excerpt of the operational semantics with attestation-related extensions, extending Figure [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
Figure 14

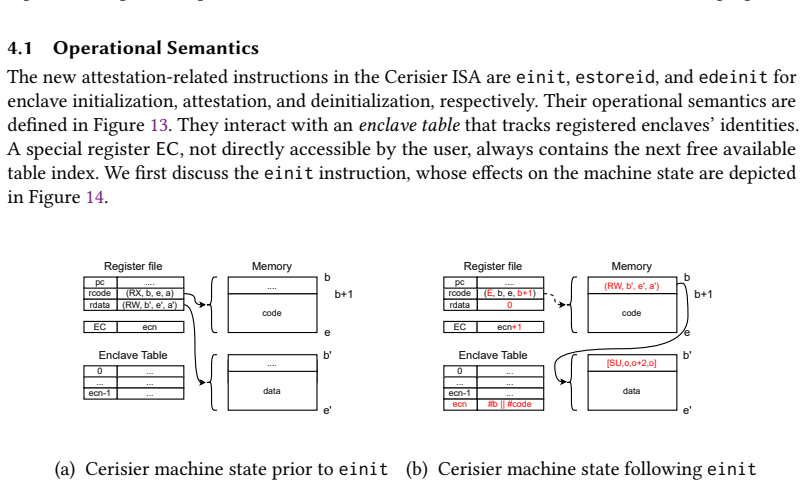

Figure 14. Figure 14: Representation of the effects in memory of the [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: SOC using Cerisier primitives, adapted from Figure [PITH_FULL_IMAGE:figures/full_fig_p014_15.png] view at source ↗

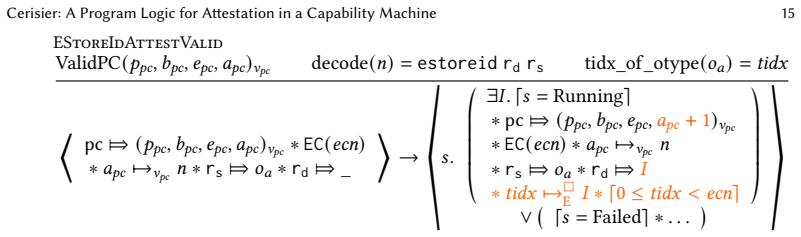

Figure 16
Figure 16. Figure 16: Rules for the new enclave instructions. The “ [PITH_FULL_IMAGE:figures/full_fig_p015_16.png] view at source ↗

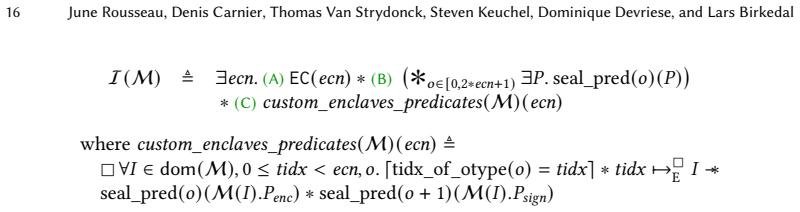

Figure 17
Figure 17. Figure 17: Global invariant I parameterised by user-provided map M of enclaves of interest (custom enclaves). custom_enclaves_contract(M) ≜ ∀𝐼 ∈ dom(M), data, 𝑏, 𝑒, 𝑣, 𝑝′ , 𝑏′ , 𝑒′ , 𝑎′ , 𝑣′ , 𝑜. © ­ ­ ­ ­ ­ ­ ­ « ⌈𝑏 = M (𝐼).addr⌉ ∗ ⌈tidx = tidx_of_otype(𝑜)⌉ ∗ (1) 𝑏 ↦→𝑣 (𝑝 ′ , 𝑏′ , 𝑒′ , 𝑎′ )𝑣 ′ ∗ [𝑏 + 1, 𝑒) ↦→𝑣 M (𝐼).code ∗ (2) 𝑏 ′ ↦→𝑣 ′ [su, 𝑜, 𝑜 + 2, 𝑜] ∗ [𝑏 ′ + 1, 𝑒′ ) ↦→𝑣 ′ data ∗ (3) seal_pred (o,M (I).Penc) ∗ … view at source ↗

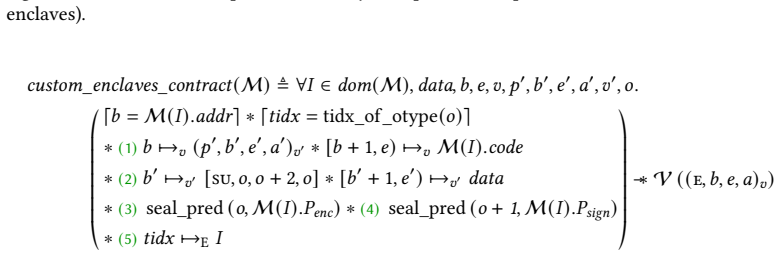

Figure 18
Figure 18. Figure 18: Contract of custom enclaves, parameterised by user-provided map [PITH_FULL_IMAGE:figures/full_fig_p016_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Operational semantics: execution of a single instruction. [PITH_FULL_IMAGE:figures/full_fig_p026_19.png] view at source ↗

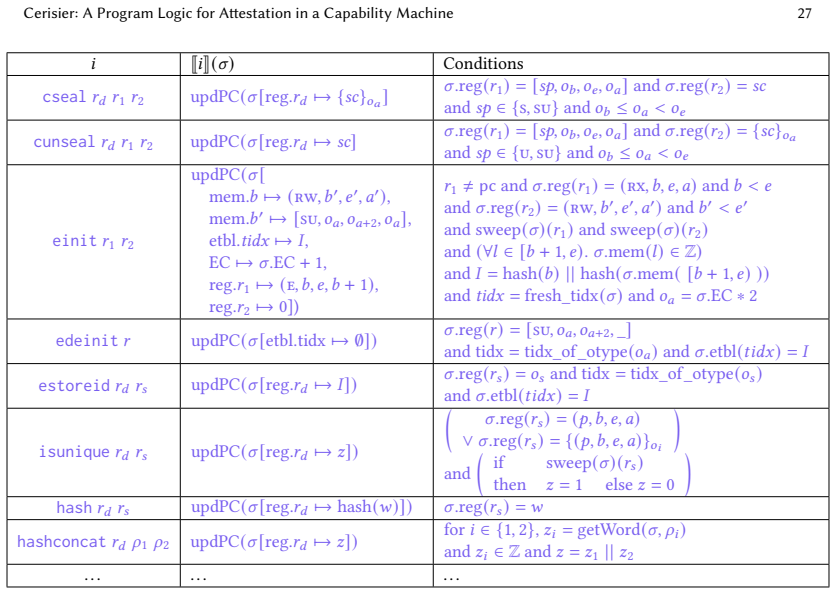

Figure 20
Figure 20. Figure 20: Execution of a single instruction for sealing, unsealing and enclaves. [PITH_FULL_IMAGE:figures/full_fig_p027_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Operational semantics helper [PITH_FULL_IMAGE:figures/full_fig_p027_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Lattice of permission. We have 𝑝1 ≼ 𝑝2 if there is a path going up from 𝑝1 to 𝑝2 in the diagram [PITH_FULL_IMAGE:figures/full_fig_p028_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: Full Cerisier code of the SOC client [PITH_FULL_IMAGE:figures/full_fig_p029_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Full Cerisier code of the SOC enclave [PITH_FULL_IMAGE:figures/full_fig_p030_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Full Cerisier code of a possible adversary for the SOC example [PITH_FULL_IMAGE:figures/full_fig_p031_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: Cerisier pseudocode of the Mutual Attestation client [PITH_FULL_IMAGE:figures/full_fig_p032_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: Cerisier pseudocode of the Mutual Attestation Enclave A [PITH_FULL_IMAGE:figures/full_fig_p033_27.png] view at source ↗
Figure 28
Figure 28. Figure 28: Cerisier pseudocode of the Mutual Attestation Enclave B [PITH_FULL_IMAGE:figures/full_fig_p034_28.png] view at source ↗
Figure 29

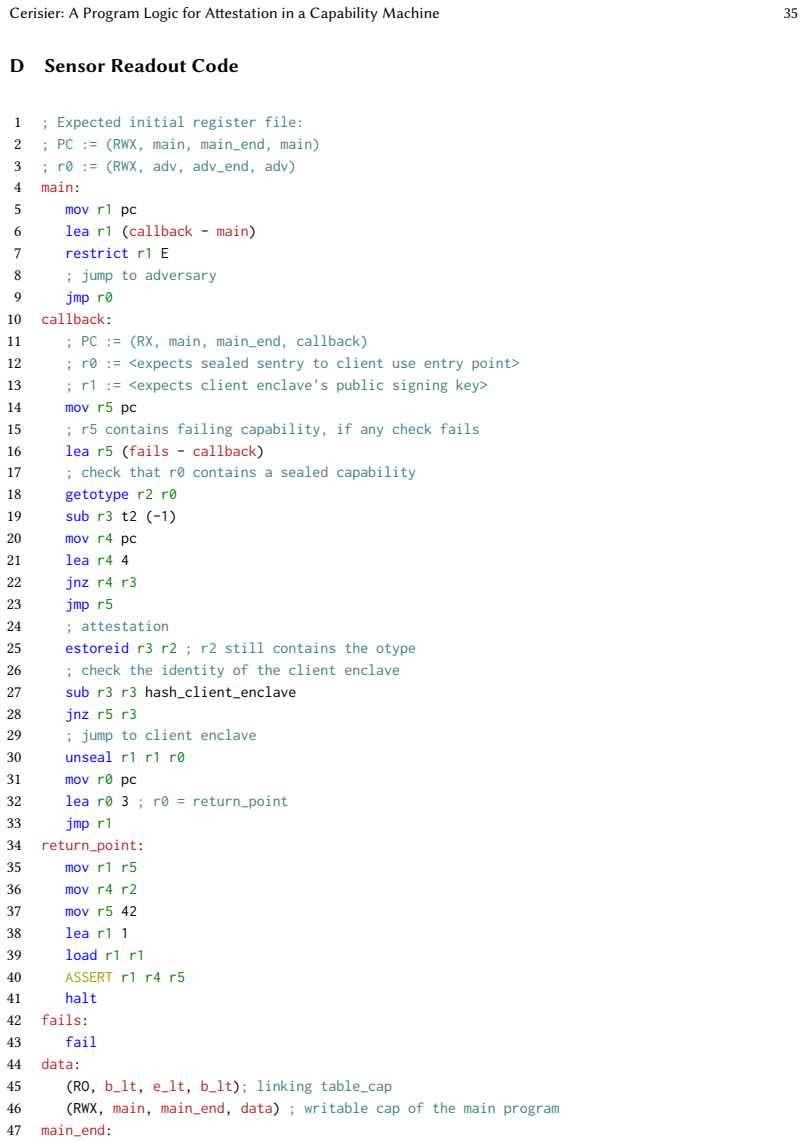

Figure 29. Figure 29: Full Cerisier code of the trusted sensor readout client [PITH_FULL_IMAGE:figures/full_fig_p035_29.png] view at source ↗
Figure 30
Figure 30. Figure 30: Full Cerisier code of the sensor enclave [PITH_FULL_IMAGE:figures/full_fig_p036_30.png] view at source ↗

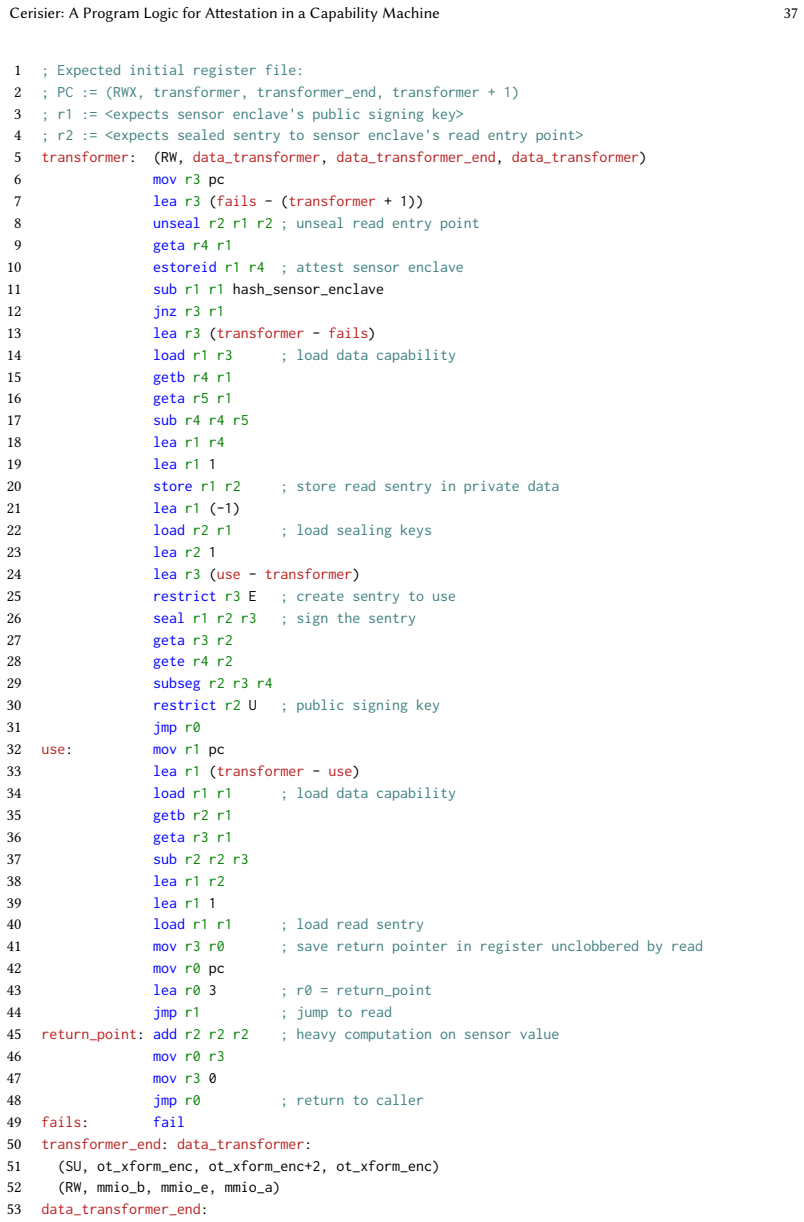

Figure 31
Figure 31. Figure 31: Full Cerisier code of the transformer enclave [PITH_FULL_IMAGE:figures/full_fig_p037_31.png] view at source ↗
Figure 32

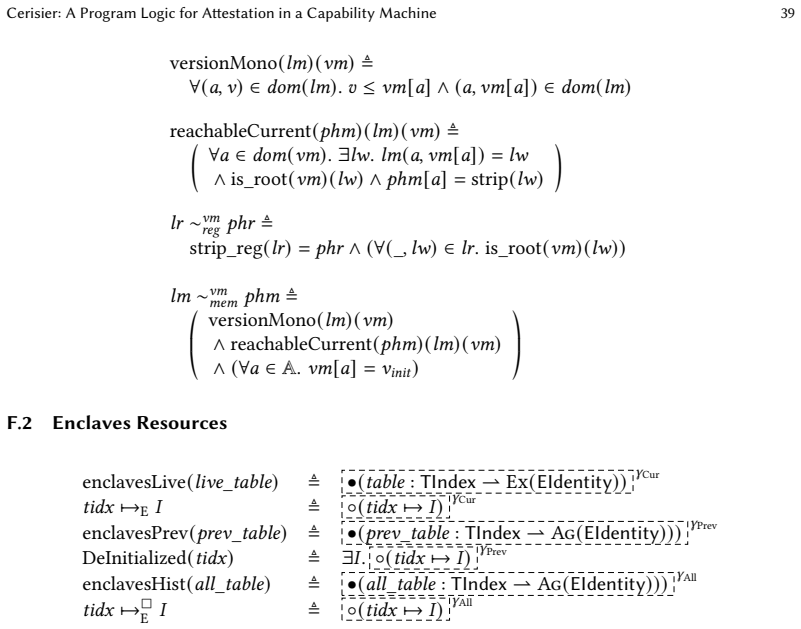

Figure 32. Figure 32: Definition of the enclaves resources [PITH_FULL_IMAGE:figures/full_fig_p039_32.png] view at source ↗
read the original abstract

A key feature in trusted computing is attestation, which allows encapsulated components (enclaves) to prove their identity to (local or remote) distrusting components. Reasoning about software that uses the technique requires tracking how trust evolves after successful attestation. This process is security-critical and non-trivial, but no existing formal verification technique supports modular reasoning about attestation of enclaves and their clients, or proving end-to-end properties for systems combining trusted, untrusted and attested code. We contribute Cerisier, the first program logic for modular reasoning about trusted, untrusted and attested code, fully mechanized in the Iris separation logic and the Rocq Prover. We formalize a recent proposal, CHERI-TrEE, to extend capability machines with enclave primitives, as an extension to the Cerise capability machine and program logic. Our program logic comes with a universal contract for untrusted code, which captures both capability safety and local enclave attestation. Like Cerise, this universal contract is phrased in terms of a logical relation defining capabilities' authority. We demonstrate Cerisier by proving end-to-end properties for three representative applications of trusted computing: secure outsourced computation, mutual attestation and a modeled trusted sensor component.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper presents Cerisier, the first program logic for modular reasoning about trusted, untrusted, and attested code on capability machines. It extends the Cerise logic and machine with CHERI-TrEE enclave primitives for local attestation, defines a universal contract for untrusted code via logical relations on capabilities that is intended to capture both capability safety and attestation-derived trust evolution, and mechanizes the entire development in Iris and Rocq. End-to-end properties are proved for three applications: secure outsourced computation, mutual attestation, and a modeled trusted sensor.

Significance. If the universal contract correctly propagates attestation authority without over- or under-approximation, the work would be a significant step forward for verified trusted computing, enabling compositional proofs over mixed codebases where prior logics could not. The full mechanization in Rocq, including the logical-relation definition and the three application proofs, is a clear strength that provides concrete evidence of internal consistency.

major comments (2)
  1. [§3.2] §3.2 (Universal Contract): The logical relation is stated independently of the enclave primitives and is claimed to simultaneously enforce capability safety and track local attestation. However, no explicit lemma is given showing that a successful attestation step updates the client's view of the enclave's authority in the relation (e.g., via a preservation or simulation result under the CHERI-TrEE call instruction). Without this, it is unclear whether the end-to-end properties proved for the three applications actually transfer to executions that use the modeled primitives.
  2. [§4] §4 (CHERI-TrEE Extension): The formalization of the enclave primitives as an extension to Cerise is load-bearing for the adequacy claim, yet the paper provides only an informal correspondence argument rather than a simulation or refinement relation between the extended machine semantics and the proposed CHERI-TrEE hardware behavior. This leaves open whether the mechanized proofs validate the intended hardware model or merely an over-approximation thereof.
minor comments (3)
  1. [§5–7] The three application proofs in §5–7 would benefit from a short table summarizing which parts of the universal contract are exercised by each example, to make the modularity claim easier to assess.
  2. [§3] Notation for the logical relation (e.g., the authority predicates) is introduced in §3 but used with slight variations in the application sections; a single consolidated definition or reference would improve readability.
  3. [§1] The introduction cites the original CHERI-TrEE proposal but does not include a direct pointer to its formal semantics or any prior mechanization attempts; adding this would help situate the contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback on Cerisier. We address the two major comments point by point below, providing clarifications on the logical relation and machine extension while committing to targeted revisions that strengthen the manuscript without altering its core contributions.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (Universal Contract): The logical relation is stated independently of the enclave primitives and is claimed to simultaneously enforce capability safety and track local attestation. However, no explicit lemma is given showing that a successful attestation step updates the client's view of the enclave's authority in the relation (e.g., via a preservation or simulation result under the CHERI-TrEE call instruction). Without this, it is unclear whether the end-to-end properties proved for the three applications actually transfer to executions that use the modeled primitives.

    Authors: The universal contract is intentionally defined independently of specific primitives to support modular reasoning over arbitrary capabilities. Attestation authority is captured directly in the logical relation: successful attestation produces capabilities whose authority reflects the enclave's attested identity and permissions. The three application proofs in §5 compose the universal contract with the modeled CHERI-TrEE instructions and establish the end-to-end properties post-attestation. To address the request for an explicit connection, we will add a lemma in the revised §3.2 showing preservation of the relation under the attestation call, including how the client's authority view is updated. This will make the transfer to the application proofs fully explicit. revision: yes

  2. Referee: [§4] §4 (CHERI-TrEE Extension): The formalization of the enclave primitives as an extension to Cerise is load-bearing for the adequacy claim, yet the paper provides only an informal correspondence argument rather than a simulation or refinement relation between the extended machine semantics and the proposed CHERI-TrEE hardware behavior. This leaves open whether the mechanized proofs validate the intended hardware model or merely an over-approximation thereof.

    Authors: The mechanized model extends Cerise precisely with the enclave instructions and semantics as specified in the CHERI-TrEE design proposal. Adequacy of the program logic holds with respect to this model. A full simulation or refinement to hardware-level semantics would require a separate formalization of the CHERI-TrEE hardware, which is not available in the literature and lies outside the paper's scope. In the revision we will expand §4 with a detailed informal correspondence, including an explicit mapping of each modeled primitive to the proposal's specification, to clarify that the model is not an over-approximation of the intended behavior. revision: partial

Circularity Check

0 steps flagged

No circularity: mechanized logical relations and independent universal contract

full rationale

The derivation defines Cerisier via Iris logical relations for capability authority (extending Cerise), states a universal contract for untrusted code that independently captures capability safety plus attestation tracking, and then proves end-to-end properties for three applications. All steps are machine-checked in Rocq; the contract is not defined in terms of the application theorems, no parameters are fitted to data, and no self-citation chain is load-bearing for the central claims. The mechanization supplies external verifiability, keeping the chain self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, no free parameters are mentioned. The work relies on standard Iris separation logic axioms and the domain assumption that the CHERI-TrEE proposal can be faithfully modeled as an extension to Cerise. No new invented entities are introduced.

axioms (1)
  • domain assumption The CHERI-TrEE enclave primitives can be faithfully formalized as an extension to the Cerise capability machine.
    The paper states it formalizes a recent proposal as an extension to Cerise.

pith-pipeline@v0.9.0 · 5524 in / 1305 out tokens · 51853 ms · 2026-05-10T12:10:03.696033+00:00 · methodology
