arxiv: 2604.13653 · v1 · submitted 2026-04-15 · ❄️ cond-mat.soft

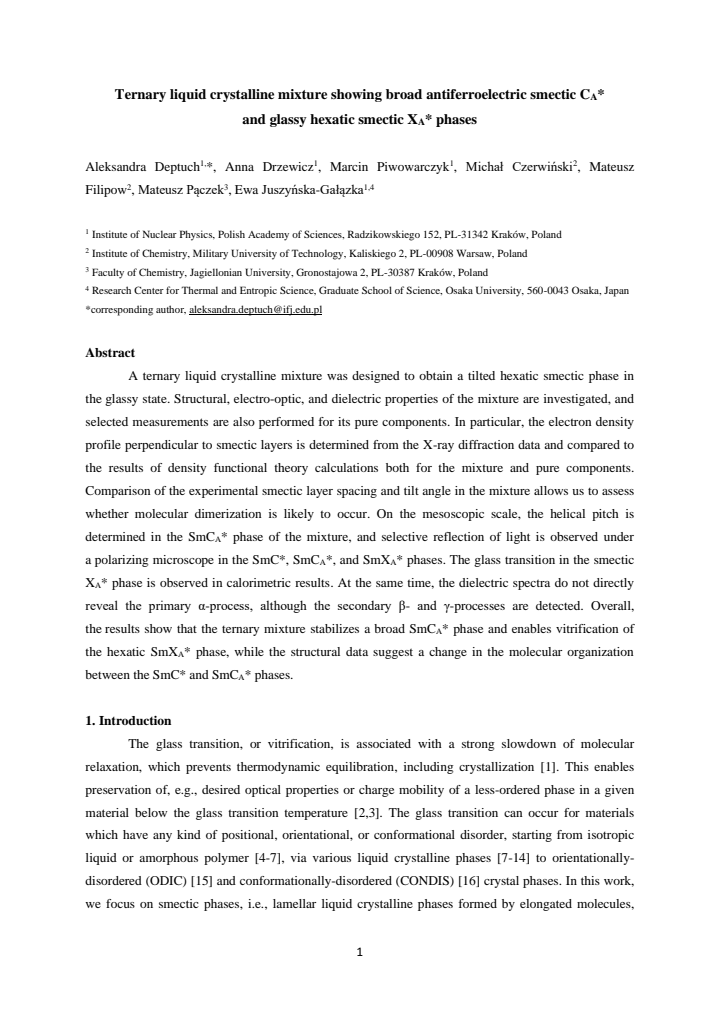

Ternary liquid crystalline mixture showing broad antiferroelectric smectic C_A* and glassy hexatic smectic X_A* phases

Aleksandra Deptuch , Anna Drzewicz , Marcin Piwowarczyk , Micha{\l} Czerwi\'nski , Mateusz Filipow , Mateusz P\k{a}czek , Ewa Juszy\'nska-Ga{\l}\k{a}zka This is my paper

Pith reviewed 2026-05-10 12:18 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords liquid crystalssmectic phasesantiferroelectricglassy statehexatic phaseX-ray diffractionternary mixtureelectron density
0
0 comments X

The pith

A ternary liquid crystalline mixture stabilizes a broad antiferroelectric smectic phase and enables vitrification of a hexatic phase into glass.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors prepared a ternary mixture of liquid crystal compounds to target a tilted hexatic smectic phase that can be cooled into a glassy state. Their structural, thermal, and electro-optic measurements establish that the mixture maintains an unusually wide antiferroelectric smectic C_A* phase over a broad temperature interval. X-ray diffraction yields an electron density profile across the layers that, when compared with density functional theory results, points to altered molecular pairing in the antiferroelectric phase relative to the ferroelectric one. Calorimetry detects a glass transition within the hexatic phase while dielectric spectra capture secondary relaxation processes. These combined observations demonstrate how mixing can extend the stability range of desired smectic phases and produce a frozen ordered state at low temperature.

Core claim

The ternary mixture stabilizes a broad SmC_A* phase and enables vitrification of the hexatic SmX_A* phase. X-ray data give the electron density profile perpendicular to the layers, which together with measured layer spacing and tilt angle suggests a change in molecular organization between the SmC* and SmC_A* phases. The helical pitch is determined in the antiferroelectric phase, selective reflection of light occurs in the SmC*, SmC_A*, and SmX_A* phases, and calorimetry registers the glass transition specifically in the SmX_A* phase. Dielectric spectra reveal secondary beta and gamma processes but do not show the primary alpha process directly.

What carries the argument

The ternary mixture composition that widens the antiferroelectric SmC_A* temperature window and permits the hexatic SmX_A* phase to vitrify, with the electron density profile from X-ray diffraction serving as the probe of layer organization and possible dimerization.

Load-bearing premise

The glass transition observed in calorimetry occurs entirely within the SmX_A* phase without contributions from phase coexistence or impurities, and the X-ray-derived electron density profile accurately represents the mixture's average molecular arrangement.

What would settle it

Simultaneous X-ray diffraction performed while cooling through the calorimetric glass transition temperature would show whether the phase identity remains purely SmX_A* at the transition point or whether other phases are present.

Figures

Figures reproduced from arXiv: 2604.13653 by Aleksandra Deptuch, Anna Drzewicz, Ewa Juszy\'nska-Ga{\l}\k{a}zka, Marcin Piwowarczyk, Mateusz Filipow, Mateusz P\k{a}czek, Micha{\l} Czerwi\'nski.

Figure 1
Figure 1. Figure 1: Molecular structures of the MHPOBC and 3FmHPhH6 (m = 2, 3) compounds. 2. Experimental and computational details The (S)-4-[(1-methylheptyloxy)carbonyl]phenyl 4′-octyloxy-4-biphenylcarboxylate (MHPOBC), (S)-4’-(1-methylheptylcarbonyl)biphenyl-4-yl 4-[2-(2,2,3,3,4,4,4- heptafluorobutoxy)etyl-1-oxy]benzoate (3F2HPhH6), and (S)-4’-(1-methylheptylcarbonyl)biphenyl-4- yl 4-[3-(2,2,3,3,4,4,4-heptafluorobutoxy)pro… view at source ↗
Figure 2
Figure 2. Figure 2: DSC thermograms of 3F2HPhH6 (a), 3F3HPhH6 (b), and MIX2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Phase transition temperatures of 3F2HPhH6 (a), 3F3HPhH6 (b), and MIX23HH6 (c) at [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 11

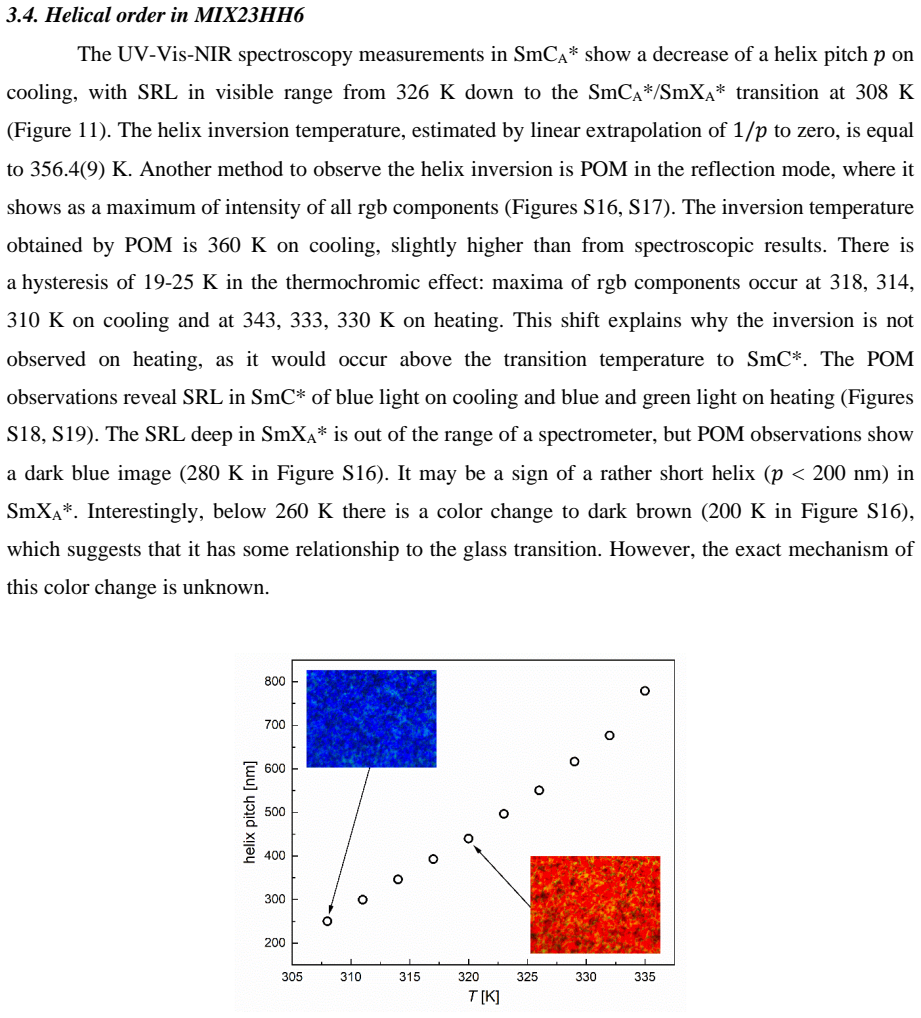

Figure 11. Figure 11: Helix pitch in the SmCA* phase of MIX23HH6 as a function of temperature. POM images collected on cooling in a reflection mode in 320 K and 308 K (622 × 466 μm2 ) are presented to show the thermochromic effect. 3.5. Electro-optical response and switching behavior of MIX23HH6 in an external electric field The switching time 𝜏𝑠𝑤 in SmCA* increases on cooling from 33 μs in 387 K to 146 μs in 348 K. On further… view at source ↗
Figure 12
Figure 12. Figure 12: Switching time (a), spontaneous polarization (b), and tilt angle (c) in MIX23HH6 as [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Electron density profile along the smectic layer normal in [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
read the original abstract

A ternary liquid crystalline mixture was designed to obtain a tilted hexatic smectic phase in the glassy state. Structural, electro-optic, and dielectric properties of the mixture are investigated, and selected measurements are also performed for its pure components. In particular, the electron density profile perpendicular to smectic layers is determined from the X-ray diffraction data and compared to the results of density functional theory calculations both for the mixture and pure components. Comparison of the experimental smectic layer spacing and tilt angle in the mixture allows us to assess whether molecular dimerization is likely to occur. On the mesoscopic scale, the helical pitch is determined in the SmC$_A$* phase of the mixture, and selective reflection of light is observed under a polarizing microscope in the SmC*, SmC$_A$*, and SmX$_A$* phases. The glass transition in the smectic X$_A$* phase is observed in calorimetric results. At the same time, the dielectric spectra do not directly reveal the primary $\alpha$-process, although the secondary $\beta$- and $\gamma$-processes are detected. Overall, the results show that the ternary mixture stabilizes a broad SmC$_A$* phase and enables vitrification of the hexatic SmX$_A$* phase, while the structural data suggest a change in the molecular organization between the SmC* and SmC$_A$* phases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the design and characterization of a ternary liquid crystalline mixture that exhibits a broad antiferroelectric smectic C_A* phase and a glassy hexatic smectic X_A* phase. Through X-ray diffraction, the electron density profile perpendicular to the layers is determined and compared to DFT calculations for the mixture and pure components. Dielectric spectroscopy, calorimetry, and polarizing microscopy are used to investigate electro-optic and dielectric properties, helical pitch, selective reflection, and the glass transition. The results indicate that the mixture stabilizes the SmC_A* phase, allows vitrification of the SmX_A* phase, and shows evidence for altered molecular organization between SmC* and SmC_A* phases.

Significance. If the results hold, this work is significant for demonstrating how ternary mixtures can be engineered to broaden antiferroelectric phases and induce glassy hexatic phases, which may have implications for liquid crystal applications requiring stable tilted phases or glassy states. The combination of experimental techniques with theoretical DFT comparisons provides a robust characterization. The direct experimental observations without reliance on fitted parameters or circular derivations add to the reliability of the findings.

major comments (2)
  1. The observation of the glass transition specifically within the SmX_A* phase is central to the vitrification claim, but the manuscript should provide additional analysis (e.g., detailed DSC traces or comparisons ruling out coexistence/impurities) to confirm this attribution without contributions from other phases.
  2. In the structural analysis, the assessment of molecular dimerization via layer spacing, tilt angle, and electron density profile assumes the X-ray data accurately reflect the mixture's average structure; a more explicit discussion of how the ternary composition is incorporated in the DFT comparisons would strengthen this part of the central claim.
minor comments (2)
  1. The abstract lacks quantitative details such as specific temperature ranges for the broad SmC_A* phase, layer spacings, or the glass transition temperature, which would help convey the key results more precisely.
  2. Figures throughout should include error bars on data points (e.g., layer spacing vs. temperature) and clear phase labels to improve clarity and verifiability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and the recommendation for minor revision. We address the major comments point by point below.

read point-by-point responses

  1. Referee: The observation of the glass transition specifically within the SmX_A* phase is central to the vitrification claim, but the manuscript should provide additional analysis (e.g., detailed DSC traces or comparisons ruling out coexistence/impurities) to confirm this attribution without contributions from other phases.

    Authors: We agree that additional analysis would strengthen the attribution of the glass transition to the SmX_A* phase. In the revised manuscript, we will include expanded DSC traces for the mixture along with direct comparisons to the pure components to confirm the transition occurs specifically in the hexatic phase and to rule out contributions from coexistence or impurities. revision: yes

  2. Referee: In the structural analysis, the assessment of molecular dimerization via layer spacing, tilt angle, and electron density profile assumes the X-ray data accurately reflect the mixture's average structure; a more explicit discussion of how the ternary composition is incorporated in the DFT comparisons would strengthen this part of the central claim.

    Authors: We agree that a more explicit discussion of the DFT procedure would be beneficial. The calculations for the mixture used a composition-weighted average of the molecular structures and electron densities of the three components. We will revise the manuscript to provide a clearer description of how the ternary composition is incorporated into the DFT modeling and comparisons with the experimental X-ray-derived electron density profile. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The manuscript is an experimental study of a ternary liquid crystalline mixture. It reports phase identification, layer spacing, tilt angles, and glass transition temperatures from X-ray diffraction, DSC, electro-optic, and dielectric measurements, plus direct comparisons of electron density profiles to independent DFT calculations on the mixture and pure components. No derivations, predictions, or first-principles results are claimed that reduce by construction to fitted inputs, self-definitions, or self-citation chains. All load-bearing statements rest on raw data and external benchmarks (DFT), satisfying the criteria for a self-contained, non-circular analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The study is experimental with supporting DFT comparisons; no new physical entities are introduced and free parameters appear limited to standard analysis choices such as fitting of density profiles.

axioms (2)
  • standard math Standard assumptions underlying X-ray diffraction analysis for determining smectic layer spacing, tilt angles, and electron density profiles hold for this system.
    Invoked when extracting structural parameters from diffraction data and comparing to DFT.
  • domain assumption DFT calculations on individual components and the mixture provide a reliable reference for experimental electron density profiles.
    Used to validate structural data and assess possible dimerization.
