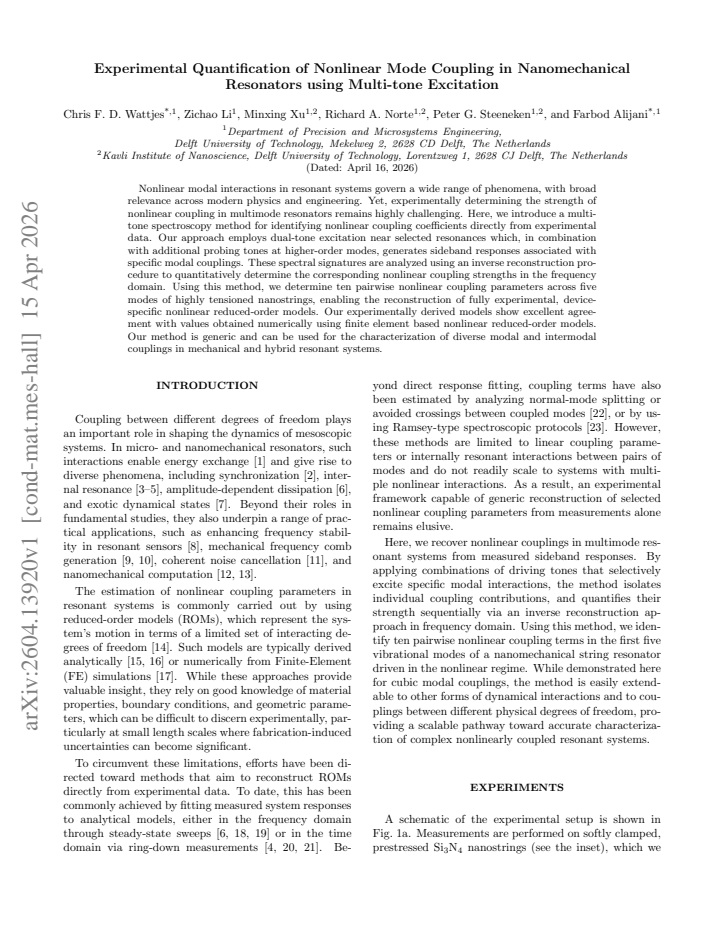

Experimental Quantification of Nonlinear Mode Coupling in Nanomechanical Resonators using Multi-tone Excitation

Chris F. D. Wattjes , Zichao Li , Minxing Xu , Richard A. Norte , Peter G. Steeneken , Farbod Alijani This is my paper

Pith reviewed 2026-05-10 12:25 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords nonlinear mode couplingnanomechanical resonatorsmulti-tone excitationsideband responsesreduced-order modelsmodal interactionsexperimental quantificationtensioned nanostrings
0
0 comments X

The pith

Multi-tone spectroscopy quantifies ten pairwise nonlinear couplings across five modes in nanomechanical resonators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an experimental technique that uses multiple driving tones to generate observable sideband signals whose amplitudes encode the strengths of specific nonlinear interactions between vibration modes. Dual-tone excitation near chosen resonances, paired with probing tones at other modes, produces these signatures, which an inverse reconstruction procedure then converts into quantitative coupling coefficients. The method was applied to highly tensioned nanostrings, yielding ten distinct pairwise parameters that allow construction of device-specific nonlinear reduced-order models. These experimental models match closely with independent numerical predictions from finite-element analysis. Accurate knowledge of such couplings matters because they govern energy exchange, frequency shifts, and stability limits in resonators used for sensing, filtering, and signal processing.

Core claim

Dual-tone excitation near selected resonances combined with probing tones at higher-order modes generates sideband responses associated with specific modal couplings. An inverse reconstruction procedure applied to these spectral signatures quantitatively determines the corresponding nonlinear coupling strengths. Applied to five modes of highly tensioned nanostrings, the approach yields ten pairwise nonlinear coupling parameters, enabling the reconstruction of fully experimental, device-specific nonlinear reduced-order models that show excellent agreement with values obtained from finite-element-based numerical models.

What carries the argument

Multi-tone spectroscopy that generates and inverts sideband responses to extract pairwise nonlinear coupling coefficients in the frequency domain.

If this is right

  • Fully experimental nonlinear reduced-order models can replace or supplement numerical ones for device-specific predictions.
  • The technique provides a generic route to characterize diverse modal and intermodal couplings in mechanical and hybrid resonant systems.
  • Quantitative coupling parameters enable direct prediction of nonlinear phenomena such as modal energy transfer and amplitude-dependent frequency shifts.
  • Ten measurable couplings across five modes demonstrate that the method scales to multimode systems without requiring exhaustive numerical fitting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sideband signatures could be tracked over time to monitor how couplings evolve with temperature, stress, or fabrication variations.
  • Adding more simultaneous tones might allow extraction of selected three-mode or higher-order couplings once the pairwise terms are known.
  • The close match between experiment and simulation suggests the method can serve as a calibration tool to improve the accuracy of numerical models for complex geometries.

Load-bearing premise

Observed sideband responses arise solely from the targeted pairwise nonlinear couplings, and the inverse reconstruction can isolate their strengths without significant interference from higher-order nonlinearities or other unaccounted dynamics.

What would settle it

Extracted coupling values that deviate substantially from independent finite-element calculations or from measurements obtained by an alternative experimental protocol on the same device.

Figures

Figures reproduced from arXiv: 2604.13920 by Chris F. D. Wattjes, Farbod Alijani, Minxing Xu, Peter G. Steeneken, Richard A. Norte, Zichao Li.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Schematic of measurement setup, consisting of a MSA-500 Polytec laser Doppler vibrometer (LDV), Intermodulation [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

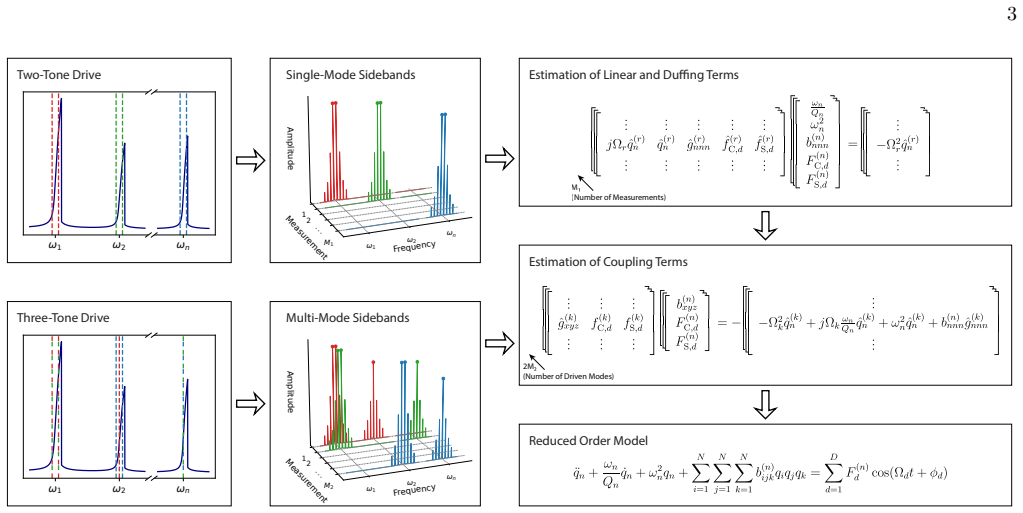

Figure 2. Figure 2: FIG. 2. Schematic flow diagram of the nonlinear parameter estimation methodology. Different combinations of two-tone [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

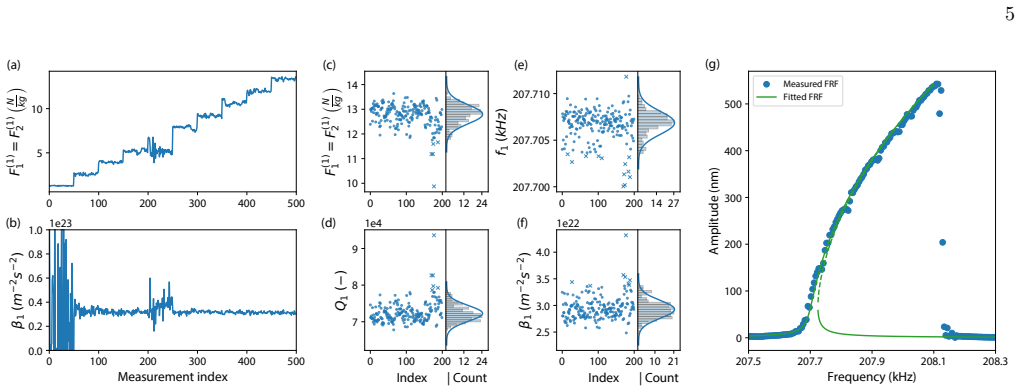

Figure 3. Figure 3: FIG. 3. Nonlinear parameter estimation with multi-tone excitation. (a) The amplitude of the multi-tone excitation is increased [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
