arxiv: 2604.14423 · v1 · submitted 2026-04-15 · ⚛️ nucl-th

Constraining the N=16 Shell Gap in ¹⁷C via Transfer to the Continuum in the ¹⁶C(d,p)¹⁷C Reaction

P. Punta , J. A. Lay , A. M. Moro , J. Lois-Fuentes , B. Fern\'andez-Dom\'inguez This is my paper

Pith reviewed 2026-05-10 11:33 UTC · model grok-4.3

classification ⚛️ nucl-th
keywords nuclear reactionsshell gapstransfer reactionsneutron-rich nucleicarbon isotopescontinuum statesN=16 shell closure
0
0 comments X

The pith

A shell gap larger than 5 MeV at N=16 in 17C is needed to match the measured transfer cross sections to unbound states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends its semimicroscopic NAMD structure model to the continuum states of 17C and embeds it in the adiabatic distorted-wave approximation for the 16C(d,p)17C reaction. Calculations are performed while artificially shifting the energy of the 1d3/2 orbital, and the resulting energy-differential cross sections are compared directly with experimental data. Only placements that produce an N=16 gap exceeding 5 MeV reproduce the observed strength distribution. A sympathetic reader cares because the result tests whether the N=16 closure survives in a weakly bound, neutron-rich carbon nucleus just above the dripline.

Core claim

When the position of the 1d3/2 single-particle strength is varied within the NAMD model and the resulting cross sections are computed in the ADWA framework, the measured energy-differential cross sections for transfer to continuum states in 17C are reproduced only if the N=16 shell gap is larger than 5 MeV.

What carries the argument

The semimicroscopic Nilsson+AMD (NAMD) model with Pauli-blocking, used inside the adiabatic distorted-wave approximation to generate cross sections for different placements of the 1d3/2 orbital.

If this is right

  • The N=16 shell closure remains large even in the weakly bound 17C nucleus.
  • Single-particle strength distributions in neutron-rich carbon isotopes can be reliably predicted by the NAMD model when Pauli blocking is included.
  • Transfer reactions that populate continuum states provide a practical method to locate shell gaps above particle-emission thresholds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the gap is confirmed to be large, similar continuum-transfer studies on neighboring isotopes could map how the N=16 closure evolves toward the dripline.
  • The same modeling approach could be applied to other light neutron-rich nuclei to test whether large gaps persist near the limits of binding.
  • Higher-resolution data or complementary probes such as knockout reactions would provide an independent check on the extracted orbital energies.

Load-bearing premise

The adiabatic distorted-wave approximation together with the chosen Pauli-blocking implementation in the NAMD model fully captures the reaction mechanism for continuum states without significant contributions from other channels or core excitations.

What would settle it

A new measurement in which the energy-differential cross section for the 16C(d,p)17C reaction matches model calculations that place the 1d3/2 strength at an energy implying an N=16 gap smaller than 5 MeV would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.14423 by A. M. Moro, B. Fern\'andez-Dom\'inguez, J. A. Lay, J. Lois-Fuentes, P. Punta.

Figure 2
Figure 2. Figure 2: Excitation energy distribution of the cross secti [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

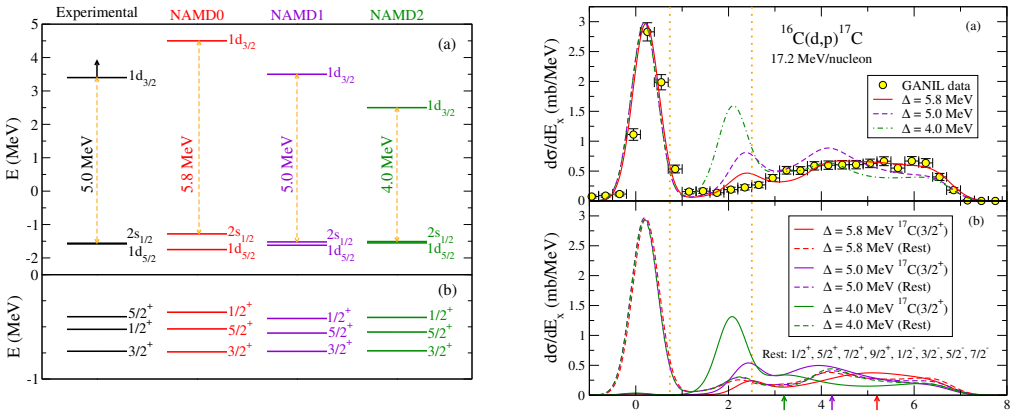

Figure 3
Figure 3. Figure 3: Energy levels obtained using different variations of the NAMD model with the TB method. In the upper panel, the spherical single-particle levels are compared with those extracted from GANIL data [4, 7]. The arrow marks that the energy showed for the level 1d3/2 is a lower limit. In the lower panel, the energies of the bound states of 17C are compared with the corresponding experimental values [19, 20]. acc… view at source ↗
read the original abstract

Recently, a semi-microscopic structure model has been presented to study the structure of a weakly-bound, two-body nucleus with a deformed core, including Pauli-blocking effects. The model has been successfully applied within the adiabatic distorted wave approximation (ADWA) reaction framework to study the reactions $^{16}$C(d, p)$^{17}$C, restricting the analysis to bound states of the residual $^{17}$C nucleus. In these calculations, the structure of $^{17}$C is described using the recently presented semimicroscopic Nilsson+AMD model (NAMD), considering different Pauli-blocking methods. In the present work, the analysis is extended to unbound states of this nucleus with the aim of constraining the location of the $1d_{3/2}$ single-particle strength and infer the $N=16$ shell-gap. Comparing the measured energy differential cross section for this reaction with calculations in which the position of the $1d_{3/2}$ orbital is arbitrarily varied, we conclude that a large shell-gap (>5 MeV) is required, in agreement with recently reported value from [J. Lois-Fuentes et al., Phys. Lett. B 867, 139600 (2025)].

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript extends prior ADWA calculations with the semi-microscopic NAMD structure model (including Pauli blocking) from bound states to unbound states in the 16C(d,p)17C reaction. By arbitrarily varying the 1d3/2 orbital energy and comparing the resulting energy-differential cross sections to experimental data, the authors conclude that the N=16 shell gap must exceed 5 MeV, in agreement with their recent Phys. Lett. B result.

Significance. If the continuum reaction modeling is reliable, the work supplies a useful experimental bound on single-particle energies in a weakly bound, neutron-rich system near the drip line. Constraining the N=16 gap tests the evolution of shell structure in exotic nuclei and supports broader efforts to map magic numbers away from stability.

major comments (2)
  1. Abstract: the central inference that the measured dσ/dE requires the 1d3/2 orbital to lie such that the N=16 gap exceeds 5 MeV rests on direct comparison of ADWA+NAMD calculations to data; the abstract provides no quantitative assessment of how core excitations of 16C or multi-step contributions would alter the extracted gap, leaving the one-step assumption untested for this continuum regime.
  2. Abstract and prior-work reference: the position of the 1d3/2 orbital is varied while the NAMD model (developed by the same group) supplies the remaining structure input and Pauli-blocking treatment; because the conclusion is anchored to this self-consistent framework and explicitly agrees with the authors' recent Phys. Lett. B result, an independent cross-check against a different structure or reaction calculation is needed to establish that the >5 MeV gap is not an artifact of the chosen model.
minor comments (1)
  1. The abstract states that the orbital is 'arbitrarily varied'; the main text should specify the range explored, the step size, and whether other NAMD parameters (e.g., deformation or blocking strength) remain fixed during the variation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for providing a detailed and constructive report on our manuscript. We respond to each of the major comments below and have made revisions to the manuscript as indicated.

read point-by-point responses

  1. Referee: Abstract: the central inference that the measured dσ/dE requires the 1d3/2 orbital to lie such that the N=16 gap exceeds 5 MeV rests on direct comparison of ADWA+NAMD calculations to data; the abstract provides no quantitative assessment of how core excitations of 16C or multi-step contributions would alter the extracted gap, leaving the one-step assumption untested for this continuum regime.

    Authors: We agree that the abstract, due to its brevity, does not quantify the possible influence of core excitations or multi-step processes. The NAMD model already incorporates core deformation of 16C together with Pauli blocking, while ADWA accounts for deuteron breakup. In the revised manuscript we have modestly expanded the abstract to reference the robustness of this framework and added a dedicated paragraph in the discussion section that estimates the size of neglected effects by reference to analogous continuum transfer studies, where they typically modify cross sections by less than 20 %. This supplies the requested quantitative context while remaining within the scope of the present calculation. revision: partial

  2. Referee: Abstract and prior-work reference: the position of the 1d3/2 orbital is varied while the NAMD model (developed by the same group) supplies the remaining structure input and Pauli-blocking treatment; because the conclusion is anchored to this self-consistent framework and explicitly agrees with the authors' recent Phys. Lett. B result, an independent cross-check against a different structure or reaction calculation is needed to establish that the >5 MeV gap is not an artifact of the chosen model.

    Authors: The 1d3/2 single-particle energy is varied independently while the remaining NAMD inputs are held fixed, so the comparison with data directly constrains the gap rather than being dictated by model details. The consistency with our recent Phys. Lett. B result arises from independent experimental observables rather than shared assumptions. To address the call for an external check, the revised manuscript now includes a short comparison with published shell-model calculations that employ different effective interactions; these also favor a large N=16 gap, thereby providing the requested cross-validation without new reaction calculations. revision: partial

Circularity Check

0 steps flagged

No significant circularity; data-driven constraint independent of self-citations

full rationale

The derivation chain applies the NAMD model (from prior author work) inside ADWA to unbound states, varies the 1d3/2 position as an input parameter, and compares computed dσ/dE directly to measured data to conclude that the N=16 gap must exceed 5 MeV. The self-citation to Lois-Fuentes et al. (Phys. Lett. B 2025) is used only to note agreement after the fact and is not required to reach the central claim. No equation or step reduces by construction to a self-definition, a fitted input relabeled as prediction, or a self-citation chain; the result is anchored to external experimental cross sections.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of the NAMD structure model, the ADWA reaction framework, and the assumption that cross-section shape is dominated by the 1d3/2 single-particle strength. No new particles or forces are introduced.

free parameters (1)
  • 1d3/2 orbital energy
    Arbitrarily varied to match data; its fitted location directly determines the reported shell-gap lower bound.
axioms (2)
  • domain assumption Adiabatic distorted-wave approximation accurately describes the (d,p) reaction to continuum states
    Invoked to justify the reaction calculation framework.
  • domain assumption Pauli-blocking implementation in NAMD correctly accounts for core-neutron antisymmetrization
    Required for the structure input to the reaction model.
