Mechanical properties of proton in the momentum space
Pith reviewed 2026-05-10 11:22 UTC · model grok-4.3
The pith
The proton shows strong binding contributions to transverse pressure from its quarks at low momentum.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The energy-momentum tensor of the proton is parametrized in momentum space via higher-twist gravitational TMDs. In the light-cone framework with the spectator diquark model these TMDs yield the transverse pressure and shear force distributions together with the polarization-dependent terms for the u and d quarks. A strong binding contribution to the transverse pressure appears in the low-momentum space for both quark flavors.
What carries the argument
Higher-twist gravitational TMDs that encode the parametrization of the proton energy-momentum tensor and thereby determine its mechanical properties in momentum space.
If this is right
- Transverse pressure distributions for u and d quarks both display strong binding at low momentum.
- Shear force distributions follow directly from the same gravitational TMDs.
- Polarization-dependent terms Π^q_S and Π^q_A become accessible through these distributions.
- Momentum-space mechanical properties supplement conventional position-space analyses of the proton.
- Flavor-separated results highlight differences between up and down quark contributions inside the proton.
Where Pith is reading between the lines
- The prominence of binding at low momentum suggests that slow-moving quarks play a central role in holding the proton together.
- The same TMD framework could be applied to other hadrons to compare their internal pressure profiles.
- Direct comparison with lattice results in momentum space would test the model predictions without additional assumptions.
- These distributions may influence interpretations of proton structure functions measured in high-energy collisions.
Load-bearing premise
The spectator diquark model together with the light-cone framework and higher-twist gravitational TMDs accurately describes the proton's mechanical properties when expressed in momentum space.
What would settle it
A lattice QCD calculation or experimental extraction of the transverse pressure distribution that finds no prominent binding contribution at low quark transverse momentum would contradict the reported result.

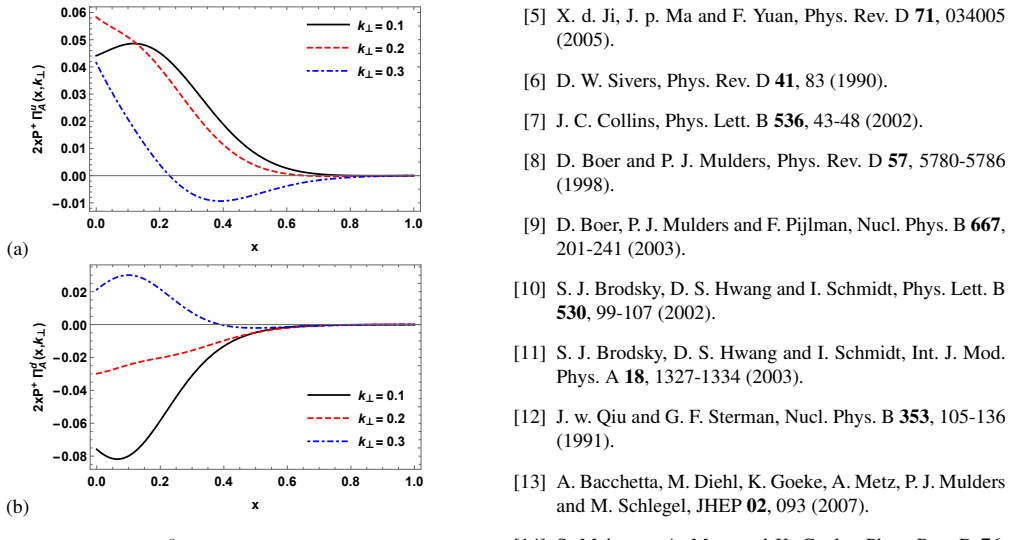

Figures

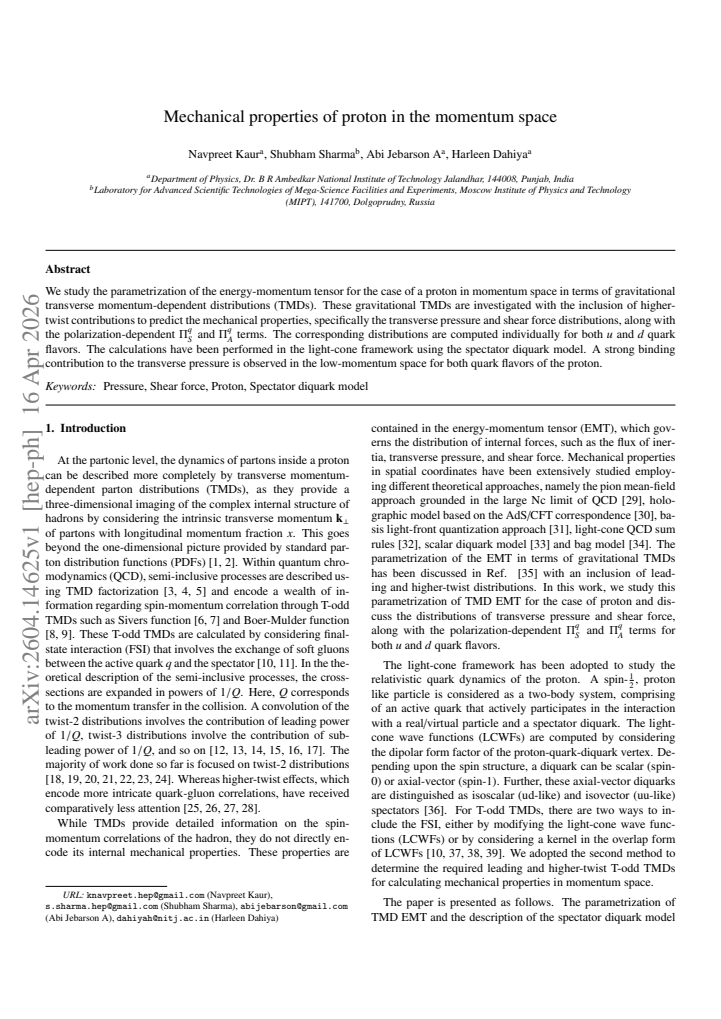

read the original abstract
We study the parametrization of the energy-momentum tensor for the case of a proton in momentum space in terms of gravitational transverse momentum-dependent distributions (TMDs). These gravitational TMDs are investigated with the inclusion of higher-twist contributions to predict the mechanical properties, specifically the transverse pressure and shear force distributions, along with the polarization-dependent $\Pi^q_S$ and $\Pi^q_A$ terms. The corresponding distributions are computed individually for both $u$ and $d$ quark flavors. The calculations have been performed in the light-cone framework using the spectator diquark model. A strong binding contribution to the transverse pressure is observed in the low-momentum space for both quark flavors of the proton.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript parametrizes the proton energy-momentum tensor in momentum space via gravitational TMDs that incorporate higher-twist contributions. Within the light-cone spectator diquark model, it computes the transverse pressure and shear-force distributions together with the polarization-dependent terms Π^q_S and Π^q_A, separately for u and d quarks, and reports a strong binding contribution to the transverse pressure at low momentum for both flavors.
Significance. If the model results hold, the work supplies a momentum-space view of nucleon mechanical properties that complements position-space studies and provides explicit flavor separation. The inclusion of higher-twist gravitational TMDs is a constructive technical step. However, the spectator diquark framework's omission of gluons restricts the broader significance, since gluons furnish roughly half the proton's momentum fraction and directly enter the EMT definitions of pressure and shear.
major comments (2)
- [Section II] Section II (spectator diquark model and light-cone framework): the central claim of a strong binding contribution to transverse pressure at low momentum is obtained from higher-twist gravitational TMDs that contain no explicit gluon Fock components. Because gluons contribute ~0.5 to the total momentum fraction and enter the definitions of pressure and shear distributions, their absence renders the reported low-momentum binding term incomplete for the full proton EMT; this is load-bearing for the abstract claim.
- [Results] Results section (flavor-separated distributions): the reported 'strong binding contribution' for both u and d quarks is generated inside a model whose parameters are fitted to data; no quantitative error bands, comparison to lattice or other gluon-inclusive calculations, or sensitivity study to the diquark mass/vertex parameters is supplied, weakening the robustness of the low-momentum observation.
minor comments (2)
- [Formalism] The notation for the polarization-dependent terms Π^q_S and Π^q_A is introduced without an explicit equation linking them to the EMT components; a short defining relation would improve clarity.
- [Figures] Figure captions and axis labels for the low-momentum region should explicitly state the kinematic cuts and units used for the transverse pressure plots.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comments. We respond to each major point below, indicating where revisions will be made.
read point-by-point responses
-
Referee: [Section II] Section II (spectator diquark model and light-cone framework): the central claim of a strong binding contribution to transverse pressure at low momentum is obtained from higher-twist gravitational TMDs that contain no explicit gluon Fock components. Because gluons contribute ~0.5 to the total momentum fraction and enter the definitions of pressure and shear distributions, their absence renders the reported low-momentum binding term incomplete for the full proton EMT; this is load-bearing for the abstract claim.
Authors: We agree that the light-cone spectator diquark model does not include explicit gluon Fock components and that gluons contribute substantially to the proton momentum fraction and enter the EMT. Our calculations are performed for the quark contributions to the gravitational TMDs, with explicit flavor separation for u and d quarks, as stated in the abstract. The reported strong binding at low momentum is therefore the quark-sector result within this effective model. In the revision we will expand Section II with an explicit discussion of this limitation, clarifying that the findings apply to the quark EMT contributions and that a complete proton description would require gluon-inclusive frameworks. revision: partial
-
Referee: [Results] Results section (flavor-separated distributions): the reported 'strong binding contribution' for both u and d quarks is generated inside a model whose parameters are fitted to data; no quantitative error bands, comparison to lattice or other gluon-inclusive calculations, or sensitivity study to the diquark mass/vertex parameters is supplied, weakening the robustness of the low-momentum observation.
Authors: The model parameters are determined by fits to parton distribution data, as is conventional for this class of phenomenological calculations. We did not provide error bands or parameter sensitivity studies in the original submission. In the revised version we will add a sensitivity analysis varying the diquark mass and vertex parameters within ranges allowed by the fits, showing the effect on the transverse pressure and shear distributions. We will also include a discussion of the current absence of lattice results for momentum-space gravitational TMDs and note qualitative relations to existing position-space studies. revision: yes
Circularity Check
Derivation is a standard model calculation with no circular reduction to inputs
full rationale
The paper parametrizes the proton EMT in terms of higher-twist gravitational TMDs and evaluates the resulting transverse pressure, shear, and polarization distributions inside the light-cone spectator diquark model. This constitutes a conventional model computation: the mechanical quantities are derived outputs of the chosen wave-function ansatz and its parameters, not definitions or re-labelings of the inputs themselves. No self-definitional equations, no fitted parameters relabeled as independent predictions, and no load-bearing self-citations that close the logical chain are present in the abstract or described framework. The calculation remains falsifiable against external data or other models and does not reduce to tautology.
Axiom & Free-Parameter Ledger
free parameters (1)
- spectator diquark model parameters
axioms (2)
- domain assumption Light-cone framework is valid for describing proton structure and TMDs
- domain assumption Higher-twist contributions can be reliably included in gravitational TMDs for mechanical properties
Reference graph
Works this paper leans on
- [1]
- [2]
-
[3]
J. C. Collins and A. Metz, Phys. Rev. Lett.93, 252001 (2004)
work page 2004
- [4]
-
[5]
X. d. Ji, J. p. Ma and F. Yuan, Phys. Rev. D71, 034005 (2005)
work page 2005
-
[6]
D. W. Sivers, Phys. Rev. D41, 83 (1990)
work page 1990
-
[7]
J. C. Collins, Phys. Lett. B536, 43-48 (2002)
work page 2002
- [8]
-
[9]
D. Boer, P. J. Mulders and F. Pijlman, Nucl. Phys. B667, 201-241 (2003)
work page 2003
-
[10]
S. J. Brodsky, D. S. Hwang and I. Schmidt, Phys. Lett. B 530, 99-107 (2002)
work page 2002
-
[11]
S. J. Brodsky, D. S. Hwang and I. Schmidt, Int. J. Mod. Phys. A18, 1327-1334 (2003)
work page 2003
-
[12]
J. w. Qiu and G. F. Sterman, Nucl. Phys. B353, 105-136 (1991)
work page 1991
-
[13]
A. Bacchetta, M. Diehl, K. Goeke, A. Metz, P. J. Mulders and M. Schlegel, JHEP02, 093 (2007)
work page 2007
- [14]
- [15]
- [16]
- [17]
-
[18]
V . E. Lyubovitskij and I. Schmidt, Phys. Rev. D102, 034011 (2020)
work page 2020
- [19]
- [20]
-
[21]
P. Schweitzer, M. Strikman and C. Weiss, Int. J. Mod. Phys. Conf. Ser.25, 1460010 (2014)
work page 2014
-
[22]
Z. Alizadeh Yazdi, F. Taghavi-Shahri, F. Arash and M. E. Zomorrodian, Phys. Rev. C89, 055201 (2014)
work page 2014
-
[23]
P. Schweitzer, D. Urbano, M. V . Polyakov, C. Weiss, P. V . Pobylitsa and K. Goeke, Phys. Rev. D64, 034013 (2001)
work page 2001
- [24]
- [25]
- [26]
- [27]
- [28]
-
[29]
H. Y . Won, H. C. Kim and J. Y . Kim, JHEP05, 173 (2024)
work page 2024
-
[30]
A. Nascimento and H. Boschi-Filho, [arXiv:2511.20715 [hep-ph]]
work page internal anchor Pith review arXiv
- [31]
- [32]
-
[33]
A. Amor-Quiroz, W. Focillon, C. Lorcé and S. Rodini, Eur. Phys. J. C83, 1012 (2023)
work page 2023
- [34]
- [35]
- [36]
- [37]
- [38]
- [39]
- [40]
- [41]
- [42]
-
[43]
X. S. Chen, X. F. Lu, W. M. Sun, F. Wang and T. Gold- man, Phys. Rev. Lett.100, 232002 (2008)
work page 2008
-
[44]
X. d. Ji, Phys. Rev. Lett.91, 062001 (2003)
work page 2003
-
[45]
A. V . Belitsky, X. d. Ji and F. Yuan, Phys. Rev. D69, 074014 (2004)
work page 2004
- [46]
- [47]
- [48]
-
[49]
L. P. Gamberg, G. R. Goldstein and M. Schlegel, Phys. Rev. D77, 094016 (2008)
work page 2008
-
[50]
S. J. Brodsky, D. S. Hwang and I. Schmidt, Nucl. Phys. B642, 344-356 (2002)
work page 2002
- [51]
