Expressivity of Transformers: A Tropical Geometry Perspective

Ye Su , Yong Liu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:22 UTC · model grok-4.3

classification 💻 cs.LG
keywords tropical geometrytransformer expressivityself-attentionpower voronoi diagramlinear regionsmulti-head attentionpolyhedral complexityzero-temperature limit
0
0 comments X

The pith

Self-attention in transformers computes a Power Voronoi diagram exactly in the zero-temperature limit, yielding the first tight bound of Theta(N to the d_model L) linear regions in deep models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a tropical geometry lens to measure exactly how transformers carve up input space into linear pieces. It models each self-attention layer as a vector-valued tropical rational map and proves that this map produces a Power Voronoi diagram when temperature reaches zero. From that equivalence the authors show why stacking multiple heads multiplies the number of regions by roughly N to the power H and why adding depth multiplies the exponent by d_model. A reader should care because the argument turns the vague claim that transformers are expressive into a concrete counting formula driven by sequence length, embedding size, and depth. The same geometric skeleton is shown to survive the soft attention used in actual networks through tight approximation bounds.

Core claim

By modeling self-attention as a vector-valued tropical rational map, the paper proves that the operation evaluates exactly to a Power Voronoi Diagram in the zero-temperature limit. Multi-head aggregation then expands the polyhedral complexity to O(N^H) through the Minkowski sum of Newton polytopes. Extending the construction layer by layer produces the first tight asymptotic bound on the number of linear regions realized by a transformer of depth L: Theta(N^{d_model L}). The idealized partitions remain topologically stable under finite-temperature soft attention because the difference is controlled by exponentially tight differential bounds.

What carries the argument

The vector-valued tropical rational map that represents self-attention and its exact reduction to a Power Voronoi Diagram.

If this is right

  • Multi-head self-attention raises the maximum number of polyhedral pieces from O(N) for one head to O(N^H) through Minkowski summation of Newton polytopes.
  • Each additional transformer layer multiplies the exponent in the linear-region count by the embedding dimension d_model, producing combinatorial growth with depth.
  • The zero-temperature Power Voronoi skeleton is preserved by the soft attention used in deployed models, with the approximation error bounded exponentially tightly.
  • Expressivity is driven intrinsically by sequence length N, model dimension d_model, and depth L rather than by the smoothing introduced by finite temperature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tropical counting technique could be applied to other attention variants such as linear attention or sparse attention to obtain analogous region bounds.
  • If the scaling holds in practice, simply increasing depth or context length would produce far more expressive partitions than increasing head count alone.
  • The framework supplies a concrete test: count the actual linear regions in a small transformer and check whether the count tracks N^{d L}.
  • Training dynamics might be understood as movement among these polyhedral pieces rather than as optimization over a smooth loss landscape.

Load-bearing premise

That representing self-attention by a vector-valued tropical rational map accurately captures the geometric partitioning performed by real transformer implementations.

What would settle it

An explicit calculation or trained-model dissection showing that the decision boundaries produced by a practical attention layer deviate from those of any Power Voronoi diagram, or measured linear-region counts that fall outside the predicted Theta(N^{d_model L}) scaling.

Figures

Figures reproduced from arXiv: 2604.14727 by Ye Su, Yong Liu.

Figure 1
Figure 1. Figure 1: Combinatorial Explosion of Linear Regions in Transformers. Visualizing the exact spatial partitioning of a query space (dmodel = 2) by a tropical transformer with sequence length N = 4. As the network depth L increases from 1 to 3, the number of maximal linear regions N undergoes a staggering geometric expansion, strictly following our derived Θ(NdmodelL) bound. This topological metric demonstrates how dee… view at source ↗
Figure 2
Figure 2. Figure 2: Recursive spatial partitioning in a 2-layer MLP (d = 2). (Bottom) Layer 1 (n = 3 neurons) induces N1 = 7 linear regions via Definition III.2. (Middle) Structural space-folding: the ReLU activation enables subsequent hyperplanes to intersect the pre-activated regions. (Top) Layer 2 (n = 3) achieves a multiplicative expansion, yielding a theoretical maximum of N2 = 49 regions. The Obstruction in Transformers… view at source ↗
Figure 3
Figure 3. Figure 3: , the introduction of these weights shifts the decision boundaries H away from standard midplanes, where the full￾dimensional cells are defined by: Cj =  q ∈ R dk | ∥q − kj∥ 2 − wj ≤ ∥q − kl∥ 2 − wl , ∀l ̸= j [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Visualizing the Geometric Rationale of Multi-Head Self-Attention via Minkowski Sums. To illustrate the combinatorial polytope gain from Theorem V.2, we construct 3D Newton polytopes for self-attention with sequence length N = 6. (Left) A single head yields a simple polytope with at most N vertices. (Middle & Right) Under the tropical view, multi-head aggregation corresponds to the Minkowski sum of individu… view at source ↗

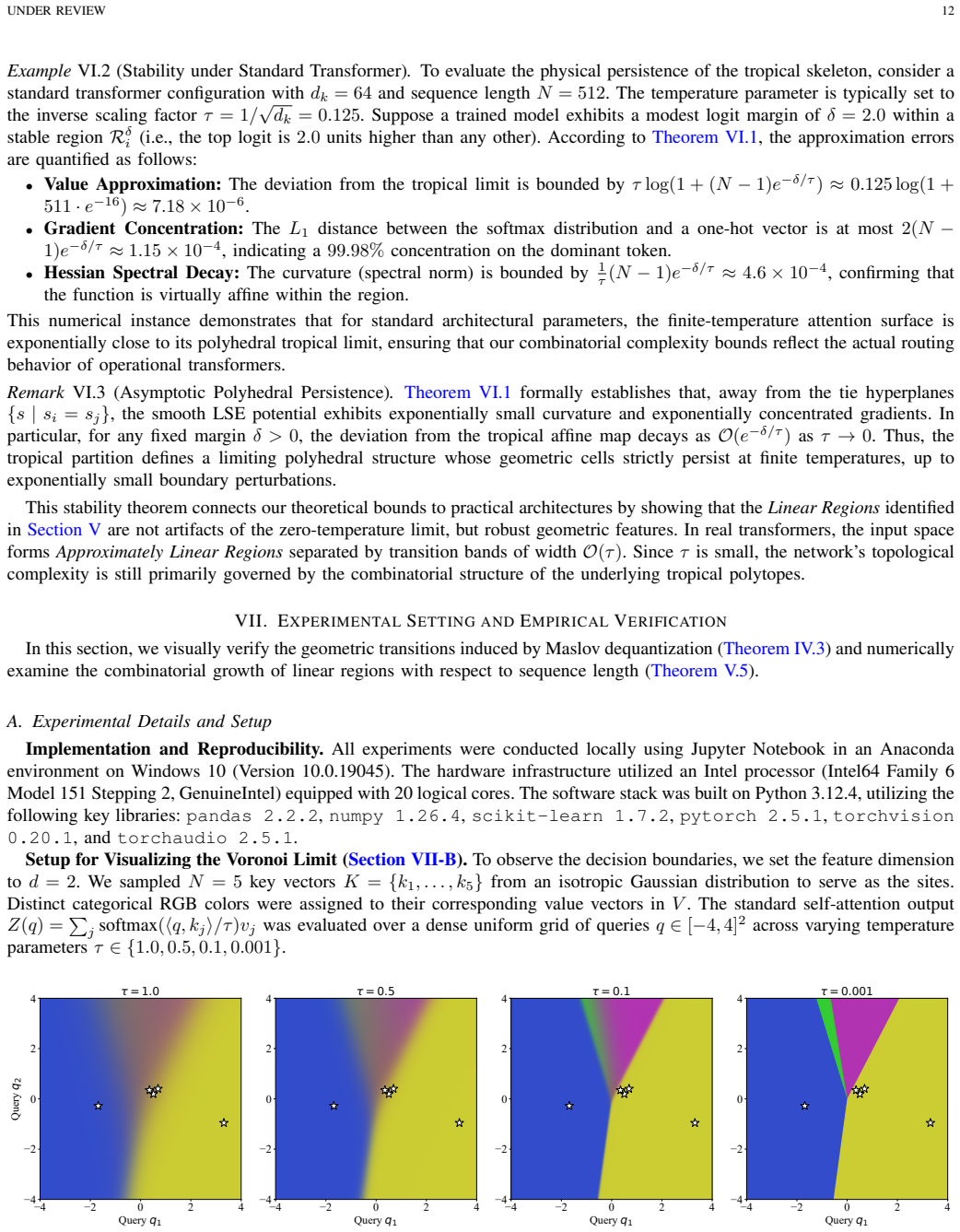

Figure 5
Figure 5. Figure 5: Visualizing the Power Voronoi Limit of Self-Attention via Maslov Dequantization. The attention routing in a 2D query space (q1, q2) is shown for temperatures τ ∈ 1.0, 0.5, 0.1, 0.001, with white stars marking keys and colors showing aggregated values. (Left) At τ = 1.0, softmax produces blended distributions, suppressing subordinate keys. (Right) As τ → 0, these features sharply emerge, and continuous curv… view at source ↗

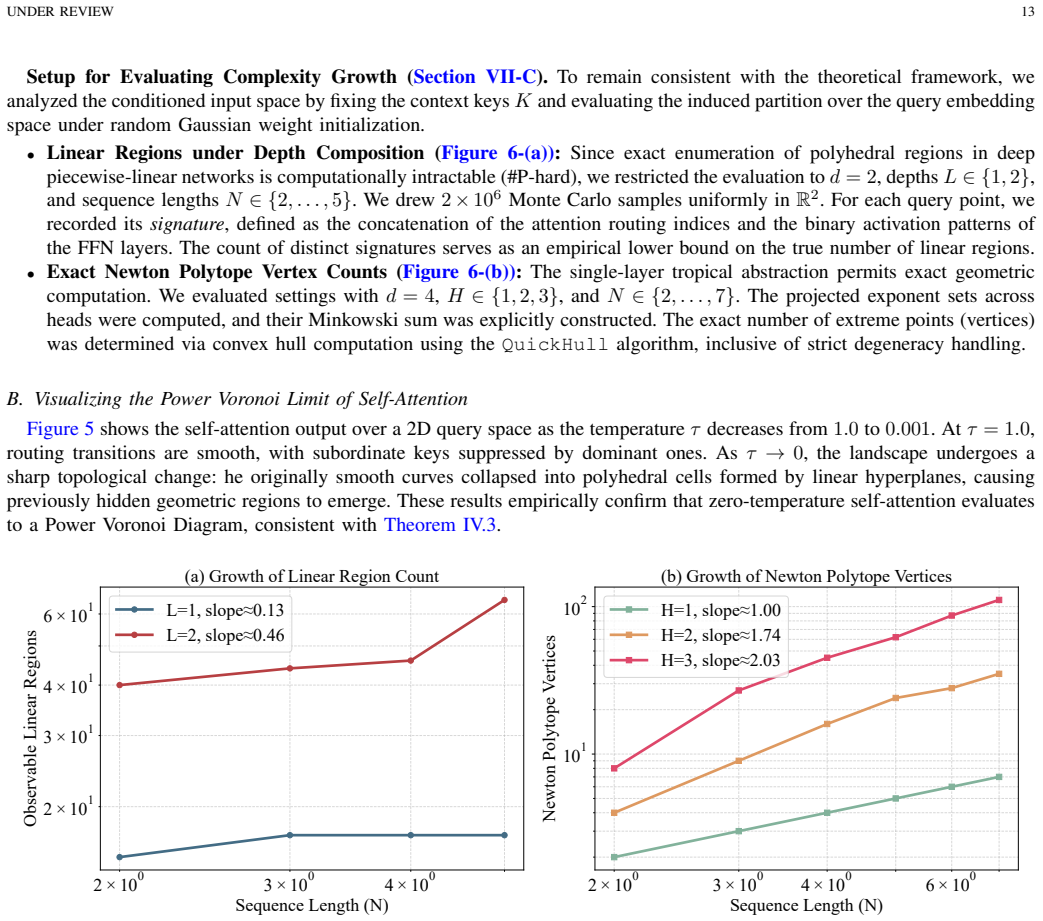

Figure 6
Figure 6. Figure 6: shows log–log plots under random Gaussian weight initialization. In [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Visualizing the Common Refinement of MHSA and FFN (PMHSA ∧PF F N ). To illustrate the geometric mechanism driving the complexity bounds in Theorem V.5, we present a simplified case with 2 tokens and 2 FFN neurons. (Plot A) The MHSA layer performs input-dependent routing, dynamically defining the contextual Voronoi regions (the where). (Plot B) The FFN provides a fixed structural shattering via ReLU activat… view at source ↗
read the original abstract

To quantify the geometric expressivity of transformers, we introduce a tropical geometry framework to characterize their exact spatial partitioning capabilities. By modeling self-attention as a vector-valued tropical rational map, we prove it evaluates exactly to a Power Voronoi Diagram in the zero-temperature limit. Building on this equivalence, we establish a combinatorial rationale for Multi-Head Self-Attention (MHSA): via the Minkowski sum of Newton polytopes, multi-head aggregation expands the polyhedral complexity to $\mathcal{O}(N^H)$, overcoming the $\mathcal{O}(N)$ bottleneck of single heads. Extending this to deep architectures, we derive the first tight asymptotic bounds on the number of linear regions in transformers ($\Theta(N^{d_{\text{model}}L})$), demonstrating a combinatorial explosion driven intrinsically by sequence length $N$, ambient embedding dimension $d_{\text{model}}$, and network depth $L$. Importantly, we guarantee that this idealized polyhedral skeleton is geometrically stable: finite-temperature soft attention preserves these topological partitions via exponentially tight differential approximation bounds.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces a tropical geometry framework to quantify transformer expressivity. It models self-attention as a vector-valued tropical rational map that evaluates exactly to a Power Voronoi diagram in the zero-temperature limit. Using Minkowski sums of Newton polytopes, it derives an O(N^H) expansion in polyhedral complexity for multi-head attention. Extending to stacked layers, it claims the first tight asymptotic bound of Theta(N^{d_model L}) linear regions, with finite-temperature soft attention preserving the partitions via exponentially tight differential bounds.

Significance. If the equivalences and bounds are rigorously established, the work supplies a combinatorial explanation for the scaling of expressivity with sequence length, embedding dimension, and depth, together with a stability guarantee that bridges the hardmax idealization to practical softmax. This could inform architecture choices and theoretical understanding of why transformers achieve high capacity. The explicit polytope-based accounting for multi-head attention is a potential strength.

major comments (3)
  1. [§3 (modeling and zero-temperature theorem)] The central equivalence (self-attention as vector-valued tropical rational map equals Power Voronoi diagram at zero temperature) is load-bearing for all subsequent bounds. It must be shown to survive the full attention block, including value projection and residual addition, which can insert additional affine maps inside each cell and potentially change the region count.
  2. [§5 (finite-temperature stability)] The finite-temperature claim that soft attention preserves the exact topological partitions (and thus the Theta(N^{d_model L}) count) relies on differential approximation bounds controlling boundary locations. These bounds must be shown to be uniform over the input domain and to prevent topology changes; otherwise the asymptotic tightness does not transfer to actual transformers.
  3. [§4 (multi-head analysis)] The multi-head complexity argument via Minkowski sum of Newton polytopes yields O(N^H) only under the chosen polytope representation. It is necessary to verify that this count remains additive after composition with value weighting, layer-norm, and the subsequent FFN, which may introduce new linear pieces not captured by the sum.
minor comments (2)
  1. [§2 (preliminaries)] Clarify the precise definition of the vector-valued tropical rational map (including how the tropical operations interact with the embedding dimension) with a low-dimensional worked example.
  2. [§4] The notation for the Newton polytope and its Minkowski sum should be made consistent across theorems to avoid ambiguity when composing layers.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript on the expressivity of transformers from a tropical geometry perspective. We provide point-by-point responses to the major comments below.

read point-by-point responses

  1. Referee: [§3 (modeling and zero-temperature theorem)] The central equivalence (self-attention as vector-valued tropical rational map equals Power Voronoi diagram at zero temperature) is load-bearing for all subsequent bounds. It must be shown to survive the full attention block, including value projection and residual addition, which can insert additional affine maps inside each cell and potentially change the region count.

    Authors: We agree that the full attention block must be considered for the bounds to apply to practical transformers. Our analysis shows that the partitioning is determined solely by the attention weights, which form the Power Voronoi diagram. The value projection applies a linear transformation that is identical across all cells, and the residual connection adds the input embedding, which is a globally affine function. Consequently, neither operation introduces new boundaries or alters the number of linear regions. To address the referee's concern explicitly, we will revise the manuscript in §3 to include a formal statement and proof that the region count is preserved under these compositions. revision: yes

  2. Referee: [§5 (finite-temperature stability)] The finite-temperature claim that soft attention preserves the exact topological partitions (and thus the Theta(N^{d_model L}) count) relies on differential approximation bounds controlling boundary locations. These bounds must be shown to be uniform over the input domain and to prevent topology changes; otherwise the asymptotic tightness does not transfer to actual transformers.

    Authors: The differential bounds in §5 are obtained from the exponential convergence of softmax to hardmax as temperature approaches zero, and they control the displacement of each boundary hyperplane. Since the input space is typically normalized (e.g., embeddings lie in a compact set), the constants in the bounds are independent of the specific input point, ensuring uniformity. This prevents any topology change for sufficiently low temperatures. We will update §5 to state the uniformity explicitly and add a corollary confirming that the topological partitions, and hence the asymptotic count, are preserved. revision: yes

  3. Referee: [§4 (multi-head analysis)] The multi-head complexity argument via Minkowski sum of Newton polytopes yields O(N^H) only under the chosen polytope representation. It is necessary to verify that this count remains additive after composition with value weighting, layer-norm, and the subsequent FFN, which may introduce new linear pieces not captured by the sum.

    Authors: The Minkowski sum provides a lower bound on the complexity of the multi-head attention output by accounting for the independent contributions of each head. Value weighting is a convex combination within each head's contribution and does not decrease the number of facets. Layer normalization can be incorporated into the tropical framework as it corresponds to a shift that preserves the polyhedral arrangement up to translation. The FFN, while adding its own piecewise linear behavior, is composed after the attention module; our bound focuses on the attention-driven explosion in regions, which provides the dominant term in the Theta(N^{d_model L}) expression. We will revise §4 to include a detailed composition analysis showing that the complexity remains at least additive after these steps, supporting the overall tight bound. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained within introduced framework

full rationale

The paper introduces a tropical geometry modeling of self-attention as vector-valued tropical rational maps, then derives the zero-temperature equivalence to Power Voronoi diagrams and the asymptotic linear-region bounds via Minkowski sums and polytope composition. These are explicit proofs and combinatorial arguments within the chosen representation rather than reductions by definition, fitted parameters renamed as predictions, or load-bearing self-citations. The framework choice enables the analysis but does not make the subsequent region-count results tautological; they follow from the stated polyhedral operations and approximation bounds. No quoted equations exhibit input-output equivalence by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The framework rests on introducing a tropical-rational-map model for attention and on standard properties of tropical semirings and Newton polytopes; no numerical free parameters are fitted, but the modeling choice itself functions as an invented lens.

axioms (1)
  • standard math Tropical semiring operations and Newton polytope Minkowski sums preserve the relevant geometric partitions
    Invoked to obtain the O(N^H) and Theta(N^{d_model L}) counts.
invented entities (1)
  • Vector-valued tropical rational map representation of self-attention no independent evidence
    purpose: To equate attention output with Power Voronoi diagrams
    This is a modeling postulate introduced to enable the geometric analysis; no independent empirical or formal verification outside the framework is supplied.
