arxiv: 2604.14737 · v1 · submitted 2026-04-16 · ❄️ cond-mat.mes-hall

Orbitals of Artificial Atoms in a Gapped Two-Dimensional Vacuum

Mong-Wen Gu , Aizhan Sabitova , Taner Esat , Christian Wagner , F. Stefan Tautz , Aleksandr Rodin , Ruslan Temirov This is my paper

Pith reviewed 2026-05-10 10:24 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords artificial atomstwo-dimensional vacuumbound statesorbitalsscanning tunneling microscopymolecular filmquasi-one-dimensional statesenergy gaps
0
0 comments X

The pith

Artificial atoms in a gapped two-dimensional vacuum develop entirely new quasi-one-dimensional orbitals with no real-atom counterparts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines the bound states of artificial atoms created by patterning a two-dimensional molecular film that features a parabolic band with multiple partial energy gaps. Scanning tunneling microscopy reveals that the lowest-energy states split off from the band bottom and closely resemble the s and p orbitals of natural atoms, including how they bond. The gapped vacuum, however, produces additional localized states that are quasi-one-dimensional and lack any equivalent in real atoms. A sympathetic reader would care because these states introduce a new class of orbitals that could expand the ways atoms interact and form materials in engineered nanoscale systems.

Core claim

The authors show that the gapped two-dimensional vacuum surrounding artificial atoms gives rise to new orbitals beyond the familiar s and p types. These quasi-one-dimensional localised states are shaped predominantly by the surrounding electronic vacuum and enrich the orbital vocabulary of chemistry.

What carries the argument

The gapped two-dimensional vacuum, which splits off new bound states from the parabolic band bottom that are localised and quasi-one-dimensional due to the vacuum's structure.

If this is right

  • Artificial atoms can bond using the new quasi-one-dimensional orbitals in addition to s and p states.
  • Nanostructures patterned in such films can exhibit electronic properties shaped by vacuum-induced orbitals.
  • The set of available orbitals for chemical bonding in two-dimensional systems is expanded by these vacuum-dependent states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same mechanism might produce analogous new states in other gapped two-dimensional systems, such as engineered semiconductor layers.
  • Controlling the gap size or the vacuum properties could allow tuning of these states' energies and shapes for specific device applications.
  • The surrounding electronic environment may influence orbital formation more broadly than in traditional three-dimensional atomic models.

Load-bearing premise

The observed localized states are genuine bound states split off from the band bottom by the artificial atom potential interacting with the gapped vacuum, rather than artifacts or pre-existing features of the molecular film.

What would settle it

If the states remain unchanged in energy, shape, or localization when the artificial atom potential is varied or when artificial atoms are absent, while still appearing in the same film, that would show they are not induced by the gapped vacuum as described.

Figures

Figures reproduced from arXiv: 2604.14737 by Aizhan Sabitova, Aleksandr Rodin, Christian Wagner, F. Stefan Tautz, Mong-Wen Gu, Ruslan Temirov, Taner Esat.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

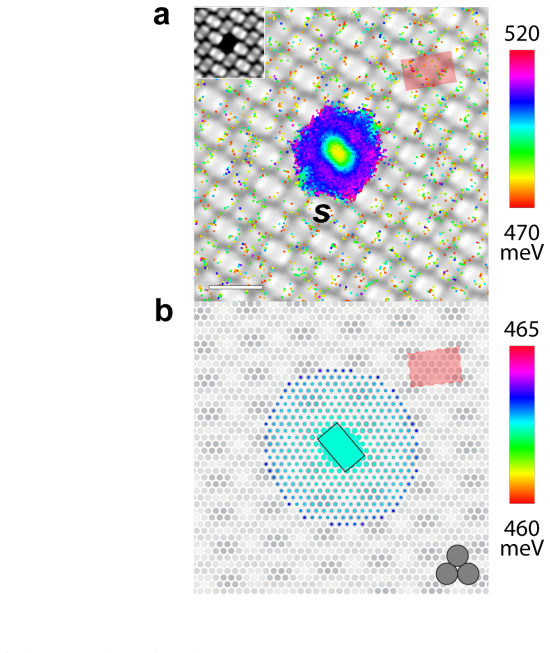

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

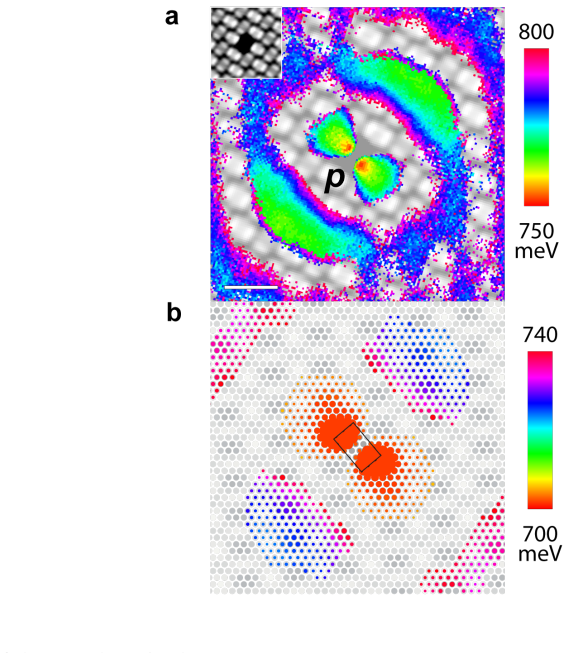

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

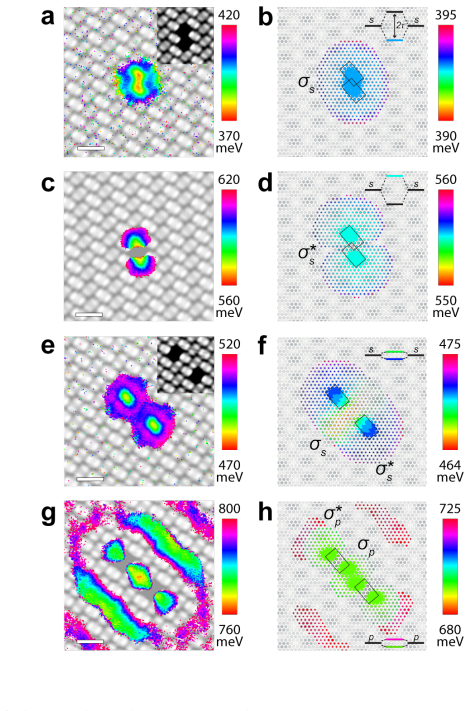

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

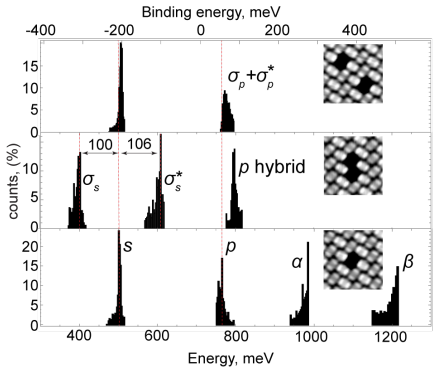

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

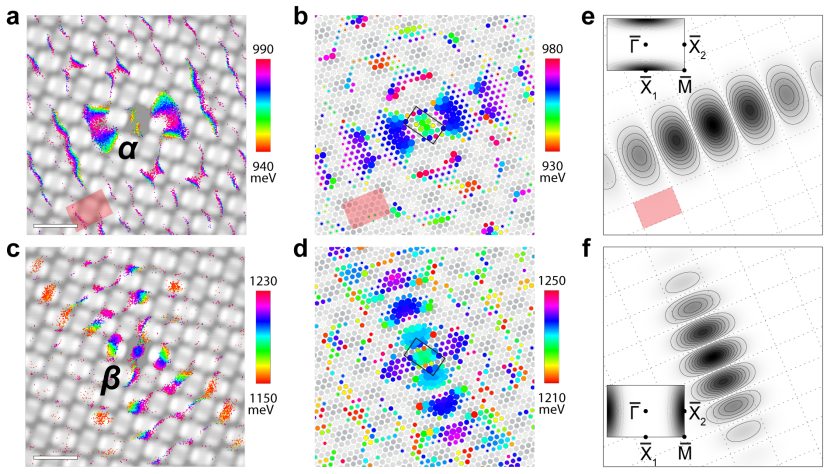

Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

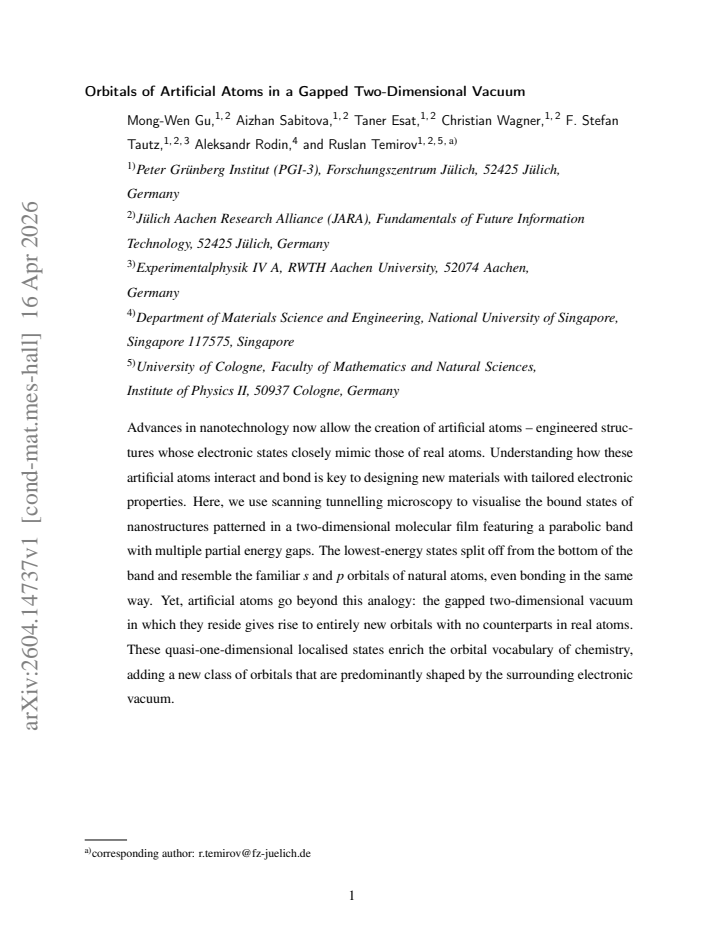

read the original abstract

Advances in nanotechnology now allow the creation of artificial atoms - engineered structures whose electronic states closely mimic those of real atoms. Understanding how these artificial atoms interact and bond is key to designing new materials with tailored electronic properties. Here, we use scanning tunnelling microscopy to visualise the bound states of nanostructures patterned in a two-dimensional molecular film featuring a parabolic band with multiple partial energy gaps. The lowest-energy states split off from the bottom of the band and resemble the familiar $s$ and $p$ orbitals of natural atoms, even bonding in the same way. Yet, artificial atoms go beyond this analogy: the gapped two-dimensional vacuum in which they reside gives rise to entirely new orbitals with no counterparts in real atoms. These quasi-one-dimensional localised states enrich the orbital vocabulary of chemistry, adding a new class of orbitals that are predominantly shaped by the surrounding electronic vacuum.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript uses STM to visualize bound electronic states of artificial atoms patterned in a 2D molecular film possessing a parabolic band with multiple partial energy gaps. Lowest-energy states are reported to split off from the band bottom and resemble s and p orbitals of real atoms, including analogous bonding; the gapped vacuum is claimed to produce additional quasi-one-dimensional localized states with no real-atom counterparts, thereby enriching the orbital vocabulary of chemistry.

Significance. If the quasi-1D states are confirmed as induced bound states arising specifically from the interplay of the artificial potential and the gapped 2D vacuum, the work would introduce a new class of vacuum-shaped orbitals in artificial atomic systems, extending analogies between engineered nanostructures and atomic orbitals with potential implications for 2D material design. The direct STM visualization constitutes a strength, but the absence of quantitative metrics, error analysis, and controls reduces the immediate robustness of the central claim.

major comments (3)
  1. [Abstract and Results] Abstract and Results: the claim that the quasi-1D localized states are 'entirely new orbitals with no counterparts in real atoms' and are 'shaped by the surrounding electronic vacuum' is load-bearing for the paper's novelty but rests on visualization alone; no LDOS maps or dI/dV spectra from the pristine, unpatterned molecular film at the same energies and spatial locations are reported, leaving open whether these states pre-exist in the film or arise from tip-induced band bending.
  2. [Results] Results: the description of states 'splitting off from the bottom of the band' and resembling s/p orbitals is presented qualitatively without quantitative support such as measured energy positions relative to the band edge, spatial decay lengths, or statistical analysis across multiple artificial atoms, undermining the assertion that these are true bound states induced by the potential within the gapped vacuum.
  3. [Discussion] Discussion: no minimal theoretical model (e.g., a 2D Schrödinger equation with the reported parabolic dispersion plus gap and a model potential) is provided to demonstrate that the partial gaps are necessary for the quasi-1D localization, which is required to distinguish the claimed mechanism from alternative explanations.
minor comments (2)
  1. [Figures and Methods] Figure captions and Methods: energy scales, bias voltages, and spatial scale bars should be explicitly stated for all STM images and spectra to allow direct comparison with the claimed band-bottom splitting.
  2. [Introduction] Introduction: the term 'two-dimensional vacuum' is used metaphorically for the gapped film; a brief clarification of its relation to the measured parabolic band and gaps would improve readability for a broad audience.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our manuscript. Their comments have prompted us to strengthen the quantitative support and controls in our presentation of the artificial atomic orbitals and the novel quasi-1D states. We address each major comment below and have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and Results: the claim that the quasi-1D localized states are 'entirely new orbitals with no counterparts in real atoms' and are 'shaped by the surrounding electronic vacuum' is load-bearing for the paper's novelty but rests on visualization alone; no LDOS maps or dI/dV spectra from the pristine, unpatterned molecular film at the same energies and spatial locations are reported, leaving open whether these states pre-exist in the film or arise from tip-induced band bending.

    Authors: We appreciate the referee's emphasis on this control experiment. The original manuscript focused on the patterned structures, but we have now added LDOS maps and dI/dV spectra from the pristine, unpatterned molecular film (new Supplementary Figure S1) at the same energies and locations. These data show no localized states or quasi-1D features in the pristine film. To address potential tip-induced band bending, we have included additional measurements at varied tip-sample distances and setpoint biases, demonstrating that the quasi-1D states remain stable and are not artifacts. This confirms they arise from the interplay between the artificial potential and the gapped 2D vacuum. revision: yes

  2. Referee: [Results] Results: the description of states 'splitting off from the bottom of the band' and resembling s/p orbitals is presented qualitatively without quantitative support such as measured energy positions relative to the band edge, spatial decay lengths, or statistical analysis across multiple artificial atoms, undermining the assertion that these are true bound states induced by the potential within the gapped vacuum.

    Authors: We agree that quantitative metrics provide stronger evidence for bound states. In the revised Results section, we have incorporated: measured energy positions of the s and p states relative to the parabolic band edge (with values extracted from dI/dV spectra), spatial decay lengths determined from exponential fits to line profiles across the artificial atoms, and statistical analysis from measurements on 12 independent artificial atoms, including mean binding energies and standard deviations. Error bars from repeated scans at different locations are now reported. These additions substantiate that the states split off from the band bottom as true bound states within the gapped vacuum. revision: yes

  3. Referee: [Discussion] Discussion: no minimal theoretical model (e.g., a 2D Schrödinger equation with the reported parabolic dispersion plus gap and a model potential) is provided to demonstrate that the partial gaps are necessary for the quasi-1D localization, which is required to distinguish the claimed mechanism from alternative explanations.

    Authors: We acknowledge that a minimal model would help clarify the role of the partial gaps. Although not present in the original submission, we have added a simplified theoretical model in the revised Discussion. This consists of solving the 2D Schrödinger equation using the experimentally determined parabolic dispersion and partial gaps, together with a model potential representing the artificial atoms. The calculations demonstrate that the partial gaps are essential for producing the observed quasi-1D localization; removing the gaps yields more isotropic, 2D-like states. Supporting figures and a brief description of the model parameters are included to distinguish our mechanism from alternatives. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental observations are self-contained

full rationale

The paper presents an experimental STM imaging study of bound states in a patterned 2D molecular film. No mathematical derivation chain, fitted parameters, or model equations are invoked that could reduce any claim to its own inputs by construction. The abstract and description frame the results as direct visualizations of s/p-like states plus new quasi-1D localized states, with interpretations offered as conclusions from the images rather than self-referential predictions or self-citations. The central attribution to the gapped vacuum is an interpretive step based on the observed localization, not a definitional loop or fitted input renamed as a result. This is the expected outcome for a purely observational study with no load-bearing theory that collapses onto itself.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Experimental observation paper; no free parameters or invented entities are introduced. Relies on standard assumptions about STM imaging and 2D band structure.

axioms (1)
  • domain assumption The 2D molecular film features a parabolic band with multiple partial energy gaps.
    Stated directly in the abstract as the physical setting for the artificial atoms.

pith-pipeline@v0.9.0 · 5470 in / 1076 out tokens · 22545 ms · 2026-05-10T10:24:42.773951+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

48 extracted references · 48 canonical work pages

  1. [1]

    author author B. Q. \ Pham \ and\ author M. S. \ Gordon ,\ title title Can Orbitals Really Be Observed in Scanning Tunneling Microscopy Experiments ? \ 10.1021/acs.jpca.7b05789 journal journal The Journal of Physical Chemistry A \ volume 121 ,\ pages 4851--4852 ( year 2017 ) NoStop

    work page doi:10.1021/acs.jpca.7b05789 2017

  2. [2]

    Kumar , author D

    author author M. Kumar , author D. Soler-Polo , author M. Lozano , author E. Monino , author L. Veis , \ and\ author P. Jelinek ,\ title title Multireference Theory of Scanning Tunneling Spectroscopy Beyond One - Electron Molecular Orbitals : Can We Image Molecular Orbitals ? \ 10.1021/jacs.5c08166 journal journal Journal of the American Chemical Society ...

    work page doi:10.1021/jacs.5c08166 2025

  3. [3]

    author author K. Fukui ,\ title title Orbital pattern rationale in chemical empiricism , \ @noop journal journal International Journal of Quantum Chemistry \ volume 12 ,\ pages 277--288 ( year 1977 ) NoStop

    work page 1977

  4. [4]

    Stowasser \ and\ author R

    author author R. Stowasser \ and\ author R. Hoffmann ,\ title title What Do the Kohn -- Sham Orbitals and Eigenvalues Mean ? \ 10.1021/ja9826892 journal journal Journal of the American Chemical Society \ volume 121 ,\ pages 3414--3420 ( year 1999 ) NoStop

    work page doi:10.1021/ja9826892 1999

  5. [5]

    author author M. A. \ Kastner ,\ title title Artificial Atoms , \ 10.1063/1.881393 journal journal Physics Today \ volume 46 ,\ pages 24--31 ( year 1993 ) NoStop

    work page doi:10.1063/1.881393 1993

  6. [6]

    Tarucha , author T

    author author S. Tarucha , author T. Honda , author D. Austing , author Y. Tokura , author K. Muraki , author T. Oosterkamp , author J. Janssen , \ and\ author L. Kouwenhoven ,\ title title Electronic states in quantum dot atoms and molecules , \ 10.1016/S1386-9477(98)00225-2 journal journal Physica E: Low-dimensional Systems and Nanostructures \ volume 3...

    work page doi:10.1016/s1386-9477(98)00225-2 1998

  7. [7]

    author author M. F. \ Crommie , author C. P. \ Lutz , \ and\ author D. M. \ Eigler ,\ title title Confinement of Electrons to Quantum Corrals on a Metal Surface , \ 10.1126/science.262.5131.218 journal journal Science \ volume 262 ,\ pages 218--220 ( year 1993 ) NoStop

    work page doi:10.1126/science.262.5131.218 1993

  8. [8]

    Seufert , author W

    author author K. Seufert , author W. Auw\"arter , author F. J. \ García De Abajo , author D. Ecija , author S. Vijayaraghavan , author S. Joshi , \ and\ author J. V. \ Barth ,\ title title Controlled interaction of surface quantum-well electronic states , \ @noop journal journal Nano Letters \ volume 13 ,\ pages 6130--6135 ( year 2013 ) NoStop

    work page 2013

  9. [9]

    F \"o lsch , author J

    author author S. F \"o lsch , author J. Martínez-Blanco , author J. Yang , author K. Kanisawa , \ and\ author S. C. \ Erwin ,\ title title Quantum dots with single-atom precision , \ 10.1038/nnano.2014.129 journal journal Nature Nanotechnology \ volume 9 ,\ pages 505--508 ( year 2014 ) NoStop

    work page doi:10.1038/nnano.2014.129 2014

  10. [10]

    Peng , author H

    author author X. Peng , author H. Mahalingam , author S. Dong , author P. Mutombo , author J. Su , author M. Telychko , author S. Song , author P. Lyu , author P. W. \ Ng , author J. Wu , author P. Jelínek , author C. Chi , author A. Rodin , \ and\ author J. Lu ,\ title title Visualizing designer quantum states in stable macrocycle quantum corrals , \ 10....

    work page doi:10.1038/s41467-021-26198-8 2021

  11. [11]

    author author S. E. \ Freeney , author S. T. P. \ Borman , author J. W. \ Harteveld , \ and\ author I. Swart ,\ title title Coupling quantum corrals to form artificial molecules , \ 10.21468/SciPostPhys.9.6.085 journal journal SciPost Phys. \ volume 9 ,\ pages 085 ( year 2020 ) NoStop

    work page doi:10.21468/scipostphys.9.6.085 2020

  12. [12]

    Pan , author J

    author author Y. Pan , author J. Yang , author S. C. \ Erwin , author K. Kanisawa , \ and\ author S. F \"o lsch ,\ title title Reconfigurable Quantum - Dot Molecules Created by Atom Manipulation , \ @noop journal journal Physical Review Letters \ volume 115 ,\ pages 076803 ( year 2015 ) NoStop

    work page 2015

  13. [13]

    Jolie , author T.-C

    author author W. Jolie , author T.-C. \ Hung , author L. Niggli , author B. Verlhac , author N. Hauptmann , author D. Wegner , \ and\ author A. A. \ Khajetoorians ,\ title title Creating Tunable Quantum Corrals on a Rashba Surface Alloy , \ 10.1021/acsnano.2c00467 journal journal ACS Nano \ volume 16 ,\ pages 4876--4883 ( year 2022 ) NoStop

    work page doi:10.1021/acsnano.2c00467 2022

  14. [14]

    author author E. J. \ Sierda \ and\ author et al. ,\ title title Quantum simulator to emulate lower-dimensional hamiltonians , \ @noop journal journal Science \ volume 380 ,\ pages 551--555 ( year 2023 ) NoStop

    work page 2023

  15. [15]

    author author K. K. \ Gomes , author W. Mar , author W. Ko , author F. Guinea , \ and\ author H. C. \ Manoharan ,\ title title Designer dirac fermions and topological phases in molecular graphene , \ 10.1038/nature10941 journal journal Nature \ volume 483 ,\ pages 306--310 ( year 2012 ) NoStop

    work page doi:10.1038/nature10941 2012

  16. [16]

    Drost , author T

    author author R. Drost , author T. Ojanen , author A. Harju , \ and\ author P. Liljeroth ,\ title title Topological states in engineered atomic lattices , \ 10.1038/nphys4080 journal journal Nature Physics \ volume 13 ,\ pages 668--671 ( year 2017 ) NoStop

    work page doi:10.1038/nphys4080 2017

  17. [17]

    author author M. R. \ Slot \ and\ author et al. ,\ title title Experimental realization and characterization of an electronic lieb lattice , \ 10.1038/nphys4105 journal journal Nature Physics \ volume 13 ,\ pages 672--676 ( year 2017 ) NoStop

    work page doi:10.1038/nphys4105 2017

  18. [18]

    author author M. R. \ Slot , author S. N. \ Kempkes , author E. J. \ Knol , author W. M. \ Van Weerdenburg , author J. J. \ Van Den Broeke , author D. Wegner , author D. Vanmaekelbergh , author A. A. \ Khajetoorians , author C. Morais Smith , \ and\ author I. Swart ,\ title title P - Band Engineering in Artificial Electronic Lattices , \ 10.1103/PhysRevX....

    work page doi:10.1103/physrevx.9.011009 2019

  19. [19]

    author author S. N. \ Kempkes , author M. R. \ Slot , author S. E. \ Freeney , author S. J. M. \ Zevenhuizen , author D. Vanmaekelbergh , author I. Swart , \ and\ author C. M. \ Smith ,\ title title Design and characterization of electrons in a fractal geometry , \ @noop journal journal Nature Physics \ volume 15 ,\ pages 127--131 ( year 2019 a ) NoStop

    work page 2019

  20. [20]

    author author S. N. \ Kempkes , author M. R. \ Slot , author J. J. \ Van Den Broeke , author P. Capiod , author W. A. \ Benalcazar , author D. Vanmaekelbergh , author D. Bercioux , author I. Swart , \ and\ author C. Morais Smith ,\ title title Robust zero-energy modes in an electronic higher-order topological insulator , \ @noop journal journal Nature Mat...

    work page 2019

  21. [21]

    author author A. A. \ Khajetoorians , author D. Wegner , author A. F. \ Otte , \ and\ author I. Swart ,\ title title Creating designer quantum states of matter atom-by-atom , \ @noop journal journal Nature Reviews Physics \ volume 1 ,\ pages 703--715 ( year 2019 ) NoStop

    work page 2019

  22. [22]

    author author V. D. \ Pham , author Y. Pan , author S. C. \ Erwin , author F. Von Oppen , author K. Kanisawa , \ and\ author S. F \"o lsch ,\ title title Topological states in dimerized quantum-dot chains created by atom manipulation , \ @noop journal journal Physical Review B \ volume 105 ,\ pages 125418 ( year 2022 ) NoStop

    work page 2022

  23. [23]

    author author S. E. \ Freeney , author M. R. \ Slot , author T. S. \ Gardenier , author I. Swart , \ and\ author D. Vanmaekelbergh ,\ title title Electronic Quantum Materials Simulated with Artificial Model Lattices , \ 10.1021/acsnanoscienceau.1c00054 journal journal ACS Nanoscience Au \ volume 2 ,\ pages 198--224 ( year 2022 ) NoStop

    work page doi:10.1021/acsnanoscienceau.1c00054 2022

  24. [24]

    Fang , author H

    author author H. Fang , author H. Mahalingam , author X. Li , author X. Han , author Z. Qiu , author Y. Han , author K. Noori , author D. Dulal , author H. Chen , author P. Lyu , author T. Yang , author J. Li , author C. Su , author W. Chen , author Y. Cai , author A. H. C. \ Neto , author K. S. \ Novoselov , author A. Rodin , \ and\ author J. Lu ,\ title...

    work page doi:10.1038/s41565-023-01495-z 2023

  25. [25]

    Gl\"ockler , author C

    author author K. Gl\"ockler , author C. Seidel , author A. Soukopp , author M. Sokolowski , author E. Umbach , author M. Bohringer , author R. Berndt , \ and\ author W. D. \ Schneider ,\ title title Highly ordered structures and submolecular scanning tunnelling microscopy contrast of PTCDA and DM - PBDCI monolayers on Ag (111) and Ag (110) , \ @noop journ...

    work page 1998

  26. [26]

    Rohlfing , author R

    author author M. Rohlfing , author R. Temirov , \ and\ author F. S. \ Tautz ,\ title title Adsorption structure and scanning tunneling data of a prototype organic–inorganic interface: Ptcda on ag(111) , \ 10.1103/PhysRevB.76.115421 journal journal Phys. Rev. B \ volume 76 ,\ pages 115421 ( year 2007 ) NoStop

    work page doi:10.1103/physrevb.76.115421 2007

  27. [27]

    author author F. Tautz ,\ title title Structure and bonding of large aromatic molecules on noble metal surfaces: The example of PTCDA , \ 10.1016/j.progsurf.2007.09.001 journal journal Progress in Surface Science \ volume 82 ,\ pages 479--520 ( year 2007 ) NoStop

    work page doi:10.1016/j.progsurf.2007.09.001 2007

  28. [28]

    Temirov , author A

    author author R. Temirov , author A. Lassise , author F. B. \ Anders , \ and\ author F. S. \ Tautz ,\ title title Kondo effect by controlled cleavage of a single-molecule contact , \ 10.1088/0957-4484/19/6/065401 journal journal Nanotechnology \ volume 19 ,\ pages 065401 ( year 2008 ) NoStop

    work page doi:10.1088/0957-4484/19/6/065401 2008

  29. [29]

    Toher , author R

    author author C. Toher , author R. Temirov , author A. Greuling , author F. Pump , author M. Kaczmarski , author G. Cuniberti , author M. Rohlfing , \ and\ author F. S. \ Tautz ,\ title title Electrical transport through a mechanically gated molecular wire , \ @noop journal journal Physical Review B \ volume 83 ( year 2011 ) NoStop

    work page 2011

  30. [30]

    author author M. F. B. \ Green , author T. Esat , author C. Wagner , author P. Leinen , author A. Gr \"o tsch , author F. S. \ Tautz , \ and\ author R. Temirov ,\ title title Patterning a hydrogen-bonded molecular monolayer with a hand-controlled scanning probe microscope , \ @noop journal journal Beilstein Journal of Nanotechnology \ volume 5 ,\ pages 19...

    work page 1926

  31. [31]

    Leinen , author M

    author author P. Leinen , author M. F. B. \ Green , author T. Esat , author C. Wagner , author F. S. \ Tautz , \ and\ author R. Temirov ,\ title title Virtual reality visual feedback for hand-controlled scanning probe microscopy manipulation of single molecules , \ 10.3762/bjnano.6.220 journal journal Beilstein Journal of Nanotechnology \ volume 6 ,\ page...

    work page doi:10.3762/bjnano.6.220 2015

  32. [32]

    Temirov , author S

    author author R. Temirov , author S. Soubatch , author A. Luican , \ and\ author F. S. \ Tautz ,\ title title Free-electron-like dispersion in an organic monolayer film on a metal substrate , \ 10.1038/nature05313 journal journal Nature \ volume 444 ,\ pages 350--353 ( year 2006 ) NoStop

    work page doi:10.1038/nature05313 2006

  33. [33]

    o ll , author F. Reinert , author E. Umbach , \ and\ author U. H \

    author author C. H. \ Schwalb , author S. Sachs , author M. Marks , author A. Sch \"o ll , author F. Reinert , author E. Umbach , \ and\ author U. H \"o fer ,\ title title Electron lifetime in a shockley-type metal–organic interface state , \ 10.1103/PhysRevLett.101.146801 journal journal Phys. Rev. Lett. \ volume 101 ,\ pages 146801 ( year 2008 ) NoStop

    work page doi:10.1103/physrevlett.101.146801 2008

  34. [34]

    author author M. S. \ Dyer \ and\ author M. Persson ,\ title title The nature of the observed free-electron-like state in a ptcda monolayer on ag(111) , \ 10.1088/1367-2630/12/6/063014 journal journal New J. Phys. \ volume 12 ,\ pages 063014 ( year 2010 ) NoStop

    work page doi:10.1088/1367-2630/12/6/063014 2010

  35. [35]

    author author M. C. E. \ Galbraith , author M. Marks , author R. Tonner , \ and\ author U. H \"o fer ,\ title title Formation of an organic/metal interface state from a Shockley resonance , \ @noop journal journal Journal of Physical Chemistry Letters \ volume 5 ,\ pages 50--55 ( year 2014 ) NoStop

    work page 2014

  36. [36]

    Sabitova , author R

    author author A. Sabitova , author R. Temirov , \ and\ author F. S. \ Tautz ,\ title title Lateral scattering potential of the ptcda/ag(111) interface state , \ 10.1103/PhysRevB.98.205429 journal journal Phys. Rev. B \ volume 98 ,\ pages 205429 ( year 2018 ) NoStop

    work page doi:10.1103/physrevb.98.205429 2018

  37. [37]

    Limot , author E

    author author L. Limot , author E. Pehlke , author J. Kr \"o ger , \ and\ author R. Berndt ,\ title title Surface-state localization at adatoms , \ 10.1103/PhysRevLett.94.036805 journal journal Phys. Rev. Lett. \ volume 94 ,\ pages 036805 ( year 2005 ) NoStop

    work page doi:10.1103/physrevlett.94.036805 2005

  38. [38]

    Kr\"oger , author L

    author author J. Kr\"oger , author L. Limot , author H. Jensen , author R. Berndt , author S. Crampin , \ and\ author E. Pehlke ,\ title title Surface state electron dynamics of clean and adsorbate-covered metal surfaces studied with the scanning tunnelling microscope , \ @noop journal journal Progress in Surface Science \ volume 80 ,\ pages 26--48 ( year...

    work page 2005

  39. [39]

    author author B. Hammer ,\ title title Special Sites at Noble and Late Transition Metal Catalysts , \ 10.1007/s11244-006-0004-y journal journal Topics in Catalysis \ volume 37 ,\ pages 3--16 ( year 2006 ) NoStop

    work page doi:10.1007/s11244-006-0004-y 2006

  40. [40]

    Martinez-Castro , author R

    author author J. Martinez-Castro , author R. Bolat , author Q. Fan , author S. Werner , author H. H. \ Arefi , author T. Esat , author J. Sundermeyer , author C. Wagner , author J. M. \ Gottfried , author R. Temirov , author M. Ternes , \ and\ author F. S. \ Tautz ,\ title title Disentangling the electronic structure of an adsorbed graphene nanoring by sc...

    work page doi:10.1038/s43246-022-00275-x 2022

  41. [41]

    author author R. Hoffmann ,\ title title How Chemistry and Physics Meet in the Solid State , \ 10.1002/anie.198708461 journal journal Angewandte Chemie International Edition in English \ volume 26 ,\ pages 846--878 ( year 1987 ) NoStop

    work page doi:10.1002/anie.198708461 1987

  42. [42]

    (53) Vu, T

    author author F. Bertoldo , author S. Ali , author S. Manti , \ and\ author K. S. \ Thygesen ,\ title title Quantum point defects in 2D materials - the QPOD database , \ 10.1038/s41524-022-00730-w journal journal npj Computational Materials \ volume 8 ,\ pages 56 ( year 2022 ) NoStop

    work page doi:10.1038/s41524-022-00730-w 2022

  43. [43]

    \ Komsa \ and\ author A

    author author H.-P. \ Komsa \ and\ author A. V. \ Krasheninnikov ,\ title title Native defects in bulk and monolayer MoS 2 from first principles , \ 10.1103/PhysRevB.91.125304 journal journal Physical Review B \ volume 91 ,\ pages 125304 ( year 2015 ) NoStop

    work page doi:10.1103/physrevb.91.125304 2015

  44. [44]

    Schuler , author D

    author author B. Schuler , author D. Y. \ Qiu , author S. Refaely-Abramson , author C. Kastl , author C. T. \ Chen , author S. Barja , author R. J. \ Koch , author D. F. \ Ogletree , author S. Aloni , author A. M. \ Schwartzberg , author J. B. \ Neaton , author S. G. \ Louie , \ and\ author A. Weber-Bargioni ,\ title title Large Spin - Orbit Splitting of ...

    work page doi:10.1103/physrevlett.123.076801 2019

  45. [45]

    Qiu , author K

    author author Z. Qiu , author K. Vaklinova , author P. Huang , author M. Grzeszczyk , author K. Watanabe , author T. Taniguchi , author K. S. \ Novoselov , author J. Lu , \ and\ author M. Koperski ,\ title title Atomic and Electronic Structure of Defects in hBN : Enhancing Single - Defect Functionalities , \ 10.1021/acsnano.4c03640 journal journal ACS Nan...

    work page doi:10.1021/acsnano.4c03640 2024

  46. [46]

    Wagner , author R

    author author C. Wagner , author R. Franke , \ and\ author T. Fritz ,\ title title Evaluation of I ( V ) curves in scanning tunneling spectroscopy of organic nanolayers , \ 10.1103/PhysRevB.75.235432 journal journal Physical Review B \ volume 75 ,\ pages 235432 ( year 2007 ) NoStop

    work page doi:10.1103/physrevb.75.235432 2007

  47. [47]

    Stilp , author A

    author author F. Stilp , author A. Bereczuk , author J. Berwanger , author N. Mundigl , author K. Richter , \ and\ author F. J. \ Giessibl ,\ title title Very weak bonds to artificial atoms formed by quantum corrals , \ 10.1126/science.abe2600 journal journal Science \ volume 372 ,\ pages 1196--1200 ( year 2021 ) NoStop

    work page doi:10.1126/science.abe2600 2021

  48. [48]

    author author C. Lanczos ,\ title title An iteration method for the solution of the eigenvalue problem of linear differential and integral operators , \ 10.6028/jres.045.026 journal journal Journal of Research of the National Bureau of Standards \ volume 45 ,\ pages 255 ( year 1950 ) NoStop

    work page doi:10.6028/jres.045.026 1950
