The pith

A new dataset of text-to-DOT pairs lets small language models generate scientific architecture diagrams at GPT-4o level.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates Text2Arch, a large open dataset that pairs natural language descriptions of scientific architectures with their corresponding diagrams and DOT code representations. This resource supports fine-tuning of smaller language models to translate text descriptions into code that renders accurate diagrams. Experiments demonstrate that the resulting models exceed the performance of prior baselines such as DiagramAgent while matching the output quality obtained from GPT-4o through in-context learning. The contribution fills a gap where no suitable large-scale public data previously existed for this text-to-diagram task.

Core claim

By releasing Text2Arch, which supplies aligned textual descriptions, visual architecture images, and DOT code for a wide range of scientific systems, the authors show that fine-tuned small language models can produce high-fidelity diagrams from text input, outperforming existing specialized baselines and reaching parity with in-context learning from GPT-4o.

What carries the argument

The Text2Arch dataset, consisting of scientific architecture images, their natural language descriptions, and associated DOT code representations, which supplies supervised training pairs for mapping semantics to diagram code.

If this is right

  • Automated generation of clear visual aids for complex system designs in enterprise and research settings.
  • Reduced ambiguity when conveying scientific processes through combined text and diagram outputs.
  • Support for educational tools that convert descriptions into ready-to-use architecture visuals.
  • Public models and data that enable further development of text-to-diagram systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same paired text-and-code approach could be adapted to generate other diagram types such as flowcharts or network topologies.
  • Integration with documentation pipelines might allow automatic visual updates whenever system descriptions change.
  • The dataset could serve as a benchmark for testing how well future models preserve technical relationships in generated visuals.

Load-bearing premise

The collected dataset and chosen metrics accurately reflect real-world scientific descriptions and true improvements in diagram semantic fidelity without selection biases.

What would settle it

Evaluating the fine-tuned models on a fresh collection of independently sourced real scientific text descriptions and finding that generated diagrams show no measurable gain in accuracy or fidelity over the baselines.

Figures

Figures reproduced from arXiv: 2604.14941 by Manish Gupta, Sankalp Mittal, Shivank Garg.

Figure 2

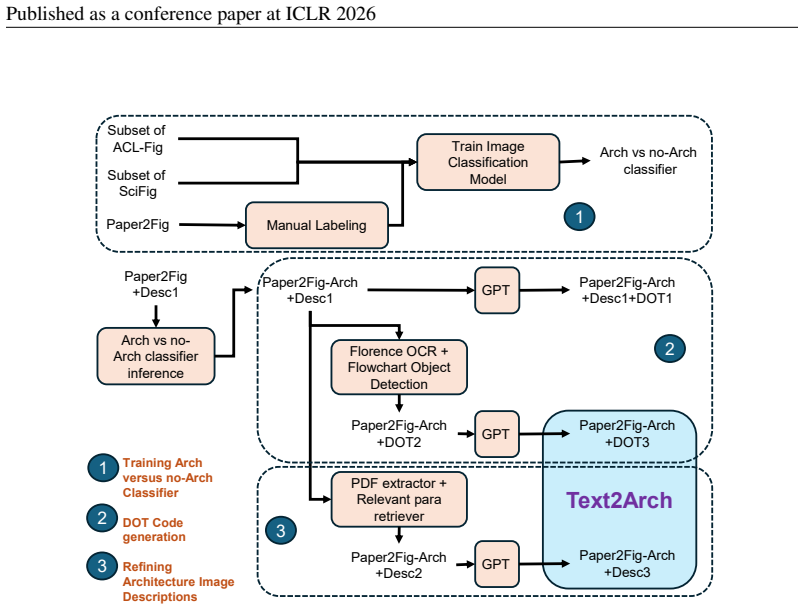

Figure 2. Figure 2: TEXT2ARCH Dataset Curation images are stratified split into train and validation so as to maintain the same ratio of arch vs no-arch images in train and test. We train multiple models like CLIP (Radford et al., 2021), ViT (Dosovitskiy et al., 2020), BEiT (Bao et al., 2021), and ResNet (He et al., 2016), and report results in [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4

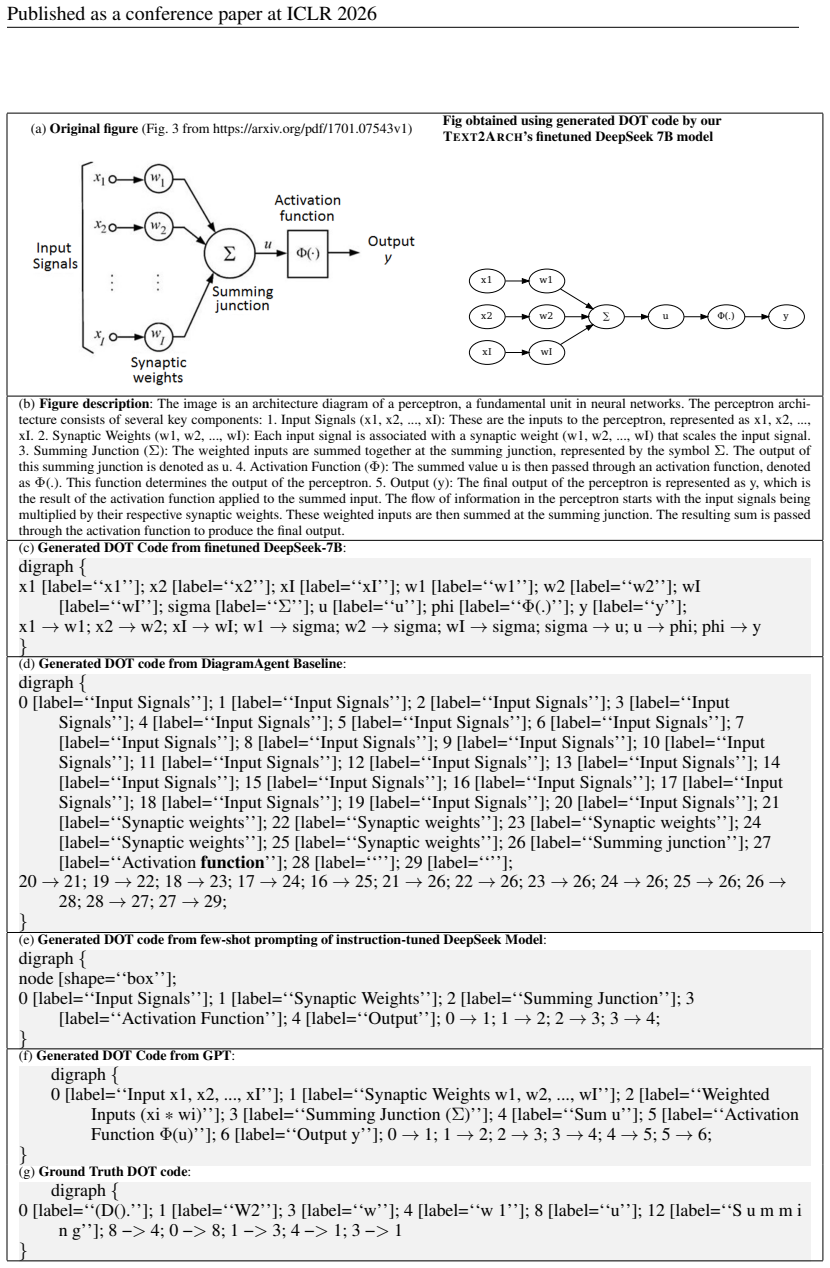

Figure 4. Figure 4: Case Study 1: Comparison showing DeepSeek-7B inference significantly outperforming [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5

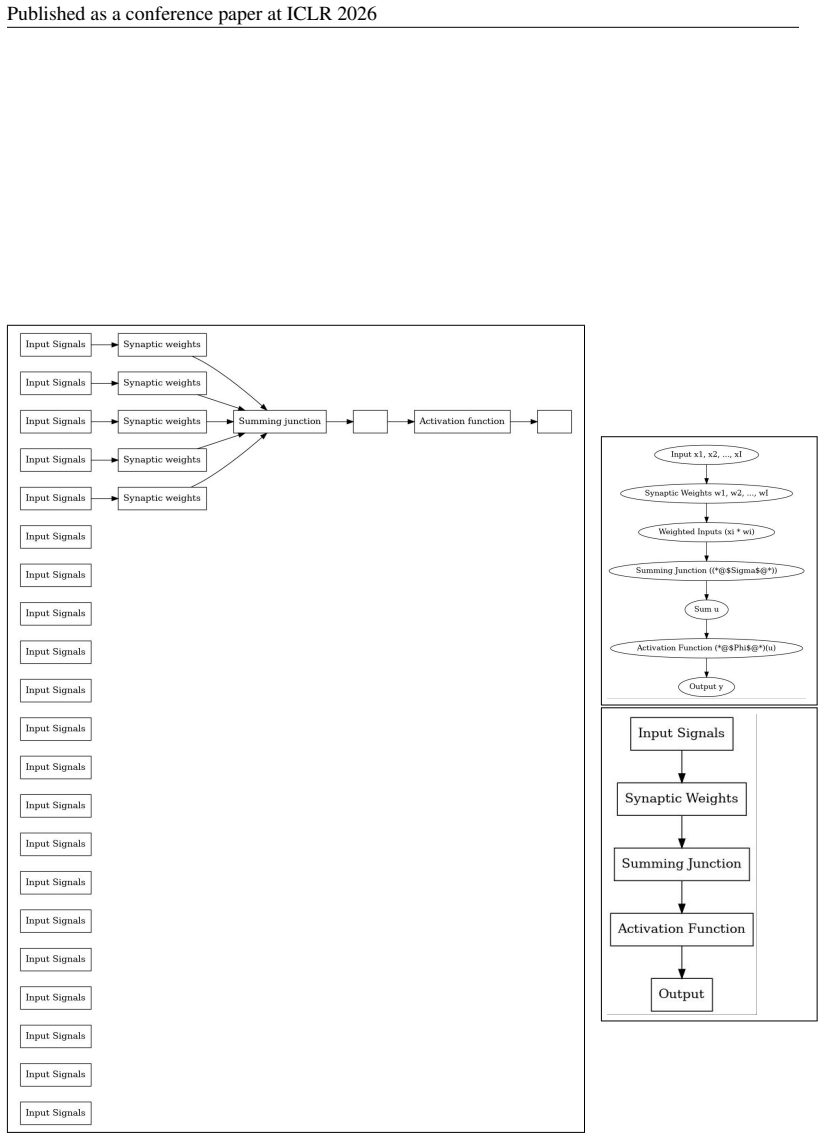

Figure 5. Figure 5: Illustrations for generated dots using DiagramAgent (left), GPT (right top) and fewShot [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6

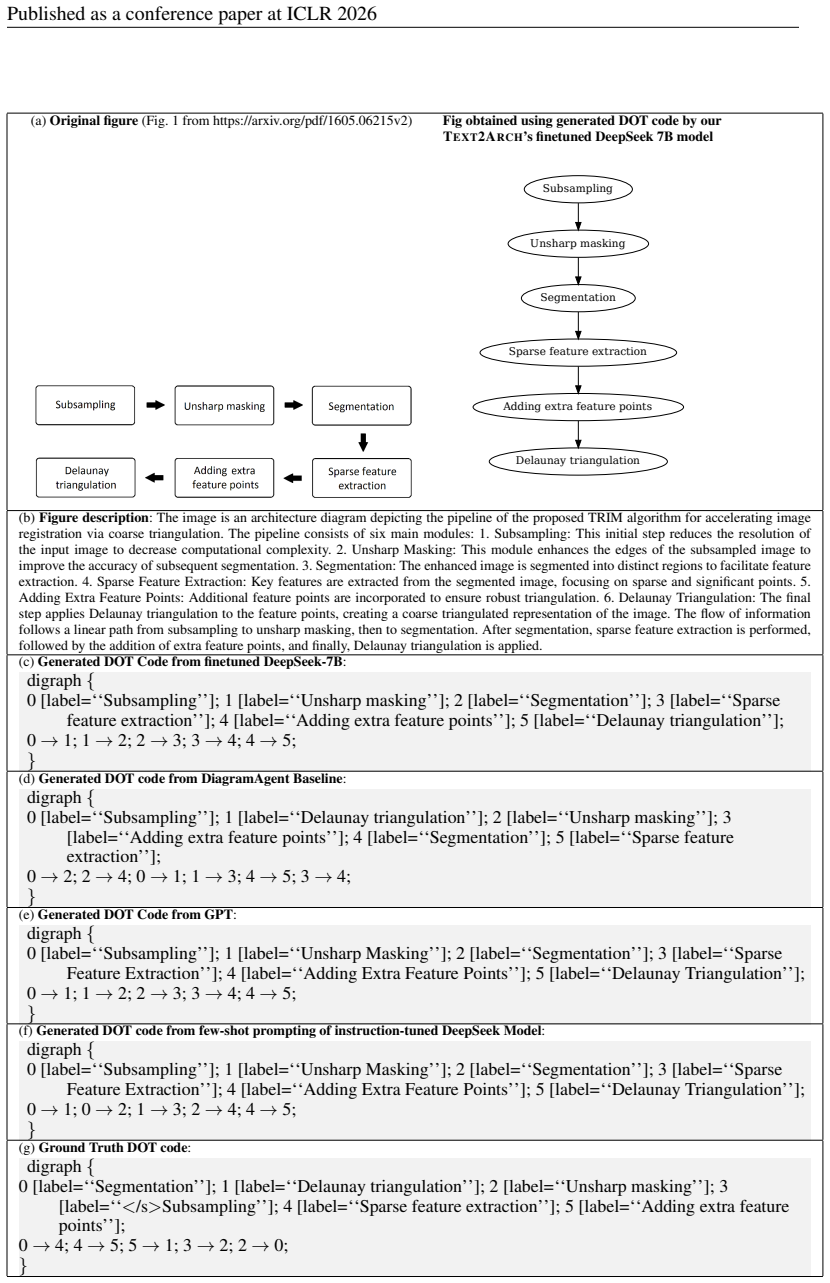

Figure 6. Figure 6: Case Study 2: Comparison showing DeepSeek-7B inference significantly outperforming [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7

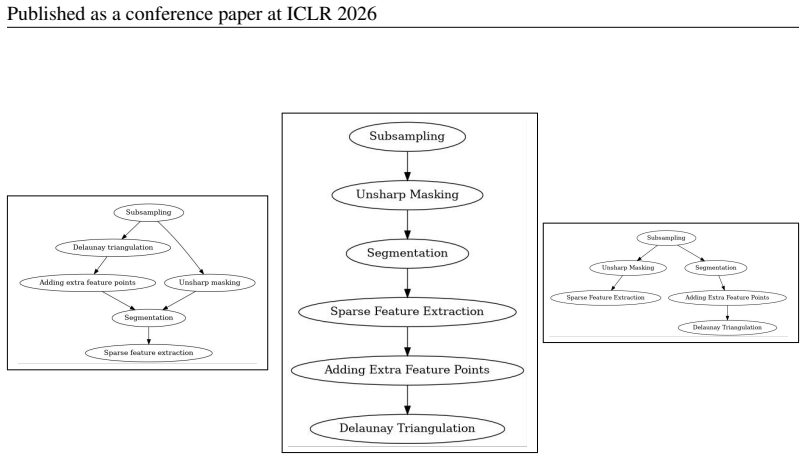

Figure 7. Figure 7: Illustrations for generated dots using DiagramAgent (left), GPT (middle) and fewShot [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8

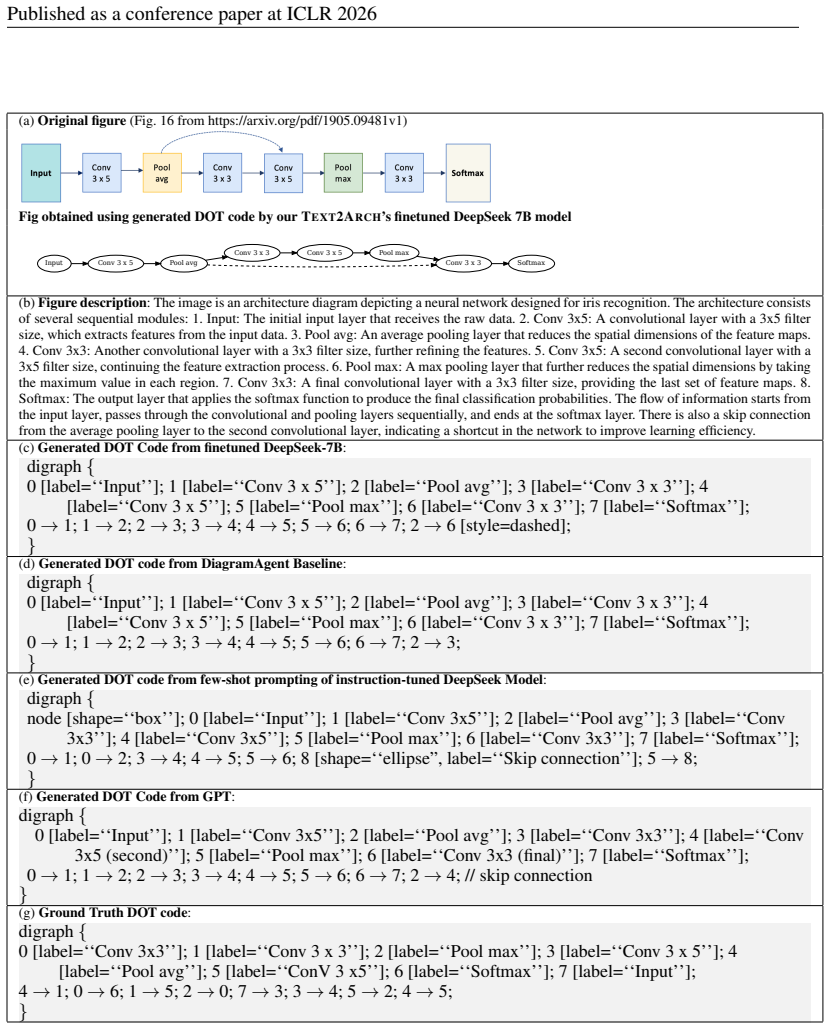

Figure 8. Figure 8: Case Study 3: Comparison showing DeepSeek-7B inference significantly outperforming [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗

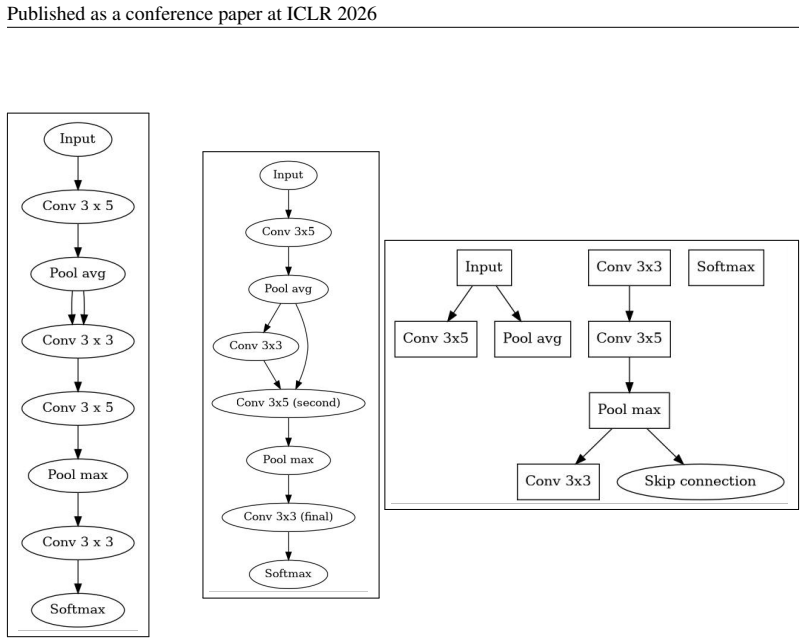

Figure 9
Figure 9. Figure 9: Illustrations for generated dots using DiagramAgent (left), GPT (middle) and fewShot [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
read the original abstract

Communicating complex system designs or scientific processes through text alone is inefficient and prone to ambiguity. A system that automatically generates scientific architecture diagrams from text with high semantic fidelity can be useful in multiple applications like enterprise architecture visualization, AI-driven software design, and educational content creation. Hence, in this paper, we focus on leveraging language models to perform semantic understanding of the input text description to generate intermediate code that can be processed to generate high-fidelity architecture diagrams. Unfortunately, no clean large-scale open-access dataset exists, implying lack of any effective open models for this task. Hence, we contribute a comprehensive dataset, \system, comprising scientific architecture images, their corresponding textual descriptions, and associated DOT code representations. Leveraging this resource, we fine-tune a suite of small language models, and also perform in-context learning using GPT-4o. Through extensive experimentation, we show that \system{} models significantly outperform existing baseline models like DiagramAgent and perform at par with in-context learning-based generations from GPT-4o. We make the code, data and models publicly available.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper introduces the Text2Arch dataset, which pairs natural language descriptions of scientific architectures with corresponding diagram images and DOT code representations. It fine-tunes small language models on this resource and evaluates in-context learning with GPT-4o, claiming that the resulting models significantly outperform baselines such as DiagramAgent while matching the performance of GPT-4o ICL generations.

Significance. If the dataset construction and evaluations prove robust, the work supplies a much-needed open resource for text-to-diagram generation in scientific and architectural domains, where prior datasets were absent. The public release of data, code, and models strengthens reproducibility and enables follow-on research.

major comments (2)
  1. [Abstract and experimental sections] Abstract and experimental sections: The abstract asserts outperformance 'through extensive experimentation' yet provides no details on dataset size, construction process, train/test splits, chosen evaluation metrics, or statistical tests. These omissions are load-bearing for the central empirical claims and prevent verification that the reported gains are supported by the data.
  2. [Evaluation methodology] Evaluation methodology (likely Section 4 or 5): Generating and scoring DOT code raises a direct concern for semantic fidelity. Multiple syntactically distinct DOT strings can render identical diagrams (different edge orders, attribute placements, or subgraph groupings). If metrics are string-based (e.g., BLEU/ROUGE on raw DOT), they risk rewarding surface-form matches rather than visual or semantic equivalence; the same limitation applies to the DiagramAgent baseline, so relative gains may be metric artifacts.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We appreciate the emphasis on transparency in the abstract and experimental design as well as the important methodological point about evaluating DOT code. We address each major comment below and outline the revisions we will make.

read point-by-point responses

  1. Referee: [Abstract and experimental sections] Abstract and experimental sections: The abstract asserts outperformance 'through extensive experimentation' yet provides no details on dataset size, construction process, train/test splits, chosen evaluation metrics, or statistical tests. These omissions are load-bearing for the central empirical claims and prevent verification that the reported gains are supported by the data.

    Authors: We agree that the abstract would be strengthened by including these key details to allow immediate verification of the claims. In the revised manuscript we will expand the abstract to report the total dataset size, a concise summary of the construction process, the train/test split ratios, the primary evaluation metrics, and any statistical significance tests performed. We will also review the experimental sections to ensure all of these elements are explicitly stated with clear cross-references and will add statistical tests where they are currently absent. These changes will make the empirical support for our results fully transparent. revision: yes

  2. Referee: [Evaluation methodology] Evaluation methodology (likely Section 4 or 5): Generating and scoring DOT code raises a direct concern for semantic fidelity. Multiple syntactically distinct DOT strings can render identical diagrams (different edge orders, attribute placements, or subgraph groupings). If metrics are string-based (e.g., BLEU/ROUGE on raw DOT), they risk rewarding surface-form matches rather than visual or semantic equivalence; the same limitation applies to the DiagramAgent baseline, so relative gains may be metric artifacts.

    Authors: This concern is valid: string-based metrics on raw DOT code can indeed be sensitive to superficial syntactic differences that do not affect the rendered diagram. Because the DiagramAgent baseline is scored with the same metrics, the relative gains we report remain meaningful as a comparative measure, yet we acknowledge the limitation. In the revision we will add an explicit discussion of this issue in the evaluation section, describe any steps taken to mitigate surface-form variance (such as canonicalization where applied), and include qualitative examples of equivalent diagrams produced by different DOT strings. If space permits we will also report supplementary visual similarity results on rendered diagrams to further support semantic fidelity. revision: partial

Circularity Check

0 steps flagged

Empirical dataset release and benchmarking with no derivation chain

full rationale

The paper contributes a new dataset (Text2Arch) of scientific architecture images, text descriptions, and DOT code, then fine-tunes small LMs and evaluates GPT-4o ICL against external baselines such as DiagramAgent. No equations, derivations, fitted parameters renamed as predictions, or self-citation chains appear in the provided abstract or described content. All claims rest on empirical comparisons to independent external models and metrics; the work is self-contained against external benchmarks with no load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review reveals no mathematical axioms, free parameters, or invented entities; the work relies on standard language-model fine-tuning practices whose hyperparameters are not specified.
