arxiv: 2604.15041 · v1 · submitted 2026-04-16 · 💻 cs.SE

HintPilot: LLM-based Compiler Hint Synthesis for Code Optimization

Hanyun Jiang , Peisen Yao , Kaiyue Li , Tingting Lin , Chengpeng Wang , Kui Ren This is my paper

Pith reviewed 2026-05-10 10:58 UTC · model grok-4.3

classification 💻 cs.SE
keywords LLM-based optimizationcompiler hintscode performanceretrieval-augmented synthesisprofiling-guided refinementPolyBench benchmarksemantic preservation
0
0 comments X

The pith

HintPilot generates compiler hints with LLMs to deliver up to 6.88 times speedup over aggressive optimization flags while keeping programs correct.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents HintPilot as a way to let large language models help compilers optimize code without directly rewriting the source. It does this by creating annotations that steer the compiler's existing passes, drawing on documentation retrieval and repeated profiling to refine the hints until they improve performance. The method is tested on polyhedral benchmarks and C++ examples, showing clear gains beyond what standard flags achieve. A reader would care because most current AI-for-code efforts either risk breaking programs or ignore the detailed controls that compilers already provide. If the approach holds, it offers a practical bridge between generative models and reliable performance engineering.

Core claim

HintPilot bridges LLM-based reasoning with traditional compiler infrastructures via synthesizing compiler hints through retrieval-augmented synthesis over compiler documentation and profiling-guided iterative refinement, achieving up to 6.88x geometric mean speedup over -Ofast on PolyBench and HumanEval-CPP benchmarks while preserving program correctness.

What carries the argument

Retrieval-augmented synthesis over compiler documentation combined with profiling-guided iterative refinement to produce semantics-preserving hints that steer compiler behavior.

If this is right

  • Compilers reach higher performance levels on standard benchmarks without requiring expert-written flags or manual code changes.
  • LLMs can contribute to optimization by producing guidance rather than full rewrites, lowering the risk of semantic errors.
  • The same retrieval and refinement loop works across both scientific kernels and general-purpose C++ functions.
  • Existing compiler infrastructures become more effective when paired with targeted LLM output instead of being bypassed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique might lower the barrier for non-experts to obtain good performance from complex codebases.
  • It could be adapted to other languages or compilers if the documentation retrieval step is updated accordingly.
  • Future benchmarks on larger real-world applications would test whether the speedup holds when optimization spaces grow even bigger.

Load-bearing premise

The generated hints stay semantics-preserving across all inputs and the iterative refinement process consistently locates effective optimizations without hidden errors or heavy manual fixes.

What would settle it

Applying HintPilot to a fresh collection of programs and finding either altered program output or no consistent speedup beyond -Ofast on the majority of cases.

Figures

Figures reproduced from arXiv: 2604.15041 by Chengpeng Wang, Hanyun Jiang, Kaiyue Li, Kui Ren, Peisen Yao, Tingting Lin.

Figure 1
Figure 1. Figure 1: The comparison between different paradigms [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

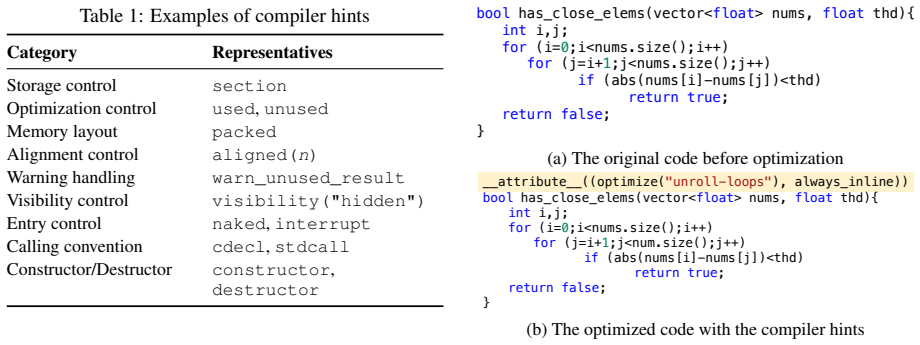

Figure 2
Figure 2. Figure 2: An example of code optimization by synthesiz [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

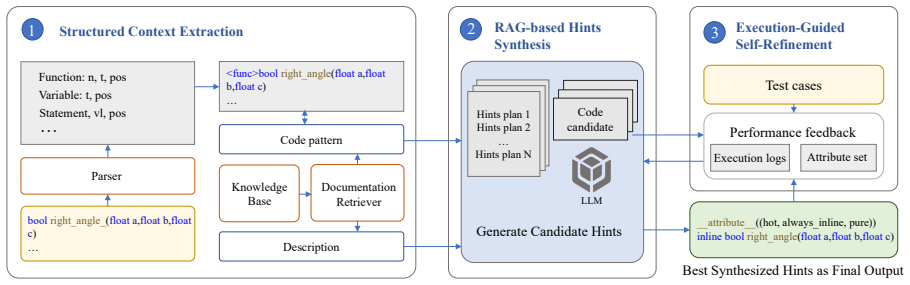

Figure 3
Figure 3. Figure 3: The workflow of HINTPILOT directives (e.g., prefetch). Compiler hints occupy a distinct position in the optimization stack. Unlike source-level code transformations, hints do not alter control flow or data flow; instead, they declaratively constrain or guide the compiler’s internal optimization de￾cisions. Compared to global optimization flags, hints can be selectively applied to individual pro￾gram elemen… view at source ↗

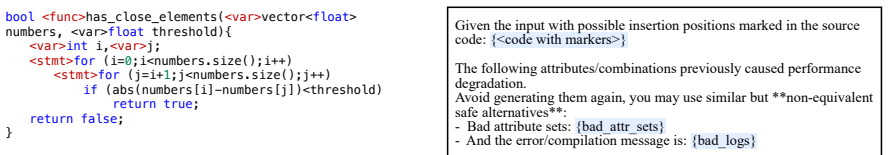

Figure 4
Figure 4. Figure 4: Input program format Context: Here are possible attributes to use with usage description and examples: RAG_CONTEXT [1] … Task: You are given input with possible insertion positions marked in the source code. { "code": {<func>bool right_angle {…<stmt>for(i=0; i<N; i++){…}…} [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

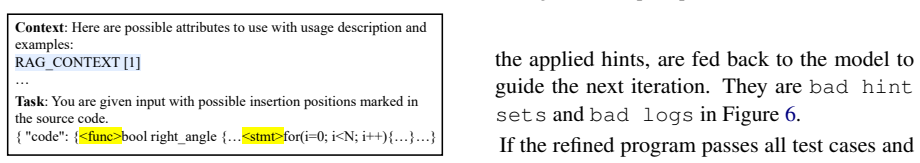

Figure 5
Figure 5. Figure 5: The prompt template for hint synthesis Retrieval-Augmented Guidance. To enhance LLM’s contextual understanding, a RAG structure retrieves examples from a dataset, stored in a vector database. Each entry in the database contains: • Descriptions: Descriptions of the hints extracted from the official document, including their im￾pact, usage, and conditions. • Code pairs (Pp, Pn): Correct use examples of the h… view at source ↗

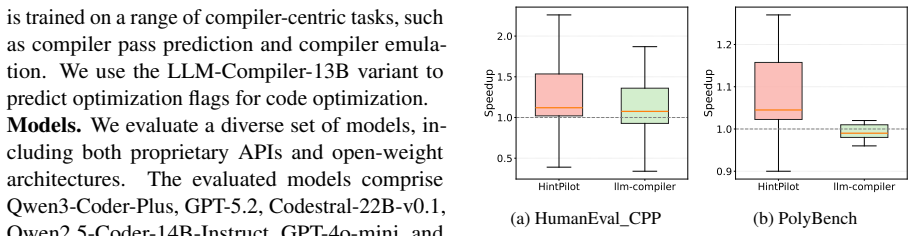

Figure 7
Figure 7. Figure 7: Boxplot of geometric mean speedup relative to [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

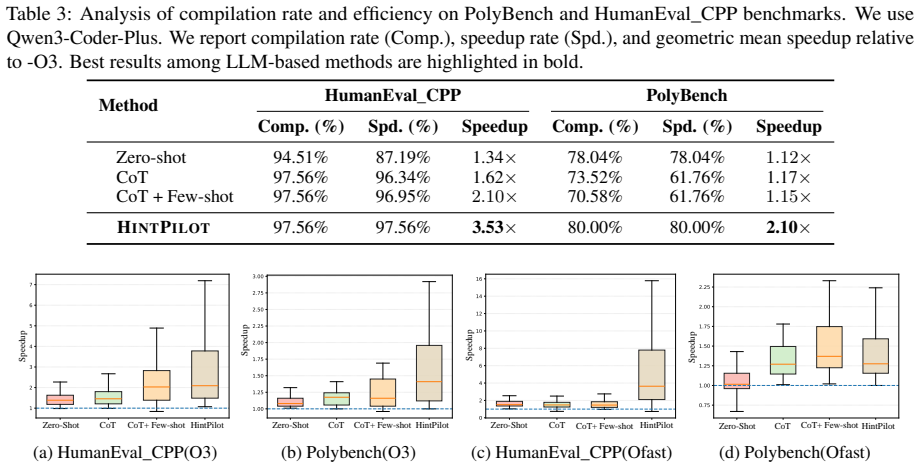

Figure 8
Figure 8. Figure 8: Speedup boxplot of different methods across datasets and baselines [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

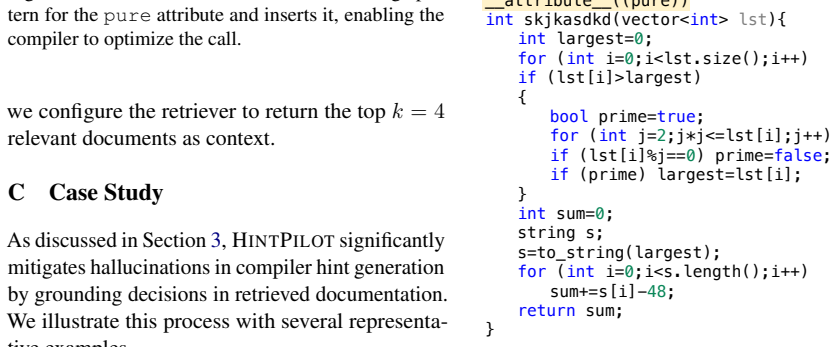

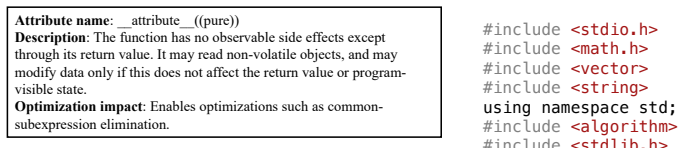

Figure 9
Figure 9. Figure 9: Case I. HINTPILOT retrieves the usage pat￾tern for the pure attribute and inserts it, enabling the compiler to optimize the call. we configure the retriever to return the top k = 4 relevant documents as context. C Case Study As discussed in Section 3, HINTPILOT significantly mitigates hallucinations in compiler hint generation by grounding decisions in retrieved documentation. We illustrate this process wi… view at source ↗
Figure 10
Figure 10. Figure 10: Case I. The original code is dominated by a deeply-nested loop nest in the dynamic programming kernel. optimize("O3") and hot, which convey opti￾mization priority in compute-intensive regions. Grounded by this context, the LLM synthesizes a plan that assigns __attribute__((optimize("O3"), hot)) to the kernel as well as other routines on the main execution path. These annotations inform the compiler that t… view at source ↗

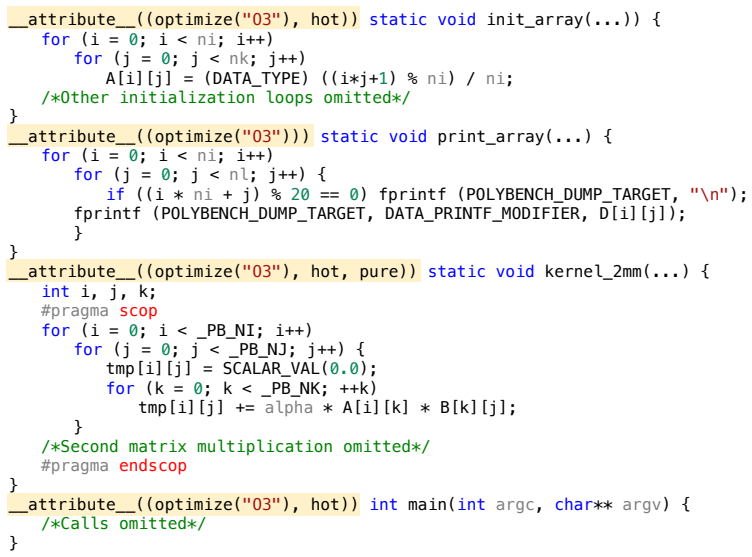

Figure 11
Figure 11. Figure 11: Case II. The original code contains a redundant function call inside a loop. Attribute name: __attribute__((optimize)) Description: Specifies that a function is compiled with optimization options different from those provided on the command line. The specified options are treated as if appended to the compiler’s command￾line flags for that function. Optimization impact: Enables per-function control of opt… view at source ↗

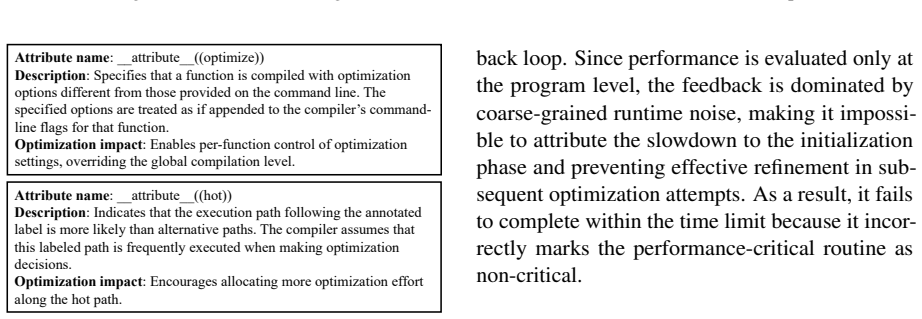

Figure 12
Figure 12. Figure 12: Case II. HINTPILOT retrieves compiler op￾timization attributes for compute-intensive kernels and applies them to prioritize optimization of the main exe￾cution path. kernel_lu as __attribute__((hot)) and assigns __attribute__((cold)) to the initialization routine. However, in this case, the initialization phase performs substantial computa￾tion and accounts for a significant portion of the total runtime, … view at source ↗
Figure 13
Figure 13. Figure 13: Case III.The original program includes a compute-intensive initialization phase followed by an LU factorization kernel Attribute name: __attribute__((cold)) Description: Indicates that the execution path following the annotated label is unlikely to be executed. The compiler treats the labeled path as rarely executed when generating code. Optimization impact: Allows deprioritizing optimization effort for c… view at source ↗
Figure 14
Figure 14. Figure 14: Case III. HINTPILOT retrieves the cold attribute and applies it to the initialization routine, de￾prioritizing optimization in a compute-intensive region. Token Budget HumanEval Polybench 4k 1.28× 1.18× 16k 1.65× 1.16× 8k (HINTPILOT) 3.53× 2.10× [PITH_FULL_IMAGE:figures/full_fig_p015_14.png] view at source ↗

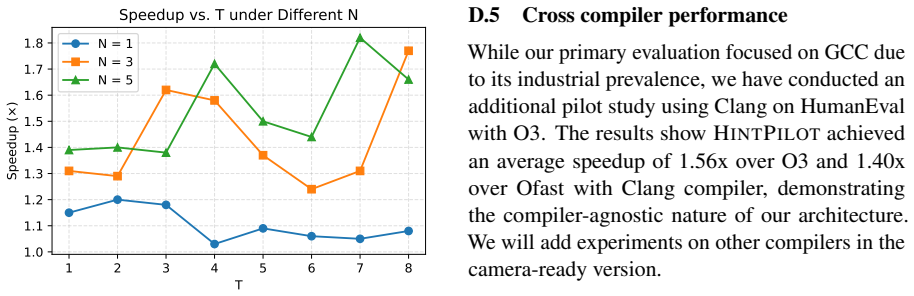

Figure 15
Figure 15. Figure 15: Speedup performance scaled with T and N. Repo Perf. Improvement ↑ (Max) Perf. Improvement ↑ (Avg) LevelDB 54.00% 9.20% spdlog 48.00% 11.59% Redis 10.42% 0.62% [PITH_FULL_IMAGE:figures/full_fig_p016_15.png] view at source ↗
read the original abstract

Code optimization remains a core objective in software development, yet modern compilers struggle to navigate the enormous optimization spaces. While recent research has looked into employing large language models (LLMs) to optimize source code directly, these techniques can introduce semantic errors and miss fine-grained compiler-level optimization opportunities. We present HintPilot, which bridges LLM-based reasoning with traditional compiler infrastructures via synthesizing compiler hints, annotations that steer compiler behavior. HintPilot employs retrieval-augmented synthesis over compiler documentation and applies profiling-guided iterative refinement to synthesize semantics-preserving and effective hints. Upon PolyBench and HumanEval-CPP benchmarks, HintPilot achieves up to 6.88x geometric mean speedup over -Ofast while preserving program correctness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces HintPilot, an LLM-based system for synthesizing compiler hints to optimize code. It combines retrieval-augmented generation over compiler documentation with profiling-guided iterative refinement to produce hints that steer compiler behavior. On PolyBench and HumanEval-CPP, it reports up to 6.88x geometric mean speedup over -Ofast while claiming to preserve program correctness via benchmark test suites.

Significance. If the performance claims and semantics-preservation guarantees hold under rigorous scrutiny, the work offers a practical bridge between LLM reasoning and established compiler infrastructures, potentially enabling safer and more effective automated optimizations than direct code rewriting approaches. The use of named benchmarks and concrete speedup numbers provides a clear empirical foundation for further exploration in this direction.

major comments (2)
  1. [Evaluation section] Evaluation section: The central claim that synthesized hints are semantics-preserving rests solely on the programs passing the PolyBench and HumanEval-CPP test suites after hint application. No formal verification, differential testing across input distributions, or analysis of potential LLM-induced subtle changes (e.g., altered floating-point associativity or integer overflow behavior) is described. This is load-bearing for the headline result and requires strengthening to support the preservation guarantee.
  2. [Results section] Results section (speedup reporting): The abstract states concrete geometric mean speedups up to 6.88x, yet provides no details on statistical significance testing, variance across runs, or handling of profiling overhead in the iterative refinement loop. These omissions make it difficult to assess whether the reported gains are robust or sensitive to experimental setup.
minor comments (2)
  1. [Abstract and Introduction] The abstract and introduction could more explicitly distinguish HintPilot from prior LLM-based code optimization work by highlighting the compiler-hint interface as the key differentiator.
  2. [Methodology] Notation for hint types and the refinement loop could be formalized with a small diagram or pseudocode to improve clarity for readers unfamiliar with compiler annotation mechanisms.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which has helped us strengthen the rigor of our evaluation and results reporting. We address each major comment below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: [Evaluation section] Evaluation section: The central claim that synthesized hints are semantics-preserving rests solely on the programs passing the PolyBench and HumanEval-CPP test suites after hint application. No formal verification, differential testing across input distributions, or analysis of potential LLM-induced subtle changes (e.g., altered floating-point associativity or integer overflow behavior) is described. This is load-bearing for the headline result and requires strengthening to support the preservation guarantee.

    Authors: We agree that test-suite passage alone provides a practical but incomplete guarantee of semantics preservation, as it is the standard evaluation method for these benchmarks but does not exhaustively cover all possible input distributions or subtle behavioral changes. In the revised manuscript, we have expanded the Evaluation section with a dedicated discussion of these limitations, including potential LLM-induced issues such as floating-point associativity and integer overflow. We have also added results from differential testing on varied input distributions for representative PolyBench programs and clarified that the profiling-guided refinement loop performs correctness checks against the test suites at each iteration. Full formal verification remains outside the scope of this systems paper, as it would require integration with theorem provers, but we have added explicit caveats to the claims. revision: yes

  2. Referee: [Results section] Results section (speedup reporting): The abstract states concrete geometric mean speedups up to 6.88x, yet provides no details on statistical significance testing, variance across runs, or handling of profiling overhead in the iterative refinement loop. These omissions make it difficult to assess whether the reported gains are robust or sensitive to experimental setup.

    Authors: We thank the referee for highlighting the need for greater statistical transparency. In the revised Results section and appendix, we now report per-benchmark speedups with standard deviations across multiple runs, include statistical significance testing (Wilcoxon signed-rank test on paired speedups), and explicitly state that all reported execution times measure only the final optimized binary after refinement completes, excluding any profiling or iteration overhead. The geometric mean of 6.88x is computed over the final per-program speedups relative to -Ofast, with full raw data and error bars provided for reproducibility. revision: yes

Circularity Check

0 steps flagged

No derivation chain; purely empirical system paper

full rationale

The paper describes an LLM-based tool (HintPilot) for synthesizing compiler hints, using retrieval-augmented generation and profiling-guided refinement, then reports empirical speedups on PolyBench and HumanEval-CPP benchmarks. No equations, mathematical derivations, predictions, or first-principles results are claimed. All load-bearing assertions are benchmark outcomes rather than reductions to fitted parameters or self-referential definitions. No self-citation chains or ansatzes are invoked to justify core results, so no circularity patterns apply.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the approach implicitly assumes standard LLM capabilities and compiler hint mechanisms from prior literature.
