arxiv: 2604.15352 · v1 · submitted 2026-04-05 · 📡 eess.SY · cs.SY· physics.ao-ph· physics.app-ph

Recognition: 2 theorem links

· Lean Theorem

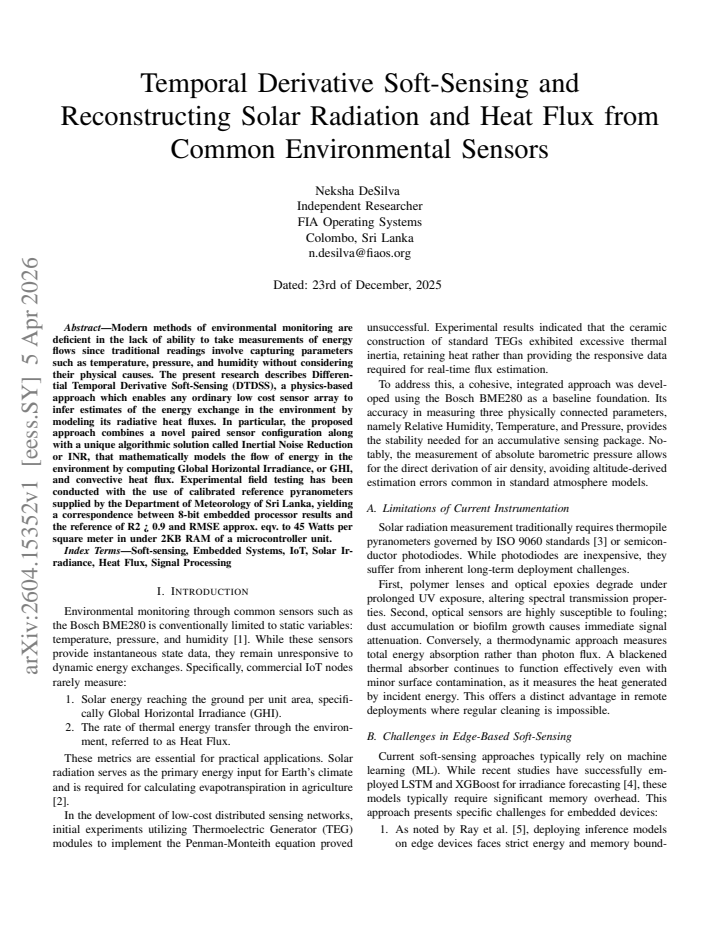

Temporal Derivative Soft-Sensing and Reconstructing Solar Radiation and Heat Flux from Common Environmental Sensors

Neksha DeSilva

Authors on Pith no claims yet

Pith reviewed 2026-05-13 16:51 UTC · model grok-4.3

classification 📡 eess.SY cs.SYphysics.ao-phphysics.app-ph

keywords soft sensingtemporal derivativessolar radiationheat fluxenvironmental sensorsembedded systemsGHI reconstructionconvective flux

0 comments

The pith

A new soft-sensing method reconstructs solar radiation and convective heat flux from ordinary temperature and humidity sensors by using their temporal derivatives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Differential Temporal Derivative Soft-Sensing (DTDSS) to turn common low-cost sensor arrays into estimators of environmental energy flows. It pairs sensors and applies an Inertial Noise Reduction algorithm to compute global horizontal irradiance and convective heat flux from time-based changes in readings. This matters because standard sensors record conditions such as temperature without directly measuring the underlying radiative and convective energy exchanges that drive weather and climate processes. Field experiments against calibrated reference instruments produced R squared values near 0.9 and root mean square error near 45 watts per square meter while running on an 8-bit microcontroller with under 2 kilobytes of RAM.

Core claim

The central claim is that the DTDSS method, which combines a paired sensor configuration with the Inertial Noise Reduction algorithm, mathematically models energy flows to reconstruct global horizontal irradiance and convective heat flux from ordinary environmental sensors, delivering R squared approximately 0.9 and RMSE approximately 45 W per square meter on an 8-bit MCU using less than 2 KB RAM.

What carries the argument

Differential Temporal Derivative Soft-Sensing (DTDSS) with paired sensors and the Inertial Noise Reduction (INR) algorithm, which derives energy flux estimates by computing time derivatives of sensor readings to separate radiative and convective components.

If this is right

Ordinary sensor arrays can estimate solar radiation without dedicated pyranometers.
The method runs in real time on low-memory embedded processors for continuous monitoring.
Convective heat flux becomes measurable alongside irradiance using the same basic hardware.
Field results align closely with professional meteorological reference instruments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Dense networks of inexpensive sensors could map local solar radiation at fine spatial scales in regions lacking professional equipment.
The derivative approach might extend to estimating latent heat or other fluxes by adding humidity or wind sensors to the pairs.
Integration into existing IoT weather stations could supply flux data to improve local energy-balance forecasts.

Load-bearing premise

Temporal derivatives from paired common sensors primarily reflect radiative and convective energy fluxes with minimal interference from wind, sensor thermal inertia, or placement variations.

What would settle it

Place the paired sensors in a controlled setup with constant known solar radiation but varying wind speeds, then check whether the reconstructed GHI values deviate substantially from simultaneous reference pyranometer measurements.

Figures

Figures reproduced from arXiv: 2604.15352 by Neksha DeSilva.

**Figure 2.** Figure 2: The Correlation Between Wind Performance and Heat Flux [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: Proximity Correlation Hypothesis: Local sensor-level wind speed [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: Differential Sensing Head Cross-Section. The Flux node is isolated [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 5.** Figure 5: Comparative analysis of Solar Irradiance. The dashed line represents [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

read the original abstract

Modern methods of environmental monitoring are deficient in the lack of ability to take measurements of energy flows since traditional readings involve capturing parameters such as temperature, pressure, and humidity without considering their physical causes. The present research describes Differential Temporal Derivative Soft-Sensing (DTDSS), a physics-based approach which enables any ordinary low cost sensor array to infer estimates of the energy exchange in the environment by modeling its radiative heat fluxes. In particular, the proposed approach combines a novel paired sensor configuration along with a unique algorithmic solution called Inertial Noise Reduction or INR, that mathematically models the flow of energy in the environment by computing Global Horizontal Irradiance, or GHI, and convective heat flux. Experimental field testing has been conducted with the use of calibrated reference pyranometers supplied by the Department of Meteorology of Sri Lanka, yielding a correspondence between 8 bit embedded processor results and the reference of R2 approx. eqv. to 0.9 and RMSE approx. eqv. to 45 Watts per square meter in under 2KB RAM of a microcontroller unit.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The DTDSS paired-sensor method offers a low-resource way to estimate solar and heat fluxes, but missing model details leave the physics assumptions unverified.

read the letter

Hey colleague, the paper's main contribution is this Differential Temporal Derivative Soft-Sensing approach, or DTDSS, that uses a paired sensor setup and something called Inertial Noise Reduction to turn readings from common environmental sensors into estimates of global horizontal irradiance and convective heat flux. They back this with field tests showing R² around 0.9 and RMSE around 45 W per square meter, all running on an 8-bit MCU with less than 2KB of RAM. What the work does well is the emphasis on low-cost, low-resource hardware. Getting flux data without dedicated pyranometers could open up denser sensor networks for meteorology or solar applications. The physics-based framing, rather than just curve fitting, is also a positive if it holds. The field validation against official reference instruments adds some credibility to the numbers they report. On the downside, the abstract is light on the actual model. There are no equations shown for the energy balance or how the INR algorithm works, which makes it hard to evaluate whether the temporal derivatives really isolate the target fluxes or if other effects like conduction between sensors, thermal inertia, or wind turbulence are confounding things. The stress-test note raises a fair point here: if those unmodeled terms are significant in typical outdoor setups, the error metrics could be understating the real uncertainty. More detail on the experimental conditions, like how many sites were used and over what weather range, would help too. It's also unclear if the method was tuned against the same reference data used for the performance scores. Overall, this seems targeted at engineers and applied scientists working on environmental monitoring systems or renewable energy setups where cost is a barrier. Someone building sensor networks might get practical value from the implementation details, even if the theoretical side needs more scrutiny. I think it deserves a serious referee. The hardware results are concrete and the idea has potential utility, so peer review could sort out the modeling gaps and strengthen the claims.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces Differential Temporal Derivative Soft-Sensing (DTDSS) that combines a paired-sensor configuration with an Inertial Noise Reduction (INR) algorithm to reconstruct Global Horizontal Irradiance (GHI) and convective heat flux from ordinary environmental sensors. Field tests against reference pyranometers report R² ≈ 0.9 and RMSE ≈ 45 W/m² on an 8-bit MCU with under 2 KB RAM.

Significance. If the underlying energy-balance reconstruction is shown to be free of significant confounding, the method would enable low-cost, embedded monitoring of radiative and convective fluxes without dedicated radiometers, which is valuable for distributed environmental sensing on resource-limited hardware.

major comments (2)

[Abstract] Abstract: the central claim that temporal derivatives of paired-sensor readings yield GHI and convective flux via INR rests on an unshown energy-balance model; no equations, derivation steps, or parameter definitions are supplied, so it is impossible to verify whether the reported R² and RMSE are independent of the reference pyranometer data.
[Experimental Validation] Experimental section: the manuscript provides no quantitative assessment of conduction between sensors, sensor thermal mass, or wind-driven convection, all of which the skeptic correctly identifies as potential confounders whose magnitude must be shown to be negligible relative to the target fluxes for the reconstruction error to be credible.

minor comments (1)

[Abstract] Abstract: the notation 'R2 approx. eqv. to 0.9' is non-standard and should be replaced by 'R² ≈ 0.9' for clarity and consistency with scientific reporting.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on the presentation of the energy-balance model and the need for quantitative checks on potential confounders. We address each point below and will revise the manuscript to incorporate the requested details.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that temporal derivatives of paired-sensor readings yield GHI and convective flux via INR rests on an unshown energy-balance model; no equations, derivation steps, or parameter definitions are supplied, so it is impossible to verify whether the reported R² and RMSE are independent of the reference pyranometer data.

Authors: We agree that the energy-balance model was not shown with equations or derivation steps. The DTDSS reconstruction is derived from the surface energy balance on the paired sensors, where the INR-filtered temporal derivative of their temperature difference isolates the net radiative (GHI) and convective terms. We will add a dedicated section with the complete equations, derivation, and parameter definitions in the revised manuscript. This will make clear that the reported metrics are obtained from the physical model applied to the sensor data, with the reference pyranometer used solely for independent validation. revision: yes
Referee: [Experimental Validation] Experimental section: the manuscript provides no quantitative assessment of conduction between sensors, sensor thermal mass, or wind-driven convection, all of which the skeptic correctly identifies as potential confounders whose magnitude must be shown to be negligible relative to the target fluxes for the reconstruction error to be credible.

Authors: We acknowledge that the manuscript lacks quantitative estimates of conduction between sensors, thermal mass effects, and wind-driven convection. In the revised version we will add calculations using sensor datasheets, measured wind speeds, and material properties to show that these terms remain small relative to the reconstructed GHI and convective fluxes under the field conditions tested. This will support the credibility of the error metrics. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents DTDSS as a physics-based energy-balance model using paired sensors and INR to compute GHI and convective flux from temporal derivatives. Reported R²≈0.9 and RMSE≈45 W/m² are obtained from field tests against independent reference pyranometers supplied by the Department of Meteorology of Sri Lanka. No equations, self-citations, or fitted-parameter renamings are shown that reduce the claimed predictions to the validation data by construction. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only access yields no identifiable free parameters, axioms, or invented entities; the approach is labeled physics-based but supplies no equations or assumptions to audit.

pith-pipeline@v0.9.0 · 5491 in / 1153 out tokens · 29854 ms · 2026-05-13T16:51:42.557893+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Conservation of energy applied to the Flux Node: (αGAs + P_elec) − h_c As (T_flux − T_ref) = m C_p dT_flux/dt
IndisputableMonolith/Foundation/AlphaCoordinateFixation.lean J_uniquely_calibrated_via_higher_derivative unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Tsol = (T_flux − T_ref) + τ dT_flux/dt − T_rise ; G = h_c / α Tsol

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages

[1]

BME280: Combined humidity and pressure sensor datasheet,

Bosch Sensortec, “BME280: Combined humidity and pressure sensor datasheet,” v1.1, 2016

work page 2016
[2]

Crop evapotranspiration—Guidelines for computing crop water requirements,

R. G. Allen, L. S. Pereira, D. Raes, and M. Smith, “Crop evapotranspiration—Guidelines for computing crop water requirements,” FAO Irrigation and Drainage Paper 56, Food and Agriculture Organization of the United Nations, Rome, 1998

work page 1998
[3]

ISO 9060:2018 Solar energy—Specification and classification of instruments for measuring hemispherical solar and direct solar radiation,

International Organization for Standardization, “ISO 9060:2018 Solar energy—Specification and classification of instruments for measuring hemispherical solar and direct solar radiation,” 2018

work page 2018
[4]

LSTM and XGBoost models for 24-hour photovoltaic power forecasting from direct irradiation data,

D. K. B. Audace, B. Kodjo, K. Thierry, and A. Evrard-Junior, “LSTM and XGBoost models for 24-hour photovoltaic power forecasting from direct irradiation data,”Renewable Energy Research and Applications, vol. 5, no. 2, pp. 229–241, 2023

work page 2023
[5]

A Review on TinyML: State-of-the-Art, Challenges, and Future Directions,

P. P. Ray, “A Review on TinyML: State-of-the-Art, Challenges, and Future Directions,”IEEE Sensors J., vol. 24, no. 1, pp. 120–138, 2024

work page 2024
[6]

Estimating solar radiation from temperature differences,

Z. Samani, “Estimating solar radiation from temperature differences,”J. Irrig. Drain. Eng., vol. 126, no. 4, pp. 265–267, 2000

work page 2000
[7]

F. P. Incropera, D. P. DeWitt, T. L. Bergman, and A. S. Lavine, Fundamentals of Heat and Mass Transfer, 6th ed. Hoboken, NJ, USA: Wiley, 2007

work page 2007
[8]

Improved Magnus form approxi- mation of saturation vapor pressure,

O. A. Alduchov and R. E. Eskridge, “Improved Magnus form approxi- mation of saturation vapor pressure,”J. Appl. Meteorol., vol. 35, no. 4, pp. 601–609, 1996

work page 1996
[9]

Solar and terrestrial radiation dependent on the amount and type of cloud,

F. Kasten and G. Czeplak, “Solar and terrestrial radiation dependent on the amount and type of cloud,”Solar Energy, vol. 18, no. 3, pp. 177–181, 1976

work page 1976
[10]

Smoothing and differentiation of data by simplified least squares procedures,

A. Savitzky and M. J. E. Golay, “Smoothing and differentiation of data by simplified least squares procedures,”Anal. Chem., vol. 36, no. 8, pp. 1627–1639, 1964

work page 1964
[11]

Physics-enhanced TinyML for real- time detection of ground magnetic anomalies,

T. Siddique and M. S. Mahmud, “Physics-enhanced TinyML for real- time detection of ground magnetic anomalies,”IEEE Access, vol. 12, pp. 25372–25384, 2024, doi: 10.1109/ACCESS.2024.3362346

work page doi:10.1109/access.2024.3362346 2024
[12]

Intelligent Calibration and Virtual Sensing for Integrated Low-Cost Air Quality Sensors,

Y . Zhang and H. Liu, “Intelligent Calibration and Virtual Sensing for Integrated Low-Cost Air Quality Sensors,”IEEE Sensors J., vol. 25, no. 2, pp. 1020–1035, 2025

work page 2025
[13]

Design and simulation of a low-cost solar irradiance meter for PV applications,

M. Ahmed and S. Ali, “Design and simulation of a low-cost solar irradiance meter for PV applications,” inProc. 2023 Int. Conf. Green Energy Convers. Syst. (ICGECS), 2023, pp. 1–5

work page 2023
[14]

Fortuna, S

L. Fortuna, S. Graziani, A. Rizzo, and M. G. Xibilia,Soft Sensors for Monitoring and Control of Industrial Processes. London, U.K.: Springer, 2007

work page 2007
