The pith

A prototype Dual-Topology Elastic Actuator switches between SEA and PEA modes in under 33 ms, survives 324 loaded cycles, and shows stiffness and disturbance rejection matching known SEA and PEA behaviors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Series elastic actuators place a spring between the motor and the load, allowing the joint to flex and absorb shocks. Parallel elastic actuators place the spring alongside the motor, making the joint stiffer and better at holding position against forces. The DTEA uses a mechanical switching system so the same hardware can operate in either configuration on the fly. Tests on a physical prototype showed it could flip modes hundreds of times under load without breaking, with each switch taking less than one thirtieth of a second. Stiffness measurements found the parallel mode about 1.5 times stiffer than the series mode, and disturbance tests showed the series mode deflected more and took longer to settle, as expected from prior work on each type separately.

Core claim

This paper presents a novel actuator design called the Dual-Topology Elastic Actuator (DTEA), which enables dynamic switching between SEA and PEA topologies during operation. A proof-of-concept prototype ... successfully performed 324 topology-switching cycles under load without damage ... The measured switching time ... is under 33.33 ms.

Load-bearing premise

The switching mechanism can be integrated into a functional actuator without introducing new failure modes, friction, or performance degradation that would prevent practical use beyond the short-term prototype tests described.

Figures

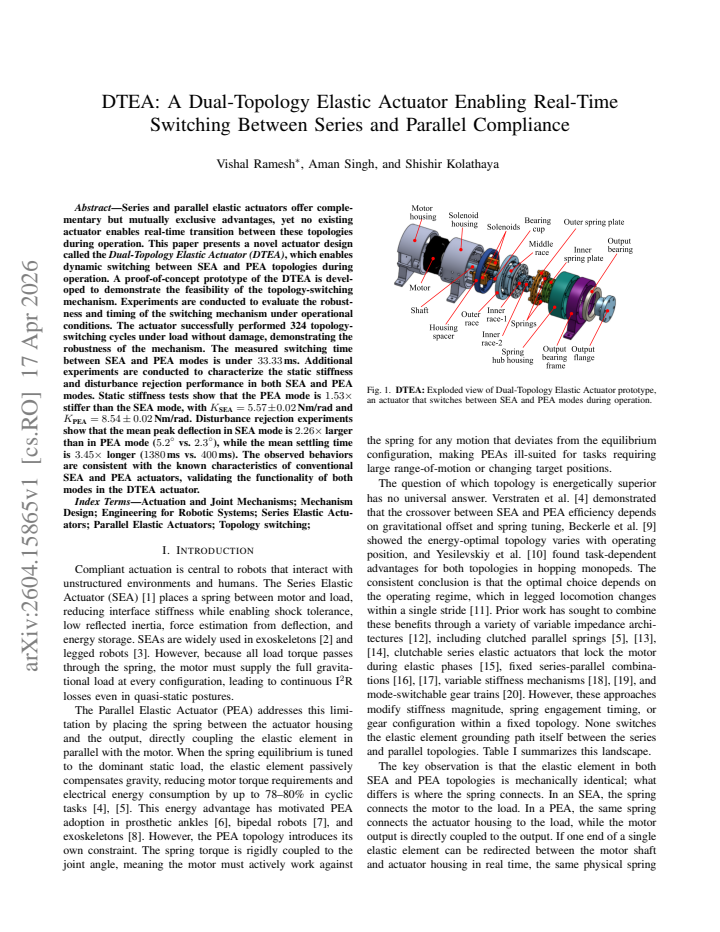

Figures reproduced from arXiv: 2604.15865 by Aman Singh, Shishir Kolathaya, Vishal Ramesh.

Figure 1
Figure 1. Figure 1: DTEA: Exploded view of Dual-Topology Elastic Actuator prototype, an actuator that switches between SEA and PEA modes during operation. the spring for any motion that deviates from the equilibrium configuration, making PEAs ill-suited for tasks requiring large range-of-motion or changing target positions. The question of which topology is energetically superior has no universal answer. Verstraten et al. [4]… view at source ↗
Figure 2
Figure 2. Figure 2: Spring-line schematics of standard (SEA & PEA) and DTEA [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Left and center: Cross-sectional view of the DTEA in both operating modes. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: DTEA prototype and experimental testbench. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Stiffness characterization. Top. SEA and PEA hysteresis loops (3 trials each). Bottom left. Overlay with common deflection window shaded. Bottom right. Stiffness and hysteresis comparison. For the experiment, the actuator output shaft was rigidly fixed to ground using a mechanical fixture while the motor operated in torque control. The commanded torque τm fol￾lowed a loading–unloading cycle: 0 → +1 → 0 → −… view at source ↗
Figure 7
Figure 7. Figure 7: Switching time characterization via high-speed video at 60 fps [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
read the original abstract

Series and parallel elastic actuators offer complementary but mutually exclusive advantages, yet no existing actuator enables real-time transition between these topologies during operation. This paper presents a novel actuator design called the Dual-Topology Elastic Actuator (DTEA), which enables dynamic switching between SEA and PEA topologies during operation. A proof-of-concept prototype of the DTEA is developed to demonstrate the feasibility of the topology-switching mechanism. Experiments are conducted to evaluate the robustness and timing of the switching mechanism under operational conditions. The actuator successfully performed 324 topology-switching cycles under load without damage, demonstrating the robustness of the mechanism. The measured switching time between SEA and PEA modes is under 33.33 ms. Additional experiments are conducted to characterize the static stiffness and disturbance rejection performance in both SEA and PEA modes. Static stiffness tests show that the PEA mode is 1.53x stiffer than the SEA mode, with KSEA = 5.57 +/- 0.02 Nm/rad and KPEA = 8.54 +/- 0.02 Nm/rad. Disturbance rejection experiments show that the mean peak deflection in SEA mode is 2.26x larger than in PEA mode (5.2 deg vs. 2.3 deg), while the mean settling time is 3.45x longer (1380 ms vs. 400 ms). The observed behaviors are consistent with the known characteristics of conventional SEA and PEA actuators, validating the functionality of both modes in the DTEA actuator.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Circularity Check

0 steps flagged

No circularity: claims rest on direct prototype measurements

full rationale

The paper is an experimental hardware report. It describes a prototype, performs 324 physical switching cycles under load, measures switching time (<33.33 ms), static stiffness (KSEA = 5.57 Nm/rad, KPEA = 8.54 Nm/rad), and disturbance rejection (2.26x deflection, 3.45x settling time), and notes consistency with known SEA/PEA behavior. No equations, first-principles derivations, fitted parameters, or predictions are presented that could reduce to the same data by construction. No self-citation chains or ansatzes are invoked as load-bearing steps. The central feasibility claim is therefore supported by independent empirical observation rather than any analytical loop.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on a new mechanical design whose performance is validated experimentally rather than derived from first principles. No free parameters are fitted to data in the reported results. Standard assumptions of rigid-body mechanics and linear spring behavior are used implicitly.

axioms (1)
  • domain assumption Linear elastic behavior of the springs used in both topologies
    Implicit in the stiffness measurements and disturbance rejection tests.
invented entities (1)
  • Dual-topology switching mechanism no independent evidence
    purpose: To enable real-time reconfiguration between series and parallel elastic topologies within a single actuator unit
    New mechanical component introduced by the paper; no independent evidence outside the prototype tests is provided.
