ReactBench: A Benchmark for Topological Reasoning in MLLMs on Chemical Reaction Diagrams

Qiang Xu , Shengyuan Bai , Yu Wang , He Cao , Leqing Chen , Yuanyuan Liu , Bin Feng , Zijing Liu

show 1 more author

Yu Li

Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:59 UTC · model grok-4.3

classification 💻 cs.AI

keywords reasoningdiagramsstructuralbenchmarkmllmstasksacrosschemical

0 comments

The pith

ReactBench benchmark shows MLLMs suffer over 30% performance drop on complex topological reasoning tasks versus basic ones when evaluated on chemical reaction diagrams.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Multimodal large language models handle simple pictures and straight diagrams well but struggle when visuals have complicated connections like branching paths, merging flows, and loops. Chemical reaction diagrams provide a natural mix of these structures, making them a good test for whether models can both spot local parts and understand global connections. The ReactBench benchmark includes 1,618 questions created by experts and organized into four difficulty levels that require increasing amounts of structural understanding. When 17 different MLLMs were tested, accuracy fell sharply on tasks needing full diagram topology compared to easier anchor-based questions. Additional checks confirmed the weakness comes from reasoning steps, not from failing to see the image elements. This points to a core limitation in how current models process connected information in scientific visuals.

Core claim

Extensive evaluation across 17 MLLMs reveals a significant performance gap exceeding 30% between anchor-based tasks and holistic structural reasoning tasks. Controlled ablations confirm this bottleneck lies in reasoning, not perception.

Load-bearing premise

That the expert-annotated QA pairs and chemical reaction diagrams accurately isolate topological reasoning from semantic comprehension or perceptual factors, and that the observed gap generalizes beyond the specific 1,618 pairs.

Figures

Figures reproduced from arXiv: 2604.15994 by Bin Feng, He Cao, Leqing Chen, Qiang Xu, Shengyuan Bai, Yuanyuan Liu, Yu Li, Yu Wang, Zijing Liu.

**Figure 1.** Figure 1: Comparing General Diagram and Chemical Reaction Diagram on Element Localization Tasks. GPT-4o performs well on general diagrams for identification tasks. However, for chemical reaction diagram, the structural complexity of molecular diagrams and reaction pathways leads to errors. Abstract Multimodal Large Language Models (MLLMs) excel at recognizing individual visual elements and reasoning over simple line… view at source ↗

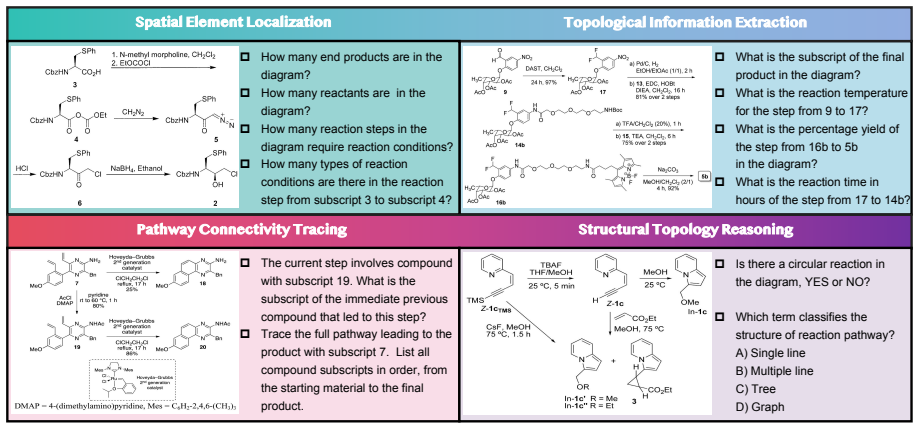

**Figure 2.** Figure 2: Overview of ReactBench. ReactBench systematically evaluates topological reasoning on chemical reaction diagrams across four complexity-stratified dimensions. understanding of reaction pathways. We introduce ReactBench, a benchmark designed to diagnose structural reasoning limitations in MLLMs through chemical reaction diagrams. ReactBench comprises 1,618 question-answer pairs carefully curated from real-w… view at source ↗

**Figure 3.** Figure 3: Composition of ChemReaction. non-structural or shallow visual reasoning. In these scenarios, visual inputs typically act as static semantic references rather than intricate relational networks. Consequently, while current VQA benchmarks heavily focus on general semantic comprehension and basic grounding, they lack a systematic evaluation of complex topological reasoning. Our work addresses this critical … view at source ↗

**Figure 4.** Figure 4: ReactBench dataset construction and evaluation pipeline. (a) Data acquisition involves systematic collection of chemical reaction diagrams from peer-reviewed literature and patent databases, followed by preprocessing through manual curation and quality filtering protocols. (b) Annotation framework encompasses structured generation and expert validation of question-answer pairs, ensuring alignment with tar… view at source ↗

**Figure 5.** Figure 5: Qualitative analysis of recurring failure patterns in ReactBench evaluation. Each case study exemplifies a [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

**Figure 6.** Figure 6: Performance comparison of three models with [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

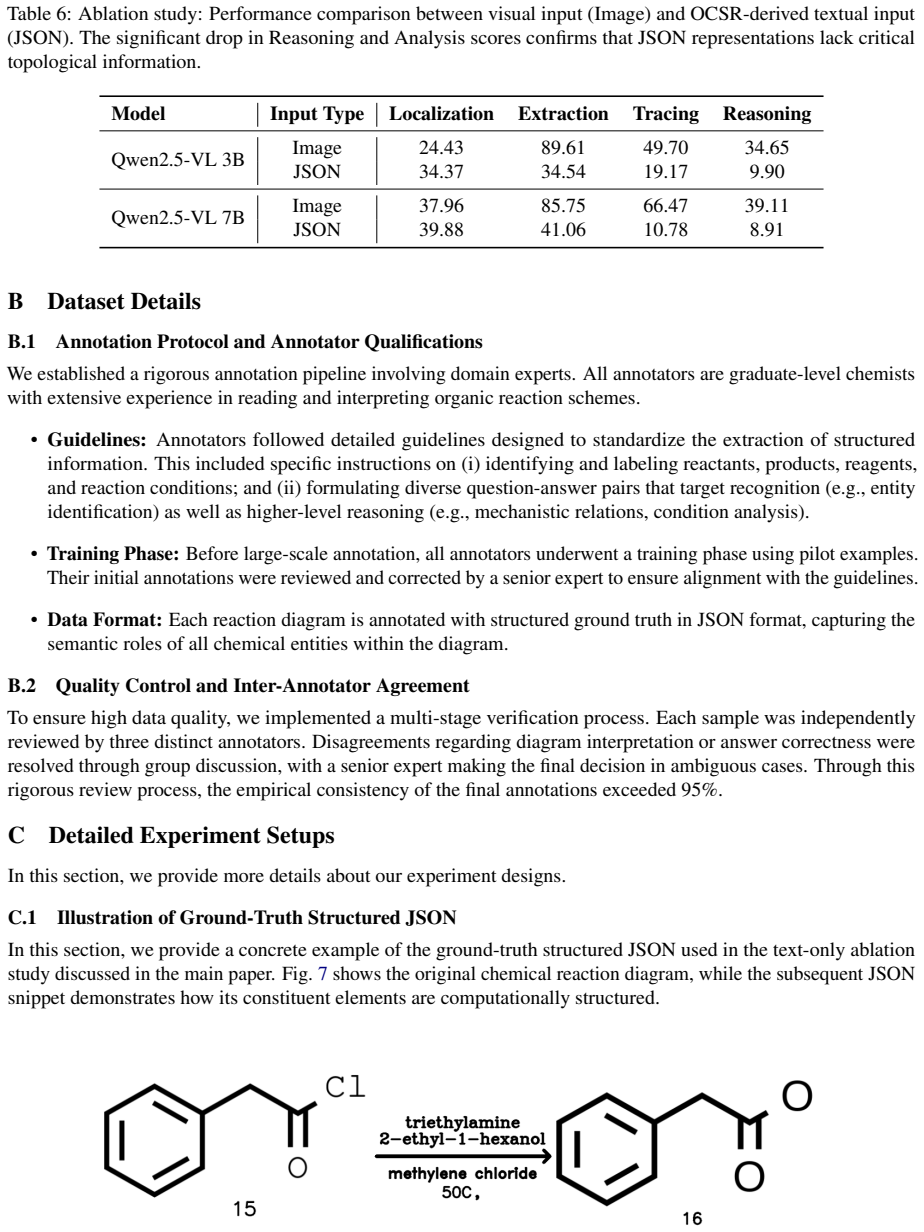

**Figure 7.** Figure 7: Example of a chemical reaction diagram used for the text-only ablation study. This visual representation is translated into the structured JSON format shown below, which preserves the chemical semantics (SMILES, text) [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

**Figure 8.** Figure 8: Illustration of the visual context ablation. Detailed molecule images are masked and replaced with rectangle placeholders to isolate the topological structure. Direct Answer System Prompt Multimodal Chemical Reaction QA Task Inputs: 1. Chemical reaction scheme image 2. Question Answer the question by following these rules: 1. Provide ONLY the numerical answer (e.g., \"80\") without any units, symbols, or a… view at source ↗

**Figure 9.** Figure 9: The direct answer prompt in our ReactBench [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗

**Figure 10.** Figure 10: The prompt of Chain-of-Thought in our ReactBench. External Knowledge System Prompt Multimodal Chemical Reaction QA Task Inputs: 1. Chemical reaction scheme image 2. Supplemental JSON data Task Requirements: 1. Cross-validate information between image and JSON data 2. Answer format requirements: - Return ONLY numerical value (e.g. \"80\") - No units, symbols or additional text" 3. Explicitly explain how bo… view at source ↗

**Figure 11.** Figure 11: The prompt of external knowledge in our ReactBench [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗

**Figure 12.** Figure 12: External Knowledge Example in our ReactBench. This JSON represents molecular structures and reaction relationships extracted from the image. The bboxes section defines detected elements with their respective IDs, bounding box coordinates, and the category_id, where 1 indicates molecules, 2 denotes text, 3 corresponds to compound identifiers (numerical labels without molecular structures), and 4 represents… view at source ↗

**Figure 13.** Figure 13: Examples of Element Localization Task in our ReactBench. Question: "Which term classifies the structure of the reaction pathway? A) Single line B) Multiple line C) Tree D) Graph" Question: "Is there a circular reaction in the diagram, YES or NO?" Question: "Which term classifies the structure of the reaction pathway? A) Single line B) Multiple line C) Tree D) Graph" [PITH_FULL_IMAGE:figures/full_fig_p018… view at source ↗

**Figure 14.** Figure 14: Examples of Topology Reasoning Task in our ReactBench [PITH_FULL_IMAGE:figures/full_fig_p018_14.png] view at source ↗

**Figure 15.** Figure 15: Examples of Information Extraction Task in our ReactBench. % 10. Analyze the reaction mechanism diagram. \nThe current step involves compound with subscript 14. **Focus only on compounds directly participating in the reaction pathway** (reactants and products).\n**Ignore substances in reaction conditions** (e.g., catalysts, solvents) What is the subscript of the immediate next compound formed in this reac… view at source ↗

**Figure 16.** Figure 16: Examples of Connectivity Tracing Task in our ReactBench [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
