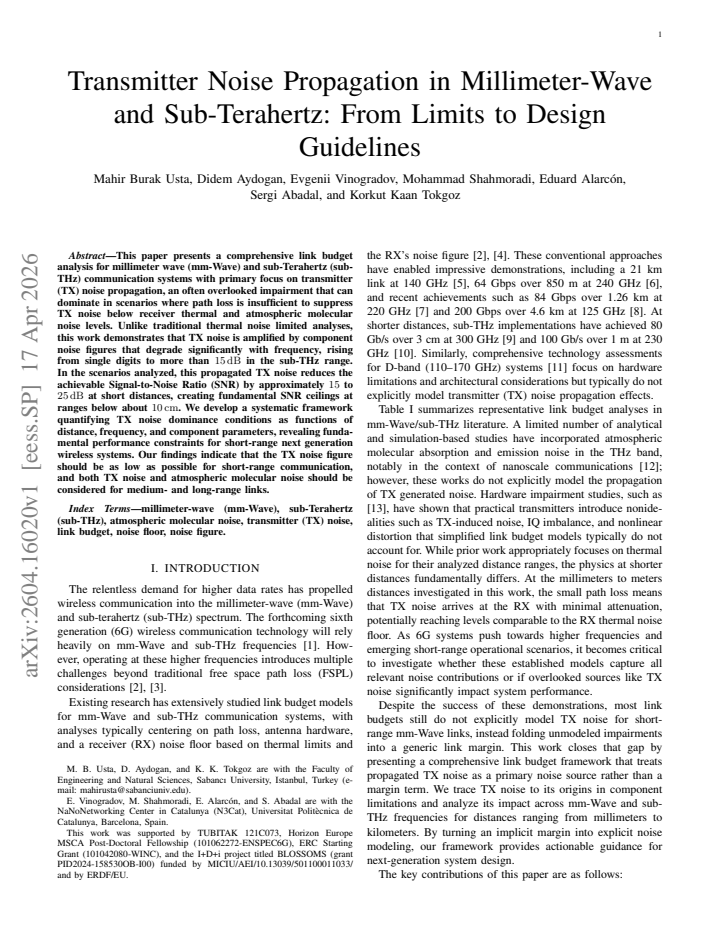

The paper examines how noise originating at the transmitter propagates through the communication chain and can become the dominant impairment when distances are short enough that path loss fails to suppress it below receiver noise levels. Traditional link budgets focus on thermal noise and atmospheric effects, yet this analysis demonstrates that frequency-dependent component noise figures cause transmitter noise to impose practical upper bounds on signal quality in the millimeter-wave and sub-terahertz bands. A quantitative framework is built to identify the distance, frequency, and parameter regimes where transmitter noise takes over. If the model holds, short-range links cannot rely on propagation to improve signal-to-noise ratio and must instead prioritize low-noise transmitter hardware.

Core claim

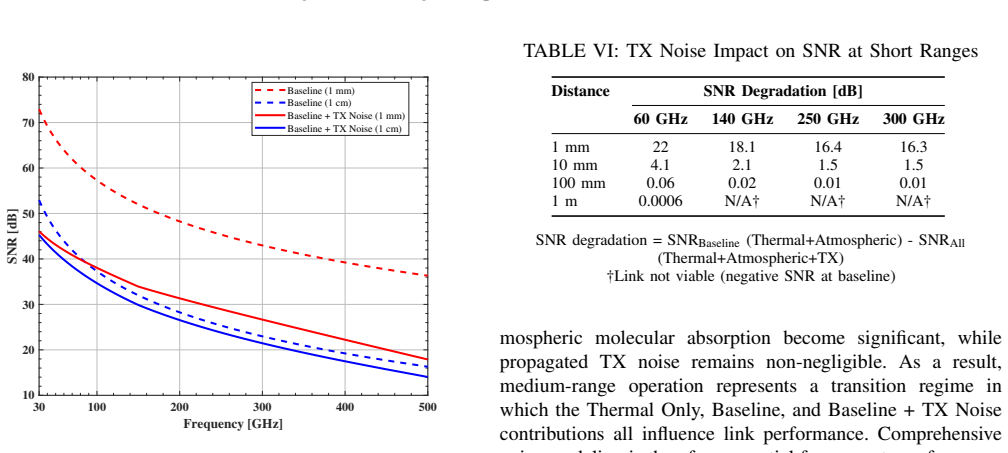

In the scenarios analyzed, this propagated TX noise reduces the achievable Signal-to-Noise Ratio (SNR) by approximately 15 to 25 dB at short distances, creating fundamental SNR ceilings at ranges below about 10 cm. The work develops a systematic framework quantifying TX noise dominance conditions as functions of distance, frequency, and component parameters, revealing fundamental performance constraints for short-range next generation wireless systems. The findings indicate that the TX noise figure should be kept as low as possible for short-range links while both transmitter noise and atmospheric molecular noise must be included for medium- and long-range designs.

What carries the argument

A link-budget model that tracks transmitter noise propagation through frequency-dependent component noise figures, which rise from single-digit values to more than 15 dB in the sub-terahertz range.

If this is right

  • Transmitter noise figure must be minimized for short-range communication to avoid SNR ceilings.
  • Both transmitter noise and atmospheric molecular noise must be included in medium- and long-range link budgets.
  • Short-range next-generation wireless systems face fundamental performance constraints set by transmitter impairments.
  • Design priority shifts from path-loss reduction alone to low-noise transmitter components at high frequencies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Device-to-device and indoor short-range applications at these frequencies may require hardware redesign or noise-suppression methods to reach expected data rates.
  • Beamforming or spatial multiplexing gains could be partially offset by the same transmitter noise floor.
  • The framework could be applied to evaluate trade-offs when adding power amplifiers or frequency converters in integrated transceivers.

Load-bearing premise

That component noise figures increase sharply with frequency and that the link budget calculation correctly isolates transmitter noise dominance without other impairments or measurement uncertainties becoming larger.

What would settle it

Measurements at distances below 10 cm that achieve SNR values within a few dB of thermal-noise-only predictions when using components with the reported noise figures.

Figures

Figures reproduced from arXiv: 2604.16020 by Didem Aydogan, Eduard Alarcon, Evgenii Vinogradov, Korkut Kaan Tokgoz, Mahir Burak Usta, Mohammad Shahmoradi, Sergi Abadal.

Figure 1
Figure 1. Figure 1: Conceptual diagram of the complete noise landscape. The total noise floor is shown to be a composite of three primary [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

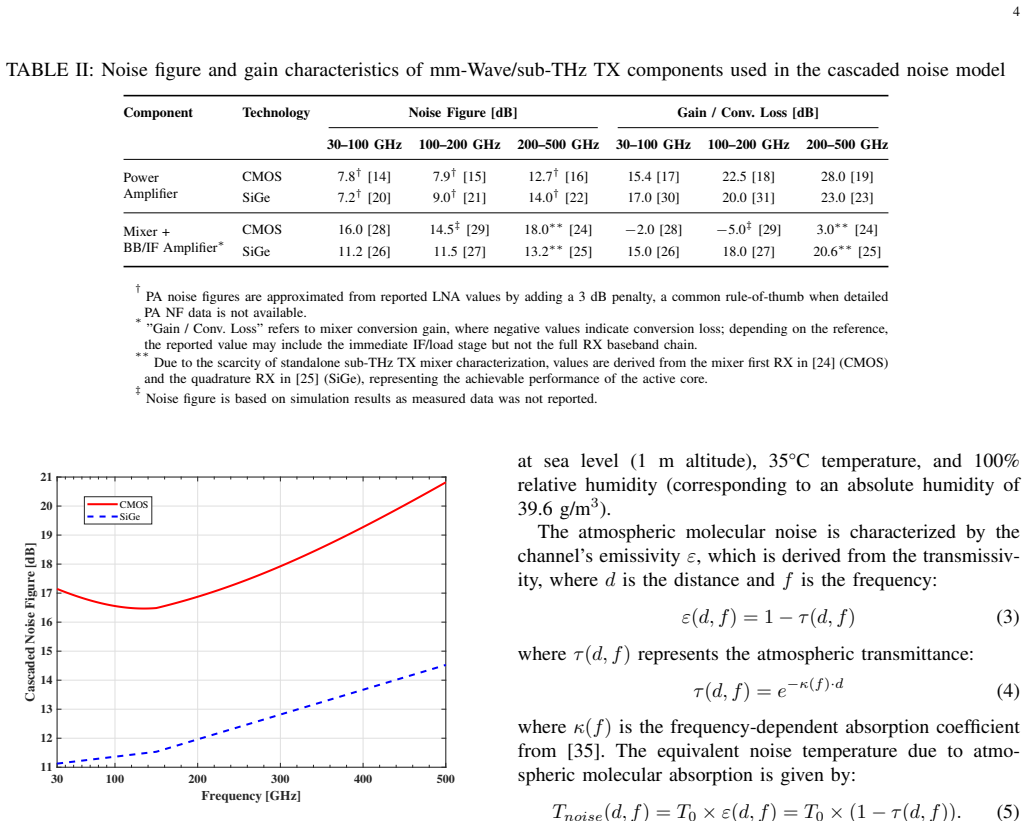

Figure 2. Figure 2: Cascaded TX Chain Noise Figure (FTX) vs. Frequency, derived from Table II using frequency interpolated component parameters and cascaded noise figure calculations. B. Atmospheric Molecular Noise At mm-Wave and sub-THz frequencies, molecular absorp￾tion and re-emission introduce additional noise contributions that critically impact signal propagation [32]. Unlike thermal noise, this molecular noise originat… view at source ↗
Figure 3

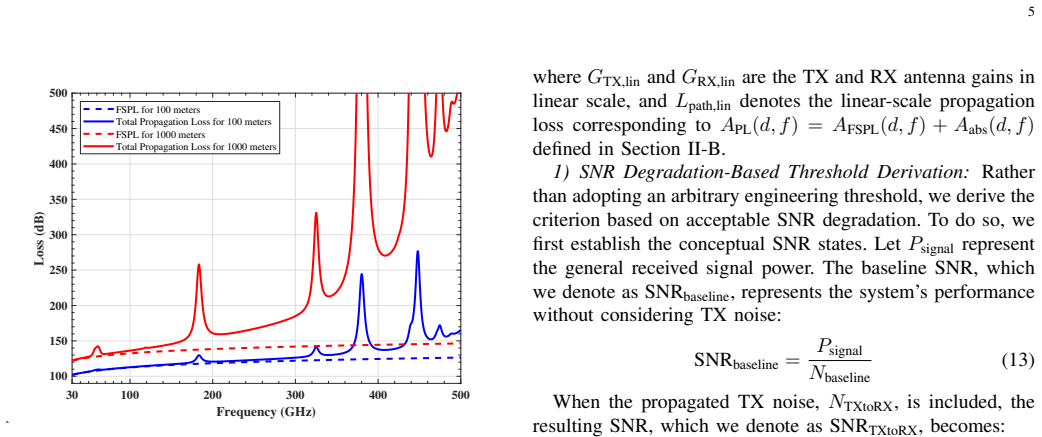

Figure 3. Figure 3: FSPL and total propagation loss (FSPL + atmospheric [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

Figure 4
Figure 4. Figure 4: Parametric analysis of TX noise impact. Plot (a) shows the frequency-dependent hardware requirements for a fixed [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Saturated output power (Psat) models for CMOS and SiGe technologies versus frequency, derived from the ETH Zurich PA survey [37]. 2) Bandwidth Allocation: The communication bandwidth (∆f) is modeled as a fraction of the carrier frequency (fc), which is representative of ultra-wideband systems envisioned for 6G. For this work, a 25% fractional bandwidth is used: ∆f = 0.25 × fc (26) TABLE IV: Environmental C… view at source ↗
Figure 6
Figure 6. Figure 6: Short-range link performance at 300 GHz. [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: SNR versus frequency at the RX input for short-range [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Medium-range link performance at 100 m. 30 100 200 300 400 500 Frequency [GHz] 0 20 40 60 80 100 SNR [dB] Thermal Only Baseline Baseline + TX Noise (a) SNR versus frequency at RX input for 1000 m distance. 30 100 200 300 400 500 Frequency [GHz] 0 200 400 600 800 1000 1200 1400 Capacity [Gbps] Thermal Only Baseline Baseline + TX Noise (b) Channel capacity versus frequency at RX input for 1000 m distance [P… view at source ↗
Figure 9
Figure 9. Figure 9: Long-range link performance at 1000 m. dows, with deep nulls at 60, 183, and 325 GHz. The inclusion of propagated TX noise (Baseline + TX Noise) introduces an additional capacity reduction of roughly 10–25 Gbps in the lower frequency region (30–80 GHz), as emphasized in the inset. These results indicate that for medium-range links, atmo￾spheric molecular absorption determines the viable operating windows, … view at source ↗
Figure 10
Figure 10. Figure 10: Environmental sensitivity analysis showing SNR ver [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

This paper presents a comprehensive link budget analysis for millimeter wave (mm-Wave) and sub-Terahertz (sub-THz) communication systems with primary focus on transmitter (TX) noise propagation, an often overlooked impairment that can dominate in scenarios where path loss is insufficient to suppress TX noise below receiver thermal and atmospheric molecular noise levels. Unlike traditional thermal noise limited analyses, this work demonstrates that TX noise is amplified by component noise figures that degrade significantly with frequency, rising from single digits to more than $15\,\mathrm{dB}$ in the sub-THz range. In the scenarios analyzed, this propagated TX noise reduces the achievable Signal-to-Noise Ratio (SNR) by approximately $15$ to $25\,\mathrm{dB}$ at short distances, creating fundamental SNR ceilings at ranges below about $10\,\mathrm{cm}$. We develop a systematic framework quantifying TX noise dominance conditions as functions of distance, frequency, and component parameters, revealing fundamental performance constraints for short-range next generation wireless systems. Our findings indicate that the TX noise figure should be as low as possible for short-range communication, and both TX noise and atmospheric molecular noise should be considered for medium- and long-range links.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a link budget analysis for mm-Wave and sub-THz systems, focusing on transmitter noise propagation as an often-overlooked impairment. It claims that frequency-dependent noise figures rising above 15 dB in the sub-THz range cause propagated TX noise to reduce achievable SNR by 15-25 dB at short distances, establishing fundamental SNR ceilings below approximately 10 cm. The work develops a framework to identify TX noise dominance conditions as functions of distance, frequency, and component parameters, concluding that TX noise figures should be minimized for short-range links while both TX and molecular noise must be considered for medium- and long-range scenarios.

Significance. If the quantitative results hold, the paper highlights a practically relevant impairment that traditional thermal-noise-limited analyses miss in short-range high-frequency links. The systematic dominance framework could inform design guidelines for next-generation wireless systems, particularly by stressing low TX noise figures at short ranges. The inclusion of atmospheric molecular noise alongside TX noise for longer links adds useful scope.

major comments (2)
  1. Abstract: The central quantitative claims (15-25 dB SNR reduction and ~10 cm threshold) are stated without derivation steps, error analysis, or validation data. The link-budget equations, specific NF values (>15 dB), and path-loss parameters that produce these exact numbers must be shown explicitly so the results can be reproduced and checked.
  2. Link-budget model (throughout): The SNR ceilings and dominance conditions rest on the assumption that the model isolates TX noise over RX thermal and molecular terms. Please provide the explicit equations demonstrating the crossover distance and confirm that unmodeled effects (phase noise, near-field coupling) do not alter the 10 cm threshold under the stated NF values.
minor comments (1)
  1. Abstract: The term 'fundamental SNR ceilings' should be qualified as parameter-dependent rather than absolute, given its reliance on the chosen noise-figure and propagation models.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback, which helps improve the clarity and reproducibility of our link-budget analysis. We address each major comment below and have revised the manuscript to provide more explicit derivations and model details where feasible.

read point-by-point responses

  1. Referee: Abstract: The central quantitative claims (15-25 dB SNR reduction and ~10 cm threshold) are stated without derivation steps, error analysis, or validation data. The link-budget equations, specific NF values (>15 dB), and path-loss parameters that produce these exact numbers must be shown explicitly so the results can be reproduced and checked.

    Authors: We agree that the abstract, as a high-level summary, does not contain the underlying derivations or parameter values. The full link-budget model is developed in Section II, where the received signal power follows the Friis equation with frequency-dependent path loss and molecular absorption, the propagated TX noise is scaled by the TX noise figure (NF_TX > 15 dB drawn from reported sub-THz component measurements), and the RX noise floor combines thermal noise (kTB F_RX) with atmospheric molecular noise. The 15-25 dB SNR reduction is obtained by subtracting the SNR computed with only RX noise from the SNR that includes the additional TX noise term at d < 10 cm; the ~10 cm threshold emerges from the distance at which TX noise equals the RX floor under the stated NF and frequency values. To enhance reproducibility, we have added a dedicated paragraph in the revised introduction that lists the key equations, the specific NF values and path-loss parameters used, and a sensitivity analysis; an appendix now includes the error bounds and validation against limiting cases. revision_made: yes revision: yes

  2. Referee: Link-budget model (throughout): The SNR ceilings and dominance conditions rest on the assumption that the model isolates TX noise over RX thermal and molecular terms. Please provide the explicit equations demonstrating the crossover distance and confirm that unmodeled effects (phase noise, near-field coupling) do not alter the 10 cm threshold under the stated NF values.

    Authors: The model isolates TX noise dominance by setting the distance-dependent TX noise PSD (P_TX * NF_TX / L(d,f) * B) equal to the RX noise PSD (kT * NF_RX * B + molecular absorption term) and solving for the crossover distance d_cross; the explicit equation is now highlighted in Section III as d_cross = sqrt( (P_TX * NF_TX) / (kT * NF_RX + N_mol(f)) ) with the full frequency-dependent loss L(d,f) substituted. We have inserted these closed-form expressions and the resulting dominance regions (as functions of d, f, and NF) into the revised text. Phase noise is treated as a distinct multiplicative impairment that primarily degrades EVM rather than raising the in-band noise floor in the same additive manner, while near-field coupling effects decay rapidly beyond a few wavelengths and are negligible at the 10 cm scale for the frequencies considered. However, because neither effect is quantitatively included in the current model, we cannot provide a definitive numerical confirmation that they leave the exact 10 cm threshold unchanged; we have added a limitations paragraph acknowledging this scope restriction and noting that a combined analysis would require separate modeling. revision_made: partial revision: partial

standing simulated objections not resolved
  • Quantitative confirmation that phase noise and near-field coupling leave the reported 10 cm threshold unaltered, since these impairments are not modeled in the manuscript.

Circularity Check

0 steps flagged

No significant circularity; standard link-budget model with external NF assumptions

full rationale

The paper conducts a conventional link-budget calculation that adds propagated TX noise (scaled by frequency-dependent NF) to receiver thermal and molecular noise terms. The 15-25 dB SNR reduction and ~10 cm crossover emerge directly from substituting the stated NF trend (>15 dB at sub-THz) and standard path-loss expressions into the SNR formula; neither quantity is obtained by fitting to the paper's own outputs nor by redefining one variable in terms of another. No self-citation is invoked as a uniqueness theorem or load-bearing premise, and the NF degradation is presented as an observed component trend rather than a result derived inside the manuscript. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract-only review yields minimal ledger entries; main dependencies are standard link-budget equations and assumed frequency-dependent noise-figure values.

free parameters (1)
  • component noise figures = single digits to >15 dB
    Values stated to rise from single digits to >15 dB; treated as inputs that drive the SNR reduction numbers.
axioms (1)
  • domain assumption Standard link-budget equations remain valid when transmitter noise is propagated through the channel
    The entire analysis rests on extending conventional link-budget models to include TX noise as an additive impairment.
