Late Breaking Results: Hardware-Aware Compilation Reshapes Trainability in Variational Quantum Circuits

Muhammad Kashif , Muhammad Shafique This is my paper

Pith reviewed 2026-05-10 11:40 UTC · model grok-4.3

classification 🪐 quant-ph
keywords variational quantum circuitstranspilationtrainabilitygradient variancehardware-aware compilationansatz familiesoptimization landscapeparameter-shift rule
0
0 comments X

The pith

Transpilation reshapes gradient statistics and thus trainability in variational quantum circuits in an architecture-dependent way.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that hardware-aware compilation, or transpilation, changes the gradient statistics of variational quantum circuits when they are mapped to real device constraints on qubit connectivity and native gates. Analysis at the logical level alone therefore misses how the optimization landscape is altered. Using parameter-shift differentiation to compute gradient variance, the authors compare logical and transpiled versions of EfficientSU2, TTN, and RealAmplitudes ansatzes. Shallow densely entangled circuits exhibit the largest shifts, tensor-network structures are more stable, linear ones are mixed, and deep circuits of any family show little change. The result implies that trainability assessments and circuit co-design must incorporate compilation effects rather than treating them as a separate post-processing step.

Core claim

Transpilation acts as an implicit structural transformation of the optimization landscape in VQCs. When logical circuits are compiled to satisfy hardware connectivity and gate-set constraints, the resulting gradient variances differ from those of the original circuits, with the magnitude of the difference depending on ansatz family and circuit depth.

What carries the argument

Comparison of gradient variance (via parameter-shift differentiation) between logically designed and hardware-transpiled circuits across EfficientSU2, TTN, and RealAmplitudes ansatz families.

If this is right

  • Trainability analysis of VQCs must be performed after compilation rather than on the logical circuit alone.
  • Shallow densely entangling ansatzes require the most careful compilation-aware co-design to preserve usable gradients.
  • Tensor-network-structured ansatzes remain comparatively robust to transpilation across depths.
  • Deep circuits of any ansatz family exhibit minimal sensitivity, so compilation effects can be deprioritized for them.
  • Co-design of ansatzes together with compilation passes becomes a necessary step for reliable VQC performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Hardware-native ansatz constructions that minimize post-compilation structural distortion could be developed to improve baseline trainability.
  • The findings suggest that error-mitigation or pulse-level optimization techniques might be combined with transpilation to further stabilize gradients.
  • For scaling studies on larger devices, compilation cost should be treated as a first-class variable in trainability budgets rather than an afterthought.

Load-bearing premise

Observed differences in gradient statistics are produced by the structural changes required to satisfy hardware connectivity and native gate constraints rather than by simulation artifacts or ansatz implementation details.

What would settle it

Recomputing gradient variances on actual quantum hardware for identical logical and transpiled circuit instances and finding no statistically significant difference between the two would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.16527 by Muhammad Kashif, Muhammad Shafique.

Figure 1
Figure 1. Figure 1: Logical-to-physical trainability evaluation pipeline. For each ansatz, the logical [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Examples of Ansaetze used in this paper hardware-agnostic designs without connectivity constraints. To model realistic execution, circuits are transpiled using Qiskit’s transpiler with IBMFakeBrooklynV2 as the target hardware backend. We use opt_level=3 for the transpiler because it enables a full range of optimization techniques [1]. Transpilation includes SWAP-based routing, native gate decomposition, an… view at source ↗
Figure 3

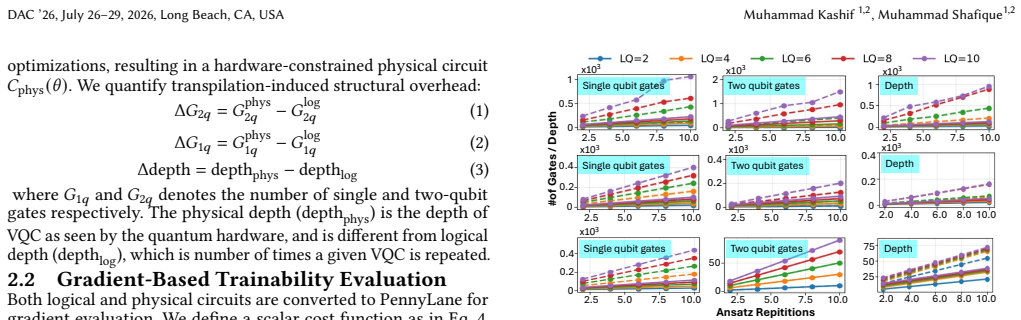

Figure 3. Figure 3: Logical (solid) vs physical (dashed) circuit growth under optimized transpilation [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Trainability shift after hardware-aware compilation. Heatmaps report [PITH_FULL_IMAGE:figures/full_fig_p002_4.png] view at source ↗
read the original abstract

Variational quantum circuits (VQCs) are typically evaluated at the logical design level when analyzing trainability. However, execution on real quantum devices requires hardware-aware compilation (transpilation) to satisfy qubit connectivity and native gate-set constraints. In this paper, we examine how transpilation can alter the gradient statistics. Using parameter-shift differentiation and gradient variance estimation, we compare logical and transpiled circuits across three representative ansatz families: EfficientSU2 (dense entanglement), TTN (tree tensor network), and RealAmplitudes (linear entanglement). We observe architecture-dependent trainability shifts where densely entangling circuits exhibit pronounced gradient reshaping in shallow regimes, structured tensor-network circuits remain comparatively robust, and linear architectures show mixed behavior. Deep circuits across all families display minimal sensitivity to hardware-aware compilation. These findings demonstrate that transpilation acts as an implicit structural transformation of the optimization landscape, motivating compilation-aware analysis and co-design for VQCs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that hardware-aware compilation (transpilation) acts as an implicit structural transformation of the optimization landscape in variational quantum circuits (VQCs). Using parameter-shift differentiation and gradient variance estimation, it compares logical versus transpiled versions of three ansatz families—EfficientSU2 (dense entanglement), TTN (tree tensor network), and RealAmplitudes (linear entanglement)—and reports architecture-dependent shifts: pronounced gradient reshaping in shallow dense circuits, comparative robustness in structured tensor networks, mixed behavior in linear architectures, and minimal sensitivity in deep circuits across families. The work concludes that these findings motivate compilation-aware analysis and co-design for VQCs.

Significance. If the reported gradient-statistic shifts can be isolated from known confounders, the result would be significant for variational quantum algorithms because it demonstrates that standard transpilation steps (satisfying connectivity and native-gate constraints) can materially alter trainability even before execution. The multi-ansatz comparison across shallow and deep regimes supplies concrete empirical motivation for moving beyond purely logical-level barren-plateau analyses. The observation that deep circuits are largely insensitive is consistent with existing depth-scaling results and therefore strengthens rather than contradicts the literature.

major comments (2)
  1. [Results / Experimental comparison] The central attribution of gradient-variance changes to 'implicit structural transformation' induced by connectivity and gate-set constraints is not isolated from the known depth-inflation effect of SWAP insertion. No control is described that matches total depth or entangling-gate count between logical and transpiled circuits; the architecture-dependent pattern (dense EfficientSU2 most affected in shallow regimes) is exactly the signature expected from ansatz-specific routing overhead alone.
  2. [Abstract and Methods] The abstract and methods description supply no details on simulation parameters (simulator, shot noise model, or exact circuit depths), number of random parameter samples used for variance estimation, number of trials, or error-bar construction. Without these, the statistical support for the claimed architecture-dependent shifts cannot be evaluated.
minor comments (1)
  1. [Introduction] The manuscript would benefit from an explicit statement of the barren-plateau scaling literature it builds upon, particularly the exponential decay of gradient variance with depth, to clarify how the new observations extend rather than duplicate prior results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript. The comments highlight important aspects of experimental design and reproducibility that we will address in the revision. Below we respond point by point to the major comments.

read point-by-point responses

  1. Referee: [Results / Experimental comparison] The central attribution of gradient-variance changes to 'implicit structural transformation' induced by connectivity and gate-set constraints is not isolated from the known depth-inflation effect of SWAP insertion. No control is described that matches total depth or entangling-gate count between logical and transpiled circuits; the architecture-dependent pattern (dense EfficientSU2 most affected in shallow regimes) is exactly the signature expected from ansatz-specific routing overhead alone.

    Authors: We agree that depth inflation from SWAP insertion is a contributing factor and that our study does not include explicit depth- or gate-count-matched controls. Our core claim is that hardware-aware compilation, as performed by standard transpilers to satisfy real device constraints, induces an implicit structural change whose net effect on gradient statistics is architecture-dependent. This includes the routing overhead, which varies systematically with the ansatz's entanglement structure. The observed pattern (strongest reshaping for dense EfficientSU2 in shallow regimes, greater robustness for TTN) is therefore expected and is precisely the practical phenomenon we wish to document. We will revise the Results and Discussion sections to explicitly acknowledge the role of depth inflation, clarify that the reported shifts reflect the full compilation pipeline rather than an isolated connectivity effect, and note that controlled experiments separating depth from other factors remain valuable future work. We do not claim to have isolated every mechanism, only to have shown that standard transpilation measurably alters trainability in an ansatz-dependent manner. revision: partial

  2. Referee: [Abstract and Methods] The abstract and methods description supply no details on simulation parameters (simulator, shot noise model, or exact circuit depths), number of random parameter samples used for variance estimation, number of trials, or error-bar construction. Without these, the statistical support for the claimed architecture-dependent shifts cannot be evaluated.

    Authors: We apologize for the lack of these implementation details in the submitted version. The revised manuscript will expand the Methods section to report the simulator employed, the shot-noise model (or its absence), the precise circuit depths used for each ansatz family and regime, the number of random parameter samples drawn for each variance estimate, the number of independent trials performed, and the procedure used to construct error bars. The abstract will be updated to indicate that these reproducibility details appear in the main text. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical gradient comparisons are independent of fitted inputs or self-referential definitions.

full rationale

The paper reports direct numerical comparisons of gradient variance (via parameter-shift rule) between logical circuits and their transpiled counterparts on three ansatz families. No derivation chain is presented that reduces a claimed prediction to a quantity defined by the same fitted parameters, self-citation load-bearing premise, or ansatz smuggled through prior work. The observed architecture-dependent shifts are presented as simulation outcomes, not as quantities forced by construction from the inputs. The central claim therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on empirical observations comparing logical and transpiled circuits for three specific ansatz families using standard gradient estimation techniques. No free parameters, axioms, or invented entities are introduced or required in the abstract.
