arxiv: 2604.16629 · v1 · submitted 2026-04-17 · 💻 cs.CV · cs.GR

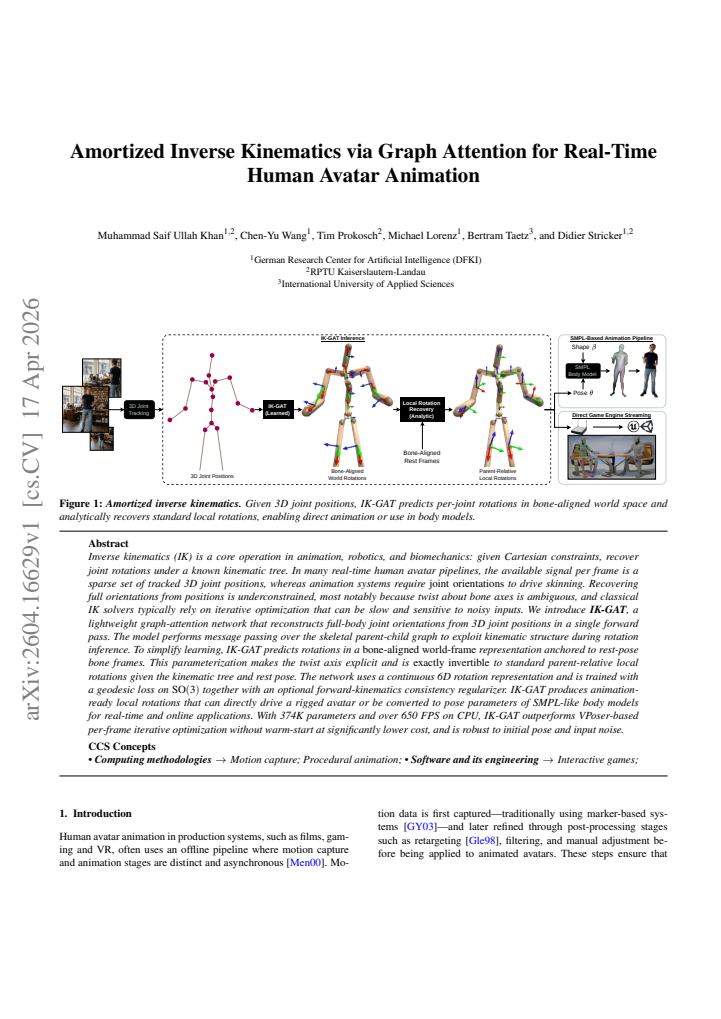

Amortized Inverse Kinematics via Graph Attention for Real-Time Human Avatar Animation

Muhammad Saif Ullah Khan , Chen-Yu Wang , Tim Prokosch , Michael Lorenz , Bertram Taetz , Didier Stricker This is my paper

Pith reviewed 2026-05-10 08:50 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords jointik-gatrotationsanimationavatarkinematicorientationspose
0
0 comments X

The pith

A lightweight graph attention model amortizes inverse kinematics to produce animation-ready rotations from sparse joint positions at over 650 FPS on CPU.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Animation systems need joint rotations to move a 3D character, but many tracking systems only provide the 3D positions of a few joints. Recovering the missing rotation angles is underconstrained because bones can twist around their long axis without changing the end position. Classical solvers fix this by running iterative optimization that is slow and can fail on noisy data. The new method treats the skeleton as a graph where joints are nodes and bones are edges. A graph attention network passes messages along these connections to infer the missing rotations. It predicts rotations in a special bone-aligned frame that makes the twist direction explicit and easy to convert back to standard local rotations. The network is small, uses a 6D rotation representation, and is trained with a loss that measures angular error on the sphere. An optional term checks that the predicted rotations produce the original positions when run through forward kinematics.

Core claim

With 374K parameters and over 650 FPS on CPU, IK-GAT outperforms VPoser-based per-frame iterative optimization without warm-start at significantly lower cost, and is robust to initial pose and input noise.

Load-bearing premise

The bone-aligned world-frame rotation representation plus the known kinematic tree and rest pose are sufficient to resolve orientation ambiguities (especially twist) from position inputs alone.

Figures

Figures reproduced from arXiv: 2604.16629 by Bertram Taetz, Chen-Yu Wang, Didier Stricker, Michael Lorenz, Muhammad Saif Ullah Khan, Tim Prokosch.

Figure 1
Figure 1. Figure 1: Amortized inverse kinematics. Given 3D joint positions, IK-GAT predicts per-joint rotations in bone-aligned world space and analytically recovers standard local rotations, enabling direct animation or use in body models. Abstract Inverse kinematics (IK) is a core operation in animation, robotics, and biomechanics: given Cartesian constraints, recover joint rotations under a known kinematic tree. In many re… view at source ↗
Figure 2
Figure 2. Figure 2: Twist ambiguity problem. Identical joint positions (blue dots) are produced by any rotation around the bone axis (red). This makes the inverse problem ill-posed without strong anatomical pri￾ors. Neural IK methods attempt to learn these priors from data. 3.2.1. Rest-pose bone frames (precomputed once per rig) Let u be a fixed unit vector denoting the global up direction. For each joint i in a given rig wit… view at source ↗
Figure 3
Figure 3. Figure 3: IK-GAT architecture. The model accepts 3D joint positions as input, which are projected and augmented with learnable posi￾tional embeddings. The core encoder leverages a Kinematic Prior, defined by the skeletal parent-child relationships, to structure the Graph Attention (GAT) layers. The network employs a dual-residual design, featuring both local skip connections within GAT blocks and a global shortcut f… view at source ↗
Figure 4
Figure 4. Figure 4: Per-joint improvement over the strongest dense base￾line. Gains concentrate on distal and twist-sensitive joints such as ankles, feet, elbows, neck, and head, showing where kinematic mes￾sage passing and distal local refinement matter most. Forearms re￾main hard because they have minimal positional evidence for twist [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Ablation of graph structure and attention. Bidirectional kinematic message passing with attention is critical. Fully con￾nected graphs dilute the anatomical inductive bias, one-way graphs block corrective feedback along the chain, and non-attentive graph propagation cannot adapt neighbor importance to the current pose. Effect of IK-GAT components. Tab 3 shows that positional em￾beddings are indispensable: … view at source ↗
Figure 5
Figure 5. Figure 5: Iteration budget versus accuracy on AMASS. Optimiza￾tion baselines need tens to hundreds of iterations to approach the accuracy reached by a single forward pass of IK-GAT. Runtime. Single-frame inference reaches 693 FPS on CPU and 448 FPS on GPU (RTX 4060), while GPU provides up to 3.7× higher throughput under batching (Appendix A). 4.2.2. Ablation study Effect of bone-aligned world rotation space. Trainin… view at source ↗
Figure 9
Figure 9. Figure 9: Real-time deployment setting. A tracked human motion is first converted into a dense stream of 3D joints by an upstream markerless multi-view system, then mapped by IK-GAT to per-joint rotations in bone-aligned world space, analytically recovered to UE5-Mannequin local rotations, and rendered directly in Unreal Engine. This benchmark evaluates the complete animation-facing inverse-kinematics pipeline rathe… view at source ↗
Figure 7
Figure 7. Figure 7: Effect of FK-consistency weight α. A small FK regular￾ization improves both local-rotation accuracy and downstream ge￾ometry by tying the predicted rotations back to the observed joints. Larger weights over-constrain training and make the optimization trade-off increasingly unstable, so we use α = 0.1 throughout. regime. Scaling from Tiny to Base (default) yields the expected im￾provement, but larger model… view at source ↗
Figure 8
Figure 8. Figure 8: Model scaling. Performance improves rapidly from Tiny to Base, then largely saturates. This indicates that the main gains come from the representation and the anatomical inductive bias rather than from scaling capacity alone [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: UE-IK acquisition process. Real motion is captured with Xsens IMUs, streamed to UE, and exported as paired joint po￾sitions and rotations. Marketplace animations are exported through the same pipeline, giving unified training data for the benchmark [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
read the original abstract

Inverse kinematics (IK) is a core operation in animation, robotics, and biomechanics: given Cartesian constraints, recover joint rotations under a known kinematic tree. In many real-time human avatar pipelines, the available signal per frame is a sparse set of tracked 3D joint positions, whereas animation systems require joint orientations to drive skinning. Recovering full orientations from positions is underconstrained, most notably because twist about bone axes is ambiguous, and classical IK solvers typically rely on iterative optimization that can be slow and sensitive to noisy inputs. We introduce IK-GAT, a lightweight graph-attention network that reconstructs full-body joint orientations from 3D joint positions in a single forward pass. The model performs message passing over the skeletal parent-child graph to exploit kinematic structure during rotation inference. To simplify learning, IK-GAT predicts rotations in a bone-aligned world-frame representation anchored to rest-pose bone frames. This parameterization makes the twist axis explicit and is exactly invertible to standard parent-relative local rotations given the kinematic tree and rest pose. The network uses a continuous 6D rotation representation and is trained with a geodesic loss on SO(3) together with an optional forward-kinematics consistency regularizer. IK-GAT produces animation-ready local rotations that can directly drive a rigged avatar or be converted to pose parameters of SMPL-like body models for real-time and online applications. With 374K parameters and over 650 FPS on CPU, IK-GAT outperforms VPoser-based per-frame iterative optimization without warm-start at significantly lower cost, and is robust to initial pose and input noise

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces IK-GAT, a lightweight graph-attention network for amortized inverse kinematics that reconstructs full-body joint orientations from sparse 3D joint positions in a single forward pass. It uses a bone-aligned world-frame rotation representation (invertible to local rotations given the kinematic tree and rest pose), a continuous 6D rotation encoding, geodesic loss on SO(3), and an optional forward-kinematics consistency regularizer. The model has 374K parameters, runs at >650 FPS on CPU, and is claimed to outperform VPoser-based per-frame iterative optimization without warm-start while being robust to initial pose and input noise.

Significance. If the speed, accuracy, and robustness claims hold, the work provides a practical amortized alternative to iterative IK solvers for real-time avatar animation pipelines. The graph-attention exploitation of the skeletal tree and the explicit twist-axis parameterization are clear strengths that could extend to other kinematic inference tasks in animation and robotics. The low parameter count and CPU speed are particularly enabling for online applications.

major comments (1)
  1. [Training objective and loss formulation] The bone-aligned world-frame output makes twist explicit, but joint positions are invariant to rotation about each bone axis. The optional forward-kinematics consistency regularizer (described in the training section) only penalizes mismatches in reconstructed joint positions and therefore supplies zero gradient on the twist DOFs. All twist inference thus flows exclusively from the supervised geodesic loss on ground-truth orientations, making the robustness-to-noise and generalization claims rest on the assumption that the training distribution adequately covers relevant twist variations—an assumption that requires explicit validation via targeted ablations or twist-specific test sets.
minor comments (2)
  1. [Abstract] The abstract states performance and robustness claims but provides no quantitative metrics, dataset names, or ablation details; these should be summarized with key numbers even in the abstract for clarity.
  2. [Method] The exact conversion procedure from the predicted bone-aligned 6D representation back to standard parent-relative local rotations (given rest pose) could be stated as a short algorithm or set of equations to aid reproducibility.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are stated in the abstract; the approach is data-driven.

pith-pipeline@v0.9.0 · 5607 in / 1000 out tokens · 62846 ms · 2026-05-10T08:50:31.193447+00:00 · methodology
