arxiv: 2604.17500 · v1 · submitted 2026-04-19 · 💻 cs.CV

Edit Fidelity Field: Semantics-Aware Region Isolation for Training-Free Scene Text Editing

Guandong Li , Mengxia Ye This is my paper

Pith reviewed 2026-05-10 06:21 UTC · model grok-4.3

classification 💻 cs.CV
keywords scene text editingedit spilloverdiffusion modelstraining-free editingregion isolationOCR segmentationimage editingfidelity control
0
0 comments X

The pith

A four-zone continuous field isolates target text edits in scenes and cuts spillover from 94% to 25%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that current diffusion-based scene text editing methods change non-target text in 94% of cases, even when only one region is meant to be edited. It introduces the Edit Fidelity Field, a training-free post-processing step that builds a per-pixel fidelity map from OCR-detected text regions. The map creates four zones: a fully editable core, a smooth transition band, a protected zone that locks other text, and a strictly preserved background. When applied to any existing STE model, the field keeps edits inside the intended area without retraining or changing the base model. This yields a 69-point drop in spillover rate and a 91.4 dB gain in preservation of untouched text.

Core claim

The Edit Fidelity Field is a semantics-aware continuous field constructed from OCR-detected text regions that divides the image into an Edit Core (full edit strength), Transition Zone (smooth decay), Protected Zone (non-target text locked at zero edit strength), and Background (strictly preserved). Applied as a model-agnostic post-processing module to any diffusion-based scene text editing pipeline, it reduces the spillover rate from 94% to 25% while raising non-target region PSNR by 91.4 dB and introduces per-region spillover quantification as a finer evaluation metric.

What carries the argument

Edit Fidelity Field (EFF), a per-pixel continuous editing fidelity map that assigns decreasing edit strength across four semantic zones derived from OCR text boundaries.

If this is right

  • Any diffusion STE model can use EFF as post-processing without retraining to protect neighboring text.
  • Per-region spillover measurement reveals leakage at individual non-target text instances rather than a single global score.
  • The protected zone explicitly prevents diffusion steps from altering text outside the chosen region.
  • The same four-zone construction works across different base diffusion models and scene categories.
  • The continuous decay in the transition zone avoids hard mask artifacts at zone edges.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could extend to other semantic editing tasks such as object replacement or style transfer where only one region should change.
  • If OCR errors occur, the transition zone width could be made adaptive to scene density rather than fixed.
  • Directly embedding the fidelity field inside the diffusion denoising loop instead of post-processing might further reduce any residual leakage.
  • The four-zone idea suggests that future STE benchmarks should report both target fidelity and per-instance non-target preservation as standard metrics.

Load-bearing premise

OCR-detected text regions supply accurate boundaries for the four zones and applying the field leaves the intended edit quality inside the target region unchanged.

What would settle it

Run the method on a set of scenes where OCR produces incomplete or shifted text boundaries and measure whether spillover returns or target edit quality drops compared to ground-truth manual masks.

Figures

Figures reproduced from arXiv: 2604.17500 by Guandong Li, Mengxia Ye.

Figure 1
Figure 1. Figure 1: Edit spillover in scene text editing. Given a highway gantry with the edit instruction “change the main sign Exit to Entrance”, the Baseline (Qwen-Image-Edit) successfully modifies the target, yet entirely erases the secondary “60 / Exit” sub-sign at the bottom-right (100% per-region spillover). Our Edit Fidelity Field (EFF) derives protected zones from all OCR-detected non-target regions (dark areas in th… view at source ↗

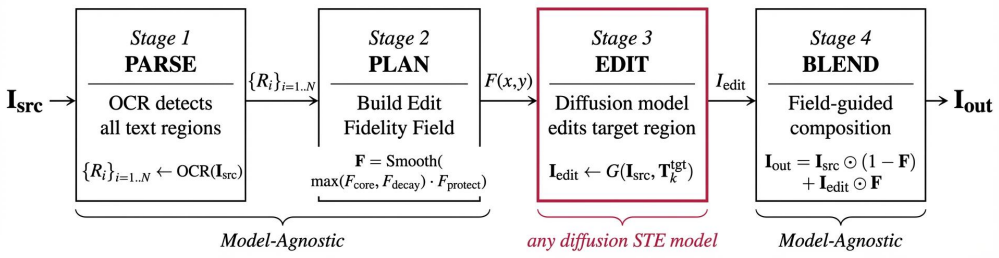

Figure 2
Figure 2. Figure 2: Pipeline overview. Given a source image and editing instruction, our method operates in four stages: (1) PARSE: OCR detects all text regions; (2) PLAN: Build the Edit Fidelity Field F with protected zones for non-target text; (3) EDIT: Run the diffusion model freely to produce Iedit; (4) BLEND: Apply field-guided blending to produce the final output. Stages 1–2 and 4 are model-agnostic. 0 100 200 300 400 5… view at source ↗
Figure 3
Figure 3. Figure 3: EFF visualization. Left: The field on a syn￾thetic layout. Red box = Edit Core (w=1); blue dashed boxes = Protected Zones (w=0, OCR-detected non-target text). Right: Cross-section profile showing the continu￾ous decay from Edit Core, with Protected Zones enforcing w=0 regardless of proximity. Distance Decay. Exponential decay with distance d from the core: Fdecay(x, y) = exp  − d(x, y) σ · D  (4) where D… view at source ↗
Figure 4
Figure 4. Figure 4: Main results. EFF dramatically reduces spillover while maintaining comparable target accuracy [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

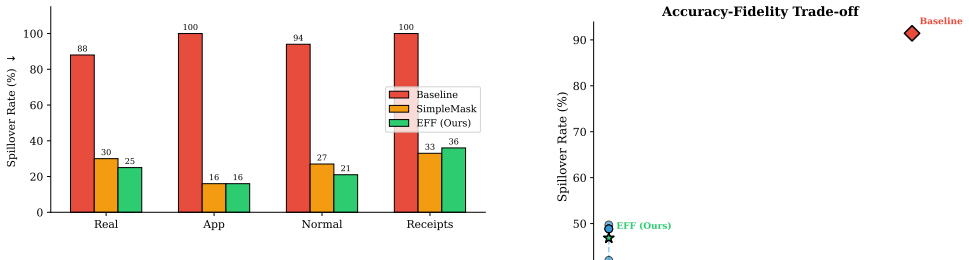

Figure 5
Figure 5. Figure 5: Per-category spillover comparison. Base￾line exhibits near-100% spillover universally. EFF reduces it to 16–36% [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

Scene text editing (STE) has achieved remarkable progress in accurately rendering target text through diffusion-based methods. However, we identify a critical yet overlooked problem: edit spillover -- when editing a target text region, existing methods inadvertently modify non-target regions, particularly neighboring text. Through systematic evaluation on 50 real-world scenes across four categories, we reveal that state-of-the-art diffusion editing models exhibit a spillover rate of 94%, meaning nearly all non-target text regions are altered during editing. To address this, we propose the Edit Fidelity Field (EFF), a semantics-aware continuous field that controls per-pixel editing fidelity. Unlike binary masks, EFF leverages OCR-detected text regions to construct a four-zone field: Edit Core (fully editable), Transition Zone (smooth decay), Protected Zone (non-target text, explicitly locked), and Background (strictly preserved). EFF operates as a training-free, model-agnostic post-processing module applicable to any diffusion-based STE method. We further propose per-region spillover quantification, a novel evaluation protocol that measures edit leakage at each non-target text region individually. Experiments demonstrate that EFF reduces spillover rate from 94% to 25% while improving non-target region preservation by +91.4 dB PSNR.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes the Edit Fidelity Field (EFF), a semantics-aware continuous field for training-free scene text editing in diffusion models. It partitions images into four zones (Edit Core, Transition Zone, Protected Zone, Background) using OCR-detected text regions to control per-pixel editing fidelity and mitigate spillover into non-target text. On 50 real-world scenes, it claims to reduce spillover rate from 94% to 25% and boost non-target PSNR by +91.4 dB, while introducing a per-region spillover quantification protocol. EFF is presented as a model-agnostic post-processing module.

Significance. If validated, the training-free and model-agnostic design of EFF could provide a practical enhancement for existing diffusion-based scene text editing pipelines by protecting non-target regions. The introduction of a per-region spillover metric is a useful addition to evaluation practices in this area.

major comments (3)
  1. [Experiments] The central quantitative claims (spillover reduction from 94% to 25% and +91.4 dB non-target PSNR) rest on the assumption that OCR provides accurate boundaries for the four-zone field construction. The experiments section reports only aggregate results over 50 scenes with no per-scene OCR confidence breakdown, failure-case analysis for stylized/occluded/curved text, or ablation on zone construction under imperfect detection.
  2. [Method] The method section describes EFF as modulating editing fidelity via the continuous field but provides no explicit functional form, pseudocode, or parameter details for the Transition Zone decay or how the field is injected into the diffusion sampling process, which is load-bearing for reproducibility and for confirming the claims are not circular with the evaluation protocol.
  3. [Experiments] Table reporting the main results (presumably Table 1 or equivalent) shows large gains but includes no error bars, statistical significance tests, or breakdown by the four scene categories mentioned, making it difficult to assess whether the improvements are robust or driven by easy cases where OCR succeeds.
minor comments (2)
  1. [Abstract] The abstract states the spillover rate drops to 25% but does not define the exact threshold or metric used for 'spillover' in the per-region protocol; add a precise definition in the evaluation section.
  2. [Method] Figure illustrating the four-zone field would benefit from an accompanying equation or pseudocode showing how the continuous values are computed from the OCR masks.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We appreciate the identification of areas where additional clarity, rigor, and analysis would strengthen the manuscript. We address each major comment below and outline specific revisions.

read point-by-point responses

  1. Referee: [Experiments] The central quantitative claims (spillover reduction from 94% to 25% and +91.4 dB non-target PSNR) rest on the assumption that OCR provides accurate boundaries for the four-zone field construction. The experiments section reports only aggregate results over 50 scenes with no per-scene OCR confidence breakdown, failure-case analysis for stylized/occluded/curved text, or ablation on zone construction under imperfect detection.

    Authors: We agree that reliance on OCR boundaries is a key assumption and that aggregate results alone limit insight into robustness. The 50 scenes were chosen to span the four categories with real-world variability, but per-scene OCR details and failure analysis were omitted. In revision, we will add a dedicated analysis subsection reporting average OCR confidence per category, qualitative failure cases (stylized, occluded, curved text), and a quantitative ablation that perturbs OCR boundaries at varying noise levels to measure resulting changes in spillover rate and PSNR. This will directly address concerns about imperfect detection. revision: yes

  2. Referee: [Method] The method section describes EFF as modulating editing fidelity via the continuous field but provides no explicit functional form, pseudocode, or parameter details for the Transition Zone decay or how the field is injected into the diffusion sampling process, which is load-bearing for reproducibility and for confirming the claims are not circular with the evaluation protocol.

    Authors: We acknowledge that the original description was primarily conceptual and lacked the precise implementation details needed for full reproducibility. The Transition Zone uses a distance-based decay (linear interpolation between Edit Core and Protected Zone boundaries) with a fixed decay rate parameter, and the field is injected by scaling the predicted noise residual at each diffusion step according to the per-pixel fidelity value. In the revised manuscript, we will include the explicit mathematical formulation, pseudocode for field construction and sampling injection, and all hyperparameter values. This addition will also clarify that the field construction is independent of the per-region spillover metric used in evaluation. revision: yes

  3. Referee: [Experiments] Table reporting the main results (presumably Table 1 or equivalent) shows large gains but includes no error bars, statistical significance tests, or breakdown by the four scene categories mentioned, making it difficult to assess whether the improvements are robust or driven by easy cases where OCR succeeds.

    Authors: We recognize that aggregate reporting without variance measures or category breakdowns makes it harder to evaluate robustness. The original table summarized results across all 50 scenes. In the revision, we will augment the table with per-scene standard deviations (error bars), results of paired statistical significance tests (e.g., Wilcoxon signed-rank), and a full breakdown of spillover rate and PSNR gains stratified by the four scene categories. These additions will demonstrate that gains are consistent rather than driven solely by easy cases. revision: yes

Circularity Check

0 steps flagged

No circularity: EFF is an independent post-processing construction evaluated empirically

full rationale

The paper defines EFF directly from OCR-detected regions into four explicit zones and applies it as a training-free module. The reported metrics (spillover rate drop from 94% to 25%, +91.4 dB PSNR) are measured outcomes on 50 scenes rather than quantities forced by construction, fitted parameters renamed as predictions, or self-citation chains. No equations reduce the central claim to its inputs by definition, and no load-bearing uniqueness theorem or ansatz is imported from prior author work. The method remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The approach rests on the domain assumption that OCR provides reliable text region detection for zone construction and that the continuous field can be applied post-hoc without side effects on edit quality.

axioms (1)
  • domain assumption OCR-detected text regions accurately delineate target and non-target text for zone assignment
    Central to building the Edit Core, Transition Zone, Protected Zone, and Background.
invented entities (1)
  • Edit Fidelity Field (EFF) no independent evidence
    purpose: Semantics-aware continuous field for per-pixel editing control
    New construct introduced to replace binary masks
