arxiv: 2604.17539 · v1 · submitted 2026-04-19 · ❄️ cond-mat.soft

Hydrodynamic theory of chemically active emulsions

Efe Ilker , Kathrin Laxhuber , Jean-Francois Joanny , Frank J\"ulicher This is my paper

Pith reviewed 2026-05-10 05:15 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords chemically active emulsionshydrodynamic theoryphase separationmicrophasesactive filamentsentropy productionActive Model B+ternary mixtures
0
0 comments X

The pith

Chemically active emulsions form microphases, bubbly mixtures, and dynamic filaments when fuel reactions break equilibrium symmetry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a thermodynamically consistent hydrodynamic description for ternary mixtures in which active chemical reactions are sustained by fixing the chemical potentials of fuel molecules. This produces an effective long-wavelength dynamics for the conserved concentration fields that includes new gradient terms breaking time-reversal symmetry, plus higher-order corrections needed for physical behavior. Simulations of an active Flory-Huggins model show that a negative effective interfacial coefficient triggers microphase separation rather than bulk demixing. Adding fluctuations yields bubbly phase separation, while stronger driving produces a dynamic active filament phase accompanied by a kink in the steady-state entropy production rate.

Core claim

In a ternary solution with active chemical reactions, the long-scale conserved-field dynamics is governed by an effective hydrodynamic theory containing active gradient terms akin to Active Model B+ together with higher-order corrections required for consistency. When the effective interfacial energy coefficient becomes negative, the system forms microphases. Inclusion of noise produces bubbly phase separation, and a dynamic active filament phase appears at higher chemical driving; the total entropy production rate increases with the driving chemical potential and exhibits a kink-like singularity at the filament transition.

What carries the argument

The effective conserved-order-parameter dynamics obtained by chemo-stating fuel molecules, which incorporates active gradient terms plus higher-order gradient corrections that extend Active Model B+.

If this is right

  • A negative effective interfacial energy coefficient produces microphase separation instead of macroscopic domains.
  • Thermal noise in the dynamics leads to bubbly phase separation.
  • Higher chemical driving generates a dynamic active filament phase.
  • The entropy production rate rises with driving chemical potential and displays a kink singularity at the filament transition.
  • Generic behaviors of active phase separation appear in chemically driven ternary emulsions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The kink singularity in entropy production offers a potential measurable signature for locating the filament transition in laboratory emulsions.
  • The higher-order gradient terms may stabilize patterns across a wider range of active-matter models that currently rely only on Active Model B+.
  • The effective theory connects microscopic reaction rates directly to macroscopic pattern selection, allowing parameter changes in fuel supply to control the observed phase scale.

Load-bearing premise

A thermodynamically consistent hydrodynamic limit can be obtained by chemo-stating fuel molecules, with the resulting broken time-reversal symmetry fully captured by a gradient expansion plus higher-order terms.

What would settle it

A simulation or experiment in which the effective interfacial energy coefficient is made negative yet microphases fail to appear would falsify the predicted phase behavior.

Figures

Figures reproduced from arXiv: 2604.17539 by Efe Ilker, Frank J\"ulicher, Jean-Francois Joanny, Kathrin Laxhuber.

Figure 1
Figure 1. Figure 1: FIG. 1. Snapshots at long times ( [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Ripening diagram of the full model with varying [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Steady-state snapshots from simulations with noise for different [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Entropy production rate per unit area in the sys [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

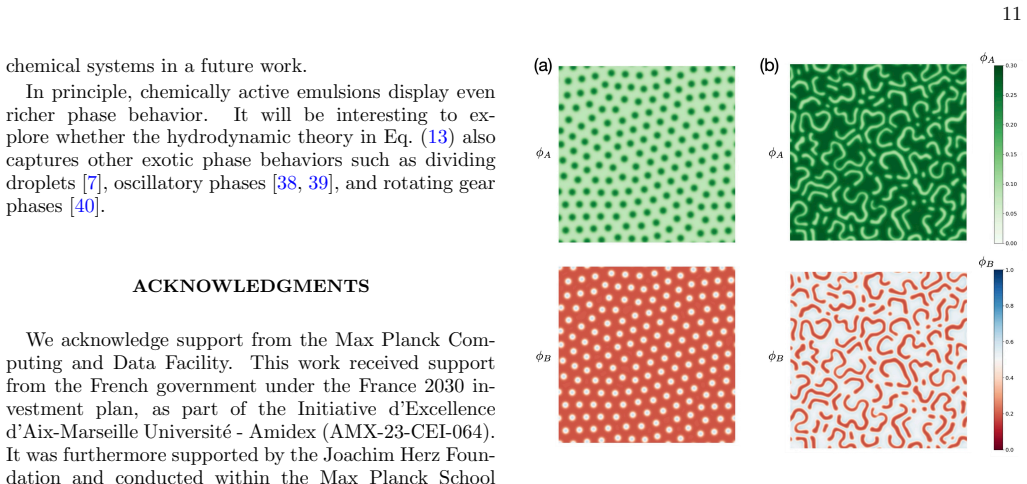

Figure 5
Figure 5. Figure 5: FIG. 5. Snapshots of volume fractions [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

We present a systematic theory of chemically active emulsions in the hydrodynamic limit by constructing a thermodynamically consistent framework in which the equilibrium is broken by chemo-stating of fuel molecules. For ternary solutions with active chemical reactions, we obtain an effective dynamics of the conserved field dynamics at long length and time scales. The effective dynamics takes into account the broken time reversal symmetry that manifests itself by the emergence of gradient terms akin to those of Active Model B+, which is a generic theory of active phase separation. In addition to the active coefficients modifying the interfacial energy coefficient, the theory contains higher order terms in the gradient expansion that are necessary to correctly describe the dynamics of chemically active emulsions, extending thus Active Model B+. We study numerically a Flory-Huggins model with active chemical reactions. Our theory predicts the formation of microphases when the effective interfacial energy coefficient becomes negative. Moreover, including noise, we show the existence of bubbly phase separation. We also identify a new type of phase behavior, a dynamic active filament phase. Finally, we discuss the steady state entropy production rate in the system resulting from the active chemical reactions. We observe that the total entropy production rate increases with the driving chemical potential and exhibits a kink-like singularity at the transition to the dynamic active filament phase. Our work shows that the generic behaviors of active phase separation can emerge in chemically active emulsions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript constructs a thermodynamically consistent hydrodynamic framework for chemically active ternary emulsions by chemo-stating fuel molecules to break equilibrium. This yields effective conserved-field dynamics at long scales that incorporate active gradient terms similar to Active Model B+ together with additional higher-order terms required for the emulsion context. Numerical integration of the resulting equations for a Flory-Huggins free energy predicts microphase separation when the effective interfacial energy coefficient is negative, noisy bubbly phase separation, and a novel dynamic active filament phase; the steady-state entropy production rate is shown to increase with driving chemical potential and to exhibit a kink at the filament transition.

Significance. If the derivation of the effective dynamics is rigorous, the work supplies a systematic route from chemical driving to the generic phenomenology of active phase separation, extending Active Model B+ in a controlled manner and identifying a new filamentary state whose entropy-production signature may be experimentally accessible. The approach could unify descriptions of chemically driven emulsions with broader active-matter models and stimulate targeted simulations and experiments on microphase and filament formation.

major comments (1)
  1. The strongest claims (microphase formation for negative effective interfacial energy, bubbly separation with noise, and the dynamic active filament phase) rest on the effective conserved dynamics obtained after chemo-stating. The abstract states that this dynamics is obtained by gradient expansion from a thermodynamically consistent framework and that the broken time-reversal symmetry is captured by Active-Model-B+-like terms plus retained higher-order contributions. Explicit equations or steps showing that the chemo-stating procedure produces a controlled hydrodynamic limit without uncontrolled approximations or missed non-local terms at the relevant wavelengths are needed; absent such verification the numerical predictions on the Flory-Huggins model remain provisional.
minor comments (2)
  1. The abstract refers to 'higher order terms in the gradient expansion' without giving their explicit form; stating the leading additional terms would clarify how the theory extends Active Model B+.
  2. The numerical section should specify the discretization scheme for the higher-order derivatives, the values of the active coefficients, and the noise strength used to obtain the reported phase behaviors and entropy-production curves.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for recognizing the potential of our thermodynamically consistent framework to unify descriptions of chemically driven emulsions with active-matter models. We address the major comment below and will incorporate clarifications to strengthen the presentation of the derivation.

read point-by-point responses

  1. Referee: The strongest claims (microphase formation for negative effective interfacial energy, bubbly separation with noise, and the dynamic active filament phase) rest on the effective conserved dynamics obtained after chemo-stating. The abstract states that this dynamics is obtained by gradient expansion from a thermodynamically consistent framework and that the broken time-reversal symmetry is captured by Active-Model-B+-like terms plus retained higher-order contributions. Explicit equations or steps showing that the chemo-stating procedure produces a controlled hydrodynamic limit without uncontrolled approximations or missed non-local terms at the relevant wavelengths are needed; absent such verification the numerical predictions on the Flory-Huggins model remain provisional.

    Authors: We agree that an expanded, step-by-step presentation of the chemo-stating procedure and the subsequent gradient expansion will make the controlled nature of the hydrodynamic limit more transparent. The original manuscript derives the effective dynamics in Section II by starting from the full thermodynamically consistent equations for the ternary mixture (including the active chemical reactions), imposing the chemo-stating condition that fixes the fuel-molecule concentration, and then performing a systematic long-wavelength gradient expansion of the resulting conserved dynamics for the order parameter. The Active-Model-B+-like terms emerge directly from the chemical driving that breaks time-reversal symmetry, while the retained higher-order gradient terms are required to capture the emulsion-specific physics. In the revised version we will add an explicit subsection that writes out the intermediate equations after chemo-stating, shows the expansion order by order up to the terms retained in the final model, and includes a short discussion confirming that, at the wavelengths relevant to the observed microphases and filaments, the approximation remains controlled with no uncontrolled non-local contributions. This clarification will substantiate the numerical results obtained with the Flory-Huggins free energy. revision: yes

Circularity Check

0 steps flagged

No significant circularity; effective dynamics derived independently before numerical predictions

full rationale

The paper constructs a thermodynamically consistent framework via chemo-stating of fuel molecules, performs a systematic gradient expansion to obtain effective conserved-order-parameter dynamics that include Active-Model-B+-like terms plus higher-order corrections, and only then numerically integrates the resulting equations on a Flory-Huggins free-energy model. The reported microphase formation, bubbly separation, and dynamic filament phase emerge as simulation outcomes rather than being imposed by construction or by a fitted parameter renamed as a prediction. No load-bearing self-citation, ansatz smuggling, or self-definitional step is required to reach the central claims; the derivation chain is self-contained and externally falsifiable via the explicit hydrodynamic equations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that a thermodynamically consistent hydrodynamic description exists for chemo-stated ternary solutions and that the broken symmetry can be captured by a specific gradient expansion; no explicit free parameters or new entities are named in the abstract.

axioms (1)
  • domain assumption Thermodynamic consistency can be maintained while breaking equilibrium via continuous chemo-stating of fuel molecules
    Invoked to justify the framework that produces the effective dynamics at long scales.

pith-pipeline@v0.9.0 · 5548 in / 1448 out tokens · 46871 ms · 2026-05-10T05:15:42.346361+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

  1. [1]

    continuously-moving filament phases

    This limit amounts to shifting the equilibrium Gibbs free energy of chemical reactions by a constant value ev- erywhere. In this case, the system would still break real thermodynamic equilibrium withα̸= 0 and, whileα appears as an extra parameter controlling the phase sep- aration without changing the phenomenology. A similar case was shown in other non-e...

    work page 2030

  2. [2]

    Bibette, F

    J. Bibette, F. Leal-Calderon, and P. Philippe, Emulsions: basic principles, Reports on Progress in Physics62, 969 (1999). 15

    work page 1999

  3. [3]

    C. A. Weber, D. Zwicker, F. J¨ ulicher, and C. F. Lee, Physics of active emulsions, Reports On Progress In Physics82, 064601 (2019)

    work page 2019

  4. [4]

    J¨ ulicher, A

    F. J¨ ulicher, A. Ajdari, and J. Prost, Modeling molecular motors, Reviews of Modern Physics69, 1269 (1997)

    work page 1997

  5. [5]

    S. F. Banani, H. O. Lee, A. A. Hyman, and M. K. Rosen, Biomolecular condensates: organizers of cellular biochemistry, Nature reviews Molecular cell biology18, 285 (2017)

    work page 2017

  6. [6]

    Shin and C

    Y. Shin and C. P. Brangwynne, Liquid phase condensa- tion in cell physiology and disease, Science357, eaaf4382 (2017)

    work page 2017

  7. [7]

    Zwicker, O

    D. Zwicker, O. W. Paulin, and C. Ter Burg, Physics of droplet regulation in biological cells, Reports on Progress in Physics88, 116601 (2025)

    work page 2025

  8. [8]

    Zwicker, R

    D. Zwicker, R. Seyboldt, C. A. Weber, A. A. Hyman, and F. J¨ ulicher, Growth and division of active droplets provides a model for protocells, Nature Physics13, 408 (2016)

    work page 2016

  9. [9]

    Zwicker, A

    D. Zwicker, A. A. Hyman, and F. J¨ ulicher, Suppression of ostwald ripening in active emulsions, Phys. Rev. E92, 012317 (2015)

    work page 2015

  10. [10]

    S. C. Glotzer, E. A. Di Marzio, and M. Muthukumar, Reaction-controlled morphology of phase-separating mix- tures, Phys. Rev. Lett.74, 2034 (1995)

    work page 2034

  11. [11]

    Carati and R

    D. Carati and R. Lefever, Chemical freezing of phase sep- aration in immiscible binary mixtures, Phys. Rev. E56, 3127 (1997)

    work page 1997

  12. [12]

    Bauermann, G

    J. Bauermann, G. Bartolucci, C. A. Weber, and F. J¨ ulicher, Theory of reversed ripening in active phase separating systems, Physical Review Letters135, 148201 (2025)

    work page 2025

  13. [13]

    M. C. Marchetti, J.-F. Joanny, S. Ramaswamy, T. B. Liverpool, J. Prost, M. Rao, and R. A. Simha, Hydrody- namics of soft active matter, Reviews of modern physics 85, 1143 (2013)

    work page 2013

  14. [14]

    Vicsek, A

    T. Vicsek, A. Czir´ ok, E. Ben-Jacob, I. Cohen, and O. Shochet, Novel type of phase transition in a system of self-driven particles, Physical review letters75, 1226 (1995)

    work page 1995

  15. [15]

    Toner and Y

    J. Toner and Y. Tu, Flocks, herds, and schools: A quan- titative theory of flocking, Physical review E58, 4828 (1998)

    work page 1998

  16. [16]

    M. E. Cates and J. Tailleur, Motility-induced phase sepa- ration, Annu. Rev. Condens. Matter Phys.6, 219 (2015)

    work page 2015

  17. [17]

    Fily and M

    Y. Fily and M. C. Marchetti, Athermal phase separation of self-propelled particles with no alignment, Physical re- view letters108, 235702 (2012)

    work page 2012

  18. [18]

    Tjhung, C

    E. Tjhung, C. Nardini, and M. E. Cates, Cluster phases and bubbly phase separation in active fluids: Reversal of the ostwald process, Phys. Rev. X8, 031080 (2018)

    work page 2018

  19. [19]

    Nardini, ´E

    C. Nardini, ´E. Fodor, E. Tjhung, F. Van Wijland, J. Tailleur, and M. E. Cates, Entropy production in field theories without time-reversal symmetry: quantify- ing the non-equilibrium character of active matter, Phys- ical Review X7, 021007 (2017)

    work page 2017

  20. [20]

    Hohenberg and B

    P. Hohenberg and B. Halperin, Theory of dynamic criti- cal phenomena, Rev. Mod. Phys49, 435 (1977)

    work page 1977

  21. [21]

    M. E. Cates and C. Nardini, Active phase separation: new phenomenology from non-equilibrium physics, Re- ports on Progress in Physics88, 056601 (2025)

    work page 2025

  22. [22]

    Fausti, E

    G. Fausti, E. Tjhung, M. E. Cates, and C. Nardini, Cap- illary interfacial tension in active phase separation, Phys- ical review letters127, 068001 (2021)

    work page 2021

  23. [23]

    Patch, D

    A. Patch, D. M. Sussman, D. Yllanes, and M. C. Marchetti, Curvature-dependent tension and tangential flows at the interface of motility-induced phases, Soft matter14, 7435 (2018)

    work page 2018

  24. [24]

    Stenhammar, D

    J. Stenhammar, D. Marenduzzo, R. J. Allen, and M. E. Cates, Phase behaviour of active brownian particles: the role of dimensionality, Soft matter10, 1489 (2014)

    work page 2014

  25. [25]

    G. S. Redner, A. Baskaran, and M. F. Hagan, Reentrant phase behavior in active colloids with attraction, Phys- ical Review E—Statistical, Nonlinear, and Soft Matter Physics88, 012305 (2013)

    work page 2013

  26. [26]

    C. B. Caporusso, P. Digregorio, D. Levis, L. F. Cuglian- dolo, and G. Gonnella, Motility-induced microphase and macrophase separation in a two-dimensional active brownian particle system, Physical Review Letters125, 178004 (2020)

    work page 2020

  27. [27]

    Alston, A

    H. Alston, A. O. Parry, R. Voituriez, and T. Bertrand, Intermittent attractive interactions lead to microphase separation in nonmotile active matter, Physical Review E106, 034603 (2022)

    work page 2022

  28. [28]

    Rao and M

    R. Rao and M. Esposito, Nonequilibrium thermody- namics of chemical reaction networks: Wisdom from stochastic thermodynamics, Physical Review X6, 041064 (2016)

    work page 2016

  29. [29]

    Bauermann, C

    J. Bauermann, C. A. Weber, and F. J¨ ulicher, Energy and matter supply for active droplets, Annalen der Physik 534, 2200132 (2022)

    work page 2022

  30. [30]

    P. M. Chaikin and T. C. Lubensky,Principles of con- densed matter physics(Cambridge university press Cam- bridge, 1995)

    work page 1995

  31. [31]

    Burekovi´ c, F

    S. Burekovi´ c, F. De Luca, M. E. Cates, and C. Nardini, Active cahn–hilliard theory for non-equilibrium phase separation: quantitative macroscopic predictions and a microscopic derivation, arXiv preprint arXiv:2601.16539 (2026)

    work page arXiv 2026

  32. [32]

    Ilker and J.-F

    E. Ilker and J.-F. Joanny, Phase separation and nucle- ation in mixtures of particles with different temperatures, Phys. Rev. Research2, 023200 (2020)

    work page 2020

  33. [33]

    M. C. Cross and P. C. Hohenberg, Pattern formation outside of equilibrium, Reviews of modern physics65, 851 (1993)

    work page 1993

  34. [34]

    Elder, M

    K. Elder, M. Katakowski, M. Haataja, and M. Grant, Modeling elasticity in crystal growth, Physical review let- ters88, 245701 (2002)

    work page 2002

  35. [35]

    Hert¨ ag, J

    K. Hert¨ ag, J. F. Robinson, and T. Speck, Statistics and morphologies of stable droplets in scalar active fluids, Physical Review E113, 015410 (2026)

    work page 2026

  36. [36]

    S. R. De Groot and P. Mazur,Non-equilibrium thermo- dynamics(Courier Corporation, 2013)

    work page 2013

  37. [37]

    M. P. Viana, A. I. Brown, I. A. Mueller, C. Goul, E. F. Koslover, and S. M. Rafelski, Mitochondrial fission and fusion dynamics generate efficient, robust, and evenly dis- tributed network topologies in budding yeast cells, Cell systems10, 287 (2020)

    work page 2020

  38. [38]

    T´ abara, M

    L.-C. T´ abara, M. Segawa, and J. Prudent, Molecular mechanisms of mitochondrial dynamics, Nature Reviews Molecular Cell Biology26, 123 (2025)

    work page 2025

  39. [39]

    Halatek and E

    J. Halatek and E. Frey, Rethinking pattern formation in reaction–diffusion systems, Nature Physics14, 507 (2018)

    work page 2018

  40. [40]

    Brauns and M

    F. Brauns and M. C. Marchetti, Nonreciprocal pattern formation of conserved fields, Physical Review X14, 021014 (2024). 16

    work page 2024

  41. [41]

    Raßhofer, S

    F. Raßhofer, S. Bauer, A. Ziepke, I. Maryshev, and E. Frey, Capillary wave formation in conserved active emulsions, Physical Review Research7, 043240 (2025)

    work page 2025

  42. [42]

    D. T. Gillespie, The chemical langevin equation, The Journal of Chemical Physics113, 297 (2000)

    work page 2000

  43. [43]

    U. M. Ascher, S. J. Ruuth, and R. J. Spiteri, Implicit- explicit runge-kutta methods for time-dependent partial differential equations, Applied Numerical Mathematics 25, 151 (1997)

    work page 1997

  44. [44]

    P. E. Kloeden and E. Platen,Numerical Solution of Stochastic Differential Equations(Springer-Verlag, Berlin, 1992)

    work page 1992
