arxiv: 2604.17567 · v1 · submitted 2026-04-19 · 💻 cs.CV · eess.IV

Recognition: unknown

Multi-Camera Self-Calibration in Sports Motion Capture: Leveraging Human and Stick Poses

Fan Yang , Changsoo Jung , Ryosuke Kawamura , Hon Yung Wong
Authors on Pith no claims yet

Pith reviewed 2026-05-10 05:54 UTC · model grok-4.3

classification 💻 cs.CV eess.IV
keywords multi-camera calibrationself-calibrationsports motion captureextrinsic calibrationhuman posestick posetool-free calibrationscale resolution
0
0 comments X

The pith

A tool-free method calibrates multi-camera setups in stick sports by jointly using human body poses and the known length of implements like bats or clubs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a self-calibration technique for multiple cameras that records sports motion without needing special calibration patterns or targets. It combines detections of an athlete's body keypoints, whose absolute size is unknown, with the fixed physical length of a rigid stick such as a golf club or hockey stick. A sympathetic reader would care because setting up accurate 3D tracking for coaching or analysis has traditionally required cumbersome equipment and manual labor. The approach runs a three-stage optimization that first refines camera positions and orientations, then reconstructs the motion paths, and finally locks the overall scale using the stick constraint. Tests on a new synthetic dataset across golf, baseball, and similar activities show lower errors than prior methods.

Core claim

Extrinsic calibration of multi-camera systems can be achieved accurately without dedicated tools by formulating a three-stage optimization pipeline that jointly exploits human body keypoints with unknown metric scale and a rigid stick-like implement of known length from synchronized videos, thereby refining camera extrinsics, reconstructing human and stick trajectories, and resolving global scale via the stick-length constraint.

What carries the argument

Three-stage optimization pipeline that refines camera extrinsics, reconstructs human and stick trajectories, and resolves global scale via the stick-length constraint.

If this is right

  • Accurate extrinsic calibration is obtained without any dedicated calibration tools or patterns.
  • The first benchmark dataset for this task supplies synthetic sequences across four sports categories with 3 to 10 cameras.
  • Low rotation and translation errors are achieved on the introduced dataset, outperforming prior approaches.
  • The pipeline supports varying numbers of cameras and multiple stick-based sports without retraining.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same stick-length constraint could serve as a lightweight scale reference in other multi-view setups such as robotics or surveillance where a known rigid object is present.
  • If pose detection noise is the main remaining error source, replacing the current keypoint estimator with a more robust network would directly lower calibration residuals.
  • Extending the optimization to handle mild asynchrony between cameras would broaden the method to consumer-grade recording setups.
  • The synthetic dataset could be used to train end-to-end networks that predict extrinsics directly from raw video clips.

Load-bearing premise

The method assumes access to synchronized multi-camera videos containing both detectable human body keypoints and a rigid stick-like implement of known length.

What would settle it

Apply the method to real multi-camera footage of golf swings where camera positions are independently measured with a traditional checkerboard procedure, and check whether the reported rotation and translation errors remain below a few degrees and centimeters.

Figures

Figures reproduced from arXiv: 2604.17567 by Changsoo Jung, Fan Yang, Hon Yung Wong, Ryosuke Kawamura.

Figure 1

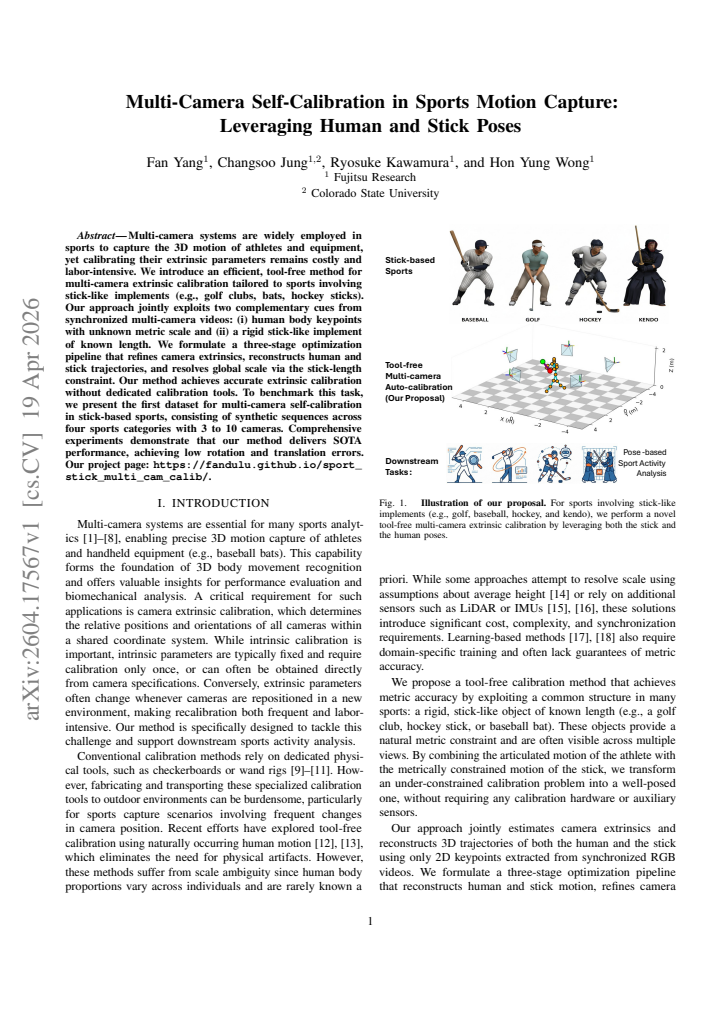

Figure 1. Figure 1: Illustration of our proposal. For sports involving stick-like implements (e.g., golf, baseball, hockey, and kendo), we perform a novel tool-free multi-camera extrinsic calibration by leveraging both the stick and the human poses. priori. While some approaches attempt to resolve scale using assumptions about average height [14] or rely on additional sensors such as LiDAR or IMUs [15], [16], these solutions … view at source ↗
Figure 2
Figure 2. Figure 2: Three-stage optimization. (1) An initial, unscaled 3D pose is reconstructed from multi-view 2D keypoints via Bundle Adjustment (BA). (2) The real-world scale is recovered using a known measurement, such as the length of the baseball bat (0.86 m). (3) A final, scale-aware BA is performed to refine the metric 3D reconstruction. A. Preliminaries and Notation We consider a setup of C synchronized cameras obser… view at source ↗
Figure 3

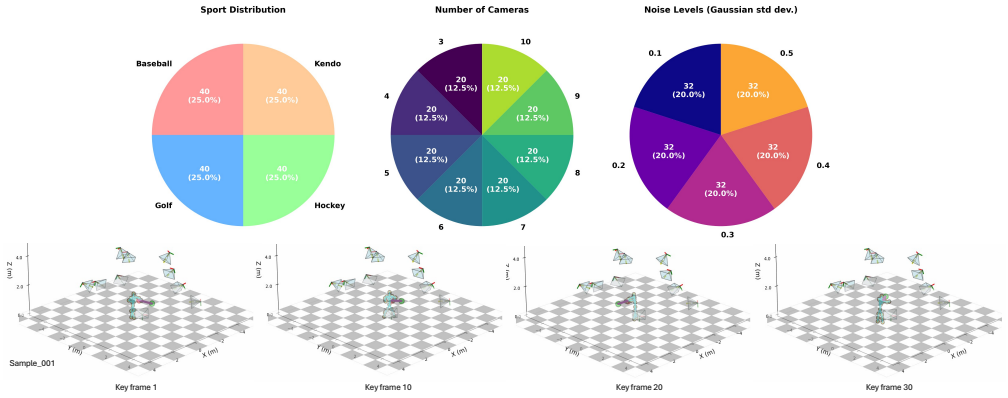

Figure 3. Figure 3: Our Sports-Stick-Syn dataset. Top: Statistics of our dataset, including sports categories, number of cameras, and noise levels. Bottom: An example visualization from the dataset. Algorithm 1 Multi-Camera Calibration with Metric Stick Require: Intrinsics {Ki}, 2D human points {vi,f,j}, 2D stick endpoints {ui,f,e}, known stick length L. 1: Initialize: 2: Fix gauge: R1 ← I, t1 ← 0. 3: Compute pairwise essenti… view at source ↗
Figure 4

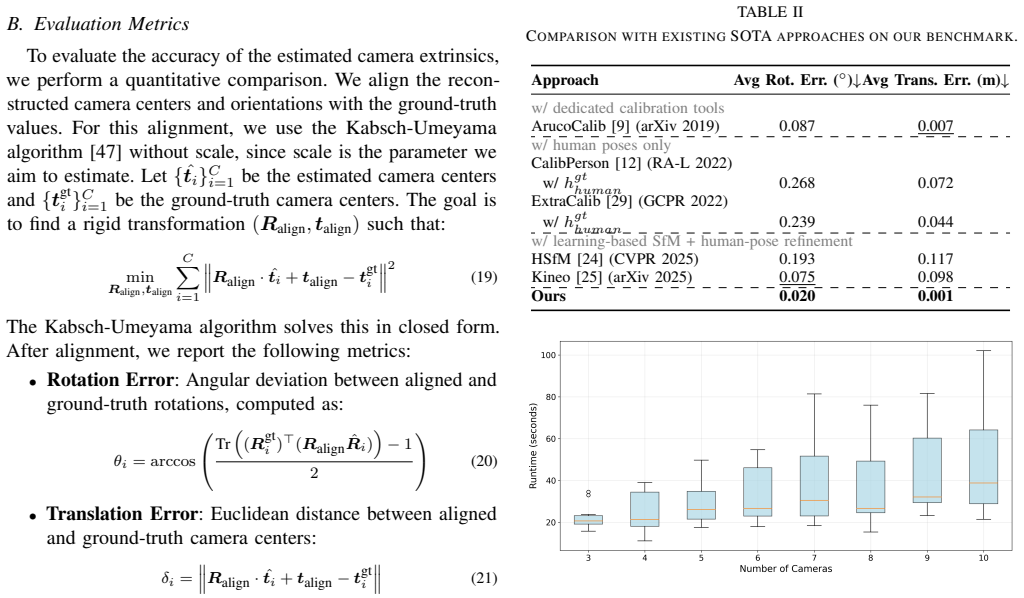

Figure 4. Figure 4: Runtime distribution for our method. Each box plot shows the median (orange line), interquartile range, and outliers. TABLE III MEMORY USAGE SUMMARY (MB) Cams Initial Mem. Peak Mem. (typical) Peak Mem. (worst) 3 0.08 0.2 1.5 4 0.09 0.2 2.1 5 0.11 0.2 2.6 6 0.13 0.3 3.2 7 0.14 0.3 3.8 8 0.16 0.4 4.4 9 0.18 0.4 5.0 10 0.19 0.5 5.6 which effectively stabilizes rotation estimation and eliminates metric drift i… view at source ↗
Figure 5
Figure 5. Figure 5: Per-camera Error Distribution. The human + stick approach yields lower errors and variance in both rotation and translation [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Per-noise-level Error Distribution. The human + stick approach yields lower errors and smaller variance in both rotation and translation. TABLE V ABLATION STUDY: STAGE 3 COMPONENTS. Configuration Avg Rot. Err. (◦)↓Avg Trans. Err. (m)↓ Ours (Full) 0.020 0.001 w/o Length Constraint 0.091 0.011 w/o Temporal Smoothness 0.022 0.002 As presented in Tab. IV, our analysis evaluates the performance of different inp… view at source ↗
Figure 7
Figure 7. Figure 7: Enabling precise 3D sports gesture analysis via tool-free self-calibration. Our method utilizes rigid stick constraints to self-calibrate multi-camera setups (Left & Center), enabling scale-aware 3D pose reconstruction. This supports robust downstream applications in sports analytics (Right), allowing for the accurate analysis of sport gestures and movement. per-noise-level errors to support a more detaile… view at source ↗
read the original abstract

Multi-camera systems are widely employed in sports to capture the 3D motion of athletes and equipment, yet calibrating their extrinsic parameters remains costly and labor-intensive. We introduce an efficient, tool-free method for multi-camera extrinsic calibration tailored to sports involving stick-like implements (e.g., golf clubs, bats, hockey sticks). Our approach jointly exploits two complementary cues from synchronized multi-camera videos: (i) human body keypoints with unknown metric scale and (ii) a rigid stick-like implement of known length. We formulate a three-stage optimization pipeline that refines camera extrinsics, reconstructs human and stick trajectories, and resolves global scale via the stick-length constraint. Our method achieves accurate extrinsic calibration without dedicated calibration tools. To benchmark this task, we present the first dataset for multi-camera self-calibration in stick-based sports, consisting of synthetic sequences across four sports categories with 3 to 10 cameras. Comprehensive experiments demonstrate that our method delivers SOTA performance, achieving low rotation and translation errors. Our project page: https://fandulu.github.io/sport_stick_multi_cam_calib/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a three-stage optimization pipeline for multi-camera extrinsic self-calibration in stick-based sports (e.g., golf, baseball). It jointly exploits scale-ambiguous human body keypoints and rigid sticks of known length from synchronized videos to refine camera extrinsics, reconstruct human/stick trajectories, and resolve global scale via the stick-length constraint. A new synthetic dataset with 3–10 cameras across four sports is presented, and experiments claim SOTA performance with low rotation and translation errors.

Significance. If the accuracy claims hold under realistic conditions, the method offers a practical, tool-free alternative to traditional calibration for sports motion capture, potentially reducing setup costs. The introduction of the first benchmark dataset for this specific task is a clear positive contribution that could enable future comparisons.

major comments (2)
  1. [§4 (Experiments)] §4 (Experiments): All quantitative results (rotation/translation errors, SOTA comparisons) are reported exclusively on synthetic sequences with idealized, noise-free 2D detections. No real-world multi-camera sports footage, no ablation on keypoint detector noise (e.g., OpenPose/HRNet errors), and no occlusion/motion-blur tests are included. This is load-bearing for the central claim of 'accurate extrinsic calibration' because the joint optimization of extrinsics, human trajectories, and stick trajectories is sensitive to 2D errors that propagate into scale drift or local minima.
  2. [§3.2–3.3 (Optimization Pipeline)] §3.2–3.3 (Optimization Pipeline): The scale-resolution step applies the known stick length only after trajectory reconstruction; the manuscript provides no analysis of how modest 2D keypoint errors affect convergence or final extrinsic accuracy, nor any initialization sensitivity study. This directly affects whether the three-stage pipeline supports the stated low-error claims outside idealized conditions.
minor comments (2)
  1. [Abstract and §4] The abstract and results section use vague phrasing ('low rotation and translation errors') without immediately citing the exact numerical values or table rows for the best-performing configurations.
  2. [Figures in §4] Figure captions and axis labels in the qualitative results could more clearly distinguish camera counts and sports categories to improve readability.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comments point by point below, clarifying the scope of our synthetic benchmark while committing to targeted revisions that strengthen the analysis of robustness.

read point-by-point responses

  1. Referee: [§4 (Experiments)] All quantitative results (rotation/translation errors, SOTA comparisons) are reported exclusively on synthetic sequences with idealized, noise-free 2D detections. No real-world multi-camera sports footage, no ablation on keypoint detector noise (e.g., OpenPose/HRNet errors), and no occlusion/motion-blur tests are included. This is load-bearing for the central claim of 'accurate extrinsic calibration' because the joint optimization of extrinsics, human trajectories, and stick trajectories is sensitive to 2D errors that propagate into scale drift or local minima.

    Authors: We agree that robustness to realistic 2D detection noise is essential for practical claims. The synthetic dataset was deliberately constructed with noise-free detections to isolate the calibration pipeline's behavior and to establish the first controlled benchmark for this task, enabling precise SOTA comparisons. In the revised manuscript we will add ablations that inject Gaussian noise calibrated to typical OpenPose/HRNet error distributions, as well as simulated occlusion and motion-blur patterns, and report the resulting extrinsic and scale errors. Real-world multi-view sports sequences with accurate ground-truth extrinsics remain difficult to acquire at scale; we will explicitly discuss this limitation and the synthetic results as an upper-bound reference. revision: partial

  2. Referee: [§3.2–3.3 (Optimization Pipeline)] The scale-resolution step applies the known stick length only after trajectory reconstruction; the manuscript provides no analysis of how modest 2D keypoint errors affect convergence or final extrinsic accuracy, nor any initialization sensitivity study. This directly affects whether the three-stage pipeline supports the stated low-error claims outside idealized conditions.

    Authors: We will add a dedicated sensitivity subsection (likely in §4) that quantifies the effect of increasing 2D keypoint noise on convergence rate, final rotation/translation errors, and scale accuracy. The study will also include an initialization sensitivity analysis by applying controlled perturbations to the initial camera poses and reporting success rates and accuracy statistics across multiple random seeds. These additions will directly address how the three-stage pipeline behaves beyond the noise-free setting. revision: yes

standing simulated objections not resolved
  • Quantitative evaluation on real-world multi-camera sports footage with precise ground-truth extrinsics, owing to the substantial practical difficulties in collecting and annotating such data.

Circularity Check

0 steps flagged

No circularity; scale constraint is an external independent input.

full rationale

The claimed three-stage pipeline refines extrinsics and trajectories while using the known physical length of the stick as an external constraint to resolve the metric scale that is otherwise ambiguous from human keypoints alone. This length is supplied as a fixed, independent measurement rather than being fitted or derived from the same data being calibrated. No equations or steps in the provided description reduce the output calibration to a tautology or to a self-citation chain; the optimization is a standard bundle-adjustment-style procedure with an added rigid-length prior. Synthetic-data experiments do not alter the logical independence of the derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard computer-vision assumptions about pose detection and rigid-body geometry rather than new invented entities. No free parameters are explicitly introduced in the abstract.

axioms (2)
  • domain assumption Human body keypoints can be reliably detected from synchronized multi-view video with unknown metric scale.
    Invoked as cue (i) in the joint optimization.
  • domain assumption The stick-like implement is rigid and has a known physical length.
    Used as the scale-resolving constraint in the final stage.

pith-pipeline@v0.9.0 · 5500 in / 1419 out tokens · 50258 ms · 2026-05-10T05:54:43.694849+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
