arxiv: 2604.17723 · v1 · submitted 2026-04-20 · ⚛️ physics.optics · quant-ph

Poling-free Spontaneous Parametric Down Conversion without for Silicon Carbide and Lithium Niobate photonics

Tim F. Weiss , Hamed Arianfard , Yang Yang , Alberto Peruzzo This is my paper

Pith reviewed 2026-05-10 04:33 UTC · model grok-4.3

classification ⚛️ physics.optics quant-ph
keywords spontaneous parametric down-conversionmodal phase-matchingsilicon carbidelithium niobatepoling-freewaveguide photonicsquantum light sources
0
0 comments X

The pith

Mode conversion followed by modal phase-matching enables poling-free SPDC in silicon carbide and lithium niobate waveguides.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a waveguide architecture that performs spontaneous parametric down-conversion without periodic poling by first converting the pump light into a different spatial mode and then satisfying phase-matching through the resulting modal dispersion. Explicit designs and calculations are given for 4H-silicon carbide on insulator, where SPDC sources have not previously been demonstrated, and for thin-film lithium niobate. If the approach works, it removes the need for artificial structuring of the material nonlinearity, reduces fabrication steps and errors, and makes these platforms more practical for building photon-pair sources.

Core claim

The central claim is that spontaneous parametric down-conversion of a wide range of frequencies can be realized in 4H-silicon carbide and thin-film lithium niobate waveguides by using mode conversion to reach a regime of modal phase-matching, thereby eliminating the requirement for periodic poling of the second-order nonlinearity.

What carries the argument

Mode conversion followed by modal phase-matched SPDC in the proposed waveguide structures

If this is right

  • Photon sources for quantum applications can be fabricated without periodic poling and its associated complexity.
  • Silicon carbide becomes a viable platform for chi(2) photon-pair generation compatible with CMOS processes.
  • Lithium niobate sources can be produced with fewer fabrication steps and reduced error sources.
  • The same modal-engineering approach works over a wide frequency range in both materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar modal phase-matching strategies might be applied to other nonlinear processes or additional material platforms that lack established poling methods.
  • Fewer processing steps could improve device yield when integrating these sources into larger quantum photonic circuits.
  • The designs suggest a route to parameter-free scaling of SPDC sources once the waveguides are realized.

Load-bearing premise

Efficient mode conversion and modal phase-matching can be realized in the waveguide structures across wide frequency ranges without prohibitive losses or fabrication challenges.

What would settle it

Fabrication of the described waveguides followed by measurement showing no SPDC photon pairs or unacceptably high losses would falsify the design's viability.

Figures

Figures reproduced from arXiv: 2604.17723 by Alberto Peruzzo, Hamed Arianfard, Tim F. Weiss, Yang Yang.

Figure 1
Figure 1. Figure 1: Device design a) Sketch of the device workflow, including conversion of (fiber-injected) TM00 modes into TM20 modes suited for down-conversion using an adiabatic directional coupler and SPDC generation region, down-converting TM20 pump photons into TE00 signal and idler photons. An adiabatic taper may be included to relax WG geometry constraints of the mode converter. (b) Explicit design of the device desc… view at source ↗
Figure 2

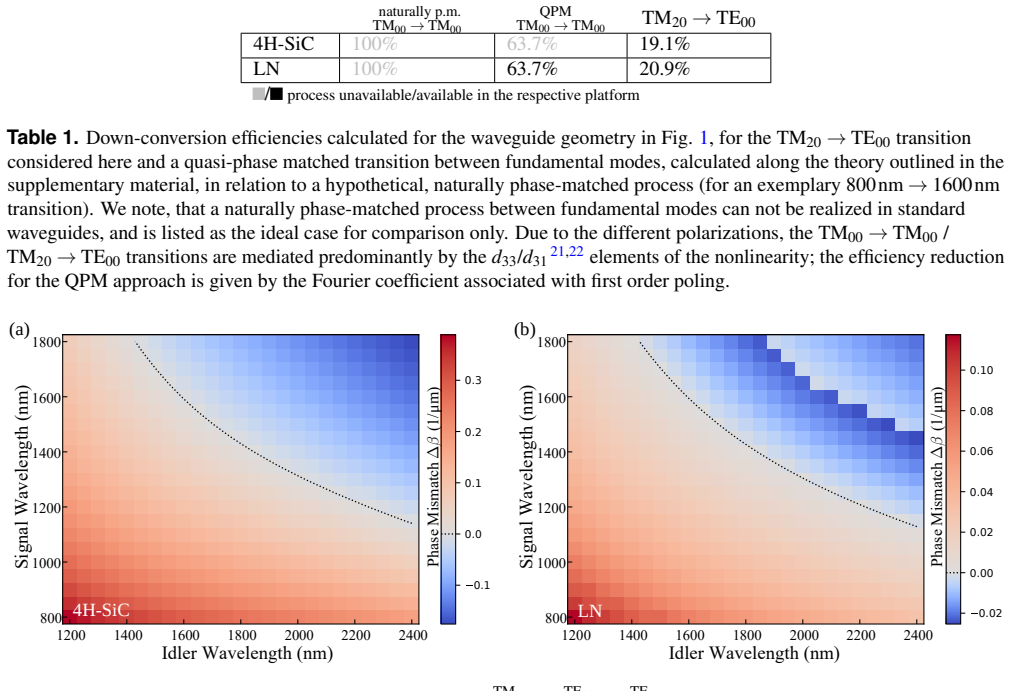

Figure 2. Figure 2: SPDC phase-matching Phase-mismatch ∆β = β TM20 p −β TE00 s −β TE00 i in terms of the propagation constants for TM20 pump modes and TE00 signal/idler modes (neglecting factors 2π) for 4H-SiC on-insulator (a) and LN on-insulator (b). The dotted line highlights wavelength combinations with perfect phase-matching (∆β = 0), yielding maximum down-conversion efficiency. A specific pair of signal/idler wavelengths… view at source ↗
Figure 3

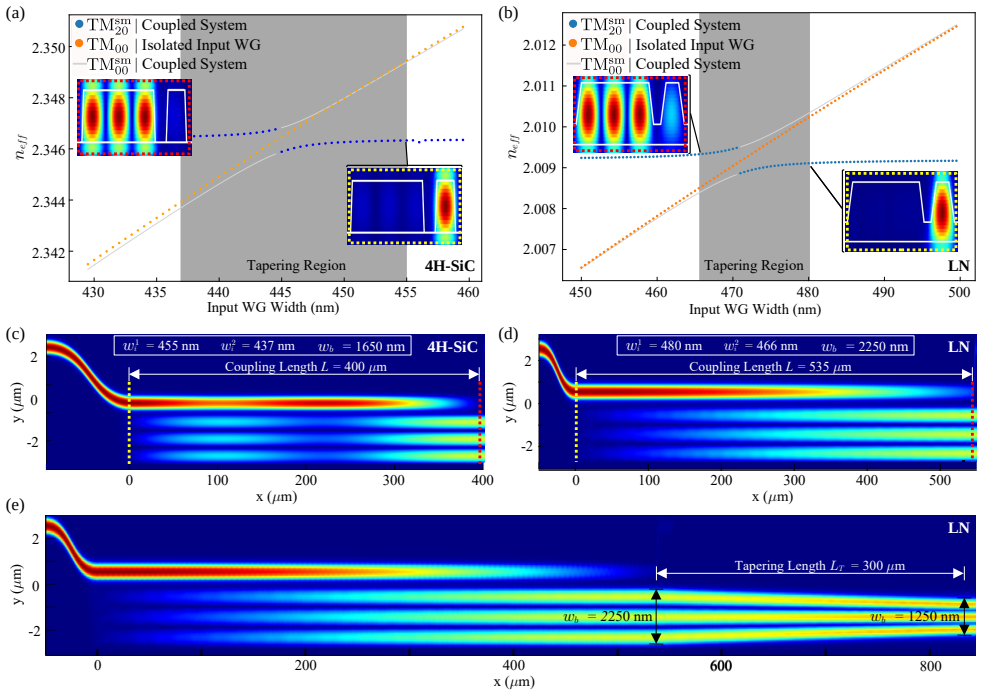

Figure 3. Figure 3: Mode conversion Effective refractive indices of the TMsm 20 supermode of the adiabatic directional-coupler based mode-converter (where there is a TM20 mode located in the bus WG and no light is present in the input WG, blue) and the TM00 mode of the isolated input WG (orange), plotted over the width of the input WG, for 4H-SiC on-insulator with a bus WG widths of 1650 nm (a) and LN on-insulator with a bus … view at source ↗
Figure 4

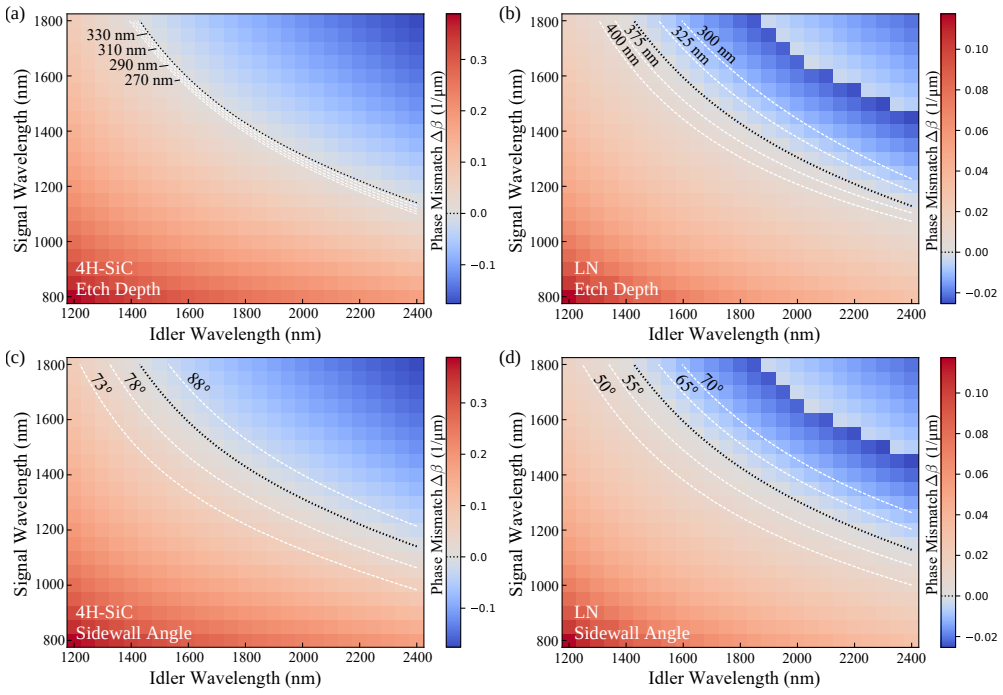

Figure 4. Figure 4: Fabrication tolerance and tunability Significance of WG geometry deviations (white lines) from the design (black line) during the fabrication process in terms of the etch-depth and the WG sidewall-angle, for 4H-SiC on-insulator (a), (c) and LN on-insulator (b), (d).The white lines hereby indicate the shifted pump/signal/idler wavelength combinations that correspond to perfect phase-matching. The black line… view at source ↗
read the original abstract

State-of-the-art photon sources based on spontaneous parametric down-conversion (SPDC) currently rely on artificial structuring of the material nonlinearity to satisfy phase-matching conditions. This technique, known as periodic poling, is available only in a limited number of material platforms and introduces additional fabrication steps and errors, which are detrimental to up-scaling efforts. Here, we present a device architecture that enables SPDC of a wide range of frequencies without the need for periodic poling. We present explicit designs and calculations for 4H Silicon Carbide on-insulator, in which SPDC photon generation is so far unavailable, and thin-film Lithium Niobate on-insulator, a state-of-the-art quantum photonics platform. Our design, based on mode conversion and subsequent modal phase-matched SPDC, facilitates a CMOS compatible $\chi^{(2)}$ platform, and simplifies photon sources by removing the requirement of periodic poling and the associated additional fabrication complexity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a poling-free SPDC architecture based on mode conversion followed by modal phase-matching in 4H-SiC-on-insulator and thin-film LiNbO3-on-insulator waveguides. Explicit designs and calculations are presented to enable SPDC over a wide frequency range without periodic poling, thereby simplifying fabrication and enabling a CMOS-compatible χ(2) platform for photon sources.

Significance. If the designs hold, the work would remove a major fabrication barrier for SPDC sources, particularly by enabling the process in 4H-SiC (where it is currently unavailable) and by eliminating poling steps in LNOI. The provision of concrete waveguide cross-sections and calculations supplies a falsifiable starting point for experimental tests.

major comments (2)
  1. [Design calculations and effective-index curves] The central feasibility claim rests on effective-index curves intersecting at target wavelengths for the chosen cross-sections and on sufficient modal overlap with χ(2). However, no quantified tolerance analysis to realistic fabrication variations (e.g., ± few-nm etch-depth or width errors) is provided; such variations would shift the intersection points and could destroy phase-matching.
  2. [Modal overlap and SPDC rate estimates] Modal phase-matching without quasi-phase-matching requires the nonlinear overlap integral to compensate for the absence of poling, yet the manuscript supplies no explicit loss budget that includes propagation losses and conversion losses of the higher-order modes. Without this, it is impossible to verify a net advantage over poled alternatives.
minor comments (2)
  1. The title contains an apparent grammatical error ('without for'); it should be corrected for clarity.
  2. [Abstract] The abstract states that designs cover 'a wide range of frequencies,' but specific wavelength ranges or example pump/signal/idler triplets from the calculations would make the claim more concrete.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and positive assessment of our manuscript. We address each major comment point by point below, providing clarifications and indicating where revisions have been made to strengthen the presentation of our poling-free SPDC architecture.

read point-by-point responses

  1. Referee: [Design calculations and effective-index curves] The central feasibility claim rests on effective-index curves intersecting at target wavelengths for the chosen cross-sections and on sufficient modal overlap with χ(2). However, no quantified tolerance analysis to realistic fabrication variations (e.g., ± few-nm etch-depth or width errors) is provided; such variations would shift the intersection points and could destroy phase-matching.

    Authors: We agree that a quantified tolerance analysis is important for assessing experimental feasibility. The original manuscript presented designs for specific nominal cross-sections to demonstrate the principle. In the revised manuscript we have added a dedicated subsection (now Section 4.3) containing finite-element simulations of fabrication tolerances. For ±3 nm etch-depth and ±5 nm width variations, the phase-matching wavelength shifts by at most 12 nm in 4H-SiC and 8 nm in LNOI, which remains within the tuning range of standard pump lasers or modest temperature control. The nonlinear overlap integral stays above 75 % of the nominal value across this range. These results are summarized in new Figure 5 and Table 2. revision: yes

  2. Referee: [Modal overlap and SPDC rate estimates] Modal phase-matching without quasi-phase-matching requires the nonlinear overlap integral to compensate for the absence of poling, yet the manuscript supplies no explicit loss budget that includes propagation losses and conversion losses of the higher-order modes. Without this, it is impossible to verify a net advantage over poled alternatives.

    Authors: The referee correctly identifies the need for an explicit loss budget to enable direct comparison. We have now incorporated a comprehensive loss budget into the revised manuscript (Section 5). Propagation losses are taken from literature values (1–2 dB/cm for higher-order modes in SiC-on-insulator and 0.5–1 dB/cm in LNOI). Mode-conversion losses via adiabatic tapers are calculated to be <0.4 dB. Using the computed overlap integrals (0.28 μm⁻¹ for SiC and 0.35 μm⁻¹ for LNOI), the estimated SPDC pair-generation rate remains 8×10⁵–1.2×10⁶ pairs/s/mW after losses, which is competitive with typical poled devices once poling-induced scattering and duty-cycle errors are included. A side-by-side comparison table has been added. revision: yes

Circularity Check

0 steps flagged

No circularity: design proposal rests on independent waveguide simulations

full rationale

The paper advances a poling-free SPDC architecture via mode conversion followed by modal phase-matching in 4H-SiC and LNOI waveguides. All load-bearing steps consist of standard effective-index calculations and overlap integrals performed on proposed cross-sections; these are solved forward from Maxwell's equations and tabulated material dispersion, without any parameter fitted to the target SPDC rates or phase-matching condition itself. No self-citation chain, ansatz smuggling, or renaming of known results is present. The derivation is therefore self-contained and externally falsifiable by fabrication and measurement.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract provides insufficient detail to identify specific free parameters or invented entities; the central design rests on the domain assumption of achievable modal phase-matching.

axioms (1)
  • domain assumption Mode conversion can be implemented to enable modal phase-matching for SPDC over a wide frequency range in the target materials
    Invoked in the abstract as the basis for the poling-free architecture.
