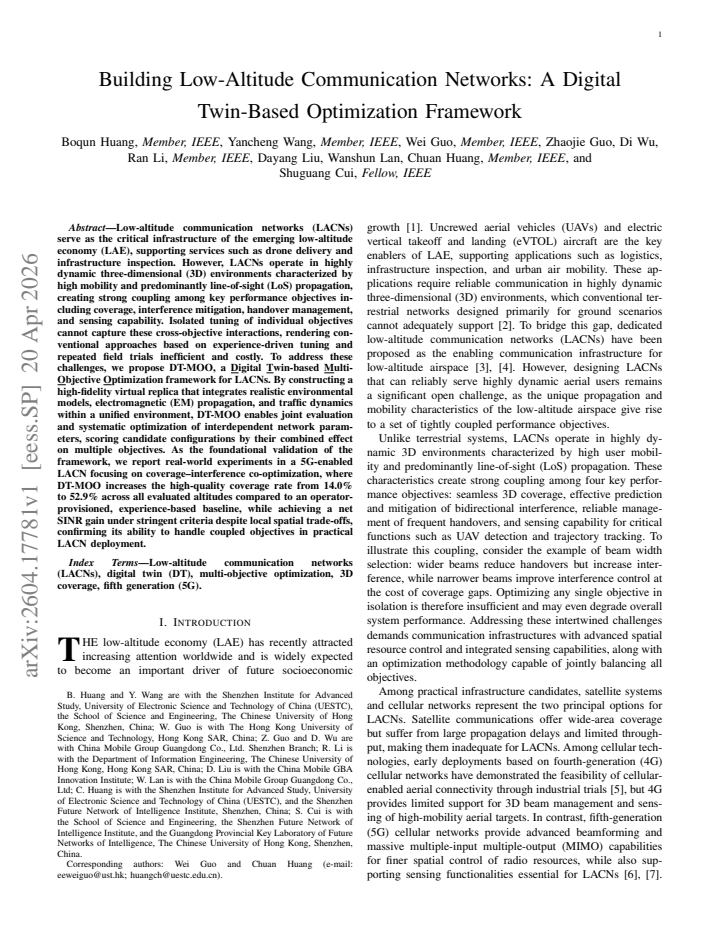

Building Low-Altitude Communication Networks: A Digital Twin-Based Optimization Framework

Boqun Huang; Chuan Huang; Dayang Liu; Di Wu; Ran Li; Shuguang Cui; Wanshun Lan; Wei Guo; Yancheng Wang; Zhaojie Guo

arxiv: 2604.17781 · v1 · submitted 2026-04-20 · 📡 eess.SP

Building Low-Altitude Communication Networks: A Digital Twin-Based Optimization Framework

Boqun Huang , Yancheng Wang , Wei Guo , Zhaojie Guo , Di Wu , Ran Li , Dayang Liu , Wanshun Lan

show 2 more authors

Chuan Huang Shuguang Cui

This is my paper

Pith reviewed 2026-05-10 04:43 UTC · model grok-4.3

classification 📡 eess.SP

keywords low-altitude communication networksdigital twinmulti-objective optimization5Gcoverageinterferencenetwork optimization

0 comments

The pith

A digital twin framework for low-altitude networks jointly optimizes coverage and interference, raising high-quality coverage from 14% to 52.9%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Low-altitude communication networks must balance multiple competing goals like coverage, interference control, and handover management in fast-changing 3D spaces where line-of-sight signals dominate. Isolated adjustments to single parameters fail to account for these interactions, leading to expensive trial-and-error deployments. The DT-MOO framework builds a detailed digital replica of the environment, signal propagation, and user traffic to evaluate full configurations against all objectives at once. Experiments on a real 5G setup show this method lifts the share of high-quality coverage areas from 14 percent to nearly 53 percent while still improving signal quality on average.

Core claim

DT-MOO constructs a high-fidelity virtual replica that integrates realistic environmental models, electromagnetic propagation, and traffic dynamics to enable systematic optimization of interdependent network parameters by scoring candidate configurations on their combined effects across multiple objectives. Validation in a 5G-enabled LACN demonstrates that this raises the high-quality coverage rate from 14.0% to 52.9% across evaluated altitudes over an experience-based baseline, with a net SINR gain despite some local trade-offs.

What carries the argument

The DT-MOO framework, a digital twin that unifies environmental, propagation, and traffic models to jointly evaluate and optimize network parameters for multiple coupled performance objectives.

Load-bearing premise

The digital twin replica must match the physical network closely enough in environment, signals, and traffic that the optimized settings perform as predicted when transferred to reality.

What would settle it

Install the DT-MOO configuration in the actual 5G low-altitude network and compare measured high-quality coverage rate and SINR values against the twin's predictions; a large gap would show the model does not transfer.

Figures

Figures reproduced from arXiv: 2604.17781 by Boqun Huang, Chuan Huang, Dayang Liu, Di Wu, Ran Li, Shuguang Cui, Wanshun Lan, Wei Guo, Yancheng Wang, Zhaojie Guo.

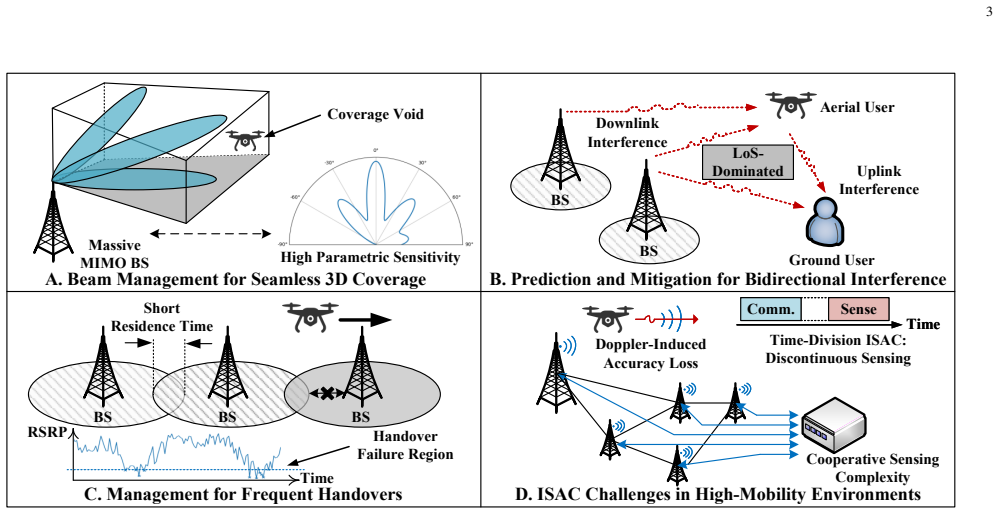

**Figure 2.** Figure 2: Technical challenges of 5G for LACNs. propagation dominates at higher altitudes, while operations near urban structures still experience multipath effects. The network must therefore cope with altitude-dependent propagation conditions as well as Doppler shifts induced by aerial mobility. On top of this basic capability, mission-critical services along specific flight routes, such as infrastructure inspec… view at source ↗

**Figure 3.** Figure 3: DT of LACNs and DT-MOO workflow. jointly designed ISAC waveforms, whose joint evaluation and optimization under strict LACN requirements remain a key challenge. Taken together, these tightly coupled challenges form a complex optimization problem that cannot be effectively addressed by experience-based tuning or isolated analytical models [12], motivating the DT-MOO framework proposed in the next section. I… view at source ↗

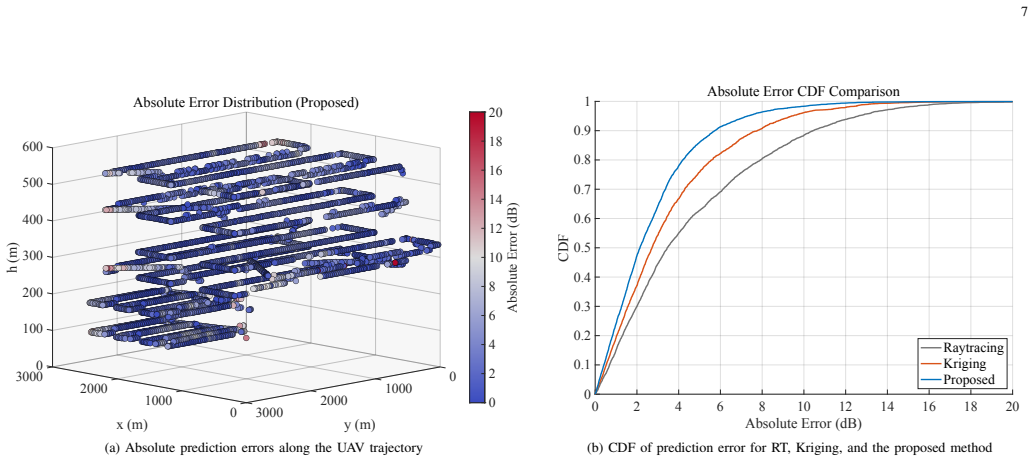

**Figure 4.** Figure 4: Validation of the proposed spectrum twin. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

**Figure 6.** Figure 6: To quantify whether these spatial trade-offs lead to a net improvement, [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

**Figure 5.** Figure 5: Spatial heatmap comparison of RSRP and SINR before and after DT-MOO optimization [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

**Figure 6.** Figure 6: Threshold satisfaction ratios of RSRP and SINR before and after [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

read the original abstract

Low-altitude communication networks (LACNs) serve as the critical infrastructure of the emerging low-altitude economy (LAE), supporting services such as drone delivery and infrastructure inspection. However, LACNs operate in highly dynamic three-dimensional (3D) environments characterized by high mobility and predominantly line-of-sight (LoS) propagation, creating strong coupling among key performance objectives including coverage, interference mitigation, handover management, and sensing capability. Isolated tuning of individual objectives cannot capture these cross-objective interactions, rendering conventional approaches based on experience-driven tuning and repeated field trials inefficient and costly. To address these challenges, we propose DT-MOO, a Digital Twin-based Multi-Objective Optimization framework for LACNs. By constructing a high-fidelity virtual replica that integrates realistic environmental models, electromagnetic (EM) propagation, and traffic dynamics within a unified environment, DT-MOO enables joint evaluation and systematic optimization of interdependent network parameters, scoring candidate configurations by their combined effect on multiple objectives. As the foundational validation of the framework, we report real-world experiments in a 5G-enabled LACN focusing on coverage-interference co-optimization, where DT-MOO increases the high-quality coverage rate from 14.0% to 52.9% across all evaluated altitudes compared to an operator-provisioned, experience-based baseline, while achieving a net SINR gain under stringent criteria despite local spatial trade-offs, confirming its ability to handle coupled objectives in practical LACN deployment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

DT-MOO shows coverage gains in 5G tests but lacks digital twin fidelity checks to support its claims.

read the letter

The punchline for this paper is that DT-MOO delivers measurable gains in a live 5G low-altitude network, but without evidence that the digital twin itself is accurate, it's unclear how much the method contributed. What stands out as new is the focus on coupled objectives in dynamic 3D LACN environments—coverage, interference, handovers, sensing—and using a unified digital twin to optimize them together rather than tuning one at a time. The real-world 5G experiments are a plus, showing the framework in action against an operator baseline. It does well by giving specific numbers: high-quality coverage rising from 14% to 52.9% across altitudes, plus a net SINR improvement despite some local trade-offs. That kind of before-and-after data is what makes the work potentially useful for people planning drone networks or similar. The main soft spot is the missing validation for the twin. The abstract describes a high-fidelity replica with environmental, propagation, and traffic models, yet supplies no RMSE, coverage error, or SINR error figures comparing twin outputs to field data. No calibration process is described either. This means the performance lift could stem from any difference in how the new parameters were chosen, not necessarily from the twin's predictive power. If the full paper has those metrics, they need to be front and center. This paper is for wireless systems researchers and practitioners dealing with aerial or mobile networks where simulation-to-reality gaps matter. It would interest a reading group focused on digital twins or 5G/6G optimization. I would bring it to peer review. The experimental claims are sharp enough to warrant referee time, and the authors can strengthen the twin validation section.

Referee Report

2 major / 0 minor

Summary. The paper proposes DT-MOO, a digital twin-based multi-objective optimization framework for low-altitude communication networks (LACNs). It builds a high-fidelity virtual replica integrating environmental models, electromagnetic propagation, and traffic dynamics to jointly optimize coupled objectives such as coverage, interference, handover, and sensing. Real-world experiments in a 5G-enabled LACN are reported, claiming that DT-MOO raises the high-quality coverage rate from 14.0% to 52.9% across evaluated altitudes relative to an operator experience-based baseline while delivering a net SINR gain under stringent criteria despite local trade-offs.

Significance. If the digital twin's predictions transfer reliably to the physical network, the framework could meaningfully reduce reliance on costly iterative field trials for LACN deployment by enabling systematic multi-objective optimization in dynamic 3D environments. The reported numerical gains over a practical baseline constitute a concrete strength, as does the emphasis on handling objective coupling rather than isolated tuning. However, the absence of twin fidelity evidence limits the ability to attribute the gains specifically to the digital-twin approach.

major comments (2)

[Abstract] Abstract: The headline performance numbers (14.0% to 52.9% high-quality coverage, net SINR gain) are presented as results of real-world experiments that applied DT-MOO. For these numbers to demonstrate the value of the digital-twin method, quantitative fidelity metrics between the twin and physical measurements (e.g., RMSE on coverage probability maps or SINR error) are required; none are supplied.
[Abstract] Abstract (experimental validation paragraph): No description is given of how the digital twin was calibrated on the 5G testbed, nor of any pre- and post-optimization comparison between twin-predicted and measured coverage/SINR maps for the final configuration. Without such evidence the observed improvements could arise from any difference in parameter selection independent of twin accuracy.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the referee's constructive comments on the experimental validation of DT-MOO. The points raised regarding twin fidelity are valid and will be addressed through targeted revisions to strengthen attribution of the reported gains to the digital-twin framework.

read point-by-point responses

Referee: [Abstract] Abstract: The headline performance numbers (14.0% to 52.9% high-quality coverage, net SINR gain) are presented as results of real-world experiments that applied DT-MOO. For these numbers to demonstrate the value of the digital-twin method, quantitative fidelity metrics between the twin and physical measurements (e.g., RMSE on coverage probability maps or SINR error) are required; none are supplied.

Authors: We agree that quantitative fidelity metrics are necessary to rigorously attribute the observed improvements to the digital twin rather than to parameter selection in general. The current manuscript describes the twin's construction from environmental and EM models and reports real-world outcomes from the optimized configurations, but does not supply explicit metrics such as RMSE. In the revision we will add these metrics, drawn from our 5G testbed data, including direct comparisons of twin-predicted versus measured coverage and SINR values. revision: yes
Referee: [Abstract] Abstract (experimental validation paragraph): No description is given of how the digital twin was calibrated on the 5G testbed, nor of any pre- and post-optimization comparison between twin-predicted and measured coverage/SINR maps for the final configuration. Without such evidence the observed improvements could arise from any difference in parameter selection independent of twin accuracy.

Authors: The referee correctly identifies the absence of calibration details and map-level comparisons in the abstract (and supporting sections). While the paper outlines the unified modeling of environment, propagation, and traffic, it does not detail the calibration steps on the testbed or provide pre/post-optimization fidelity maps. We will expand the experimental validation section with a concise description of the calibration procedure and include quantitative pre- and post-optimization comparisons to demonstrate that the gains arise from twin-guided optimization. revision: yes

Circularity Check

0 steps flagged

No circularity; results are measured outcomes from real-world experiments against external baseline

full rationale

The paper's central claim rests on real-world 5G LACN experiments that directly compare DT-MOO-optimized configurations to an operator-provisioned experience-based baseline, reporting measured improvements in high-quality coverage rate (14.0% to 52.9%) and net SINR. No equations, fitted parameters, or self-citations are shown that would make these outcomes equivalent to inputs by construction. The framework description (high-fidelity virtual replica integrating environmental, EM, and traffic models) is presented as a tool for optimization, with validation supplied by external field measurements rather than internal re-derivation or renaming of known patterns. This matches the default expectation of a non-circular empirical study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the unverified accuracy of the constructed digital twin and on the transferability of its optimization outputs to physical hardware.

axioms (1)

domain assumption The digital twin accurately captures real-world EM propagation, environmental models, and traffic dynamics
Invoked to justify that optimized configurations will perform as predicted in the physical network

invented entities (1)

DT-MOO digital twin model no independent evidence
purpose: To enable joint evaluation and optimization of interdependent network parameters
New virtual replica introduced by the framework; no independent falsifiable evidence of its fidelity is supplied in the abstract

pith-pipeline@v0.9.0 · 5591 in / 1381 out tokens · 71170 ms · 2026-05-10T04:43:14.439807+00:00 · methodology
