arxiv: 2510.08140 · v2 · submitted 2025-10-09 · 📡 eess.SP

Towards Precise Channel Knowledge Map: Exploiting Environmental Information from 2D Visuals to 3D Point Clouds

Yancheng Wang , Chuan Huang , Songyang Zhang , Guanying Chen , Wei Guo , Shenglun Lan , Lexi Xu , Xinzhou Cheng
show 2 more authors
Xiongyan Tang Shuguang Cui
This is my paper

Pith reviewed 2026-05-18 08:39 UTC · model grok-4.3

classification 📡 eess.SP
keywords channel knowledge map3D point cloudssemantic understandingwireless communicationshybrid model-driven approachradio map6G networkschannel prediction
0
0 comments X

The pith

Three-dimensional point clouds with semantic labels enable precise channel knowledge maps without exhaustive pilot measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to establish that shifting from two-dimensional visuals to three-dimensional point clouds enhanced with semantic understanding supports the construction of high-precision channel knowledge maps. Conventional pilot-based channel sounding consumes unsustainable resources for 6G networks featuring massive channel dimensions and dense deployments. A hybrid model- and data-driven framework processes these 3D environments to predict location-tagged channel information at unmeasured spots. A sympathetic reader would care because this offers a path to scalable access to channel data that avoids repeated full-scale measurements in new settings.

Core claim

The central claim is that a novel framework integrating 3D point clouds into channel knowledge map construction through a hybrid model- and data-driven approach, demonstrated via extensive case studies in real-world scenarios, shows the potential for precise CKMs based on 3D environments with semantic understanding along with applications in next-generation wireless communications, supported by the release of a real-world dataset pairing measured channels with high-resolution 3D environmental data.

What carries the argument

The hybrid model- and data-driven framework that integrates 3D point clouds with semantic labels to predict channel properties at locations without direct measurements.

If this is right

  • Channel knowledge maps can be constructed with substantially lower overhead than traditional pilot-based sounding.
  • Semantic understanding added to 3D environments improves the accuracy of channel predictions at new locations.
  • The approach scales to networks with massive channel dimensions and dense user deployments.
  • A released dataset of paired channel measurements and high-resolution 3D data enables further validation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real-time updates to point cloud data could support dynamic channel prediction as environments change.
  • Combining the framework with other sensor inputs such as radar might strengthen semantic labels in complex settings.
  • The maps could implicitly improve beamforming decisions and resource allocation in dense wireless systems.

Load-bearing premise

High-resolution 3D point clouds plus semantic labels contain sufficient information to predict radio channel properties at unmeasured locations without requiring exhaustive pilot measurements in every new environment.

What would settle it

Collecting actual channel measurements in a previously unseen real-world environment and finding large discrepancies between those values and the predictions generated by the 3D point cloud framework would falsify the central claim.

Figures

Figures reproduced from arXiv: 2510.08140 by Chuan Huang, Guanying Chen, Lexi Xu, Shenglun Lan, Shuguang Cui, Songyang Zhang, Wei Guo, Xinzhou Cheng, Xiongyan Tang, Yancheng Wang.

Figure 1
Figure 1. Figure 1: Representative applications of CKM: 1) Network Optimization and Planning. Received signal strength (RSS) CKMs enable spectrum management, coverage optimization, and interference control; in low-altitude economies, drones rely on 3D CKMs to avoid coverage holes. 2) Proactive Handover. Angle of arrival (AoA) CKMs forecast imminent blockages (e.g., by buildings) and enable seamless mobility-aware handovers, s… view at source ↗
Figure 2

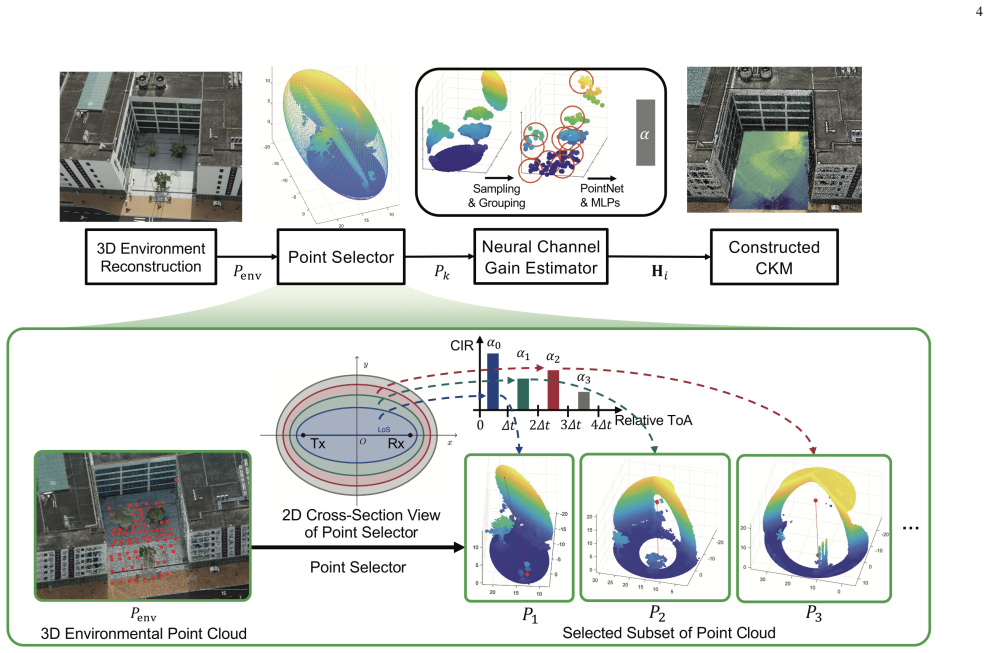

Figure 2. Figure 2: Flowchart of the proposed CKM construction method. The Point Selector partitions the environment into mutually exclusive regions. Each region is [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

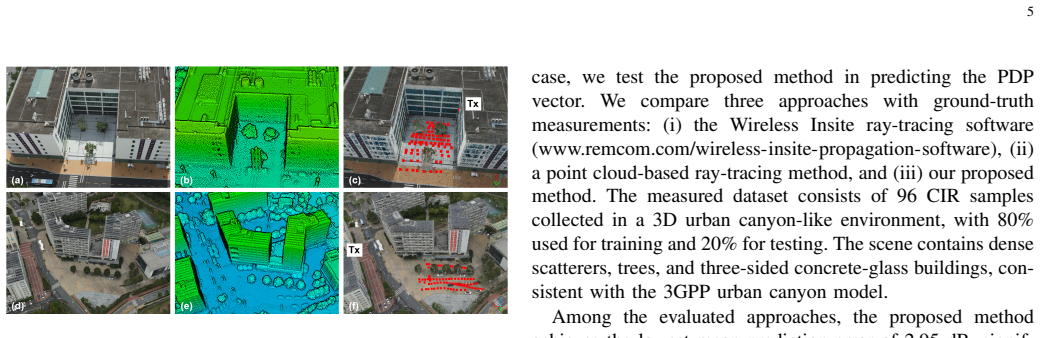

Figure 3. Figure 3: Illustration of channel sounding sites and the point clouds. First row: [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

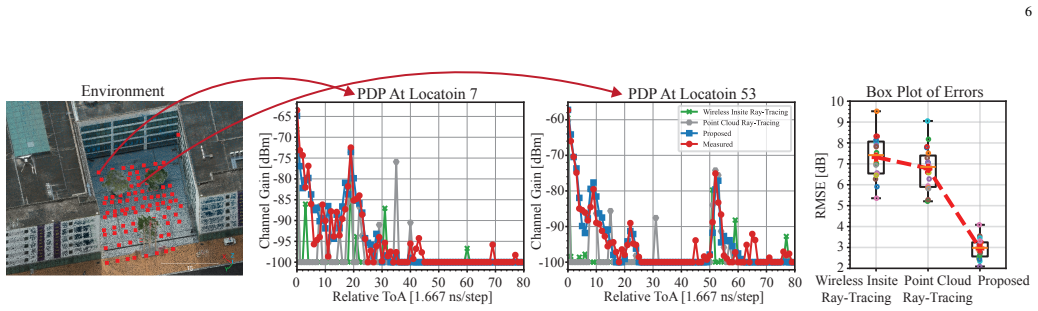

Figure 4. Figure 4: Results of Vector-valued CKM reconstruction: The compared ray-tracing methods can accurately identify ToA of most propagation paths but introduce [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

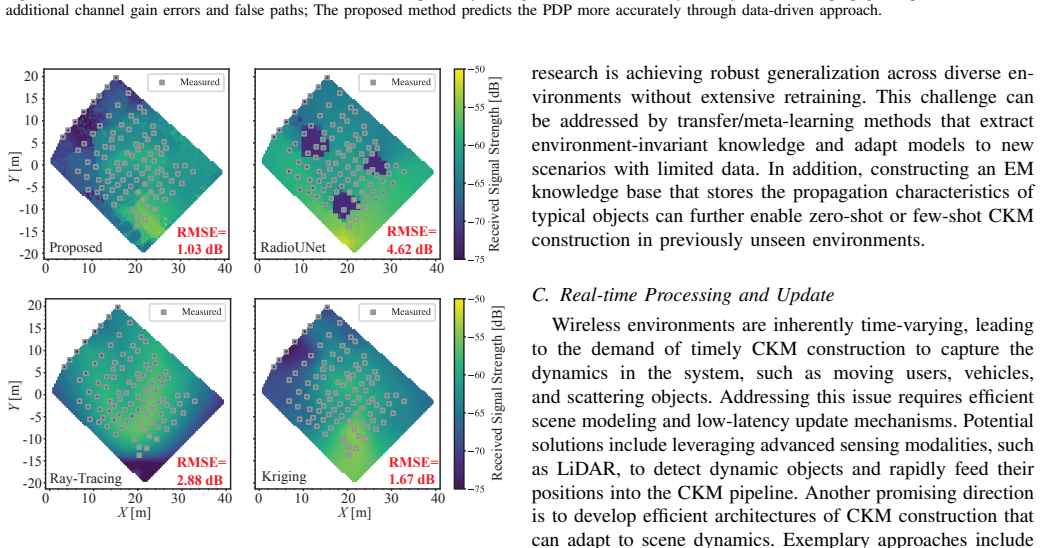

Figure 5. Figure 5: Scalar-valued CKM reconstruction results: The proposed method [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

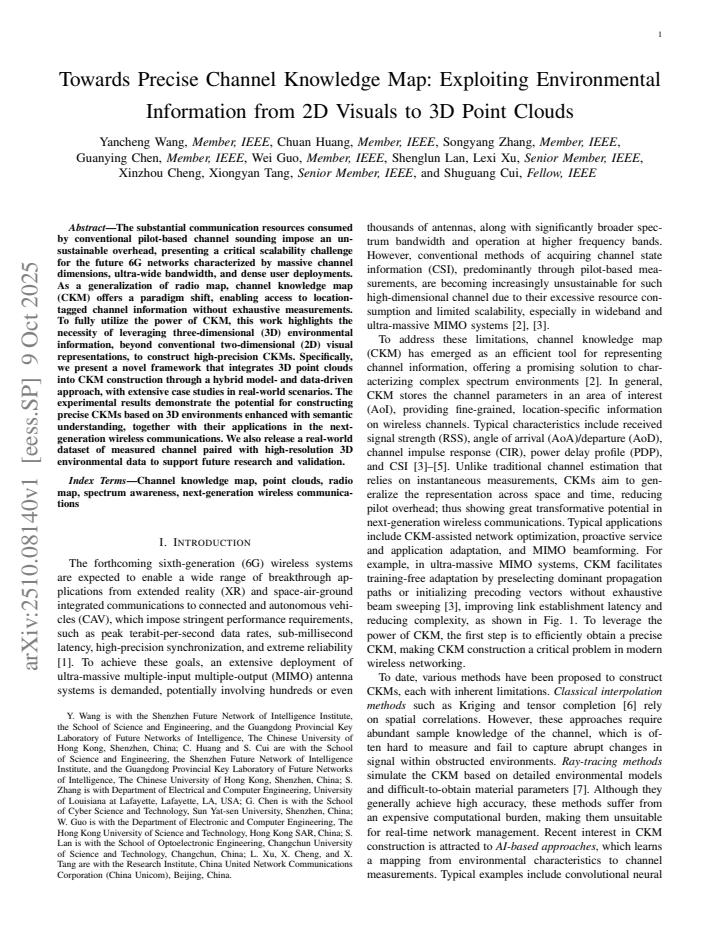

read the original abstract

The substantial communication resources consumed by conventional pilot-based channel sounding impose an unsustainable overhead, presenting a critical scalability challenge for the future 6G networks characterized by massive channel dimensions, ultra-wide bandwidth, and dense user deployments. As a generalization of radio map, channel knowledge map (CKM) offers a paradigm shift, enabling access to location-tagged channel information without exhaustive measurements. To fully utilize the power of CKM, this work highlights the necessity of leveraging three-dimensional (3D) environmental information, beyond conventional two-dimensional (2D) visual representations, to construct high-precision CKMs. Specifically, we present a novel framework that integrates 3D point clouds into CKM construction through a hybrid model- and data-driven approach, with extensive case studies in real-world scenarios. The experimental results demonstrate the potential for constructing precise CKMs based on 3D environments enhanced with semantic understanding, together with their applications in the next-generation wireless communications. We also release a real-world dataset of measured channel paired with high-resolution 3D environmental data to support future research and validation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a hybrid model- and data-driven framework that integrates 3D point clouds (derived from 2D visuals and augmented with semantic labels) to construct precise Channel Knowledge Maps (CKMs) as a generalization of radio maps. The approach aims to reduce the overhead of exhaustive pilot-based channel sounding in 6G scenarios with massive channel dimensions. It includes real-world case studies and releases a paired dataset of measured channels and high-resolution 3D environmental data.

Significance. If the central claims hold, the work could meaningfully advance scalable channel prediction for next-generation wireless systems by exploiting readily available visual and geometric environmental information. The public release of a real-world measured-channel-plus-3D-point-cloud dataset is a concrete strength that supports reproducibility and community validation.

major comments (2)
  1. [Abstract] Abstract: the claim that 'experimental results demonstrate the potential for constructing precise CKMs' is load-bearing for the paper's contribution, yet the abstract (and available text) supplies no quantitative metrics, error bars, baseline comparisons, or details on post-hoc experimental choices. This absence prevents assessment of whether the hybrid method actually achieves the promised precision or generalization.
  2. [Framework description] Framework / hybrid approach section: the central claim that semantic 3D point clouds suffice to predict channel properties at unmeasured locations rests on the assumption that visual geometry plus labels capture the necessary propagation physics. Radio propagation depends on surface material parameters (permittivity, conductivity) that RGB+geometry data cannot directly recover; the manuscript does not specify how these are obtained, estimated, or whether the model falls back to purely geometric ray-tracing whose known accuracy limits without material calibration are addressed.
minor comments (2)
  1. [Dataset] Dataset section: while the release is positive, the manuscript should detail the measurement campaign (environments, equipment, frequency bands, number of locations) and any semantic labeling procedure to allow independent verification.
  2. [Throughout] Notation and terminology: ensure consistent expansion of 'CKM' and related acronyms on first use in every major section.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and insightful comments, which help us improve the clarity and rigor of the manuscript. We provide point-by-point responses to the major comments below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that 'experimental results demonstrate the potential for constructing precise CKMs' is load-bearing for the paper's contribution, yet the abstract (and available text) supplies no quantitative metrics, error bars, baseline comparisons, or details on post-hoc experimental choices. This absence prevents assessment of whether the hybrid method actually achieves the promised precision or generalization.

    Authors: We agree that the abstract would benefit from greater specificity to allow readers to immediately gauge the strength of the results. The full manuscript contains quantitative evaluations in real-world measured scenarios, including direct comparisons between 3D point-cloud-based predictions and 2D visual baselines, with reported prediction errors and improvements. In the revised version we will augment the abstract with concise quantitative highlights (e.g., relative error reductions and baseline comparisons) while preserving its length. This change directly addresses the concern without altering the underlying claims. revision: yes

  2. Referee: [Framework description] Framework / hybrid approach section: the central claim that semantic 3D point clouds suffice to predict channel properties at unmeasured locations rests on the assumption that visual geometry plus labels capture the necessary propagation physics. Radio propagation depends on surface material parameters (permittivity, conductivity) that RGB+geometry data cannot directly recover; the manuscript does not specify how these are obtained, estimated, or whether the model falls back to purely geometric ray-tracing whose known accuracy limits without material calibration are addressed.

    Authors: We appreciate the referee’s emphasis on material parameters, which is a valid point for any geometry-based propagation model. Our framework is explicitly hybrid: the model-driven component performs ray-tracing on the 3D geometry augmented by semantic labels (e.g., “concrete,” “glass,” “vegetation”) that map to typical material classes and associated propagation characteristics. The data-driven component is trained directly on paired real-world channel measurements and the corresponding 3D point clouds; this learning stage implicitly compensates for deviations from ideal material assumptions, unmodeled scattering, and other effects not captured by geometry alone. Consequently, we do not require separate material calibration or fallback to purely geometric ray-tracing. We will expand the framework description to explicitly articulate this hybrid compensation mechanism and the role of semantic labels in material inference. revision: partial

Circularity Check

0 steps flagged

No significant circularity: hybrid model-data framework relies on external 3D measurements and real-world paired dataset

full rationale

The paper presents a hybrid model- and data-driven framework that integrates external 3D point clouds (from visuals) with semantic labels and real-world channel measurements to construct CKMs. No equations or derivation steps are shown that reduce predictions to fitted parameters by construction, nor does the central claim rest on self-citations whose content is unverified or load-bearing only via author overlap. The released dataset of measured channels paired with high-resolution 3D data provides external grounding, keeping the approach self-contained against benchmarks rather than tautological. The skeptic concern about missing EM material properties is a correctness/validity issue, not a circularity reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the premise that 3D geometric and semantic data suffice to replace most pilot measurements; no explicit free parameters, axioms, or invented entities are named in the abstract, but the hybrid model-data method implicitly assumes accurate environment-to-channel mapping functions exist and can be learned.

pith-pipeline@v0.9.0 · 5758 in / 1177 out tokens · 28304 ms · 2026-05-18T08:39:49.694803+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking echoes
    ?
    echoes

    ECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.

    To achieve accurate and robust CKM reconstruction, it is essential to exploit beyond traditional 2D visuals and utilize 3D environmental information... wireless channel is inherently determined by the surrounding 3D environment

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 2 Pith papers

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Sparse Gain Radio Map Reconstruction With Geometry Priors and Uncertainty-Guided Measurement Selection

    cs.CV 2026-04 unverdicted novelty 6.0

    GeoUQ-GFNet reconstructs dense urban gain radio maps from sparse measurements using geometry priors and uncertainty-guided active sensing, showing consistent gains over non-adaptive sampling on the new UrbanRT-RM ray-...

  2. Building Low-Altitude Communication Networks: A Digital Twin-Based Optimization Framework

    eess.SP 2026-04 unverdicted novelty 5.0

    DT-MOO uses a digital twin to jointly optimize coupled objectives in low-altitude communication networks, raising high-quality coverage from 14.0% to 52.9% in 5G real-world tests while delivering net SINR gains.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages · cited by 2 Pith papers

  1. [1]

    6G wireless systems: Vision, requirements, challenges, insights, and opportunities,

    H. Tataria, M. Shafi, A. F. Molisch, M. Dohler, H. Sj ¨oland, and F. Tufvesson, “6G wireless systems: Vision, requirements, challenges, insights, and opportunities,”Proc. IEEE, vol. 109, no. 7, pp. 1166–1199, Jul. 2021

    work page 2021

  2. [2]

    Toward environment-aware 6G communications via channel knowledge map,

    Y . Zeng and X. Xu, “Toward environment-aware 6G communications via channel knowledge map,”IEEE Wireless Commun., vol. 28, no. 3, pp. 84–91, Mar. 2021

    work page 2021

  3. [3]

    A tutorial on environment-aware communications via channel knowledge map for 6G,

    Y . Zeng, J. Chen, J. Xu, D. Wu, X. Xu, S. Jin, X. Gao, D. Gesbert, S. Cui, and R. Zhang, “A tutorial on environment-aware communications via channel knowledge map for 6G,”IEEE Commun. Surveys Tutor ., vol. 26, no. 3, pp. 1478–1519, Mar. 2024

    work page 2024

  4. [4]

    Channel knowledge maps construction based on point cloud environment information,

    Y . Wang, Y . Li, G. Chen, and C. Huang, “Channel knowledge maps construction based on point cloud environment information,” inProc. IEEE V eh. Technol. Conf. (VTC), Oct. 2024, pp. 1–5

    work page 2024

  5. [5]

    Point cloud environment-based channel knowledge map construction,

    Y . Wang, W. Guo, C. Huang, G. Chen, Y . Zhang, and S. Cui, “Point cloud environment-based channel knowledge map construction,”arXiv preprint arXiv:2506.21112, 2025

    work page arXiv 2025

  6. [6]

    Distributed radio map reconstruction for 5G automotive,

    V .-P. Chowdappa, C. Botella, J. J. Samper-Zapater, and R. J. Martinez, “Distributed radio map reconstruction for 5G automotive,”IEEE Intell. Transp. Syst. Mag., vol. 10, no. 2, pp. 36–49, Feb. 2018

    work page 2018

  7. [7]

    A ray-tracing model for millimeter-wave radio propagation in dense-scatter outdoor environments,

    J. C. da Silva and E. Costa, “A ray-tracing model for millimeter-wave radio propagation in dense-scatter outdoor environments,”IEEE Trans. Antennas Propag., vol. 69, no. 12, pp. 8618–8629, Dec. 2021

    work page 2021

  8. [8]

    RME-GAN: A learning framework for radio map estimation based on conditional generative adversarial network,

    S. Zhang, A. Wijesinghe, and Z. Ding, “RME-GAN: A learning framework for radio map estimation based on conditional generative adversarial network,”IEEE Internet Things J., vol. 10, no. 20, pp. 18 016–18 027, Oct. 2023

    work page 2023

  9. [9]

    RadioUNet: Fast radio map estimation with convolutional neural networks,

    R. Levie, C ¸ . Yapar, G. Kutyniok, and G. Caire, “RadioUNet: Fast radio map estimation with convolutional neural networks,”IEEE Trans. Wireless Commun., vol. 20, no. 6, pp. 4001–4015, June 2021

    work page 2021

  10. [10]

    Survey on 3D reconstruction techniques: Large-scale urban city reconstruction and requirements,

    A. Christodoulides, G. K. Tam, J. Clarke, R. Smith, J. Horgan, N. Micallef, J. Morley, N. Villamizar, and S. Walton, “Survey on 3D reconstruction techniques: Large-scale urban city reconstruction and requirements,”IEEE Trans. Visual Comput. Graphics, 2025, early access, doi: 10.1109/TVCG.2025.3540669

    work page doi:10.1109/tvcg.2025.3540669 2025

  11. [11]

    3D Gaussian splatting for real-time radiance field rendering,

    B. Kerbl, G. Kopanas, T. Leimk ¨uhler, and G. Drettakis, “3D Gaussian splatting for real-time radiance field rendering,”ACM Trans. Graphics, vol. 42, no. 4, pp. 1–14, Apr. 2023

    work page 2023

  12. [12]

    Segment anything,

    A. Kirillov, E. Mintun, N. Ravi, H. Mao, C. Rolland, L. Gustafson, T. Xiao, S. Whitehead, A. C. Berg, W.-Y . Loet al., “Segment anything,” inProc. IEEE Int. Conf. Comput. Vis. (ICCV), 2023, pp. 4015–4026

    work page 2023

  13. [13]

    Aerial lifting: Neural urban semantic and building instance lifting from aerial imagery,

    Y . Zhang, G. Chen, J. Chen, and S. Cui, “Aerial lifting: Neural urban semantic and building instance lifting from aerial imagery,” inProc. IEEE Conf. Comput. Vis. Pattern Recognit. (CVPR), 2024, pp. 21 092– 21 103

    work page 2024

  14. [14]

    Pointnet++: Deep hierarchical feature learning on point sets in a metric space,

    C. R. Qi, L. Yi, H. Su, and L. J. Guibas, “Pointnet++: Deep hierarchical feature learning on point sets in a metric space,” inProc. Conf. Neural Inf. Process. Syst. (NIPS), vol. 30, 2017, pp. 5105–5114

    work page 2017

  15. [15]

    Physics-inspired machine learning for radiomap estimation: Integration of radio propagation mod- els and artificial intelligence,

    S. Zhang, B. Choi, F. Ouyang, and Z. Ding, “Physics-inspired machine learning for radiomap estimation: Integration of radio propagation mod- els and artificial intelligence,”IEEE Commun. Mag., vol. 62, no. 8, pp. 155–161, Aug. 2024. BIOGRAPHY Yancheng Wangis a Ph.D. candidate in the School of Science and Engineering at The Chinese University of Hong Kong,...

    work page 2024
