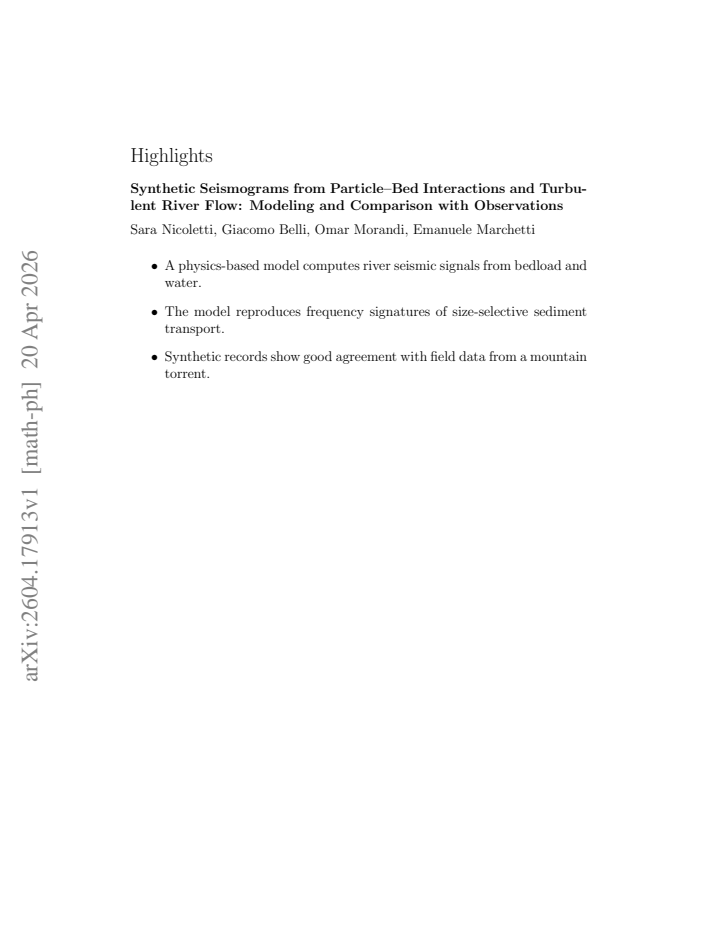

Synthetic Seismograms from Particle Bed Interactions and Turbulent River Flow: Modeling and Comparison with Observations

Pith reviewed 2026-05-10 04:00 UTC · model grok-4.3

classification 🧮 math-ph math.MPphysics.flu-dyn
keywords river seismic noisesediment transportgrain-scale modelingsynthetic seismogramsturbulent flowparticle bed interactionsRayleigh wavesflood monitoring
0
0 comments X

The pith

A grain-scale numerical model of particle impacts and turbulence in rivers generates synthetic seismograms that match observed data and separate sediment transport from flow noise.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a physics-based numerical model that tracks individual grain trajectories in gravel-bed rivers, calculates impact and rolling forces at the particle scale, and incorporates broadband turbulence plus vortex shedding. It then converts these forces into synthetic seismic ground-velocity signals using the Rayleigh wave Green's function for propagation to receivers. When tested on a controlled case, the model produces distinct spectral signatures tied to intermittent, size-selective sediment movement. Direct comparison to seismic recordings from a mountain torrent flood shows matching frequency bands and clarifies how much each process contributes. Readers would care because this turns passive seismic monitoring into a potential way to interpret specific river dynamics like sediment flux without needing to sample the bed directly.

Core claim

By resolving grain-scale particle trajectories, impact and rolling forces, and turbulent flow effects, the model produces synthetic seismograms whose frequency content agrees with observations from a Tuscan Apennines flood event, thereby showing that grain-scale dynamics can discriminate between sediment transport and flow-induced contributions to river seismic noise.

What carries the argument

The physics-based numerical model that computes individual particle trajectories, grain-scale impact and rolling forces, broadband turbulence and vortex shedding, then propagates the resulting forces to receivers with the Rayleigh wave Green's function.

If this is right

  • Intermittent and size-selective sediment transport mechanisms produce distinct spectral signatures in the seismic signals.
  • The model achieves general agreement with observed frequency bands from a real flood event in a mountain torrent.
  • Particle collisions and turbulent flow can be separated by the relative width of their contributions in the seismic spectrum.
  • Resolved grain-scale dynamics supplies a framework for interpreting the sources of river seismic noise.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same modeling approach could be applied to rivers with different grain sizes or flow regimes to test whether the spectral separation persists.
  • Seismic data might be inverted with this type of model to estimate sediment transport rates during events.
  • The method links microscale bed processes to macroscale environmental signals and could support remote monitoring of river sediment dynamics.

Load-bearing premise

The assumption that the simulated particle trajectories, impact forces, turbulence description, and Rayleigh wave propagation accurately represent real grain-scale interactions and wave transmission to the seismometers.

What would settle it

Seismic recordings from additional river floods or controlled flume experiments that show frequency bands or amplitude ratios for particle collisions and turbulence that do not match the model's distinct predicted signatures would challenge the discrimination claim.

Figures

Figures reproduced from arXiv: 2604.17913 by Emanuele Marchetti, Giacomo Belli, Omar Morandi, Sara Nicoletti.

Figure 1
Figure 1. Figure 1: Two-dimensional schematic representation of the numerical model. Spherical [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a): Schematic of the numerical test domain. Flow depth is [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Sediment transport metrics from the numerical test case. (a) diameter distri [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Map of the Re della Pietra catchment, showing the locations of the RIN2 and [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Flow depth (a) and vertical seismic signal (c) recorded by RIN4 seismic station [PITH_FULL_IMAGE:figures/full_fig_p022_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Flow depth (a) and vertical seismic signal (c) recorded by RIN2 seismic station [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗
read the original abstract

We present a physics based numerical model that estimates the seismic radiation generated by water sediment flows in gravel-bed rivers. The model reproduces the trajectories of individual particles, evaluates impact and rolling forces from grain scale dynamics, and accounts for broadband turbulence and vortex shedding in the water column. Synthetic seismic signals are propagated to the receivers using the Rayleigh wave Green s function approach and synthetic ground-velocity signals are estimated. Application to a controlled test case shows how intermittent, size selective sediment transport mechanisms produce distinct spectral signatures. Comparison with seismic data from a flood event in a mountain torrent in the Tuscan Apennines displays general agreement with the observed frequency bands and clarifies the relative width of particle collisions and turbulent flow. These results show that resolved grain scale dynamics provides a framework for discriminating sediment transport and flow induced contributions to river seismic noise.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a physics-based numerical model for estimating seismic radiation from water-sediment flows in gravel-bed rivers. The model tracks individual particle trajectories, computes impact and rolling forces from grain-scale interactions, incorporates effects of broadband turbulence and vortex shedding, and generates synthetic ground-velocity signals by propagating these forces using the Rayleigh wave Green's function. It demonstrates distinct spectral signatures in a controlled test case due to intermittent, size-selective sediment transport and shows general agreement with frequency bands observed in seismic data from a flood event in the Tuscan Apennines, suggesting a framework for discriminating sediment transport and flow-induced contributions to river seismic noise.

Significance. If the grain-scale force models and Rayleigh-wave propagation accurately represent real conditions, this work provides a valuable physics-based framework for separating sediment-transport signals from turbulent-flow noise in river seismic monitoring. The explicit resolution of particle dynamics and direct comparison to external field observations are strengths that distinguish it from purely empirical approaches.

major comments (2)
  1. [Abstract and field-comparison section] Abstract and field-comparison section: the claim of 'general agreement with the observed frequency bands' is presented without quantitative metrics (e.g., no spectral correlation coefficient, RMS misfit, or overlap integral), which is load-bearing for the central discrimination result.
  2. [Test-case and model-description sections] Test-case and model-description sections: no sensitivity analysis is reported for the free parameters (particle-size-distribution parameters and turbulence/vortex-shedding scaling factors), so it is unclear whether the reported distinct spectral signatures are robust or artifacts of specific parameter choices.
minor comments (2)
  1. [Abstract] Abstract: 'Green s function' should be 'Green's function'.
  2. [Abstract] Abstract: the phrase 'clarifies the relative width of particle collisions and turbulent flow' is ambiguous; rephrasing for clarity would help.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review of our manuscript. We address each major comment point-by-point below, acknowledging where improvements are needed and outlining the revisions we will implement.

read point-by-point responses
  1. Referee: [Abstract and field-comparison section] Abstract and field-comparison section: the claim of 'general agreement with the observed frequency bands' is presented without quantitative metrics (e.g., no spectral correlation coefficient, RMS misfit, or overlap integral), which is load-bearing for the central discrimination result.

    Authors: We agree that the field comparison relies on a qualitative description of overlapping frequency bands without quantitative support, which weakens the central claim. The original analysis focused on identifying shared elevated-power intervals between synthetic and observed spectra, but direct quantitative comparison is complicated by differences in amplitude scaling, unmodeled site effects, and additional noise in the field data. In the revised manuscript we will add a quantitative metric: specifically, we will compute and report the overlap integral of the normalized power spectral densities over the 5–50 Hz band, together with a spectral correlation coefficient, to provide an objective measure of agreement. revision: yes

  2. Referee: [Test-case and model-description sections] Test-case and model-description sections: no sensitivity analysis is reported for the free parameters (particle-size-distribution parameters and turbulence/vortex-shedding scaling factors), so it is unclear whether the reported distinct spectral signatures are robust or artifacts of specific parameter choices.

    Authors: The referee correctly identifies the lack of sensitivity analysis. The particle-size-distribution parameters and turbulence/vortex-shedding scaling factors were selected on the basis of the controlled test-case geometry and standard values from the sediment-transport and fluid-dynamics literature. To demonstrate robustness, the revised manuscript will include a new subsection that systematically varies these parameters (mean grain size and sorting coefficient by ±25 %, turbulence scaling factors by ±30 %) and shows that the separation between collision-dominated and turbulence-dominated spectral peaks persists across the tested range. revision: yes

Circularity Check

0 steps flagged

No significant circularity: forward physics model with external data comparison

full rationale

The paper constructs a forward numerical model from grain-scale particle trajectories, impact/rolling forces, turbulence/vortex effects, and Rayleigh-wave Green's function propagation, then compares synthetics to field observations. No step reduces a claimed prediction to a fitted parameter or self-citation by construction; the discrimination claim rests on the model's independent physics content and its match to external data rather than tautological re-expression of inputs. Calibration of parameters is acknowledged as possible but does not convert the reported results into fitted outputs renamed as predictions.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The model rests on standard assumptions from fluid dynamics and seismology rather than new postulates; specific free parameters for particle sizes and turbulence scaling are implied but not quantified in the abstract.

free parameters (2)
  • particle size distribution parameters
    Controls size-selective sediment transport and resulting spectral signatures in the test case
  • turbulence and vortex shedding scaling factors
    Adjusts broadband flow-induced forces to match observed frequency bands
axioms (2)
  • domain assumption Rayleigh wave Green's function accurately represents signal propagation from river bed sources to receivers
    Invoked for estimating synthetic ground-velocity signals
  • domain assumption Individual particle trajectories and impact/rolling forces can be deterministically computed from flow conditions
    Core premise of the grain-scale dynamics component
