Multipolar Piezoelectricity and Anisotropic Surface Transport in Alterelectrics

Amber Visser , Viktor K\"onye , Oleg Janson , Jeroen van den Brink , Corentin Coulais , Jasper van Wezel

Authors on Pith no claims yet

Pith reviewed 2026-05-10 03:52 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.str-el

keywords alterelectricsaltermagnetsquadrupolar piezoelectricityhyperbolic dispersionanisotropic surface transportelectric polarizationmultipolar effectscondensed matter materials

0 comments

The pith

Alterelectrics, electric-polarization analogs to altermagnets, exhibit quadrupolar piezoelectricity, hyperbolic dispersion, and surface modes for anisotropic transport.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces alterelectrics as materials that replace magnetism with electric polarization while retaining the symmetries of d-wave altermagnets. These symmetries produce quadrupolar piezoelectricity, in which strain along one axis induces a polarization response equal in size but opposite in sign to strain along the perpendicular axis. The same setup yields hyperbolic wave dispersion and surface-localized modes that create direction-dependent electronic transport on different crystal faces. The work demonstrates these features both in a simplified theoretical model and in a first-principles material example. A sympathetic reader would care because the approach isolates symmetry-driven effects from magnetism, potentially enabling new piezoelectric and transport devices that avoid net magnetization or magnetic order.

Core claim

By observing that the symmetries giving rise to d-wave altermagnetism can provide anisotropic, quadrupolar piezomagnetism, the authors introduce alterelectrics as an electric-polarization-based alternative. These alterelectrics display quadrupolar piezoelectricity and a hyperbolic dispersion, demonstrated conceptually within a simplified model as well as a first-principles material realization. A counterpart of the spin-separated bands is formed by surface modes which allow for surface dependent anisotropic electronic transport analogous to the spintronic applications proposed for altermagnets.

What carries the argument

Alterelectrics, defined as polarization-based materials sharing the d-wave symmetries of altermagnets, which carry quadrupolar piezoelectricity and produce hyperbolic dispersion plus surface modes.

If this is right

Quadrupolar piezoelectricity produces equal-magnitude but opposite-sign polarization responses under perpendicular strains.
Hyperbolic dispersion appears as a direct consequence of the retained symmetries.
Surface modes create a spin-split-band analog that supports anisotropic electronic transport varying with crystal surface orientation.
The framework separates magnetic contributions from symmetry-based properties, opening routes to non-magnetic analogs of proposed altermagnet applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

These materials could enable strain sensors or actuators that electrically distinguish orthogonal deformation directions.
Hyperbolic dispersion may permit unusual wave propagation effects such as negative refraction or directional filtering inside bulk crystals.
Surface-dependent transport anisotropy suggests device designs in which conductivity or carrier type differs across adjacent crystal faces, allowing multi-terminal configurations without external fields.

Load-bearing premise

The symmetries responsible for d-wave altermagnetism can be transferred directly to an electric-polarization setting without magnetic order or competing effects altering the quadrupolar piezoelectricity, hyperbolic dispersion, or surface transport.

What would settle it

First-principles calculations or measurements on the proposed material realization that fail to produce quadrupolar piezoelectricity or the predicted surface modes would falsify the central claims.

Figures

Figures reproduced from arXiv: 2604.18324 by Amber Visser, Corentin Coulais, Jasper van Wezel, Jeroen van den Brink, Oleg Janson, Viktor K\"onye.

**Figure 2.** Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: c). In contrast, the electric polarization resulting from pressure in coordinate directions does not exceed the numerical error (orange circles in Fig. 4c). While the atomic structure considered here is a fictitious material introduced only to illustrate the possibility of designing materials guided by alterelectric symmetry constraints, we note that perovskite films and heterostructures thereof are in… view at source ↗

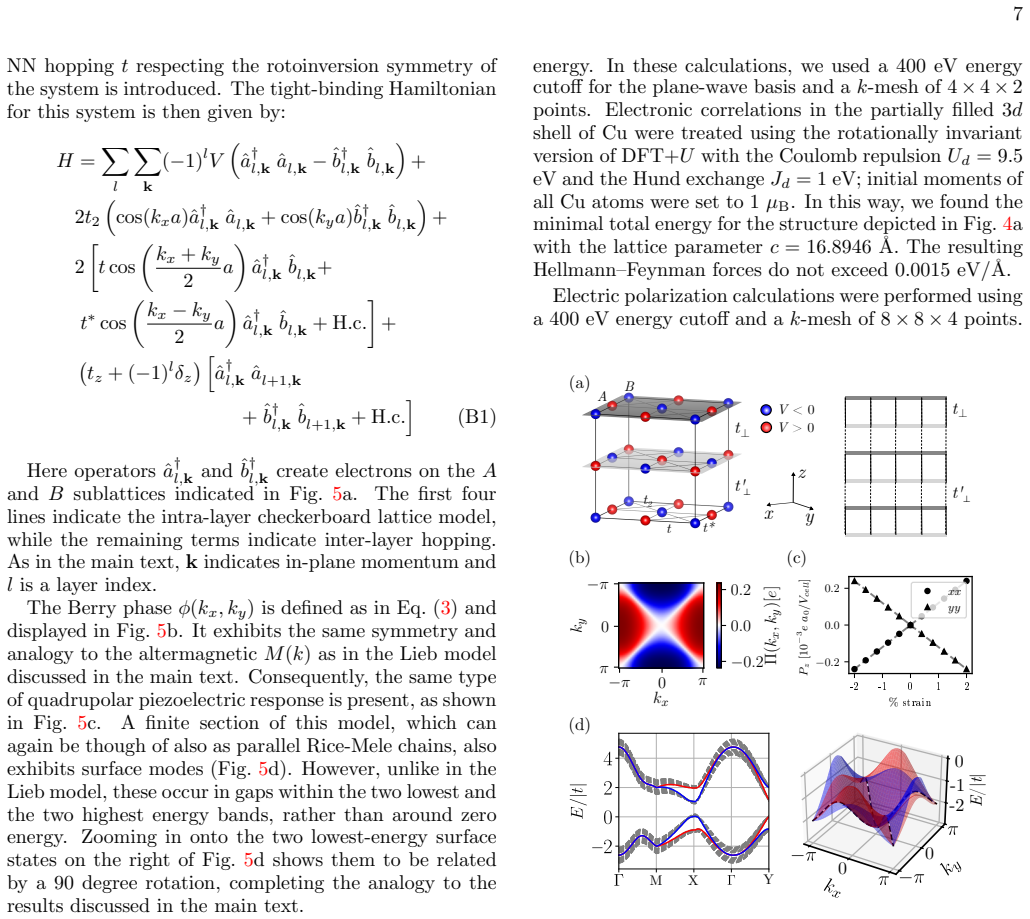

**Figure 5.** Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

read the original abstract

Altermagnets are an emergent class of materials combining features of ferro- and antiferro-magnetic materials. They have spin-separated bands normally associated with ferromagnets, but a vanishing net magnetization. Moreover the symmetries giving rise to $d$-wave altermagnetism can provide them with a particular anisotropic, quadrupolar (i.e. with equal and opposite values when strained in perpendicular directions) piezomagnetism. Observing that the same symmetries provide a natural place to look for hyberbolic wave dispersion, this raises the question which properties are intrinsically linked to magnetism and which are determined by the symmetry. Here, we disentangle these concepts by introducing an alternative to altermagnets, based on electric polarization. These alterelectrics display quadrupolar piezoelectricity and a hyperbolic dispersion, which we demonstrate conceptually within a simplified model as well as a first-principles material realization. We furthermore establish that a counterpart of the spin-separated bands is formed by surface modes which allow for surface dependent anisotropic electronic transport analogous to the spintronic applications proposed for altermagnets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The alterelectrics framing cleanly separates symmetry from magnetism and shows the expected quadrupolar and surface effects in both model and calculation, though the first-principles support is still light on quantitative checks.

read the letter

The paper introduces alterelectrics as a polarization-based counterpart to altermagnets. It maps the d-wave symmetries to get quadrupolar piezoelectricity, hyperbolic dispersion, and surface modes that produce anisotropic transport, all without net magnetization or magnetic order. They lay this out in a simplified model and then in a first-principles material example. That separation is the main new piece: it shows which features come from the symmetry pattern itself rather than from the magnetic moments. The model part is straightforward and makes the hyperbolic bands and the equal-and-opposite strain response easy to see. The surface-mode claim is a direct analog to the spin-split bands in altermagnets and is presented as a route to similar transport applications. The first-principles section confirms the symmetry-allowed responses appear in a real compound. The stress-test concern about inversion breaking by polarization versus axial moments does not seem to break the predictions here; their calculation still produces the clean quadrupolar tensor and the surface anisotropy without obvious extra Rashba terms dominating. That said, the abstract and summary give almost no numbers, error bars, or material identity, so it is hard to judge how large the effects are or how sensitive they are to small perturbations. If the full calculation includes all strain couplings and still shows the claimed behavior, the central claim holds. This is for condensed-matter groups already working on altermagnets, piezoelectrics, or symmetry-protected transport. A reader looking for new material classes with anisotropic responses would find the mapping useful. The work is coherent enough on its own terms to go to referees, mainly so the first-principles details and any competing effects can be checked properly.

Referee Report

1 major / 3 minor

Summary. The manuscript introduces alterelectrics as electric-polarization analogs to altermagnets, using the same d-wave symmetries to predict quadrupolar piezoelectricity (with d_xx = -d_yy) and hyperbolic dispersion. These are demonstrated conceptually in a simplified model and via first-principles calculations on a candidate material. The work further claims that surface modes form a counterpart to spin-split bands, enabling surface-dependent anisotropic electronic transport analogous to altermagnet spintronics applications.

Significance. If the claims hold, the result would be significant for multipolar ferroics and piezoelectrics by disentangling symmetry-driven anisotropic responses from magnetic order. The combination of a simplified model with a concrete first-principles material realization provides a useful grounding for the idea and could stimulate searches for non-magnetic materials with quadrupolar piezoelectricity and surface transport anisotropy.

major comments (1)

[Symmetry considerations and first-principles section] The symmetry transfer from d-wave altermagnetism to alterelectrics is load-bearing for the central claims of quadrupolar piezoelectricity and hyperbolic dispersion, yet the manuscript does not provide a detailed point-group comparison. Electric polarization is a polar vector that breaks inversion symmetry, while compensated magnetic moments are axial; this difference can alter allowed tensor components (e.g., introducing extra linear strain-polarization couplings or Rashba-like terms absent in the magnetic case). The first-principles section must therefore include an explicit space-group symmetry analysis and show that the computed piezoelectric tensor and band dispersion match the expected quadrupolar form without competing contributions.

minor comments (3)

[Introduction] The abstract and introduction introduce the term 'alterelectrics' without referencing prior literature on multipolar or higher-order piezoelectricity; adding 2-3 key citations would clarify novelty.
[Figures 2 and 4] Figure captions for the model band structures and surface-state plots should explicitly label high-symmetry points in the Brillouin zone and indicate the energy scale used for the hyperbolic dispersion.
[Simplified model] The notation for the piezoelectric tensor components (e.g., the quadrupolar d_ij) is introduced without a compact table comparing it to the standard Voigt notation; a small table would improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and for emphasizing the need for explicit symmetry verification to support the central claims. We address the major comment below and have revised the manuscript to incorporate the requested analysis.

read point-by-point responses

Referee: [Symmetry considerations and first-principles section] The symmetry transfer from d-wave altermagnetism to alterelectrics is load-bearing for the central claims of quadrupolar piezoelectricity and hyperbolic dispersion, yet the manuscript does not provide a detailed point-group comparison. Electric polarization is a polar vector that breaks inversion symmetry, while compensated magnetic moments are axial; this difference can alter allowed tensor components (e.g., introducing extra linear strain-polarization couplings or Rashba-like terms absent in the magnetic case). The first-principles section must therefore include an explicit space-group symmetry analysis and show that the computed piezoelectric tensor and band dispersion match the expected quadrupolar form without competing contributions.

Authors: We agree that an explicit point-group and space-group analysis is necessary to rigorously establish the symmetry transfer. In the revised manuscript we have added a dedicated subsection that compares the space-group symmetries of the candidate alterelectric material to those of d-wave altermagnets. Within the selected symmetry class the polar character of the electric polarization does not generate additional linear strain-polarization couplings or Rashba-like terms that would compete with the quadrupolar response; the allowed piezoelectric tensor remains strictly quadrupolar (d_xx = -d_yy). The updated first-principles calculations explicitly confirm that the computed piezoelectric tensor and band dispersion match this form without extraneous contributions, as verified by direct symmetry analysis of the computed quantities. revision: yes

Circularity Check

0 steps flagged

Symmetry transfer and first-principles verification are independent of inputs

full rationale

The paper maps d-wave altermagnet symmetries to an electric-polarization setting to define alterelectrics, then demonstrates quadrupolar piezoelectricity, hyperbolic dispersion, and surface-mode transport via a simplified model plus explicit first-principles calculations on a concrete material. No equations or claims reduce by construction to fitted parameters, self-definitions, or load-bearing self-citations; the results follow from symmetry-allowed tensor components and computed band structures that can be checked externally. The derivation chain therefore remains non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claims rest on transferring d-wave altermagnetic symmetries to an electric-polarization setting; no explicit free parameters are stated, but the mapping itself functions as an untested domain assumption.

axioms (1)

domain assumption The symmetries that produce d-wave altermagnetism can be realized with electric polarization instead of magnetic moments without additional interfering orders.
Invoked in the opening paragraph to justify the alterelectric construction.

invented entities (1)

alterelectrics no independent evidence
purpose: Electric-polarization-based materials exhibiting quadrupolar piezoelectricity, hyperbolic dispersion, and anisotropic surface transport.
New class introduced conceptually and via model/first-principles; no independent experimental evidence or falsifiable prediction outside the paper is provided.

pith-pipeline@v0.9.0 · 5508 in / 1471 out tokens · 41475 ms · 2026-05-10T03:52:23.780074+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

42 extracted references · 4 canonical work pages · 1 internal anchor

[1]

ˇSmejkal, R

L. ˇSmejkal, R. Gonz´ alez-Hern´ andez, T. Jungwirth, and J. Sinova, Science advances6, eaaz8809 (2020)

2020
[2]

ˇSmejkal, A

L. ˇSmejkal, A. H. MacDonald, J. Sinova, S. Nakat- 6 suji, and T. Jungwirth, Nature Reviews Materials7, 482 (2022)

2022
[3]

Xu and L

X. Xu and L. Yang, Nano Letters25, 11870 (2025)

2025
[4]

H.-Y. Ma, M. Hu, N. Li, J. Liu, W. Yao, J.-F. Jia, and J. Liu, Nature communications12, 2846 (2021)

2021
[5]

Staquet and J

C. Staquet and J. Sommeria, Ann. Rev. Fluid Mech.34, 559 (2002)

2002
[6]

Poddubny, I

A. Poddubny, I. Iorsh, P. Belov, and Y. Kivshar, Nature Photon.7, 948 (2013)

2013
[7]

D. Lee, S. So, G. Hu, M. Kim, T. Badloe, H. Cho, J. Kim, H. Kim, C.-W. Qiu, and J. Rho, eLight2, 1 (2022)

2022
[8]

W. Ji, J. Luo, T. S. abd Ruwen Peng, M. Wang, and Y. Lai, ACS Photonics11, 2422 (2024)

2024
[9]

Gomez-Diaz and A

J. Gomez-Diaz and A. Alu, ACS Photonics3, 2211 (2016)

2016
[10]

G. Hu, A. Krasnok, Y. Mazor, C.-W. Qiu, and A. Al` u, Nano letters20, 3217 (2020)

2020
[11]

S. Yves, E. Galiffi, X. Ni, E. M. Renzi, and A. Al` u, Phys. Rev. X14, 021031 (2024)

2024
[12]

ˇSmejkal, J

L. ˇSmejkal, J. Sinova, and T. Jungwirth, Physical Review X12, 040501 (2022)

2022
[13]

Leivisk¨ a, J

M. Leivisk¨ a, J. Rial, A. Bad’ura, R. L. Seeger, I. Kounta, S. Beckert, D. Kriegner, I. Joumard, E. Schmoranzerov´ a, J. Sinova,et al., Physical Review B109, 224430 (2024)

2024
[14]

Reichlova, R

H. Reichlova, R. Lopes Seeger, R. Gonz´ alez-Hern´ andez, I. Kounta, R. Schlitz, D. Kriegner, P. Ritzinger, M. Lam- mel, M. Leivisk¨ a, A. Birk Hellenes,et al., Nature Com- munications15, 4961 (2024)

2024
[15]

C. Song, H. Bai, Z. Zhou, L. Han, H. Reichlova, J. H. Dil, J. Liu, X. Chen, and F. Pan, Nature Reviews Materials , 1 (2025)

2025
[16]

S. A. A. Ghorashi, T. L. Hughes, and J. Cano, Physical review letters133, 106601 (2024)

2024
[17]

Gonz´ alez-Hern´ andez, L.ˇSmejkal, K

R. Gonz´ alez-Hern´ andez, L.ˇSmejkal, K. V` yborn` y, Y. Ya- hagi, J. Sinova, T. Jungwirth, and J. ˇZelezn` y, Physical Review Letters126, 127701 (2021)

2021
[18]

A. S. Kim, Y. Huang, Z. Sun, Q.-H. Park, and H. Choi, arXiv:2506.23497 (2025)

work page arXiv 2025
[19]

Brekke, A

B. Brekke, A. Brataas, and A. Sudbø, Physical Review B108, 224421 (2023)

2023
[20]

W.-P. Su, J. Schrieffer, and A. Heeger, Physical Review B22, 2099 (1980)

2099
[21]

Rice and E

M. Rice and E. Mele, Physical Review Letters49, 1455 (1982)

1982
[22]

Momma and F

K. Momma and F. Izumi, J. Appl. Cryst.44, 1272 (2011)

2011
[23]

J. D. Hunter, Comput. Sci. Eng.9(3), 90 (2007)

2007
[24]

King-Smith and D

R. King-Smith and D. Vanderbilt, Physical Review B47, 1651 (1993)

1993
[25]

Resta, Ferroelectrics151, 49 (1994)

R. Resta, Ferroelectrics151, 49 (1994)

1994
[26]

Vanderbilt,Berry phases in electronic structure the- ory: electric polarization, orbital magnetization and topo- logical insulators(Cambridge University Press, 2018)

D. Vanderbilt,Berry phases in electronic structure the- ory: electric polarization, orbital magnetization and topo- logical insulators(Cambridge University Press, 2018)

2018
[27]

A. C. H. Visser, V. K¨ onye, O. Janson, J. van den Brink, C. Coulais, and J. van Wezel, Zenodo 10.5281/zen- odo.19662810 (2026)

work page doi:10.5281/zen- 2026
[28]

Y. Wu, L. Deng, X. Yin, J. Tong, F. Tian, and X. Zhang, Nano Letters24, 10534 (2024)

2024
[29]

T. Koga, N. Kurita, M. Avdeev, S. Danilkin, T. J. Sato, and H. Tanaka, Phys. Rev. B93, 10.1103/phys- revb.93.054426 (2016)

work page doi:10.1103/phys- 2016
[30]

Vasala, M

S. Vasala, M. Avdeev, S. Danilkin, O. Chmaissem, and M. Karppinen, J. Phys.: Condens. Matter26, 496001 (2014)

2014
[31]

Watanabe, N

M. Watanabe, N. Kurita, H. Tanaka, W. Ueno, K. Mat- sui, and T. Goto, Phys. Rev. B98, 054422 (2018)

2018
[32]

Mustonen, S

O. Mustonen, S. Vasala, K. P. Schmidt, E. Sadrollahi, H. C. Walker, I. Terasaki, F. J. Litterst, E. Baggio- Saitovitch, and M. Karppinen, Phys. Rev. B98, 064411 (2018)

2018
[33]

O. H. J. Mustonen, E. Fogh, J. A. M. Paddison, L. Mangin-Thro, T. Hansen, H. Y. Playford, M. Diaz- Lopez, P. Babkevich, S. Vasala, M. Karppinen, E. J. Cussen, H. M. Rønnow, and H. C. Walker, Chem. Mater. 36, 501 (2023)

2023
[34]

Kresse and J

G. Kresse and J. Furthm¨ uller, Phys. Rev. B54, 11169 (1996)

1996
[35]

Kresse and J

G. Kresse and J. Furthm¨ uller, Comput. Mater. Sci.6, 15 (1996)

1996
[36]

Kresse and D

G. Kresse and D. Joubert, Phys. Rev. B59, 1758 (1999)

1999
[37]

Cheng, Y

X. Cheng, Y. Han, and B.-B. Cui, Advanced Optical Ma- terials10, 2102224 (2022)

2022
[38]

J. Y. Park, Y. H. Lee, H. Kim, and L. Dou, Journal of Applied Physics134(2023)

2023
[39]

S. Fang, J. Wang, Z. Guo, J. Gong, H. Meng, W. Wang, Z. Cheng, X. Wang, and Y. S. Ang, arXiv:2604.07112 (2026)

work page internal anchor Pith review Pith/arXiv arXiv 2026
[40]

C. W. Groth, M. Wimmer, A. R. Akhmerov, and X. Waintal, New J. Phys.16, 063065 (2014)

2014
[41]

K. V. Yershov, V. P. Kravchuk, M. Daghofer, and J. van den Brink, Physical Review B110, 144421 (2024)

2024
[42]

altermagnet-like

J. P. Perdew, K. Burke, and M. Ernzerhof, Phys. Rev. Lett.77, 3865 (1996). Appendix A: T ransport calculations We consider a multi-terminal transport setup, in which leads are attached to all sides on the top and bottom of the octagonal column scattering region shown in Fig. 3ab. The Kwant package is used to calculate the resulting scat- tering matrix and...

1996
