arxiv: 2604.18462 · v1 · submitted 2026-04-20 · ❄️ cond-mat.soft · physics.flu-dyn

Diffusion compaction coupling controls pore pressure dynamics in granular fluid flows

Eric C.P. Breard , Claudia Elijas Parra , Mattia de' Michieli Vitturi This is my paper

Pith reviewed 2026-05-10 03:37 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.flu-dyn
keywords pore pressuregranular flowsdiffusioncompactiontwo-phase flowexcess pressuremobilityporosity
0
0 comments X

The pith

Pore-pressure evolution in granular-fluid flows is controlled by the coupling of diffusion and granular compaction, so that apparent diffusivity depends on flow thickness.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors start from two-phase mass conservation in a deformable gas-saturated granular assembly and derive an evolution equation for excess pore pressure that includes both diffusive drainage and a forcing term arising from changes in the granular skeleton. In the thin-flow, small-excess-pressure limit this reduces to a one-dimensional diffusion-compaction equation whose solution is governed by a single dimensionless ratio that measures the relative strength of the compaction source and diffusive relaxation. Modal analysis of that equation produces a reduced basal model whose effective diffusivity collapses data from high-resolution two-fluid simulations across nearly two orders of magnitude in bed height. When the same closure is inserted into a depth-averaged flow model it reproduces the observed dependence of pore-pressure decay and runout distance on flow thickness.

Core claim

Starting from two-phase mass conservation for a deformable, gas-saturated granular assembly, the authors obtain an evolution equation for excess pore pressure that retains the deformation of the granular skeleton. In the thin-flow, small-excess-pressure limit this equation reduces to a one-dimensional diffusion-compaction equation containing a time-dependent source term controlled by porosity changes. A modal analysis then yields a reduced basal equation that cleanly separates diffusive drainage from compaction-driven forcing and identifies the corresponding timescales; the resulting dimensionless source-to-diffusion ratio collapses effective diffusivities measured in simulations over a wide

What carries the argument

The one-dimensional diffusion-compaction equation with a time-dependent source term from porosity changes, together with the dimensionless source-to-diffusion ratio that governs the competition between the two processes.

If this is right

  • Effective diffusivity is no longer an intrinsic material property but scales with flow thickness through the competition between diffusion and compaction.
  • Pore-pressure decay times and therefore flow mobility become predictable functions of bed height once the source-to-diffusion ratio is known.
  • Depth-averaged models that incorporate the derived closure reproduce the thickness dependence of runout distance seen in experiments without additional fitting parameters.
  • The framework supplies a physically based replacement for the constant-diffusivity assumption used in many existing granular-flow models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same coupling could be used to estimate how mobility changes when the same granular mixture is released on slopes of different lengths, providing a scale-aware prediction for natural debris flows.
  • Direct measurement of local porosity evolution during flow would furnish an independent test of the source term strength assumed in the derivation.
  • Extension of the modal analysis to two-dimensional or three-dimensional geometries would show whether lateral drainage pathways alter the thickness scaling in wider channels.

Load-bearing premise

The thin-flow, small-excess-pressure limit in which two-phase mass conservation reduces to the one-dimensional diffusion-compaction equation.

What would settle it

Perform laboratory or numerical experiments that systematically vary bed height while holding all other parameters fixed and measure whether the observed pore-pressure decay rates collapse onto a single curve when plotted against the predicted source-to-diffusion ratio.

Figures

Figures reproduced from arXiv: 2604.18462 by Claudia Elijas Parra, Eric C.P. Breard, Mattia de' Michieli Vitturi.

Figure 1
Figure 1. Figure 1: FIG. 1. One-dimensional MFIX-TFM simulations of a 0 [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

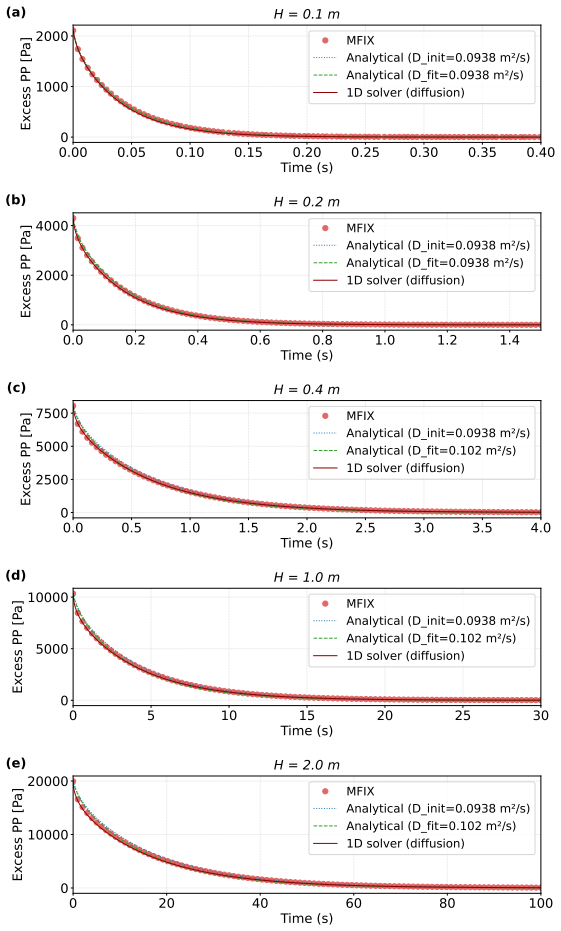

Figure 2. Figure 2: FIG. 2. Comparison between the 1-D diffusion-only solver (no dilatancy, [PITH_FULL_IMAGE:figures/full_fig_p018_2.png] view at source ↗
Figure 3

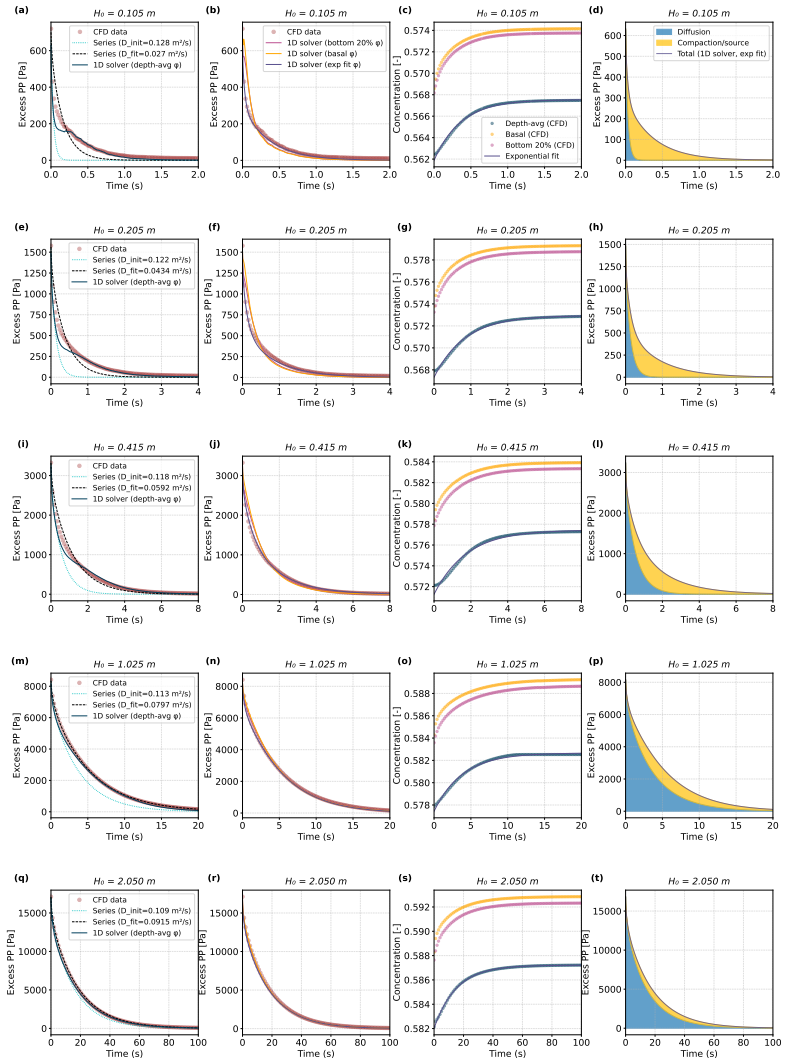

Figure 3. Figure 3: FIG. 3. Comparison between MFIX–TFM basal excess pore pressure and reduced 1-D models [PITH_FULL_IMAGE:figures/full_fig_p020_3.png] view at source ↗
Figure 4

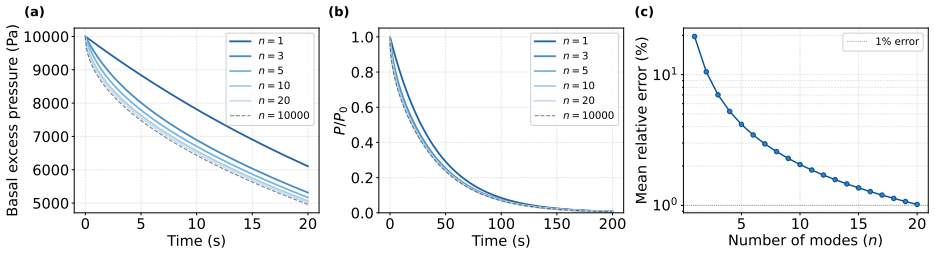

Figure 4. Figure 4: FIG. 4. Convergence of the Fourier-series reconstruction of the basal excess pressure for a 1 [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Porosity change ∆ [PITH_FULL_IMAGE:figures/full_fig_p027_5.png] view at source ↗
Figure 6

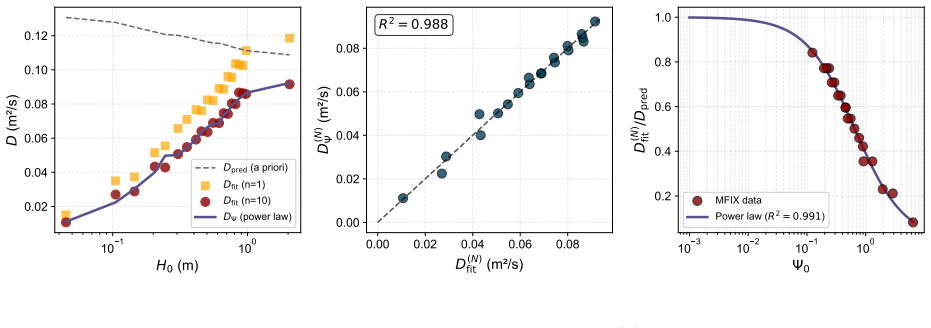

Figure 6. Figure 6: FIG. 6. Ψ [PITH_FULL_IMAGE:figures/full_fig_p030_6.png] view at source ↗
Figure 7

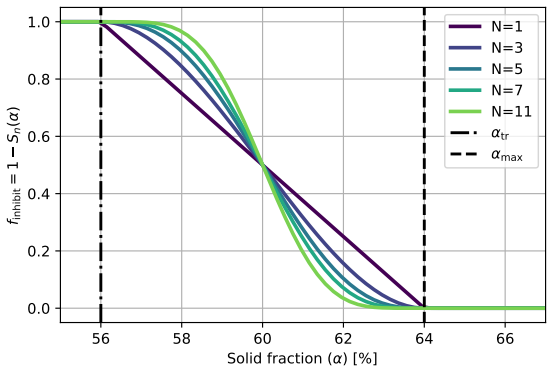

Figure 7. Figure 7: FIG. 7. Representation of the inhibit factor, [PITH_FULL_IMAGE:figures/full_fig_p034_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. The classical [PITH_FULL_IMAGE:figures/full_fig_p039_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. (a-f) Diffusion of basal excess pore pressure ( [PITH_FULL_IMAGE:figures/full_fig_p041_9.png] view at source ↗
Figure 10

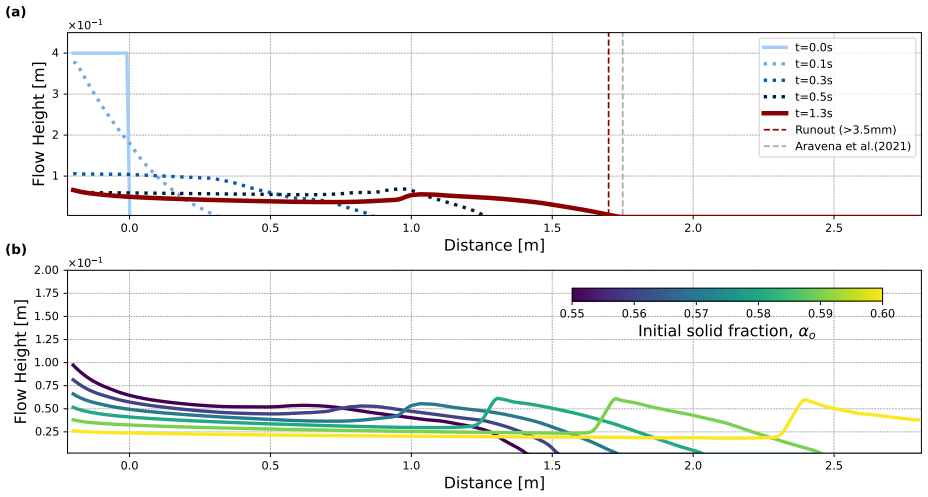

Figure 10. Figure 10: FIG. 10. IMEX simulations reproducing the dam break experiment presented in [10, 13, 14] for [PITH_FULL_IMAGE:figures/full_fig_p042_10.png] view at source ↗
Figure 11

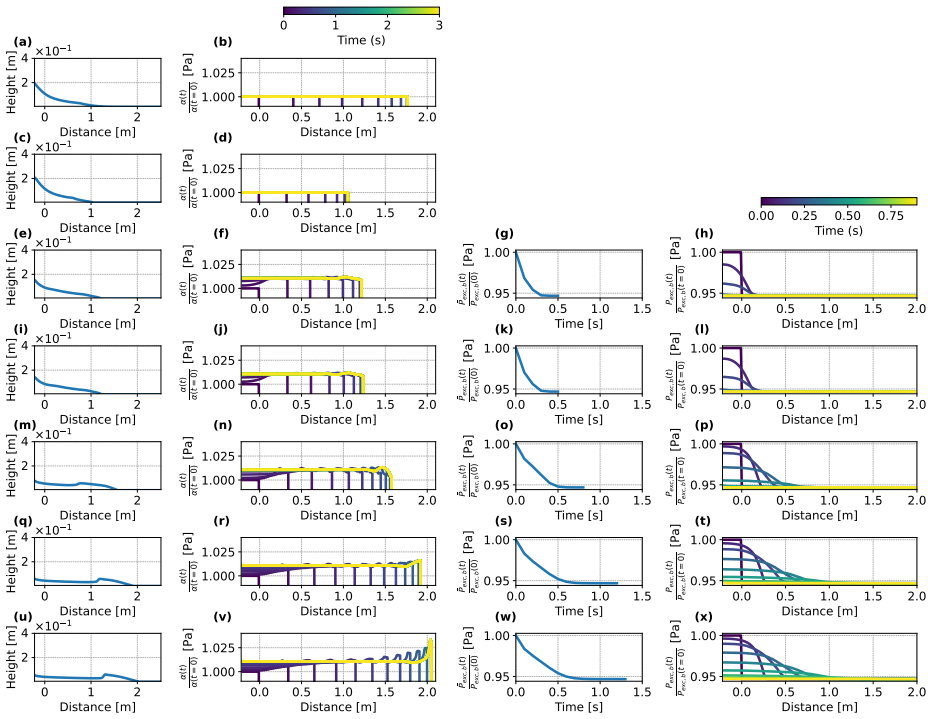

Figure 11. Figure 11: FIG. 11. Simulations to showcase the effect on flow dynamics of a range of features available in [PITH_FULL_IMAGE:figures/full_fig_p044_11.png] view at source ↗
Figure 12

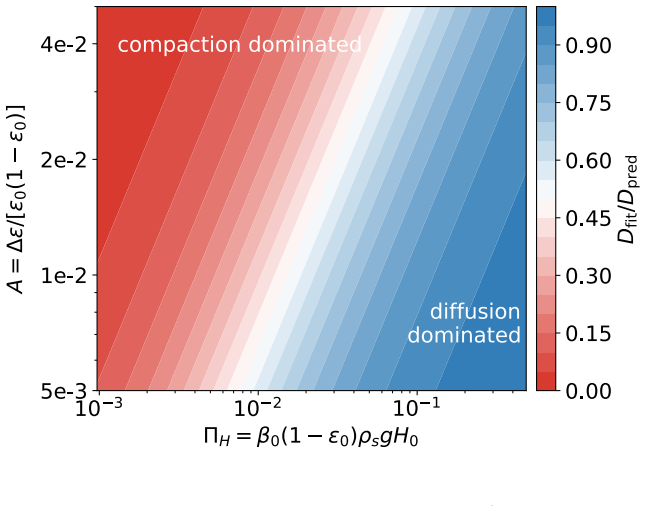

Figure 12. Figure 12: FIG. 12. Contour map of the normalized diffusivity ratio [PITH_FULL_IMAGE:figures/full_fig_p047_12.png] view at source ↗
read the original abstract

Excess pore pressure in granular--fluid mixtures can transiently suppress frictional contacts and dramatically enhance flow mobility, yet its evolution is commonly modeled using constant effective diffusivities. Here we show that the apparent diffusivity is not intrinsic but emerges from the coupling between pore-pressure diffusion and granular compaction. Starting from two-phase mass conservation for a deformable, gas-saturated granular assembly, we derive an evolution equation for excess pore pressure that captures deformation of the granular skeleton. In the thin-flow, small-excess-pressure limit, this reduces to a one-dimensional diffusion--compaction equation with a time-dependent source term controlled by porosity changes. A modal analysis yields a reduced basal equation that separates diffusive drainage from compaction-driven forcing and identifies the corresponding timescales. This framework introduces a dimensionless source-to-diffusion ratio, $\Psi_0$, which governs the competition between these processes and collapses effective diffusivities obtained from high-resolution two-fluid simulations over nearly two orders of magnitude in bed height. This scaling implies that the apparent diffusivity, and thus flow mobility, is not intrinsic but depends on flow thickness through the competition between diffusion and compaction. Incorporating this physics into a depth-averaged model demonstrates that the resulting closure reproduces the thickness dependence of pore-pressure decay and runout observed in experiments. These results provide a physically grounded description of pore-pressure evolution in granular--fluid flows and clarify how diffusion--compaction coupling controls their mobility.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 4 minor

Summary. The manuscript derives an evolution equation for excess pore pressure in gas-saturated granular assemblies from two-phase mass conservation. In the thin-flow, small-excess-pressure limit this reduces to a one-dimensional diffusion-compaction equation with a time-dependent source term arising from porosity changes. Modal analysis yields a reduced basal equation that isolates diffusive drainage from compaction forcing and defines the dimensionless source-to-diffusion ratio Ψ₀. This parameter collapses effective diffusivities extracted from high-resolution two-fluid simulations across nearly two orders of magnitude in bed height. The resulting closure is inserted into a depth-averaged model that reproduces the observed thickness dependence of pore-pressure decay and runout in experiments.

Significance. If the thin-flow reduction and the resulting Ψ₀ scaling hold, the work establishes that apparent pore-pressure diffusivity is not an intrinsic material constant but emerges from the competition between diffusion and granular compaction, thereby explaining thickness-dependent flow mobility. This supplies a physically derived, falsifiable closure for depth-averaged models of granular-fluid flows. The manuscript is credited for starting from standard conservation laws, demonstrating a clean data collapse over a wide range of bed heights, and closing the loop with experimental validation.

major comments (1)
  1. [§2 (Derivation)] §2 (Derivation): The central claim that the two-phase mass-conservation equations reduce to the one-dimensional diffusion-compaction equation with time-dependent source rests on the thin-flow and small-excess-pressure approximations. The manuscript provides no quantitative estimate of the size of the neglected vertical-velocity or finite-porosity-change terms across the simulated bed-height range (nearly two orders of magnitude). Because any O(1) violation would alter the source term and therefore the modal decomposition that produces the Ψ₀ scaling, this omission directly affects the load-bearing step of the argument.
minor comments (4)
  1. [Simulation methods] The two-fluid simulation protocol (numerical scheme, grid resolution, boundary conditions, and precise procedure for extracting effective diffusivities) is described only at a high level; additional detail is required for reproducibility.
  2. [Modal analysis] Ψ₀ is introduced in the modal-analysis section; its explicit algebraic definition in terms of the source and diffusion coefficients should appear at first use, together with a short statement of how bed height enters through the competition of the two timescales.
  3. [Results (simulation collapse)] The figure showing the collapse of effective diffusivities versus Ψ₀ would benefit from error bars or uncertainty bands on the data points so that the quality of the collapse can be assessed quantitatively.
  4. [Experimental validation] In the depth-averaged model comparison, state whether the parameters were fixed from independent measurements or adjusted to the experimental data; if the latter, quantify the sensitivity of the runout predictions to those choices.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for identifying a point that will strengthen the presentation of our derivation. We address the major comment below.

read point-by-point responses

  1. Referee: §2 (Derivation): The central claim that the two-phase mass-conservation equations reduce to the one-dimensional diffusion-compaction equation with time-dependent source rests on the thin-flow and small-excess-pressure approximations. The manuscript provides no quantitative estimate of the size of the neglected vertical-velocity or finite-porosity-change terms across the simulated bed-height range (nearly two orders of magnitude). Because any O(1) violation would alter the source term and therefore the modal decomposition that produces the Ψ₀ scaling, this omission directly affects the load-bearing step of the argument.

    Authors: We agree that quantitative estimates of the neglected terms would provide stronger support for the approximations. In the revised manuscript we will add an appendix that computes the relative magnitudes of the vertical-velocity contributions and the finite-porosity-change terms directly from the two-fluid simulation data. These estimates will be reported across the full range of bed heights (nearly two orders of magnitude), confirming that both classes of terms remain small compared with the retained terms and do not alter the source term or the resulting Ψ₀ scaling. revision: yes

Circularity Check

0 steps flagged

No significant circularity: derivation from standard conservation laws yields emergent scaling

full rationale

The paper starts from two-phase mass conservation equations for a deformable gas-saturated granular assembly (standard and independent of the target result), derives the excess pore-pressure evolution equation, reduces it under the explicitly stated thin-flow/small-excess-pressure limit to a 1D diffusion-compaction equation with time-dependent source, performs modal analysis to obtain a reduced basal equation, and defines the dimensionless source-to-diffusion ratio Ψ₀ directly from the coefficients of that derived equation. The subsequent collapse of effective diffusivities across bed heights in two-fluid simulations is a consistency check on the derived model rather than a fit; Ψ₀ is not adjusted to the data and the central scaling follows from the modal decomposition of the independently derived PDE. No step reduces by construction to a fitted parameter, self-citation, or renamed input.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Central claim rests on two-phase mass conservation for deformable granular assembly and the thin-flow small-pressure approximation; no free parameters or invented entities are introduced in the abstract description.

axioms (2)
  • domain assumption Two-phase mass conservation for a deformable, gas-saturated granular assembly
    Starting point stated in abstract for deriving the pore-pressure evolution equation.
  • domain assumption Thin-flow, small-excess-pressure limit
    Required for reduction to the one-dimensional diffusion-compaction equation.
