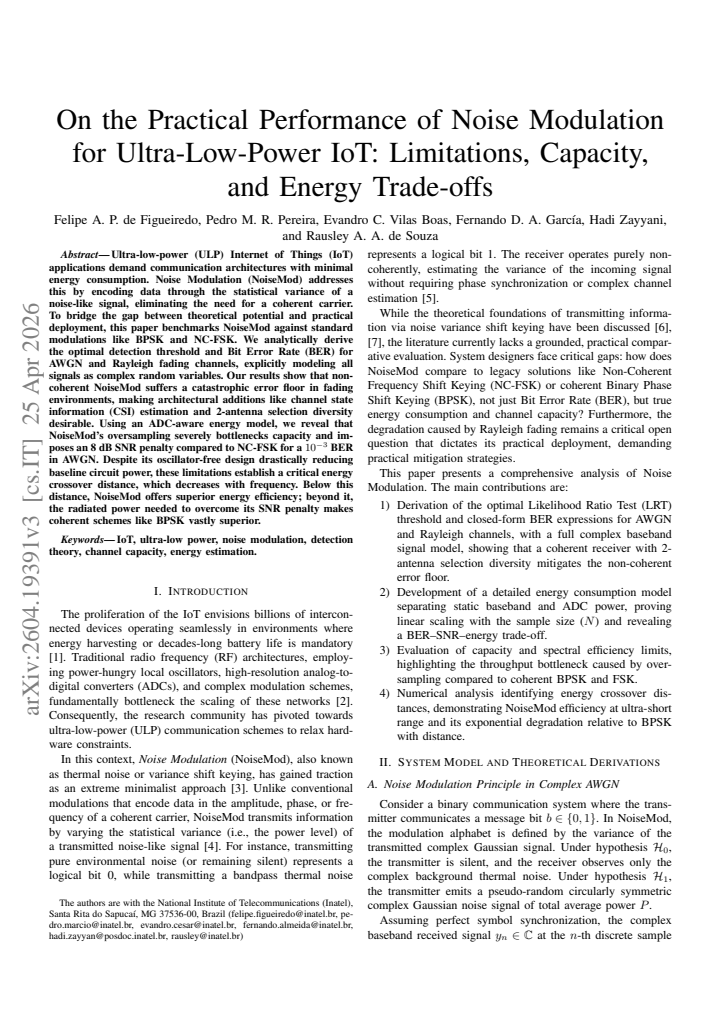

On the Practical Performance of Noise Modulation for Ultra-Low-Power IoT: Limitations, Capacity, and Energy Trade-offs

Felipe A. P. de Figueiredo , Pedro M. R. Pereira , Evandro C. Vilas Boas , Fernando D. A. Garcia , Hadi Zayyani , Rausley A. A. de Souza This is my paper

Pith reviewed 2026-05-10 01:30 UTC · model grok-4.3

classification 💻 cs.IT eess.SPmath.ITstat.AP
keywords noise modulationultra-low-power IoTenergy efficiencybit error rateAWGN channelRayleigh fadingADC energy modeloversampling penalty
0
0 comments X

The pith

Noise modulation for ultra-low-power IoT incurs an 8 dB SNR penalty from oversampling, limiting superior energy efficiency to short distances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates noise modulation, which encodes data in the variance of a noise-like signal without a coherent carrier, against standard schemes like BPSK and NC-FSK for energy-constrained IoT. It derives optimal detection thresholds and bit error rates for AWGN and Rayleigh fading, showing that fading produces a catastrophic error floor unless channel state information and antenna diversity are added. An energy model that includes ADC power consumption demonstrates that the oversampling needed for reliable detection creates severe capacity limits and an 8 dB SNR penalty versus NC-FSK at 10^{-3} BER. This penalty defines a critical crossover distance that shrinks with frequency, below which NoiseMod saves energy due to low circuit power but above which coherent modulations require far less total energy.

Core claim

Benchmarking with an ADC-aware energy model shows that non-coherent NoiseMod suffers a catastrophic error floor in Rayleigh fading without CSI and an 8 dB SNR penalty in AWGN due to oversampling, which bottlenecks capacity and establishes an energy crossover distance that decreases with carrier frequency, making BPSK superior beyond that point.

What carries the argument

ADC-aware energy model that incorporates oversampling factor and derives optimal detection threshold plus BER expressions for AWGN and Rayleigh fading to quantify SNR penalty and total energy trade-offs.

If this is right

  • Below the crossover distance, NoiseMod's oscillator-free design yields lower total energy per bit than BPSK or NC-FSK.
  • Above the distance, the extra transmit power needed to offset the SNR penalty makes coherent BPSK the lower-energy choice.
  • NoiseMod requires CSI estimation and two-antenna selection diversity to avoid error floors in fading channels.
  • Capacity remains severely limited by the high sampling rates demanded for acceptable BER performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Short-range sensor nodes could adopt oscillator-free NoiseMod if real ADCs meet the model's power assumptions.
  • Advances in low-power ADC technology would push the crossover distance outward and broaden NoiseMod's applicability.
  • Field trials in indoor multipath settings would test whether the AWGN-derived penalty and distance hold under realistic conditions.
  • Hybrid schemes that switch between NoiseMod for very short links and BPSK for longer ones could optimize overall IoT energy use.

Load-bearing premise

The ADC power consumption values and oversampling factor used in the energy model accurately represent real ultra-low-power IoT hardware.

What would settle it

Hardware measurements of total energy per bit for NoiseMod and NC-FSK prototypes at the predicted crossover distance, checking whether NoiseMod consumes less energy below it and more above it.

Figures

Figures reproduced from arXiv: 2604.19391 by Evandro C. Vilas Boas, Felipe A. P. de Figueiredo, Fernando D. A. Garcia, Hadi Zayyani, Pedro M. R. Pereira, Rausley A. A. de Souza.

Figure 3
Figure 3. Figure 3: Severe performance degradation of Noise Modulation under flat [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of NoiseMod’s capacity. E. Energy Consumption and Distance Trade-offs The total energy consumption per bit, Ebit, as a function of transmission distance d across multiple frequency bands is illustrated in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Total energy per bit (Ebit) vs. distance for ISM bands. utilizes a non-coherent envelope-detection-based architecture, it eliminates the need for power-intensive local oscillators (LO) and phase-locked loops (PLL). This leads to a baseline circuit power of only 0.6 mW (calculated as PTX_ckt = 0.1 mW and PRX_ckt ≈ 0.5 mW), compared to 4.5 mW for the BPSK counterpart. Consequently, at very short distances, N… view at source ↗
read the original abstract

Ultra-low-power (ULP) Internet of Things (IoT) applications demand communication architectures with minimal energy consumption. Noise Modulation (NoiseMod) addresses this by encoding data through the statistical variance of a noise-like signal, eliminating the need for a coherent carrier. To bridge the gap between theoretical potential and practical deployment, this paper benchmarks NoiseMod against standard modulations like BPSK and NC-FSK. We analytically derive the optimal detection threshold and Bit Error Rate (BER) for AWGN and Rayleigh fading channels. Our results show that non-coherent NoiseMod suffers a catastrophic error floor in fading environments, making architectural additions like channel state information (CSI) estimation and 2-antenna selection diversity desirable. Using an ADC-aware energy model, we reveal that NoiseMod's oversampling severely bottlenecks capacity and imposes an 8 dB SNR penalty compared to NC-FSK for a $10^{-3}$ BER in AWGN. Despite its oscillator-free design drastically reducing baseline circuit power, these limitations establish a critical energy crossover distance, which decreases with frequency. Below this distance, NoiseMod offers superior energy efficiency; beyond it, the radiated power needed to overcome its SNR penalty makes coherent schemes like BPSK vastly superior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript evaluates Noise Modulation (NoiseMod) for ultra-low-power IoT by deriving optimal detection thresholds and BER expressions for AWGN and Rayleigh fading channels, identifying a catastrophic error floor in fading without CSI, and using an ADC-aware energy model to quantify an 8 dB SNR penalty versus NC-FSK at 10^{-3} BER due to oversampling requirements. It concludes that NoiseMod's oscillator-free design yields superior energy efficiency only below a frequency-dependent crossover distance, beyond which coherent schemes like BPSK are preferable.

Significance. If the ADC parameters prove representative of real ULP hardware, the work supplies actionable guidelines on NoiseMod's viable operating regimes and correctly applies standard analytic tools to expose practical bottlenecks such as the fading error floor and capacity limits from oversampling. The BER derivations and explicit energy model constitute reproducible, falsifiable elements that strengthen the assessment.

major comments (1)
  1. [ADC-aware energy model] ADC-aware energy model section: The headline 8 dB SNR penalty at 10^{-3} BER and the crossover-distance claim are obtained by folding specific values of ADC power consumption and oversampling factor into the capacity/BER expressions. These parameters are free inputs not anchored to measurements from actual ultra-low-power hardware; any downward revision in either quantity (or existence of a lower-complexity detector for the Rayleigh case without CSI) directly shifts the reported penalty and crossover location, undermining the central quantitative trade-off conclusions.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'catastrophic error floor' is qualitative; a specific floor BER value or dependence on SNR would improve precision.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and constructive feedback. We address the major comment point by point below.

read point-by-point responses

  1. Referee: [ADC-aware energy model] ADC-aware energy model section: The headline 8 dB SNR penalty at 10^{-3} BER and the crossover-distance claim are obtained by folding specific values of ADC power consumption and oversampling factor into the capacity/BER expressions. These parameters are free inputs not anchored to measurements from actual ultra-low-power hardware; any downward revision in either quantity (or existence of a lower-complexity detector for the Rayleigh case without CSI) directly shifts the reported penalty and crossover location, undermining the central quantitative trade-off conclusions.

    Authors: We agree that the numerical values for ADC power consumption and oversampling factor are representative parameters selected from the ULP hardware literature rather than direct measurements performed in this study. These are indeed model inputs. In the revised manuscript we will explicitly cite the sources of these representative values and add a sensitivity analysis that varies ADC power and oversampling factor over realistic ranges for ultra-low-power IoT devices. This analysis will demonstrate that, while the precise 8 dB penalty and crossover distance shift with the chosen parameters, the qualitative existence of a frequency-dependent energy crossover point remains robust. For the Rayleigh-fading case without CSI, the error floor is an inherent result of the closed-form BER derivation for non-coherent detection; we do not assert the existence of a lower-complexity detector that eliminates it, and the manuscript already presents CSI estimation or diversity as necessary architectural additions. revision: yes

Circularity Check

0 steps flagged

No circularity; BER derivations and energy comparisons follow from independent channel models and external circuit parameters.

full rationale

The paper derives the optimal detection threshold and closed-form BER expressions for AWGN and Rayleigh fading directly from the noise-variance detector and standard fading statistics (no fitted parameters or self-referential definitions). The ADC-aware energy model treats oversampling factor and ADC power as fixed external inputs taken from hardware literature rather than quantities estimated from the paper's own simulated or measured data. No load-bearing step reduces to a self-citation, ansatz smuggled via prior work, or renaming of a known result; the reported 8 dB SNR gap and frequency-dependent crossover distance are obtained by substituting these independent quantities into the analytic expressions. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard wireless channel models and an energy model whose circuit parameters are taken from prior literature rather than derived here.

free parameters (1)
  • ADC power and oversampling factor
    Used to compute the energy penalty; values are not derived from first principles within the paper.
axioms (1)
  • domain assumption AWGN and Rayleigh fading channel statistics
    Invoked for all BER derivations.

pith-pipeline@v0.9.0 · 5566 in / 1118 out tokens · 42880 ms · 2026-05-10T01:30:02.866351+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

  1. [1]

    Internet of Things: A Survey on Enabling Tech- nologies, Protocols, and Applications,

    A. Al-Fuqaha, et al., “Internet of Things: A Survey on Enabling Tech- nologies, Protocols, and Applications,”IEEE Communications Surveys & Tutorials, vol. 17, no. 4, pp. 2347-2376, 2015

    work page 2015

  2. [2]

    Ambient backscatter: wireless communication out of thin air,

    V . Liu, et al., “Ambient backscatter: wireless communication out of thin air,”ACM SIGCOMM, 2013

    work page 2013

  3. [3]

    Communication by Means of Thermal Noise: Toward Net- works With Extremely Low Power Consumption,

    E. Basar, “Communication by Means of Thermal Noise: Toward Net- works With Extremely Low Power Consumption,”IEEE Trans. Com- mun., vol. 70, no. 2, pp. 1435-1444, 2022

    work page 2022

  4. [4]

    Thermal noise modulation: Optimal detection and performance analysis,

    Alshawaqfeh, Mustafa K., et al. “Thermal noise modulation: Optimal detection and performance analysis,”IEEE Communications Letters, vol. 28, no. 12, pp. 2930-2934, 2024

    work page 2024

  5. [5]

    On–Off Digital Noise Modulation,

    A. A. d. Anjos and H. S. Silva, “On–Off Digital Noise Modulation,” IEEE Wireless Communications Letters, vol. 14, no. 11, pp. 3595-3599, Nov. 2025

    work page 2025

  6. [6]

    Noncoherent Frequency-Shift Keying for Ambient Backscatter Over OFDM Signals,

    M. A. ElMossallamy, et al., “Noncoherent Frequency-Shift Keying for Ambient Backscatter Over OFDM Signals,”IEEE Open Journal of the Communications Society, vol. 5, pp. 5219-5231, 2024

    work page 2024

  7. [7]

    A Survey on Noise-Based Communication,

    H. T. P. Da Silva, et al., “A Survey on Noise-Based Communication,” IEEE Access, vol. 14, pp. 14722-14734, 2026

    work page 2026

  8. [8]

    Optimal Thresholds for Dif- ferential Energy Detection of Ambient Backscatter Communication,

    Liu, Yuan, Pinyi Ren, and Qinghe Du. “Optimal Thresholds for Dif- ferential Energy Detection of Ambient Backscatter Communication,” International Conference on Internet of Things as a Service. Cham: Springer International Publishing, 2020

    work page 2020

  9. [9]

    Fixed-Threshold Detection Strategy for Thermal Noise Modulation under Rayleigh Fading Channels,

    M. K. Alshawaqfeh, et al., “Fixed-Threshold Detection Strategy for Thermal Noise Modulation under Rayleigh Fading Channels,”2025 IEEE 36th International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC), Istanbul, Turkiye, 2025

    work page 2025

  10. [10]

    Flip-KLJN: Random Resistance Flipping for Noise- Driven Secure Communication,

    R. A. Tasci, et al., “Flip-KLJN: Random Resistance Flipping for Noise- Driven Secure Communication,”IEEE Transactions on Communica- tions, vol. 73, no. 11, pp. 12625-12636, Nov. 2025

    work page 2025

  11. [11]

    Optimal Bit Detection in Thermal Noise Communication Systems Under Rician Fading,

    Jbari, Mohamed El, et al. “Optimal Bit Detection in Thermal Noise Communication Systems Under Rician Fading,” arXiv preprint arXiv:2511.21649, 2025

    work page arXiv 2025

  12. [12]

    Spread Spectrum Noise Modulation: Analysis and Detection,

    H. Zayyani, et al., “Spread Spectrum Noise Modulation: Analysis and Detection,”IEEE Communications Letters, vol. 30, pp. 1106-1110, 2026

    work page 2026
