Structure-guided molecular design with contrastive 3D protein-ligand learning

Carles Navarro , Philipp Tholke , Gianni de Fabritiis This is my paper

Pith reviewed 2026-05-10 02:25 UTC · model grok-4.3

classification 💻 cs.LG
keywords structure-based drug discoverycontrastive learningSE(3)-equivariant transformermolecular generationprotein-ligand interactionschemical language modelvirtual screeningautoregressive generation
0
0 comments X

The pith

A unified framework combines contrastive 3D structure encoding with autoregressive generation in a multimodal chemical language model to produce target-specific molecules with favorable predicted binding properties.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tackles the dual problem of modeling accurate 3D protein-ligand interactions and searching enormous chemical spaces for accessible compounds. It trains an SE(3)-equivariant transformer with contrastive learning to map pockets and ligands into a shared embedding space, then feeds those embeddings into a multimodal chemical language model that generates molecules conditioned on either structure. A learned dataset token further directs outputs toward commercial chemical libraries. A sympathetic reader cares because the method promises to generate promising drug-like candidates for previously unseen targets directly from pocket geometry, bypassing some limitations of traditional virtual screening pipelines.

Core claim

We present a unified framework that addresses these challenges by combining contrastive 3D structure encoding with autoregressive molecular generation conditioned on commercial compound spaces. First, we introduce an SE(3)-equivariant transformer that encodes ligand and pocket structures into a shared embedding space via contrastive learning, achieving competitive results in zero-shot virtual screening. Second, we integrate these embeddings into a multimodal Chemical Language Model (MCLM). The model generates target-specific molecules conditioned on either pocket or ligand structures, with a learned dataset token that steers the output toward targeted chemical spaces, yielding candidates in

What carries the argument

SE(3)-equivariant transformer producing contrastive 3D embeddings that condition a multimodal chemical language model (MCLM) for autoregressive generation steered by dataset tokens.

If this is right

  • The same embeddings support competitive zero-shot virtual screening without task-specific fine-tuning.
  • Generation can be conditioned on either the protein pocket or a known ligand structure.
  • A single learned dataset token routes outputs into desired commercial compound libraries.
  • The resulting molecules exhibit favorable predicted binding properties across multiple diverse targets.
  • No target-specific retraining of the generator is required once the contrastive encoder is trained.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could be tested for transfer to other 3D biomolecular tasks such as protein-protein interface design.
  • Larger-scale contrastive pretraining on expanded structure databases might further tighten the embedding space and improve generation specificity.
  • Combining the generated candidates with retrosynthesis predictors would create an end-to-end design-to-synthesis pipeline.
  • The contrastive embeddings might serve as a drop-in featurizer for existing docking or affinity prediction tools.

Load-bearing premise

The embeddings produced by the contrastive SE(3)-equivariant transformer can be effectively integrated into the multimodal chemical language model to steer generation toward molecules with favorable predicted binding properties for unseen targets.

What would settle it

Generate molecules for a held-out target protein, dock or assay the top candidates, and check whether their binding scores are statistically indistinguishable from or worse than those of molecules sampled randomly from the same commercial chemical space.

Figures

Figures reproduced from arXiv: 2604.19562 by Carles Navarro, Gianni de Fabritiis, Philipp Tholke.

Figure 1
Figure 1. Figure 1: Contrastive training of the shared ligand-pocket embedding space. A batch of [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: MCLM architecture. A ligand or pocket 3D context is encoded by the frozen [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Mean search metrics across 15 LIT-PCBA targets for CLIPP-SET ligand search, [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) Joint distribution of 3D shape similarity and 2D chemical similarity for [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗

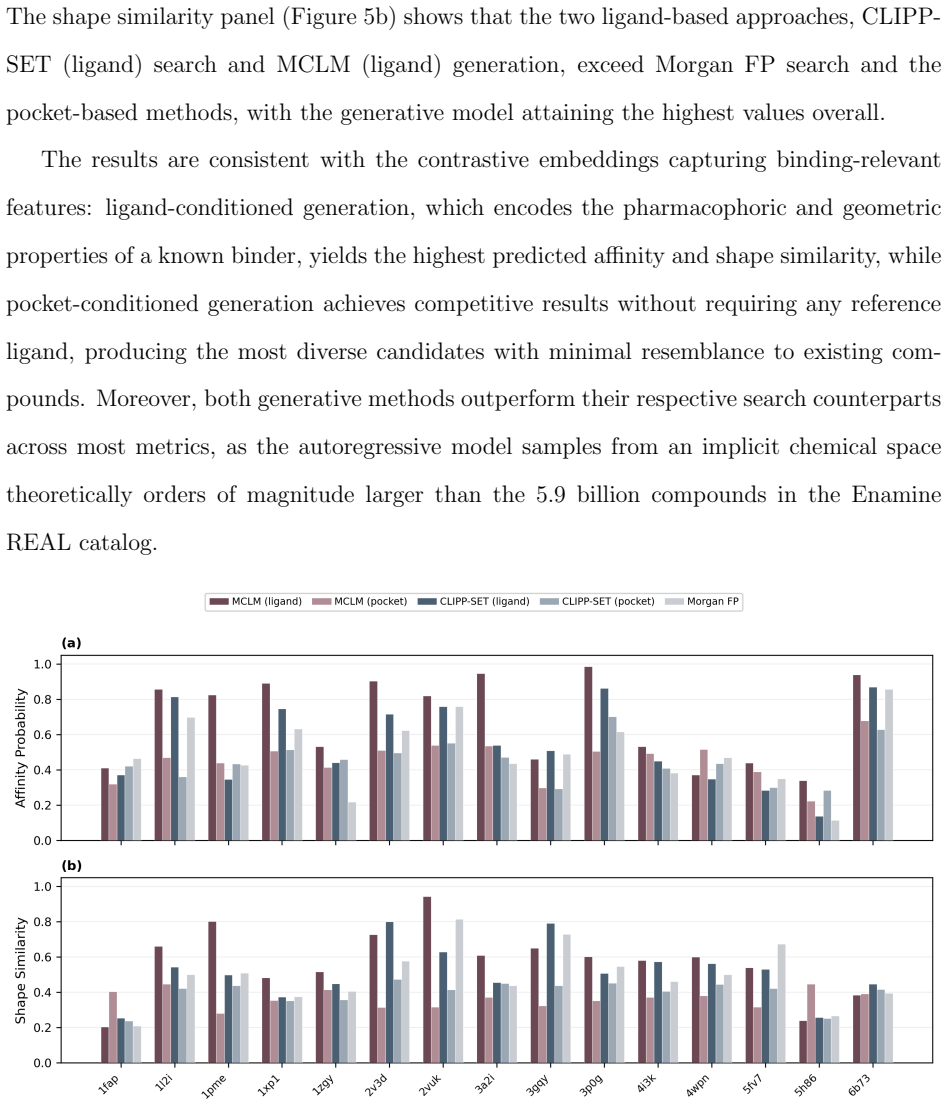

Figure 5
Figure 5. Figure 5: Per-target comparison of generative and search methods across 15 LIT-PCBA [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Chemical space steering of generated molecules. (a) Per-target Tanimoto similarity [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
read the original abstract

Structure-based drug discovery faces the dual challenge of accurately capturing 3D protein-ligand interactions while navigating ultra-large chemical spaces to identify synthetically accessible candidates. In this work, we present a unified framework that addresses these challenges by combining contrastive 3D structure encoding with autoregressive molecular generation conditioned on commercial compound spaces. First, we introduce an SE(3)-equivariant transformer that encodes ligand and pocket structures into a shared embedding space via contrastive learning, achieving competitive results in zero-shot virtual screening. Second, we integrate these embeddings into a multimodal Chemical Language Model (MCLM). The model generates target-specific molecules conditioned on either pocket or ligand structures, with a learned dataset token that steers the output toward targeted chemical spaces, yielding candidates with favorable predicted binding properties across diverse targets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a unified framework for structure-based drug discovery that combines contrastive learning using an SE(3)-equivariant transformer to encode 3D protein-ligand interactions into a shared embedding space with an autoregressive multimodal Chemical Language Model (MCLM) for generating molecules conditioned on these structures and steered towards commercial chemical spaces via dataset tokens. It claims competitive performance in zero-shot virtual screening and generation of candidates with favorable predicted binding properties across diverse targets.

Significance. If the experimental claims hold, the work could advance structure-guided molecular design by bridging equivariant 3D encoders with conditioned generative models, offering a pathway to explore ultra-large commercial libraries more efficiently than traditional virtual screening alone.

major comments (2)
  1. [Abstract] Abstract: the claim of 'achieving competitive results in zero-shot virtual screening' provides no benchmarks, datasets, baselines, or metrics (e.g., AUC, enrichment factor), which is load-bearing for the first contribution and prevents verification of whether the contrastive SE(3) encoder actually advances the state of the art.
  2. [Abstract] Abstract: the statement that the MCLM 'yields candidates with favorable predicted binding properties across diverse targets' lacks any description of the binding prediction protocol, the specific targets or commercial spaces tested, or quantitative comparisons, undermining support for the central claim that the embedding integration successfully steers generation.
minor comments (2)
  1. The acronym MCLM is introduced with its expansion, but subsequent sections should consistently use the full name on first use within each major section for clarity.
  2. Ensure all references to 'commercial compound spaces' and 'dataset token' are accompanied by explicit definitions or citations to the relevant training data construction in the methods.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments regarding the abstract. We address each point below and agree to revise the abstract to provide additional context on our experimental claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim of 'achieving competitive results in zero-shot virtual screening' provides no benchmarks, datasets, baselines, or metrics (e.g., AUC, enrichment factor), which is load-bearing for the first contribution and prevents verification of whether the contrastive SE(3) encoder actually advances the state of the art.

    Authors: The abstract is a concise summary, while the full details of the zero-shot virtual screening benchmarks, datasets, baselines, and metrics (including AUC and enrichment factors) are provided in the experimental results section of the manuscript. This enables verification of the SE(3)-equivariant encoder's performance. To address the concern, we will revise the abstract to briefly reference the key metrics and competitive results demonstrated. revision: yes

  2. Referee: [Abstract] Abstract: the statement that the MCLM 'yields candidates with favorable predicted binding properties across diverse targets' lacks any description of the binding prediction protocol, the specific targets or commercial spaces tested, or quantitative comparisons, undermining support for the central claim that the embedding integration successfully steers generation.

    Authors: The binding prediction protocol, specific targets, commercial spaces, and quantitative comparisons are detailed in the generation and results sections. We will revise the abstract to include a concise description of the protocol and note the favorable predicted binding properties observed. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents a standard two-stage ML pipeline: contrastive training of an SE(3)-equivariant transformer to produce shared embeddings, followed by integration into a multimodal chemical language model for conditioned autoregressive generation. No load-bearing step reduces to its own inputs by definition, no fitted parameter is relabeled as a prediction, and no self-citation chain is invoked to justify uniqueness or core assumptions. The derivation relies on external training data and standard contrastive/generative objectives, remaining self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based on abstract, the paper does not introduce new free parameters, axioms beyond standard ones, or invented entities. It relies on established techniques in equivariant neural networks and contrastive learning without introducing new physical entities or many free parameters beyond typical model hyperparameters.

axioms (1)
  • domain assumption SE(3) equivariance is appropriate for 3D molecular structures
    Standard assumption in geometric deep learning for molecules and proteins.
