Landauer-based study of transport in Chern insulator heterostructures

J. Luna-Ramos , A. Mart\'in-Ruiz This is my paper

Pith reviewed 2026-05-10 01:48 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.dis-nn
keywords Chern insulatorKlein tunnelingQi-Wu-Zhang modelLandauer-Büttiker transportDirac mass inversionheterostructure junctionnonlinear conductance
0
0 comments X

The pith

Dirac mass inversion enables perfect Klein tunneling across gapped Chern-insulator heterostructures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines charge transport through a junction consisting of a central Chern-insulating slab between two trivial leads, with an electrostatic barrier applied only to the central region. Using the continuous Qi-Wu-Zhang model, wave-function matching at the interfaces yields perfect transmission at normal incidence despite the presence of a bulk gap. This transmission is traced to the sign reversal of the Dirac mass term, which encodes the band inversion of the topological phase. The resulting transmission function is fed into the Landauer-Büttiker formalism to obtain closed-form expressions for linear and nonlinear conductances, including finite-temperature and dephasing effects. A reader would care because the result shows how topological band inversion can produce graphene-like Klein tunneling inside an otherwise gapped two-dimensional insulator, opening routes to tunable nonlinear transport in heterostructures.

Core claim

In the continuum Qi-Wu-Zhang description of a trivial-topological-trivial heterostructure, perfect transmission persists through the gapped central slab because the Dirac mass changes sign at each interface, mirroring the band inversion that defines the Chern phase. This mass inversion produces an angle- and energy-resolved transmission probability that equals unity at normal incidence. Inserting this probability into the Landauer-Büttiker formula supplies explicit expressions for the linear conductance and the nonlinear current at finite bias and temperature. Dephasing damps Fabry-Pérot oscillations while the main transport trends survive, and parameter sweeps identify regimes of enhanced I

What carries the argument

Dirac mass inversion across the trivial-topological interfaces in the Qi-Wu-Zhang continuum model, which converts the band-inversion signature of the Chern phase into perfect transmission.

If this is right

  • Closed-form expressions exist for both linear and nonlinear conductances at zero and finite temperature.
  • Partial dephasing suppresses interference oscillations but leaves the overall transmission and rectification trends intact.
  • Tuning barrier height, slab thickness, and the topological mass parameter identifies optimal regimes for enhanced nonlinear rectification.
  • The mass-inversion mechanism produces Klein tunneling inside a gapped system whose topology differs from graphene.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same interface mass inversion could appear in other two-dimensional topological phases that host band inversion, suggesting a broader class of gapped Klein-tunneling junctions.
  • If lattice effects remain weak, the predicted rectification may survive in real material heterostructures and enable topological nonlinear devices.
  • The closed-form Landauer results supply a clean benchmark for numerical transport codes that include disorder or finite-size effects.

Load-bearing premise

The continuous Qi-Wu-Zhang model together with wave-function matching at the interfaces fully captures the transport without important lattice-scale or disorder corrections.

What would settle it

A lattice-regularized simulation or experiment on a fabricated heterostructure that measures angle-resolved transmission inside the gap and finds values significantly below the continuum prediction of unity at normal incidence.

Figures

Figures reproduced from arXiv: 2604.19581 by A. Mart\'in-Ruiz, J. Luna-Ramos.

Figure 1
Figure 1. Figure 1: FIG. 1: Left: Band structure of the Chern insulator, showing the linear dispersion of the edge state crossing the bulk gap. Right: [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

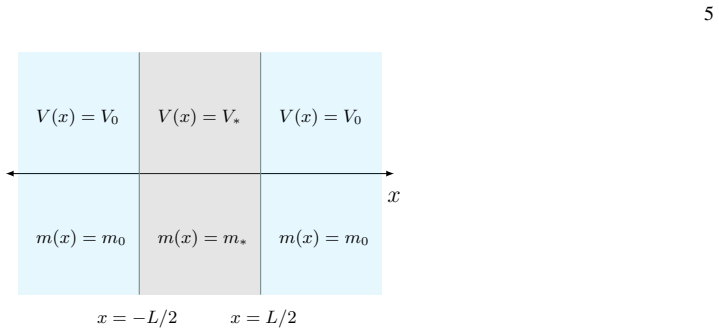

Figure 2. Figure 2: FIG. 2: Schematic representation of the trivial-topological-trivial heterostructure. The central region (shown in gray), [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

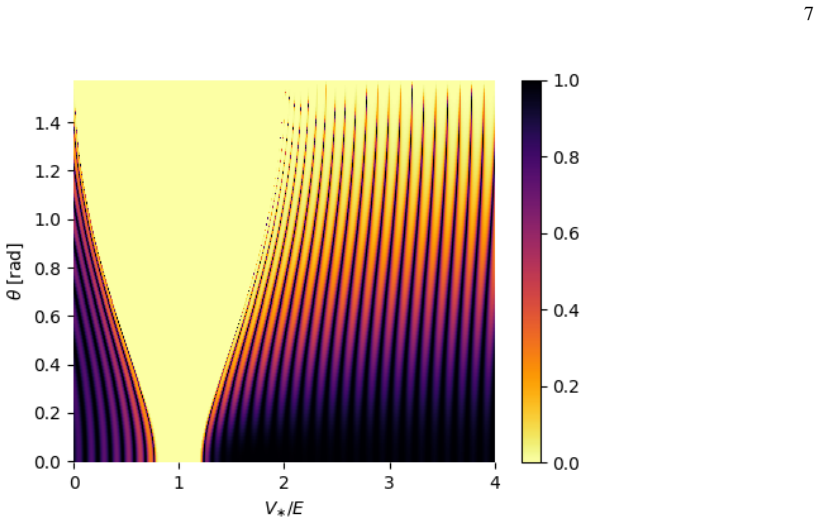

Figure 3. Figure 3: FIG. 3: Angle- and barrier-dependent transmission probability from Eq. ( [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

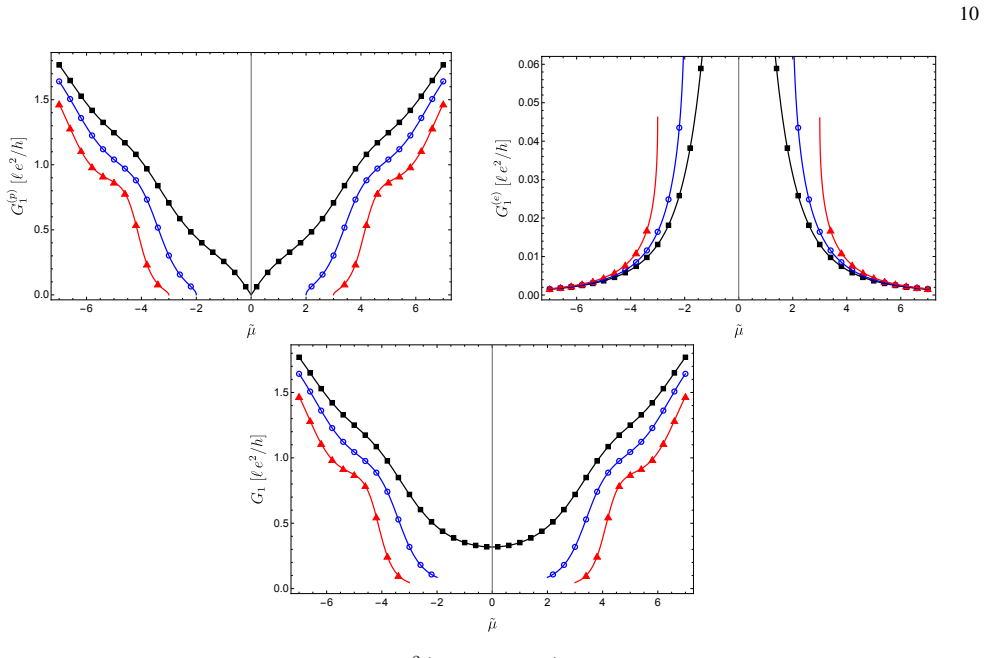

Figure 4. Figure 4: FIG. 4: Linear longitudinal conductance, in units of [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Nonlinear longitudinal conductances as functions of the rescaled chemical potential [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

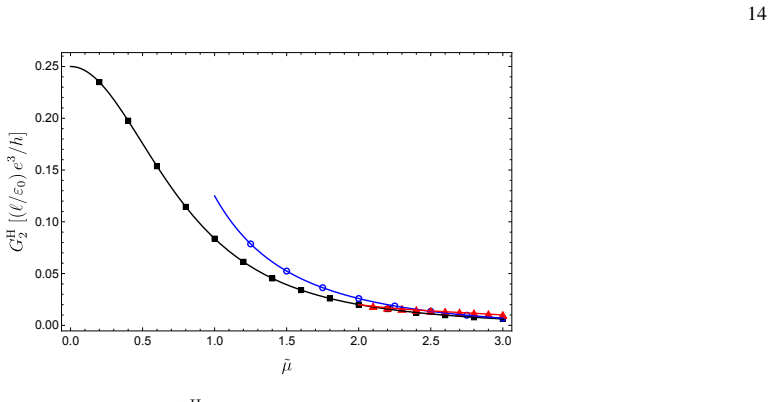

Figure 6. Figure 6: FIG. 6: Second-order nonlinear Hall conductance [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7

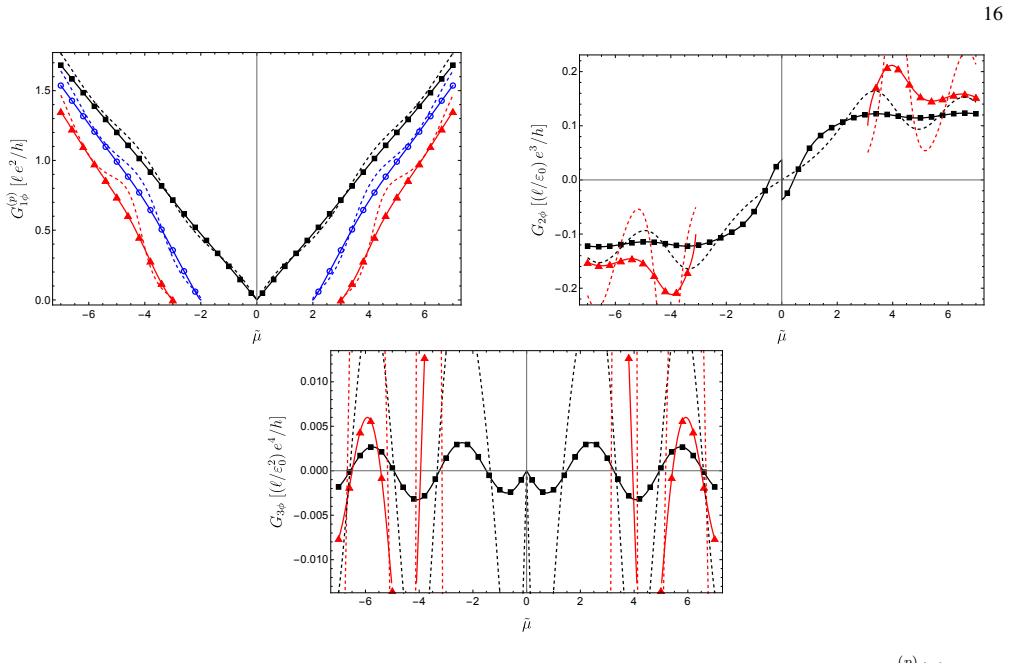

Figure 7. Figure 7: FIG. 7: Propagating contribution to the longitudinal conductance with and without dephasing. Top left: linear [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8

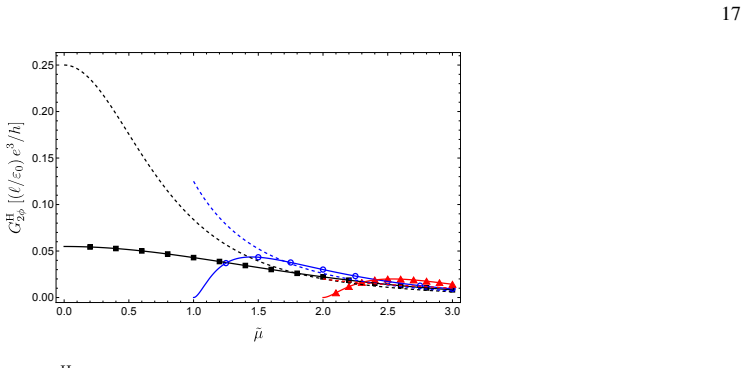

Figure 8. Figure 8: FIG. 8: Nonlinear Hall conductance [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
read the original abstract

We study charge transport through a trivial-topological-trivial junction described by the continuous Qi-Wu-Zhang model, which realizes a two-dimensional Chern-insulating phase. The central region is tuned into the topological regime, while the adjoining leads remain trivial, and an electrostatic barrier of tunable height and width is applied exclusively to the topological slab. By matching wave functions across the interfaces, we obtain the angle- and energy-resolved transmission probability and demonstrate the occurrence of Klein tunneling despite the presence of a bulk spectral gap. Within the continuum Dirac description, this perfect transmission originates from the inversion of the Dirac mass across the junction, which reflects the band inversion of the central layer relative to the trivial leads. In the Qi-Wu-Zhang model considered here, this mass inversion coincides with the transition between trivial and Chern-insulating phases and is accompanied by finite Berry curvature that governs the nonlinear transport response. The resulting transmission function is then incorporated into a Landauer-B\"uttiker framework to analyze both linear and nonlinear transport. Closed-form expressions for the linear and nonlinear conductances are derived at zero and finite temperatures. In addition, we investigate the role of dephasing, showing how partial loss of coherence suppresses Fabry-P\'erot oscillations while leaving the overall transport trends intact. Finally, we map out the interplay between barrier height, slab thickness, and topological mass parameter, identifying optimal regimes that yield enhanced rectification in the nonlinear response.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript studies charge transport through a trivial-topological-trivial heterostructure in the continuum Qi-Wu-Zhang model. Wave-function matching across interfaces yields an angle- and energy-resolved transmission probability that exhibits perfect transmission (Klein tunneling) due to inversion of the Dirac mass, which tracks the band inversion between the central Chern-insulating slab and the trivial leads. This transmission function is inserted into the Landauer-Büttiker formalism to derive closed-form expressions for linear and nonlinear conductances at zero and finite temperature; the effects of dephasing are analyzed and parameter regimes for enhanced rectification are mapped.

Significance. If the continuum approximation is valid, the closed-form conductances and explicit demonstration of mass-inversion-enabled perfect transmission provide useful analytical benchmarks for topological heterostructure transport. The inclusion of dephasing and the identification of rectification optima add practical value. The work's strength lies in the direct, parameter-free derivation of transmission from the Dirac equation rather than numerical fitting.

major comments (2)
  1. [Wave-function matching and transmission probability derivation] The central claim that perfect transmission originates from Dirac-mass inversion (and therefore from the topological phase transition) rests on exact wave-function continuity and derivative matching in the continuum limit. Because the original QWZ Hamiltonian is lattice-based, the manuscript must address whether lattice-scale interface corrections or finite-difference regularization alter the angle-resolved transmission probabilities that enter the Landauer conductances; without such a check or explicit justification, the closed-form linear/nonlinear results inherit an unverified assumption.
  2. [Dephasing and parameter-interplay analysis] The dephasing analysis and the mapping of barrier height, slab thickness, and mass parameter for rectification (final section) are built directly on the continuum transmission function. Any lattice-induced modification to transmission would propagate to the suppression of Fabry-Pérot oscillations and to the reported optimal regimes; a brief lattice-model comparison or error estimate is therefore required to support these quantitative claims.
minor comments (2)
  1. [Introduction and nonlinear conductance section] The abstract states that finite Berry curvature 'governs the nonlinear transport response,' yet the main text does not explicitly connect the Berry curvature term to the derived nonlinear conductance expressions; a short clarifying sentence would improve readability.
  2. [Model and barrier definition] Notation for the electrostatic barrier height and width is introduced without a dedicated equation label; adding an equation number would aid cross-referencing when the closed-form conductances are presented.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major concern below, providing clarifications on the continuum approximation and outlining revisions to strengthen the presentation.

read point-by-point responses

  1. Referee: The central claim that perfect transmission originates from Dirac-mass inversion (and therefore from the topological phase transition) rests on exact wave-function continuity and derivative matching in the continuum limit. Because the original QWZ Hamiltonian is lattice-based, the manuscript must address whether lattice-scale interface corrections or finite-difference regularization alter the angle-resolved transmission probabilities that enter the Landauer conductances; without such a check or explicit justification, the closed-form linear/nonlinear results inherit an unverified assumption.

    Authors: We agree that the lattice origin of the QWZ model warrants explicit justification for the continuum treatment. The continuum Dirac Hamiltonian is obtained by long-wavelength expansion of the lattice model around the relevant Dirac points, and the mass inversion directly encodes the topological band inversion between the Chern-insulating slab and trivial leads. Perfect transmission at normal incidence is a topological consequence of the sign change in the Dirac mass and is expected to survive in the lattice model for smooth interfaces and energies well below the bandwidth. In the revised manuscript we will add a dedicated paragraph in the model section that (i) recalls the standard derivation of the continuum QWZ Hamiltonian from its lattice counterpart, (ii) specifies the regime of validity (Fermi wavelength ≫ lattice constant), and (iii) argues that short-wavelength interface corrections enter only as higher-order perturbations that do not remove the zero-reflection condition enforced by mass inversion. This addition will underpin the closed-form conductances without requiring a full lattice recalculation. revision: partial

  2. Referee: The dephasing analysis and the mapping of barrier height, slab thickness, and mass parameter for rectification (final section) are built directly on the continuum transmission function. Any lattice-induced modification to transmission would propagate to the suppression of Fabry-Pérot oscillations and to the reported optimal regimes; a brief lattice-model comparison or error estimate is therefore required to support these quantitative claims.

    Authors: The dephasing and rectification results rely on the same continuum transmission function. While a comprehensive lattice-model benchmark would be desirable, it lies outside the analytical scope of the present work. We will nevertheless strengthen the manuscript by inserting an error-estimate subsection that (i) quantifies the parameter window in which the continuum approximation holds (energies and momenta such that lattice corrections remain perturbative), (ii) discusses how residual lattice effects would primarily broaden or shift Fabry-Pérot resonances without eliminating the overall suppression by dephasing or the existence of rectification optima, and (iii) provides a qualitative estimate of the relative error in the nonlinear conductance based on the known validity range of the Dirac approximation. These additions will clarify the robustness of the reported trends while preserving the analytical character of the study. revision: partial

Circularity Check

0 steps flagged

No circularity: direct wave-matching derivation within continuum model

full rationale

The paper obtains the angle- and energy-resolved transmission by explicit solution of the continuum Dirac equation via wave-function matching at the interfaces of the trivial-topological-trivial heterostructure. The resulting transmission function is inserted into the standard Landauer-Büttiker formula to produce closed-form linear and nonlinear conductances at zero and finite temperature. No parameter is fitted to a data subset and then relabeled as a prediction; no quantity is defined in terms of itself; the central claim (perfect transmission from Dirac-mass inversion) follows from the boundary conditions of the model Hamiltonian rather than from any self-citation chain or ansatz smuggled in from prior work by the same authors. The Qi-Wu-Zhang continuum limit is adopted as the starting point, but the subsequent algebra is self-contained and does not reduce the final conductances to the input assumptions by construction. Dephasing and barrier-parameter scans are likewise direct consequences of the same transmission function. This is the normal, non-circular outcome for an analytic transport calculation.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 0 invented entities

The central results rest on the validity of the continuum QWZ Dirac description and the applicability of coherent Landauer transport; no new particles or forces are introduced and no parameters are fitted to external data.

axioms (3)
  • domain assumption The continuous Qi-Wu-Zhang Hamiltonian accurately realizes a Chern-insulating phase with tunable mass sign.
    Invoked to define the trivial and topological regions and the mass inversion at interfaces.
  • standard math Wave-function matching at sharp interfaces yields the exact transmission probability for the continuum model.
    Standard technique for Dirac heterostructures; used to obtain angle- and energy-resolved transmission.
  • domain assumption The Landauer-Büttiker formalism applies to both linear and nonlinear response in this coherent mesoscopic system.
    Used to convert transmission into conductance expressions at zero and finite temperature.
