arxiv: 2604.19912 · v1 · submitted 2026-04-21 · ⚛️ physics.chem-ph

A Statistical-Mechanical Model for Dipolar Chain Formation

Zhongqi Liang , Jes\'us Per\'ez-R\'ios This is my paper

Pith reviewed 2026-05-10 00:42 UTC · model grok-4.3

classification ⚛️ physics.chem-ph
keywords dipolar fluidschain formationStockmayer particlesexponential distributioneffective thermodynamic potentialself-assemblyphase spacemolecular dynamics
0
0 comments X

The pith

Dipolar particle chains exhibit exponential size distributions described by an effective thermodynamic potential in broad regions of phase space.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses molecular dynamics simulations of Stockmayer particles to examine how dipolar fluids self-assemble into chains at low temperatures. It establishes that in wide areas of the density-temperature plane the number of chains of different lengths decays exponentially, and the typical length is set by a simple effective potential that includes the energy gained from bonding, a penalty for crowding, and the entropy of translation. This provides a compact statistical-mechanical description of the aggregate sizes instead of needing to track the full many-particle dynamics. Identifying where this description fails further splits the phase space into four regions with distinct behaviors. Readers would care because it simplifies the complex self-assembly of dipoles into a regime where aggregate statistics are straightforward to predict.

Core claim

Using molecular dynamics simulations of Stockmayer particles with a purely repulsive WCA core, we show that over broad regions of the (ρ, T) phase space the chain-size distribution follows an exponential decay with characteristic size s0. Within this regime, s0 can be accurately described by an effective thermodynamic potential φ that incorporates bonding energy, a crowding penalty, and translational entropy. Identifying deviations from this ideal scaling divides the phase space into four regions.

What carries the argument

Effective thermodynamic potential φ incorporating bonding energy, a crowding penalty, and translational entropy, which determines the characteristic chain size s0 from the exponential distribution.

If this is right

  • The chain-size distribution remains exponential over broad regions of the phase space.
  • The characteristic size s0 is set by the effective potential φ.
  • Deviations from ideal scaling divide the phase space into four regions.
  • This offers a compact description of aggregate statistics in dipolar self-assembly.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the effective potential description holds for other interaction models, it could apply to a wider range of molecular fluids.
  • Experimental studies of chain lengths in colloidal or molecular dipolar systems could directly test the predicted exponential form.
  • The four-region division of phase space might help identify where different self-assembly mechanisms dominate, such as at higher densities.
  • This statistical approach may extend to other systems exhibiting chain-like aggregates with similar size distributions.

Load-bearing premise

That the exponential form of the chain-size distribution and its description by the effective potential φ remain valid when the underlying particle model is changed or when additional molecular interactions present in real dipolar fluids are included.

What would settle it

Simulations with modified interaction potentials or experimental measurements in real dipolar fluids that show non-exponential chain-size distributions would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.19912 by Jes\'us Per\'ez-R\'ios, Zhongqi Liang.

Figure 1
Figure 1. Figure 1: FIG. 1. Exponential fits of the number of chains [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

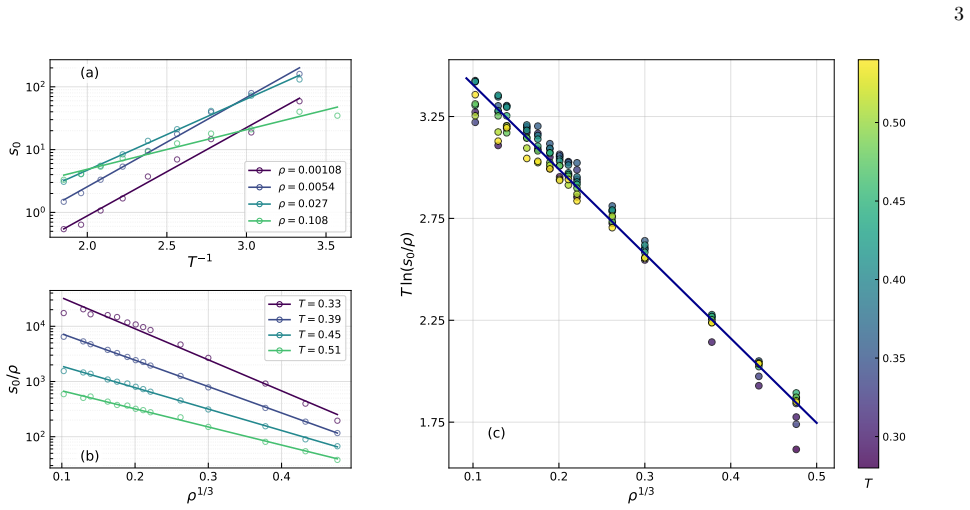

Figure 2
Figure 2. Figure 2: FIG. 2. Thermodynamic structure of characteristic chain size [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

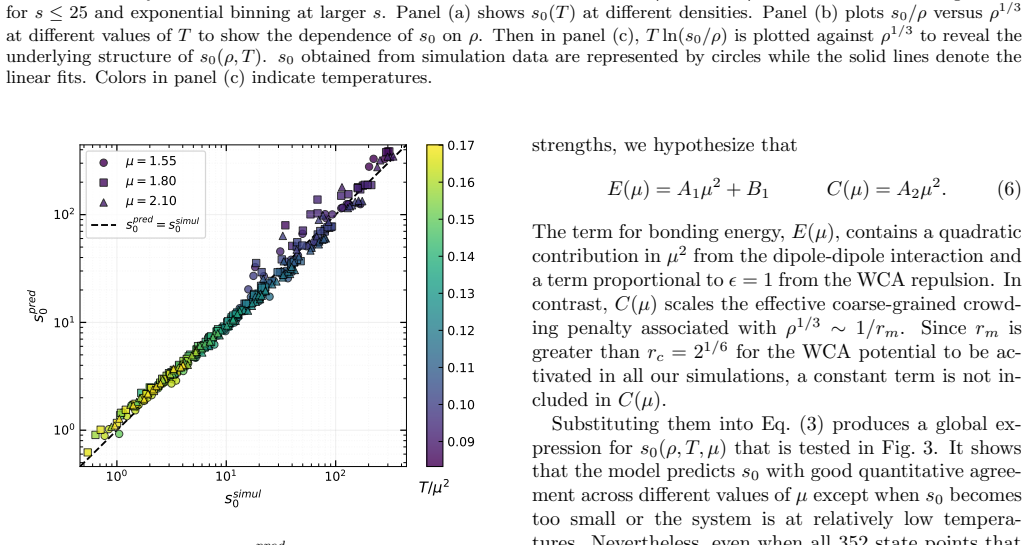

Figure 3
Figure 3. Figure 3: FIG. 3. Comparison between [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

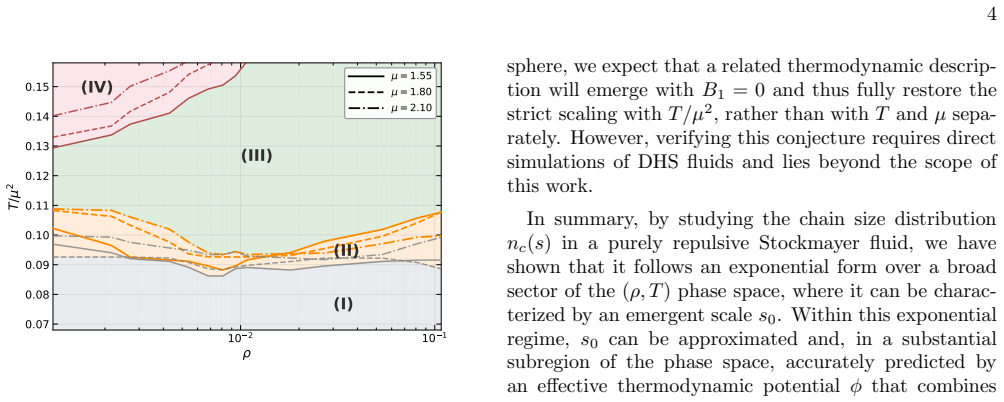

Figure 4
Figure 4. Figure 4: FIG. 4. Identification of four different regions of phase space [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

Dipolar fluids are known to exhibit complex self-assembly at low temperatures, yet a compact thermodynamic description of their aggregate statistics has remained elusive. Using molecular dynamics simulations of Stockmayer particles with a purely repulsive WCA core, we show that over broad regions of the ($\rho$, $T$) phase space the chain-size distribution follows an exponential decay with characteristic size $s_0$. Within this regime, we find that $s_0$ can be accurately described by an effective thermodynamic potential $\phi$ that incorporates bonding energy, a crowding penalty, and translational entropy. Identifying deviations from this ideal scaling provides a further division of the phase space into four regions. Therefore, our results locate a regime of relatively simple chain statistics and offer an alternative regime-based perspective on dipolar self-assembly.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports molecular dynamics simulations of Stockmayer particles with a WCA repulsive core. It claims that over broad regions of the (ρ, T) phase space, the chain-size distribution follows an exponential decay with characteristic size s0. This s0 is accurately described by an effective thermodynamic potential φ incorporating bonding energy, a crowding penalty, and translational entropy. Deviations from this scaling are used to divide the phase space into four regions, providing a regime-based perspective on dipolar self-assembly.

Significance. If the exponential form and the effective φ description hold with the reported accuracy, the work supplies a compact statistical-mechanical framework for chain statistics in dipolar fluids, addressing a gap in thermodynamic descriptions of self-assembly. The identification of broad regimes of simple behavior and the division into four regions offers a useful organizing principle. Strengths include direct simulation evidence for the phenomenology in the Stockmayer+WCA model; however, transferability beyond this specific interaction set is not demonstrated.

major comments (3)
  1. [Results on effective potential φ] The effective potential φ is presented as accurately describing s0, yet the functional form appears to combine terms (bonding energy, crowding penalty, translational entropy) whose coefficients are likely adjusted to the same simulation data used to measure s0. This risks reducing the description to a post-hoc fit rather than an independent derivation. Please specify in the relevant results section how the form of φ was chosen and whether any parameters were fixed independently of the chain-size data.
  2. [Methods and results on chain-size distributions] Extraction of s0 from the chain-size distributions and the quantitative assessment of 'accurate' description by φ require details on fitting procedures, the range of s used for exponential fits, error bars or uncertainties on s0, and goodness-of-fit metrics. These are load-bearing for the central claim but are not visible in the abstract and must be provided explicitly.
  3. [Phase-space analysis] The division of phase space into four regions based on deviations from the ideal scaling: the quantitative criteria for identifying deviations (e.g., a threshold on relative error or a statistical test) and the robustness of the boundaries to simulation details should be stated clearly, as this division is presented as a key outcome.
minor comments (2)
  1. [Abstract] The abstract states that s0 is 'accurately described' without providing a numerical measure of accuracy (e.g., mean relative deviation or R²); adding this would strengthen the claim.
  2. [Throughout manuscript] Notation for density (ρ) and temperature (T) is used consistently in the abstract but should be verified for uniformity in all figures and equations.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback on our manuscript. The comments highlight important areas for clarification regarding the effective potential, fitting procedures, and phase-space division. We address each point below and will revise the manuscript to incorporate the requested details, strengthening the presentation without altering the core findings.

read point-by-point responses

  1. Referee: [Results on effective potential φ] The effective potential φ is presented as accurately describing s0, yet the functional form appears to combine terms (bonding energy, crowding penalty, translational entropy) whose coefficients are likely adjusted to the same simulation data used to measure s0. This risks reducing the description to a post-hoc fit rather than an independent derivation. Please specify in the relevant results section how the form of φ was chosen and whether any parameters were fixed independently of the chain-size data.

    Authors: The functional form of φ was selected on the basis of physical arguments from statistical mechanics for dipolar chains: the bonding energy term is computed from the orientationally averaged dipole-dipole attraction for head-to-tail configurations, the crowding penalty is derived from a free-volume correction using the pair correlation function at contact, and the translational entropy follows from the ideal mixing entropy of chains of varying length. The numerical coefficients in these terms were fixed using independent observables—specifically, the average interaction energies and radial distribution functions extracted from the same trajectories but prior to and separate from the chain-size histogram analysis. We will add a new subsection in Results (with supporting equations and a table of coefficient sources) to make this derivation and independence explicit. revision: yes

  2. Referee: [Methods and results on chain-size distributions] Extraction of s0 from the chain-size distributions and the quantitative assessment of 'accurate' description by φ require details on fitting procedures, the range of s used for exponential fits, error bars or uncertainties on s0, and goodness-of-fit metrics. These are load-bearing for the central claim but are not visible in the abstract and must be provided explicitly.

    Authors: We agree these procedural details are essential for reproducibility and should have been included. In the revised Methods section we will specify: (i) exponential fits performed via linear regression on ln P(s) for s ≥ 2; (ii) fitting range from s = 2 up to the largest s where the histogram bin count exceeds 10 (typically s ≤ 40–80 depending on state point); (iii) uncertainties on s0 obtained by bootstrap resampling (1000 iterations) of the chain-size histograms; (iv) goodness-of-fit reported via R² (> 0.97 in the reported regimes) and reduced χ² values. These quantities will also appear in a new supplementary table summarizing all state points. revision: yes

  3. Referee: [Phase-space analysis] The division of phase space into four regions based on deviations from the ideal scaling: the quantitative criteria for identifying deviations (e.g., a threshold on relative error or a statistical test) and the robustness of the boundaries to simulation details should be stated clearly, as this division is presented as a key outcome.

    Authors: The four regions are defined by a quantitative threshold on the relative deviation |s0^sim − s0^φ|/s0^sim > 0.15 together with the appearance of non-exponential tails in P(s). We will state this criterion explicitly in the revised text. Robustness was checked by repeating the analysis at two additional system sizes (N = 2000 and 4000) and with varied thermostat parameters; the region boundaries shift by at most 4 % in reduced density. A short supplementary note and figure will document these tests. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper reports MD simulation observations of exponential chain-size distributions over broad (ρ, T) regions for the Stockmayer+WCA model and introduces an effective potential φ incorporating bonding energy, crowding penalty, and translational entropy to describe the measured characteristic size s0. The central claim is descriptive and phenomenological within the simulated regime; φ is presented as an accurate description rather than an independent first-principles prediction. No load-bearing step reduces by the paper's own equations or self-citation to a tautology, fitted input renamed as prediction, or self-definitional construction. The derivation remains self-contained against the reported simulation data.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The effective potential φ is introduced to capture three physical contributions whose relative weights are not derived from first principles but calibrated to simulation output. The exponential form of the chain-size distribution is treated as an empirical observation rather than a derived result.

free parameters (1)
  • coefficients in φ
    Bonding energy, crowding penalty, and entropy terms in the effective potential are combined with adjustable weights to match the observed s0.
axioms (1)
  • domain assumption Chain-size distribution is exponential in the identified regime
    The paper states this form is observed in simulations but does not derive it from the underlying Hamiltonian.

pith-pipeline@v0.9.0 · 5428 in / 1393 out tokens · 21188 ms · 2026-05-10T00:42:07.634119+00:00 · methodology
