Feeling the Pressure: Effects of Formation Pressure on the Physical Properties of Titan Haze Analogs

Adis Husi\'c (1) , Xinting Yu (1) , Ryan C. Blase (2) , Edward L. Patrick (2) , Eric Austin (1) , Alan G. Whittington (3) ((1) Department of Physics , Astronomy , University of Texas at San Antonio

show 4 more authors

(2) Southwest Research Institute (3) Department of Earth Planetary Sciences University of Texas at San Antonio)

Authors on Pith no claims yet

Pith reviewed 2026-05-10 00:41 UTC · model grok-4.3

classification 🌌 astro-ph.EP

keywords Titan hazetholinsformation pressuredensitymechanical hardnessaerosolsplasma dischargeCassini

0 comments

The pith

Tholins formed at lower pressure have lower production rates but higher density and hardness than those made at higher pressure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether the pressure at which Titan haze analogs form changes their physical properties. Using a plasma setup, the authors produced tholins from a nitrogen-methane mix at 1 torr and at 0.125 torr. Lower pressure cut the production rate by a factor of three but raised both density and nanoindentation hardness, while particle size, shape, surface energy, and Young's modulus stayed similar. These shifts point to pressure-driven changes in structure and strength. Because Titan's hazes form at pressures far below the lab values, the actual particles may be denser and mechanically tougher than current analogs, altering how they clump, radiate, and move across the surface.

Core claim

Tholins generated at 0.125 torr exhibited a production rate three times lower than those at 1 torr, yet displayed greater density and higher nanoindentation hardness. Other properties including particle size, morphology, surface free energy, and Young's modulus showed no significant variation with pressure. The authors attribute the differences to pressure-dependent alterations in chemical structure, porosity, and mechanical strength, implying that Titan haze particles formed at much lower pressures could possess even higher density and strength.

What carries the argument

The cold plasma discharge system exposing a 95 percent nitrogen and 5 percent methane mixture to plasma at two controlled pressures, followed by direct measurements of production rate, density, and nanoindentation hardness.

Load-bearing premise

The assumption that the density and hardness differences seen between 1 torr and 0.125 torr are driven purely by pressure and will scale directly to Titan's much lower pressures without interference from other lab variables.

What would settle it

Producing tholins at pressures of 0.01 torr or below and measuring whether density and hardness continue to rise, or obtaining in-situ data on the mechanical strength of actual Titan haze particles.

Figures

Figures reproduced from arXiv: 2604.20057 by (2) Southwest Research Institute, (3) Department of Earth, Adis Husi\'c (1), Alan G. Whittington (3) ((1) Department of Physics, Astronomy, Edward L. Patrick (2), Eric Austin (1), Planetary Sciences, Ryan C. Blase (2), University of Texas at San Antonio, University of Texas at San Antonio), Xinting Yu (1).

**Figure 1.** Figure 1: (a) Annotated Tholinator setup at the Southwest Research Institute. Not pictured are the supply gas cylinder and mass flow controller (out of frame, to the left) and the vacuum pump (out of frame, below). The plasma discharge box typically has a cover in place to protect the system components and users. (b) Simplified schematic diagram of the Tholinator setup [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

**Figure 2.** Figure 2: (a) A tube with synthesized high-pressure material (tan and red regions) before collection. The origin of the color difference is unclear, but it is thought to be due to a difference of the thickness/amount of deposited material in each region. Black markings (around 10.7 and 12 cm) are from highly localized arc discharging where the RF plasma electrodes are located, and only affect the glass tube itself. … view at source ↗

**Figure 3.** Figure 3: (a) An example image of a large wall particle scraped from the wall of the deposition tube. These particles are large and flat, providing sites for smaller 1 µm particles to grow from or attach to. The yellow inset box is subfigure (b), and the red inset box is subfigure (c). (b) A more magnified image of the wall particle showing smaller, 1 micron spherical particles attached to the wall particle. The red… view at source ↗

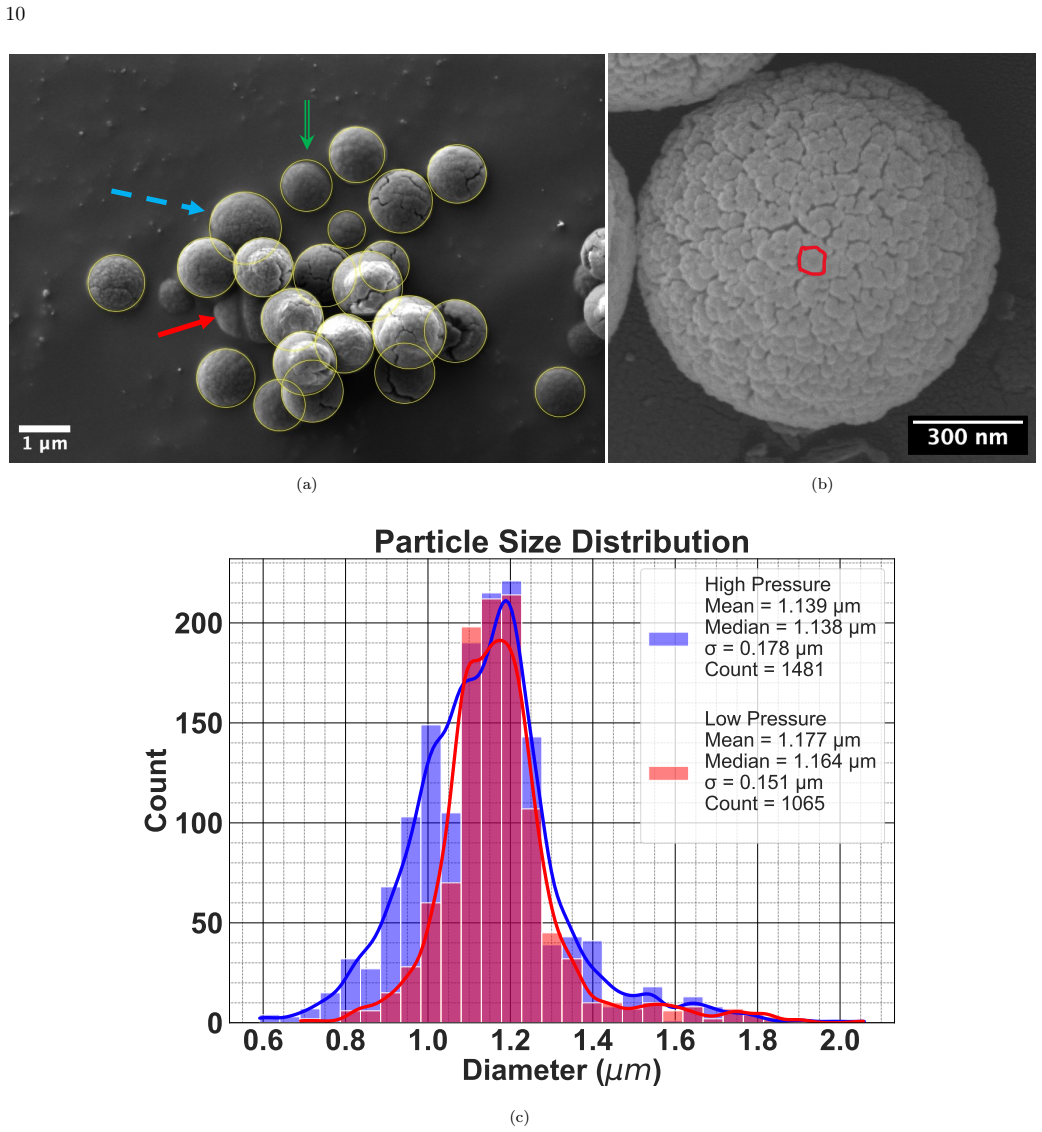

**Figure 4.** Figure 4: (a) An example of a measured image for particle sizes, with corrected brightness and contrast. The yellow circles indicate a measured particle. The solid red arrow indicates an example of a particle that is too malformed to be counted. The dashed blue arrow indicates a particle that is obscured but can be measured by fitting the circle perimeter to the visible particle edges (<2% of particles counted). The… view at source ↗

**Figure 5.** Figure 5: Summary of helium pycnometry density data for tholin samples created using the 95% N2/5% CH4 initial gas mixture. The green bounding box indicates data obtained for this study. Previously published pycnometry data for tholin samples produced with the same gas mixture are provided for comparison (Sekine et al. 2008; Imanaka et al. 2012; Brouet et al. 2016; He et al. 2017; Lethuillier et al. 2018). Red point… view at source ↗

**Figure 6.** Figure 6: (a) An example of a one frame of a sessile droplet of diiodomethane and the contact angle it makes with a tholin film, as analyzed by Ossila Contact Angle Software 4.0. The red bounding box indicates the droplet area analyzed, with area outside of this bounding box not considered for the contact angle determination. The green curve indicates the outline of the analyzed droplet, and the black fill under the… view at source ↗

**Figure 7.** Figure 7: (a) Nanoindentation hardness and (b) Young’s modulus results from dynamic nanoindentation of the tholin film samples produced in this work. Error bars are 1-σ errors. For comparison is the tholin sample produced and measured by Yu et al. (2018), as well as Talc and Gypsum nanoindentation data from Broz et al. (2006) [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

read the original abstract

The Cassini-Huygens mission detected large negative ions in Titan's ionosphere at pressures as low as $10^{-6}$ torr. These ions ultimately polymerize to form Titan's complex organic haze particles, which are observed throughout the atmosphere and potentially on the surface. Laboratory analogs of these hazes, known as tholins, have been used to study Titan's aerosols; however, most are produced at much higher pressures. The influence of formation pressures on key physical properties -- such as particle size, density, surface energy, and mechanical strength -- remains poorly constrained. These properties govern the haze's aggregation efficiency, radiative behavior, and surface-atmosphere interactions, shaping Titan's climate and surface. To investigate the effects of formation pressure, we generate tholins using a newly developed cold plasma discharge system. A 95% nitrogen and 5% methane gas mixture is exposed to plasma at two pressures, 1 torr and 0.125 torr. For both samples, we measure the production rate, particle size, morphology, density, surface free energy, Young's modulus, and nanoindentation hardness. While particle size, morphology, surface energy, and Young's modulus are similar across both pressures, tholins produced at lower pressure exhibited a threefold lower production rate, but a higher density and nanoindentation hardness. These variations likely reflect pressure-dependent changes in chemical structure, porosity, and mechanical strength. Because Titan's hazes form at much lower pressures than investigated here, actual haze particles are potentially even denser and mechanically stronger than our analogs, with implications for aerosol aggregation, aeolian and fluvial transport, and surface modification on Titan.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper measures higher density and hardness in tholins made at 0.125 torr versus 1 torr, but the claim that Titan hazes are even denser rests on an untested extrapolation across a big pressure gap.

read the letter

The concrete result is that their lower-pressure tholins had higher density and nanoindentation hardness, plus a threefold drop in production rate, while particle size, morphology, surface energy, and Young's modulus stayed similar. They used a 95/5 N2/CH4 mix in a cold plasma setup at the two pressures and reported these differences directly from the lab runs. That supplies a new data point on how formation pressure affects physical properties that most prior tholin work left unmeasured at these levels. Modelers of aerosol aggregation or surface transport on Titan can now plug in a pressure trend instead of assuming constant values. The measurements themselves look like straightforward, reproducible lab comparisons with no obvious circularity in the reported numbers. The soft spot is the jump to Titan conditions. The abstract notes Titan pressures reach 10^{-6} torr and concludes real haze particles are potentially even denser and stronger, but only two pressure points exist here and no functional form, additional data, or physical model ties the observed rise to chemistry or porosity at much lower values. The discharge regime itself changes at very low pressure, which could alter the chemistry independently of the trend seen between 1 and 0.125 torr. Other uncontrolled factors in the plasma system could also contribute. This is useful for Titan haze and surface researchers who need pressure-dependent inputs to test. It deserves peer review because the lab data address a real gap even if the Titan scaling needs more support or clearer caveats.

Referee Report

2 major / 2 minor

Summary. The manuscript reports laboratory experiments producing Titan haze analogs (tholins) in a cold plasma discharge using a 95% N2 / 5% CH4 mixture at two pressures (1 torr and 0.125 torr). Particle size, morphology, surface free energy, and Young's modulus are found to be similar at both pressures, while the lower-pressure samples show a threefold reduction in production rate but increases in density and nanoindentation hardness. The authors attribute these changes to pressure-dependent variations in chemical structure and porosity and conclude that Titan hazes forming at pressures down to 10^{-6} torr are likely even denser and mechanically stronger, with implications for aerosol aggregation, transport, and surface processes.

Significance. If the reported pressure-dependent trends in density and hardness are robust, the work addresses a clear gap in tholin analog studies, most of which are conducted at higher pressures than Titan's ionosphere. Direct comparison of physical properties under controlled conditions is useful for constraining models of haze radiative behavior and surface-atmosphere interactions. The new plasma system is a methodological strength, but the overall significance is reduced by the narrow pressure range tested and the absence of a supporting physical model or additional data points for extrapolation.

major comments (2)

[Abstract] Abstract (final paragraph): The central implication that 'actual haze particles are potentially even denser and mechanically stronger' rests on extrapolating the monotonic increase in density and hardness observed between 1 torr and 0.125 torr to Titan's 10^{-6} torr regime. Only two pressures are tested, with no intermediate points, fitted functional form (e.g., power-law dependence on pressure), or discussion of possible transitions to a collisionless plasma regime that could alter ion-molecule pathways and film growth kinetics independently of the observed trend.
[Results] Results section (production rate, density, and hardness measurements): The threefold lower production rate and the increases in density and nanoindentation hardness are presented as quantitative findings, yet the text provides no error bars, replicate counts, sample sizes, or statistical tests. Without these, it is impossible to determine whether the reported differences exceed experimental variability or instrument calibration effects in the discharge system.

minor comments (2)

[Abstract] Abstract: The statement that Young's modulus is 'similar' is clear, but the results paragraph should explicitly state whether any small systematic shift was observed or if the values are statistically indistinguishable.
Figure captions and methods: Ensure all figures comparing the two pressures include error bars, number of measurements, and a clear statement of how density was determined (e.g., via pycnometry or other technique).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which help clarify the limitations of our current data set and the need for greater statistical rigor. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Abstract] Abstract (final paragraph): The central implication that 'actual haze particles are potentially even denser and mechanically stronger' rests on extrapolating the monotonic increase in density and hardness observed between 1 torr and 0.125 torr to Titan's 10^{-6} torr regime. Only two pressures are tested, with no intermediate points, fitted functional form (e.g., power-law dependence on pressure), or discussion of possible transitions to a collisionless plasma regime that could alter ion-molecule pathways and film growth kinetics independently of the observed trend.

Authors: We agree that the extrapolation in the abstract is based on only two pressure points and lacks a fitted functional form or explicit discussion of possible regime transitions. In the revised manuscript we will qualify the final sentence of the abstract to state that the observed trend suggests haze particles formed at still lower pressures may be denser and stronger, while explicitly noting the limited data range and the possibility that collisionless-plasma kinetics could alter the relationship. We will also add a short paragraph in the discussion section acknowledging the absence of intermediate pressures and the lack of a quantitative physical model at this stage. revision: partial
Referee: [Results] Results section (production rate, density, and hardness measurements): The threefold lower production rate and the increases in density and nanoindentation hardness are presented as quantitative findings, yet the text provides no error bars, replicate counts, sample sizes, or statistical tests. Without these, it is impossible to determine whether the reported differences exceed experimental variability or instrument calibration effects in the discharge system.

Authors: We accept this criticism. The original submission omitted these details. In the revised version we will report that each condition was repeated in three independent runs, include error bars (standard deviation) on all quantitative plots and in the text, specify the number of particles or indentations measured for each property, and add a brief statistical comparison confirming that the differences in production rate, density, and hardness are significant (p < 0.05). These data were collected but not presented in the initial manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: direct experimental comparison of measured properties

full rationale

The paper is a laboratory study that generates tholins at two fixed pressures (1 torr and 0.125 torr), then reports direct measurements of production rate, density, hardness, and other properties. No equations, fitted parameters, or derivations are present that reduce any reported quantity to a self-defined input or prior self-citation. The Titan extrapolation is an interpretive statement based on the observed monotonic trend between the two tested points, but it does not constitute a derivation chain that loops back to the paper's own inputs by construction. The work is self-contained against external benchmarks (laboratory data collection).

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the experimental comparison of two plasma conditions. No free parameters are fitted to data in the reported results. The main background assumptions are that the cold plasma discharge chemistry approximates Titan ionospheric processes and that the measured nanoindentation hardness and density differences are attributable to pressure rather than other variables.

axioms (2)

domain assumption The 95% N2 / 5% CH4 gas mixture and cold plasma discharge at 1 torr and 0.125 torr produce chemically representative tholin analogs of Titan haze.
Invoked in the methods description and in the extrapolation to Titan conditions.
domain assumption Differences in density and hardness between the two pressures arise from pressure-dependent changes in chemical structure and porosity rather than from uncontrolled experimental variables.
Stated in the interpretation of results.
