arxiv: 2604.20268 · v1 · submitted 2026-04-22 · 💻 cs.CV

Recognition: unknown

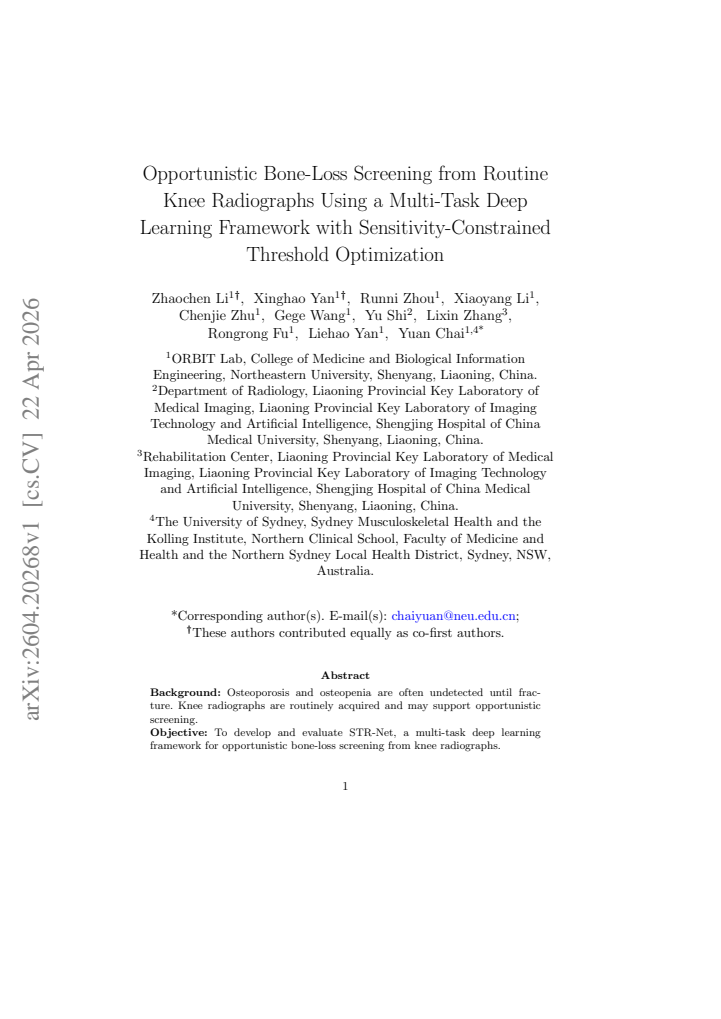

Opportunistic Bone-Loss Screening from Routine Knee Radiographs Using a Multi-Task Deep Learning Framework with Sensitivity-Constrained Threshold Optimization

Zhaochen Li , Xinghao Yan , Runni Zhou , Xiaoyang Li , Chenjie Zhu , Gege Wang , Yu Shi , Lixin Zhang
show 3 more authors
Rongrong Fu Liehao Yan Yuan Chai
Authors on Pith no claims yet

Pith reviewed 2026-05-10 00:34 UTC · model grok-4.3

classification 💻 cs.CV
keywords opportunistic screeningbone lossknee radiographsdeep learningosteoporosismulti-task learningT-score estimation
0
0 comments X

The pith

STR-Net performs single-pass bone-loss screening, severity classification, and T-score estimation from routine knee radiographs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a multi-task deep learning system called STR-Net to detect bone loss opportunistically from knee radiographs that patients already obtain for osteoarthritis assessment. This targets the problem of undiagnosed osteoporosis due to limited access to dedicated DXA scans. The model uses a shared backbone with task-specific heads to handle binary screening, severity sub-classification, and T-score regression in one forward pass. On the held-out test set it reaches an AUROC of 0.933 for screening while maintaining sensitivity above 0.86 through constrained threshold tuning. A pilot correlation of 0.801 with actual DXA T-scores suggests the approach can yield quantitative estimates alongside classification.

Core claim

STR-Net processes single-channel grayscale knee radiographs through a shared backbone, global average pooling, shared neck, and task-aware representation routing to three heads that deliver binary Normal-versus-Bone-Loss screening, Osteopenia-versus-Osteoporosis sub-classification, and weakly coupled T-score regression, achieving AUROC 0.933, sensitivity 0.904, and Pearson correlation 0.801 with DXA T-scores on the patient-level test split of 224 radiographs.

What carries the argument

STR-Net multi-task framework consisting of shared backbone, global average pooling feature aggregation, shared neck, task-aware representation routing module, and three task-specific heads, trained with sensitivity-constrained threshold optimization that enforces minimum sensitivity of 0.86.

If this is right

  • Bone-loss screening occurs during existing knee imaging visits without requiring separate DXA appointments.
  • Severity sub-classification distinguishes osteopenia from osteoporosis in the same model run.
  • T-score estimates become available as a continuous output correlated with reference DXA values.
  • High-sensitivity threshold tuning prioritizes detection of true bone-loss cases at the cost of some specificity.
  • Deployment requires prospective clinical validation on new populations before routine use.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Integration into existing radiology reading workflows could automatically flag patients for DXA referral during osteoarthritis evaluations.
  • Performance may drop when applied to X-ray machines or demographic groups absent from the 1,570-image training set.
  • Adding more clinical variables to the regression branch could tighten the observed 0.279 MAE on T-scores.
  • The same routing-and-multi-head design might extend to opportunistic screening tasks from other high-volume plain radiographs.

Load-bearing premise

Features extracted from knee radiographs are sufficiently predictive of DXA-measured bone mineral density across varied patient populations and imaging equipment.

What would settle it

A prospective multi-center study comparing STR-Net outputs to same-day DXA T-scores in an independent cohort of at least 500 patients yields AUROC below 0.85 for screening or Pearson correlation below 0.70 for T-score regression.

read the original abstract

Background: Osteoporosis and osteopenia are often undiagnosed until fragility fractures occur. Dual-energy X-ray absorptiometry (DXA) is the reference standard for bone mineral density (BMD) assessment, but access remains limited. Knee radiographs are obtained at high volume for osteoarthritis evaluation and may offer an opportunity for opportunistic bone-loss screening. Objective: To develop and evaluate a multi-task deep learning system for opportunistic bone-loss screening from routine knee radiographs without additional imaging or patient visits. Methods: We developed STR-Net, a multi-task framework for single-channel grayscale knee radiographs. The model includes a shared backbone, global average pooling feature aggregation, a shared neck, and a task-aware representation routing module connected to three task-specific heads: binary screening (Normal vs. Bone Loss), severity sub-classification (Osteopenia vs. Osteoporosis), and weakly coupled T-score regression with optional clinical variables. A sensitivity-constrained threshold optimization strategy (minimum sensitivity >= 0.86) was applied. The dataset included 1,570 knee radiographs, split at the patient level into training (n=1,120), validation (n=226), and test (n=224) sets. Results: On the held-out test set, STR-Net achieved an AUROC of 0.933, sensitivity of 0.904, specificity of 0.773, and AUPRC of 0.956 for binary screening. Severity sub-classification achieved an AUROC of 0.898. The T-score regression branch showed a Pearson correlation of 0.801 with DXA-measured T-scores in a pilot subset (n=31), with MAE of 0.279 and RMSE of 0.347. Conclusions: STR-Net enables single-pass bone-loss screening, severity stratification, and quantitative T-score estimation from routine knee radiographs. Prospective clinical validation is needed before deployment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces STR-Net, a multi-task deep learning framework that processes single-channel knee radiographs for binary bone-loss screening (normal vs. bone loss), severity sub-classification (osteopenia vs. osteoporosis), and weakly coupled T-score regression. Using a patient-level split of 1,570 radiographs (train n=1,120, val n=226, test n=224), it reports AUROC 0.933 (sens 0.904, spec 0.773) for binary screening and AUROC 0.898 for severity on the held-out test set, plus Pearson r=0.801 (MAE 0.279, RMSE 0.347) for T-score regression on a pilot subset of 31 cases. A sensitivity-constrained threshold optimization (min sens >=0.86) is applied, and the conclusion claims the model enables single-pass screening, stratification, and quantitative estimation.

Significance. If the multi-task performance and quantitative branch are robustly validated on larger, independent cohorts, the work could meaningfully advance opportunistic osteoporosis screening by leveraging high-volume knee radiographs obtained for osteoarthritis evaluation, potentially reducing reliance on limited DXA access. The patient-level split, sensitivity-constrained optimization, and shared-backbone multi-task design are methodological strengths that support reproducibility and clinical utility considerations.

major comments (2)
  1. [Results] Results: The central claim that STR-Net enables quantitative T-score estimation alongside screening and severity stratification rests on Pearson r=0.801, MAE=0.279, RMSE=0.347 reported only for a pilot subset of n=31. The held-out test set (n=224) is used solely for the binary and severity heads; no details are given on pilot selection criteria, overlap with the test split, T-score range coverage, or calibration. This leaves the quantitative component of the multi-task framework under-supported and non-representative.
  2. [Methods] Methods: The description of the shared backbone, global average pooling, task-aware representation routing module, and weakly coupled regression head lacks sufficient architectural specifics (e.g., backbone type, layer dimensions, loss weighting), training hyperparameters, preprocessing steps, and handling of confounders (age, sex, equipment). Without these, the reported AUROCs and the generalizability of the sensitivity-constrained thresholds cannot be fully assessed or reproduced.
minor comments (2)
  1. [Abstract] Abstract/Conclusions: The phrasing 'STR-Net enables single-pass bone-loss screening, severity stratification, and quantitative T-score estimation' overstates the current evidence given the pilot-only quantitative results; a more qualified statement would better reflect the scope of validation.
  2. [Results] Results: No table or figure is referenced for the pilot T-score scatter plot or Bland-Altman analysis; adding these would improve clarity of the quantitative performance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback, which highlights important areas for strengthening the manuscript. We address each major comment point by point below, outlining the revisions we will implement.

read point-by-point responses

  1. Referee: [Results] Results: The central claim that STR-Net enables quantitative T-score estimation alongside screening and severity stratification rests on Pearson r=0.801, MAE=0.279, RMSE=0.347 reported only for a pilot subset of n=31. The held-out test set (n=224) is used solely for the binary and severity heads; no details are given on pilot selection criteria, overlap with the test split, T-score range coverage, or calibration. This leaves the quantitative component of the multi-task framework under-supported and non-representative.

    Authors: We agree that the T-score regression results rest on a limited pilot subset of 31 cases and that this underpins a central claim of the multi-task framework. In the revised manuscript we will add explicit details on pilot selection criteria, confirm the absence of overlap with the held-out test set, report the observed T-score range and any calibration steps performed, and move the quantitative findings to a dedicated subsection that clearly labels them as preliminary. We will also revise the discussion and conclusions to state the need for larger independent validation before the regression branch can be considered robust. These changes will accurately contextualize the current evidence without overstating its scope. revision: yes

  2. Referee: [Methods] Methods: The description of the shared backbone, global average pooling, task-aware representation routing module, and weakly coupled regression head lacks sufficient architectural specifics (e.g., backbone type, layer dimensions, loss weighting), training hyperparameters, preprocessing steps, and handling of confounders (age, sex, equipment). Without these, the reported AUROCs and the generalizability of the sensitivity-constrained thresholds cannot be fully assessed or reproduced.

    Authors: We acknowledge that the current Methods section does not supply the level of architectural and procedural detail required for reproducibility or independent assessment of generalizability. In the revised manuscript we will expand the relevant subsections to include the backbone architecture and dimensions, the precise implementation of global average pooling and the task-aware representation routing module, the weakly coupled regression head, the loss weighting coefficients, all training hyperparameters, the full preprocessing pipeline, and the approach taken to potential confounders including age, sex, and imaging equipment. These additions will enable readers to reproduce the experiments and evaluate the sensitivity-constrained thresholds. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical ML evaluation on held-out splits

full rationale

The paper trains STR-Net on a patient-level split (train n=1120, val n=226) and reports standard classification metrics on the held-out test set (n=224) plus T-score regression on a separate pilot subset (n=31). No mathematical derivation chain exists; performance numbers are direct outputs of model inference on unseen data. The sensitivity-constrained threshold is an explicit rule (min sensitivity >=0.86) rather than a fit to test performance. No self-definitional loops, renamed known results, or load-bearing self-citations appear. The quantitative branch is under-powered but that is an evidence limitation, not a circular reduction of the claimed result to its inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard supervised learning assumptions and the representativeness of the 1570-image dataset for the target population.

free parameters (1)
  • sensitivity threshold = >=0.86
    The minimum sensitivity constraint applied during threshold optimization to balance performance.
axioms (1)
  • domain assumption Knee radiographs contain extractable features correlated with bone mineral density
    Core assumption enabling opportunistic screening from non-DXA images.

pith-pipeline@v0.9.0 · 5694 in / 1241 out tokens · 35979 ms · 2026-05-10T00:34:50.115678+00:00 · methodology
