Forecasting Individual NetFlows using a Predictive Masked Graph Autoencoder

Georgios Anyfantis , Pere Barlet-Ros This is my paper

Pith reviewed 2026-05-09 23:40 UTC · model grok-4.3

classification 💻 cs.NI cs.LG
keywords graph neural networksNetFlow predictionheterogeneous graphsmasked autoencodernetwork traffic forecastingper-flow predictionIP and port identificationsliding windows
0
0 comments X

The pith

A predictive masked graph autoencoder on sliding-window heterogeneous graphs forecasts individual NetFlow connections by accurately identifying their ports and IPs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors present a graph neural network model for predicting network flow-level traffic. They construct sliding-window bidirectional heterogeneous graphs with nodes for IPs, ports, and connections to capture traffic patterns over time. A masked autoencoder is then used to model the graph's evolution and predict future connections and features. This approach matters because precise per-flow forecasting can improve network operations like load balancing and threat detection. It outperforms baselines in structural predictions while remaining competitive in feature reconstruction.

Core claim

The central discovery is that representing network traffic as sequences of heterogeneous graphs and applying a predictive masked graph autoencoder allows the model to predict which ports and IP addresses individual connections will attach to with higher accuracy than traditional forecasting methods, while feature prediction stays on par with strong baselines.

What carries the argument

The predictive masked graph autoencoder applied to temporal heterogeneous graphs of IP, port, and connection nodes, which learns to reconstruct masked graph elements to enable forecasting of structure and features.

If this is right

  • Superior identification of connection endpoints enables more precise network traffic analysis.
  • Competitive feature reconstruction supports reliable prediction of flow characteristics.
  • GNNs prove effective for modeling temporal evolution in network traffic data.
  • The method provides a new way to handle per-flow predictions in dynamic environments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar graph-based approaches could be tested in other domains involving temporal connections, such as communication networks or transaction graphs.
  • Performance might improve further by incorporating additional contextual features into the node representations.
  • If the model scales well, it could replace or complement existing time-series forecasting tools in network management systems.

Load-bearing premise

The sliding-window heterogeneous graphs with IP, port, and connection nodes are assumed to adequately capture the temporal evolution of network traffic for making accurate per-flow predictions.

What would settle it

Running the model on a different network dataset and finding that it no longer shows superior results in identifying ports and IPs for connections compared to the baselines.

Figures

Figures reproduced from arXiv: 2604.20483 by Georgios Anyfantis, Pere Barlet-Ros.

Figure 1
Figure 1. Figure 1: A graph representation on how the NetFlows are represented in our Graphs. This is a sampled subset of 10 connections. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

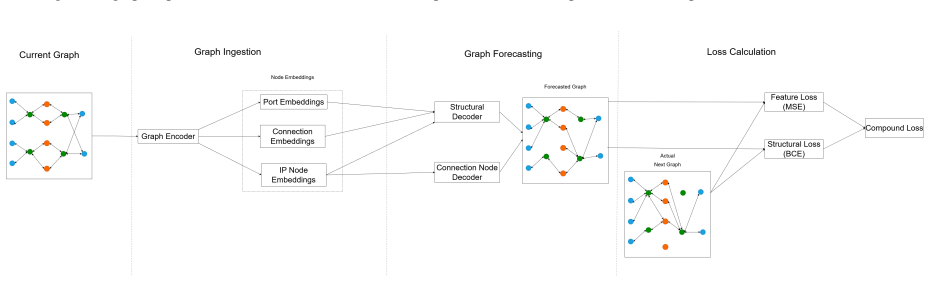

Figure 2. Figure 2: A representation of our architecture and its training procedure. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

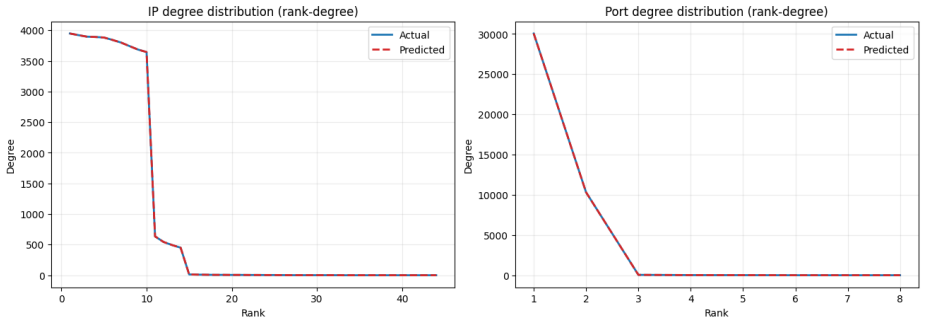

Figure 3. Figure 3: The actual ranked connectivity degree of the IP nodes and the forecasted degree by the GNN. Ranked degrees showcase the IPs and Ports that have [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
read the original abstract

In this paper, we propose a proof-of-concept Graph Neural Network model that can successfully predict network flow-level traffic (NetFlow) by accurately modelling the graph structure and the connection features. We use sliding-windows to split the network traffic in equal-sized heterogeneous bidirectional graphs containing IP, Port, and Connection nodes. We then use the GNN to model the evolution of the graph structure and the connection features. Our approach shows superior results when identifying the Port and IP to which connections attach, while feature reconstruction remains competitive with strong forecasting baselines. Overall, our work showcases the use of GNNs for per-flow NetFlow prediction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a Predictive Masked Graph Autoencoder (a GNN-based model) for forecasting individual NetFlow traffic. It splits network traffic into sliding-window heterogeneous bidirectional graphs containing IP, Port, and Connection nodes, then uses the GNN to model the evolution of graph structure and connection features. The central claim is that the approach achieves superior performance in identifying the Port and IP to which connections attach, while feature reconstruction is competitive with strong forecasting baselines.

Significance. If the model performs genuine temporal extrapolation to future windows (rather than intra-window imputation) and the reported superiority holds under rigorous evaluation, the work could demonstrate a useful graph-structured approach to per-flow NetFlow prediction that captures relational dependencies among IPs, ports, and connections. This would be of interest to network traffic analysis and management, provided the experimental evidence is made explicit.

major comments (3)
  1. [Abstract and Methodology] The abstract and title emphasize 'forecasting' and 'predict[ing] network flow-level traffic' via modeling 'the evolution' of the graph, yet the reported results focus on 'feature reconstruction' that is 'competitive with strong forecasting baselines.' The methodology section must explicitly state whether the masked autoencoder performs temporal extrapolation (predicting features/structure in a held-out future window from prior windows) or only masked reconstruction within the same observed sliding-window graph. This distinction is load-bearing for the forecasting claim.
  2. [Abstract and Experimental Evaluation] No quantitative results, dataset details (e.g., traffic traces used, number of flows, time spans), baseline descriptions, or error metrics are provided in the abstract or visible experimental sections. The claim of 'superior results when identifying the Port and IP' cannot be evaluated without tables reporting precision/recall/F1, comparison methods, or statistical significance tests.
  3. [Graph Construction and Model Architecture] The sliding-window construction of heterogeneous graphs is described at a high level, but the paper does not specify how temporal edges or node features evolve across windows, nor how the predictive masking is scheduled to ensure out-of-sample forecasting rather than in-sample imputation. This affects whether the GNN truly models evolution or performs reconstruction.
minor comments (2)
  1. [Abstract] The abstract states 'our approach shows superior results' without any supporting numbers or references to specific tables/figures; this should be replaced with concrete metrics or removed until the results section is complete.
  2. [Methodology] Notation for the heterogeneous graph (node types, edge directions, feature vectors) is introduced but not formalized with equations or a diagram; adding a clear definition would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight key areas for clarifying the temporal forecasting claims and improving the visibility of our experimental results. We address each major comment point by point below.

read point-by-point responses

  1. Referee: [Abstract and Methodology] The abstract and title emphasize 'forecasting' and 'predict[ing] network flow-level traffic' via modeling 'the evolution' of the graph, yet the reported results focus on 'feature reconstruction' that is 'competitive with strong forecasting baselines.' The methodology section must explicitly state whether the masked autoencoder performs temporal extrapolation (predicting features/structure in a held-out future window from prior windows) or only masked reconstruction within the same observed sliding-window graph. This distinction is load-bearing for the forecasting claim.

    Authors: We appreciate the referee's emphasis on this critical distinction. Our approach uses sequences of sliding windows to enable temporal modeling: the GNN is trained on prior windows to predict graph structure and connection features in subsequent held-out future windows, with predictive masking applied to simulate extrapolation rather than in-sample imputation. The phrase 'feature reconstruction' in the abstract refers to the autoencoder's core training objective, while evaluation metrics demonstrate performance on forecasting tasks against baselines. We will revise the Methodology section to explicitly describe the temporal extrapolation setup, including how prior windows condition predictions for future windows. revision: yes

  2. Referee: [Abstract and Experimental Evaluation] No quantitative results, dataset details (e.g., traffic traces used, number of flows, time spans), baseline descriptions, or error metrics are provided in the abstract or visible experimental sections. The claim of 'superior results when identifying the Port and IP' cannot be evaluated without tables reporting precision/recall/F1, comparison methods, or statistical significance tests.

    Authors: We agree that the abstract would benefit from including key quantitative highlights. The full Experimental Evaluation section contains the requested details: specific traffic traces, flow counts, time spans, baseline descriptions (including strong forecasting methods), error metrics, tables reporting precision/recall/F1 for Port and IP identification, method comparisons, and statistical significance tests. We will revise the abstract to summarize these results and ensure the experimental section is clearly structured with all supporting tables and analyses. revision: yes

  3. Referee: [Graph Construction and Model Architecture] The sliding-window construction of heterogeneous graphs is described at a high level, but the paper does not specify how temporal edges or node features evolve across windows, nor how the predictive masking is scheduled to ensure out-of-sample forecasting rather than in-sample imputation. This affects whether the GNN truly models evolution or performs reconstruction.

    Authors: We will expand the Graph Construction and Model Architecture sections with these specifics. The revised text will detail the evolution of temporal edges (e.g., persisting connections and new formations across consecutive windows), updates to node features (for IP, Port, and Connection nodes) over time, and the predictive masking schedule, where masks target elements in future windows based on observations from prior windows. This design ensures out-of-sample evaluation of graph evolution rather than intra-window imputation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical GNN model trained on data with no definitional or self-referential reduction.

full rationale

The paper presents a masked graph autoencoder trained on sliding-window heterogeneous graphs of IP, Port, and Connection nodes to model network traffic evolution. All claims rest on empirical training and evaluation against baselines rather than any parameter fitted to the target quantity and then renamed as a prediction. No equations, self-citations, or uniqueness theorems are invoked that would make the reported forecasting or reconstruction results equivalent to the inputs by construction. The distinction between intra-window reconstruction and true temporal extrapolation is an experimental-design question, not a circularity in the derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on the abstract alone, the central claim rests on the unstated assumption that the chosen graph representation and GNN architecture can model flow dynamics; no explicit free parameters, axioms, or invented entities are described.
