arxiv: 2604.20532 · v1 · submitted 2026-04-22 · 🧮 math.OC

Reliability as a Design Principle: A Systematic Review and Integrated Framework for Renewable-Based Microgrids

Mohammed Zeehan Saleheen , Markus Wagner , Reza Razzaghi , Hao Wang This is my paper

Pith reviewed 2026-05-09 23:58 UTC · model grok-4.3

classification 🧮 math.OC
keywords reliabilitymicrogridsrenewable energyDunkelflauteenergy adequacysystematic reviewoptimizationpower system planning
0
0 comments X

The pith

Renewable microgrid reliability is governed by time-coupled energy adequacy during scarcity events rather than installed capacity alone.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This systematic review positions reliability as the central principle for designing renewable-based microgrids and synthesizes how planning choices, optimization methods, operational flexibility, and assessment tools interact to determine outcomes. It establishes that adequacy depends on chronological energy balance over time, with extended low-renewable periods like Dunkelflaute proving decisive for failures, while conventional single-number reliability indices hide the temporal and service-specific risks. The work consolidates these elements into an integrated roadmap and flags consistent shortcomings in modeling correlated resource shortages and valuing interruptions. Readers should care because microgrids are expanding rapidly, and designs that ignore these time dynamics risk underperforming exactly when communities need them most.

Core claim

The synthesis shows that reliability in renewable-based microgrids is governed primarily by chronological, time-coupled energy adequacy rather than installed capacity alone, with Dunkelflaute events emerging as a key determinant of adequacy failure. Reliability outcomes are shaped by the joint interaction of resource portfolios, storage operating policies, and state trajectories, network features, and protection feasibility under inverter-dominated operation. The review further demonstrates that reliability indices inherited from conventional power systems are poorly suited for renewable-based microgrids, as they compress performance into single dimensions and obscure temporal, spatial, and

What carries the argument

chronological time-coupled energy adequacy assessment that treats Dunkelflaute events as central failure drivers, embedded within an integrated roadmap of planning factors, multi-objective optimization, and metric evaluation.

If this is right

  • Reliability outcomes improve when optimization uses multi-objective or constrained formulations rather than capacity-only objectives.
  • Network topology and inverter protection limits must be modeled jointly with generation and storage trajectories to predict adequacy correctly.
  • Persistent gaps in handling correlated renewable scarcity and mission-profile component reliability require new modeling approaches.
  • Interruption valuation through consistent value-of-lost-load and customer damage functions must be integrated into decision frameworks.
  • Planning should shift toward state-aware, service-oriented assessment that tracks performance over full time series.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Microgrid operators could reduce outage duration by scheduling storage and demand response specifically around predicted multi-day scarcity windows rather than average conditions.
  • The same time-coupled adequacy logic may apply to larger distribution networks with high renewable penetration, suggesting a need for similar chronological modeling at scale.
  • Empirical tests could compare historical outage records from operating renewable microgrids against predictions from traditional versus adequacy-focused models to quantify the difference.
  • Explicit inclusion of customer damage functions might naturally lead to differentiated service priorities, protecting critical loads first during adequacy shortfalls.

Load-bearing premise

The body of literature examined is representative enough to identify inherited indices as poorly suited and to label the listed gaps as the most persistent ones.

What would settle it

A new survey or set of real microgrid case studies demonstrating that conventional single-dimension indices like loss-of-load probability fully capture failure risks without missing time-dependent or service-specific concentrations would directly challenge the central synthesis.

Figures

Figures reproduced from arXiv: 2604.20532 by Hao Wang, Markus Wagner, Mohammed Zeehan Saleheen, Reza Razzaghi.

Figure 1

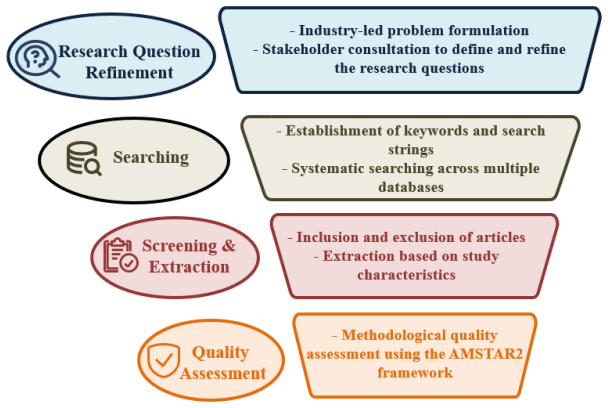

Figure 1. Figure 1: Rapid review methodology [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Database search strategy. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Search and screening as per PRISMA flow diagrams. statistical aggregation is not applicable to the present evidence base due to substantial heterogeneity across studies in system configurations, modeling assumptions, temporal resolution, opti￾mization techniques, and performance metrics. Consequently, this review adopts a qualitative narrative synthesis [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Illustration of the tradeoff between reliability and cost. system reliability and excessive outage-related losses that out￾weigh capital savings. In contrast, design choices that exceed this optimum represent overinvestment, yielding diminishing economic returns despite continued reliability improvement. This challenge of balancing the TCO against the interruption costs requires a standardized method to ec… view at source ↗
Figure 5
Figure 5. Figure 5: Microgrid design and planning procedure (modified for reliability-oriented Design [16, 128]). emphasize reliability considerations. While planners may tailor or extend specific steps to suit local conditions or emerging technologies, adherence to this structured guideline provides a consistent and transparent foundation for designing reliable, cost-effective, and socially responsive microgrid systems in th… view at source ↗
Figure 6
Figure 6. Figure 6: A modified flowchart for reliability evaluation of distributed microgrids [44]. 1. Failure Duration and Impact: In this step, the al￾gorithm calculates the duration of the failure and the unsupplied load at each affected load point. 2. TTF Recalculation: A new TTF is calculated for component C for the subsequent iteration. 3. Failure Metrics: The algorithm calculates the aver￾age failure rate and duration … view at source ↗
Figure 7
Figure 7. Figure 7: Classification of reliability indices. year). It is important to note that this formulation follows the conventional assumption of a radial supply structure where each load point has a single supply path, such that any component failure causes interruption. However, micro￾grids frequently incorporate redundancy through multiple distributed generators, energy storage systems, or meshed network connections, … view at source ↗
Figure 8
Figure 8. Figure 8 [PITH_FULL_IMAGE:figures/full_fig_p048_8.png] view at source ↗
read the original abstract

Reliable operation is a central motivation for deploying renewable-based microgrids. This paper presents a systematic rapid review that positions reliability as the central organizing principle for microgrid design. Specifically, this review systematically synthesizes recent literature to examine how planning assumptions, optimization formulations, operational flexibility mechanisms, and reliability assessment frameworks jointly shape reliability outcomes. The synthesis shows that reliability in renewable-based microgrids is governed primarily by chronological, time-coupled energy adequacy rather than installed capacity alone, with Dunkelflaute events emerging as a key determinant of adequacy failure. Reliability outcomes are shaped by the joint interaction of resource portfolios, storage operating policies, and state trajectories, network features, and protection feasibility under inverter-dominated operation. The review further demonstrates that reliability indices inherited from conventional power systems are poorly suited for renewable-based microgrids, as they compress performance into single dimensions and obscure temporal, spatial, and service-critical risk concentrations. Across optimization practice, reliability is increasingly embedded through multi-objective and constrained formulations; however, persistent gaps remain in representing correlated renewable scarcity, mission-profile-dependent component reliability, and interruption valuation (e.g., value of lost load and customer damage functions) in a consistent and decision-relevant manner. Overall, this review consolidates planning factors, optimization approaches, reliability evaluation methods, and metric suitability into an integrated roadmap for reliability-centered microgrid planning, and outlines future directions toward state-aware, service-oriented planning and assessment frameworks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a systematic rapid review synthesizing recent literature on reliability in renewable-based microgrids. It positions reliability as the central design principle and concludes that outcomes are governed primarily by chronological, time-coupled energy adequacy (with Dunkelflaute events as a key determinant) rather than installed capacity alone. The review argues that conventional reliability indices are poorly suited because they obscure temporal, spatial, and service-critical risks, notes increasing use of multi-objective optimization formulations, identifies persistent gaps in correlated scarcity, mission-profile-dependent reliability, and interruption valuation, and consolidates these elements into an integrated roadmap for state-aware, service-oriented planning.

Significance. If the underlying literature synthesis is representative and rigorous, the work offers a useful consolidation of planning assumptions, optimization practices, flexibility mechanisms, and assessment frameworks. Explicitly framing reliability as the organizing principle and highlighting the shift from capacity-centric to adequacy-centric views could help orient future microgrid research toward more decision-relevant metrics and state-aware models. The gap analysis on correlated renewable scarcity and consistent interruption valuation provides a clear agenda for subsequent modeling efforts.

major comments (2)
  1. [Review Methodology] Review Methodology section: The manuscript supplies no search strings, database list, date range, inclusion/exclusion criteria, PRISMA flow counts, or quality-assessment protocol. Because the central claims—that chronological adequacy governs reliability more than capacity, that Dunkelflaute events are a key determinant, and that inherited indices are poorly suited—rest entirely on the completeness and representativeness of the reviewed corpus, the absence of these details prevents verification that papers quantifying capacity-driven reliability or proposing alternative multi-dimensional indices were not omitted.
  2. [Synthesis of reliability indices] Synthesis of reliability indices (results/discussion): The claim that conventional indices compress performance into single dimensions and obscure risk concentrations is asserted without citing specific quantitative failures or counter-examples drawn from the reviewed papers. A load-bearing comparison—e.g., how LOLP or SAIDI mask temporal scarcity patterns in inverter-dominated microgrids versus proposed time-coupled metrics—would be required to substantiate the assertion that these indices are systematically inadequate.
minor comments (2)
  1. [Abstract] The abstract is information-dense; separating the synthesis findings from the gap identification and roadmap contribution into distinct sentences would improve readability.
  2. [References] Several citations appear in the text without corresponding entries in the reference list or vice versa; a consistency check is needed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our systematic rapid review. The feedback highlights important areas for improving methodological transparency and strengthening the evidence base for our claims regarding reliability indices. We have prepared point-by-point responses below and will incorporate revisions to address these concerns in the next version of the manuscript.

read point-by-point responses

  1. Referee: [Review Methodology] Review Methodology section: The manuscript supplies no search strings, database list, date range, inclusion/exclusion criteria, PRISMA flow counts, or quality-assessment protocol. Because the central claims—that chronological adequacy governs reliability more than capacity, that Dunkelflaute events are a key determinant, and that inherited indices are poorly suited—rest entirely on the completeness and representativeness of the reviewed corpus, the absence of these details prevents verification that papers quantifying capacity-driven reliability or proposing alternative multi-dimensional indices were not omitted.

    Authors: We agree that explicit documentation of the review protocol is necessary to substantiate the representativeness of the corpus and the validity of the central claims. Although the manuscript characterizes the work as a systematic rapid review, the detailed elements were omitted for conciseness. In the revised manuscript, we will expand the Review Methodology section to include the exact search strings, the list of databases (IEEE Xplore, Scopus, Web of Science), the date range (2018–2024), inclusion/exclusion criteria (e.g., focus on renewable-based microgrids, reliability assessment, optimization formulations), a PRISMA flow diagram with screening counts, and the quality-assessment criteria applied. These additions will allow verification that capacity-centric and alternative-index studies were not systematically excluded. revision: yes

  2. Referee: [Synthesis of reliability indices] Synthesis of reliability indices (results/discussion): The claim that conventional indices compress performance into single dimensions and obscure risk concentrations is asserted without citing specific quantitative failures or counter-examples drawn from the reviewed papers. A load-bearing comparison—e.g., how LOLP or SAIDI mask temporal scarcity patterns in inverter-dominated microgrids versus proposed time-coupled metrics—would be required to substantiate the assertion that these indices are systematically inadequate.

    Authors: The critique of conventional indices is synthesized from patterns across the reviewed literature rather than asserted in isolation; however, we acknowledge that the current text does not provide explicit quantitative counter-examples. In the revision, we will augment the Synthesis of reliability indices section with a dedicated comparison subsection and table. This will draw specific examples from the corpus, such as studies demonstrating how LOLP and SAIDI average out high-impact Dunkelflaute periods in inverter-dominated systems (leading to underestimation of adequacy risk) versus time-coupled or state-aware metrics that reveal temporal and service-critical concentrations. These additions will directly cite and quantify the limitations from the reviewed papers. revision: yes

Circularity Check

0 steps flagged

No significant circularity in literature synthesis

full rationale

This paper is a systematic rapid review whose central claims (primacy of chronological time-coupled adequacy, Dunkelflaute events as key determinant, and unsuitability of inherited indices) are explicitly framed as syntheses drawn from external published literature rather than any internal derivation, fitted parameter, or self-referential definition. No equations, optimization models, or predictive results appear that could reduce by construction to the paper's own inputs; the review instead consolidates planning factors, optimization approaches, and metric suitability from the reviewed body of work into a roadmap. The synthesis is therefore self-contained against external benchmarks, with no load-bearing step that collapses into a self-citation chain, ansatz, or renaming of a known result.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The review rests on the domain assumption that reliability should be the central design principle and that the selected literature accurately captures current practice and gaps; no free parameters or invented entities are introduced.

axioms (2)
  • domain assumption Renewable generation exhibits significant temporal variability that cannot be captured by capacity metrics alone.
    Invoked throughout the synthesis when contrasting chronological adequacy with installed capacity.
  • domain assumption Standard power-system reliability indices compress temporal and spatial risk information.
    Used to justify the claim that inherited indices are poorly suited.

pith-pipeline@v0.9.0 · 5560 in / 1335 out tokens · 22324 ms · 2026-05-09T23:58:53.062334+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
