arxiv: 2604.20635 · v1 · submitted 2026-04-22 · 🧮 math-ph · math.AP· math.DS· math.MP

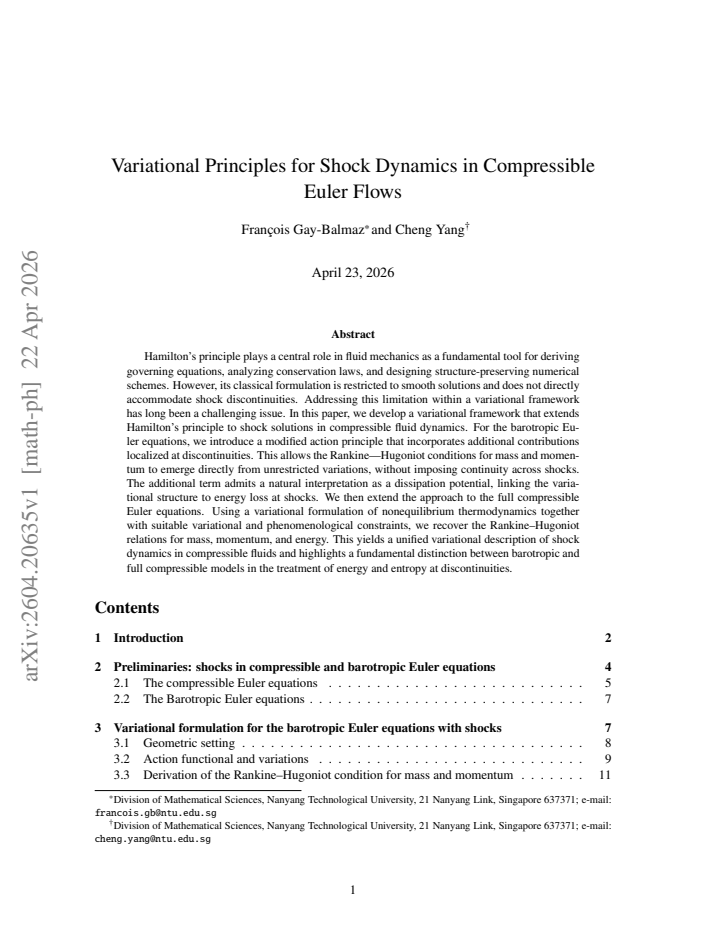

Variational Principles for Shock Dynamics in Compressible Euler Flows

Fran\c{c}ois Gay-Balmaz , Cheng Yang This is my paper

Pith reviewed 2026-05-09 22:58 UTC · model grok-4.3

classification 🧮 math-ph math.APmath.DSmath.MP
keywords variational principlesshock dynamicscompressible Euler equationsRankine-Hugoniot conditionsHamilton's principlenonequilibrium thermodynamicsdiscontinuitiesdissipation potential
0
0 comments X

The pith

A modified action principle with localized discontinuity terms derives Rankine-Hugoniot conditions directly from variations for shocks in compressible Euler flows.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a variational framework that extends Hamilton's principle to accommodate shock discontinuities in compressible fluid dynamics. For the barotropic Euler equations, an additional term localized at discontinuities is introduced into the action, allowing the Rankine-Hugoniot conditions for mass and momentum to arise from unrestricted variations without imposed continuity. This term is interpreted as a dissipation potential that accounts for energy loss at shocks. The framework is then extended to the full compressible Euler equations via a variational formulation of nonequilibrium thermodynamics together with suitable constraints, recovering the full set of jump relations including energy. A reader would care because this offers a unified variational description that treats shocks consistently with the underlying principles of mechanics and thermodynamics.

Core claim

We introduce a modified action principle for the barotropic Euler equations that incorporates additional contributions localized at discontinuities. This allows the Rankine-Hugoniot conditions for mass and momentum to emerge directly from unrestricted variations without imposing continuity across shocks. The additional term admits a natural interpretation as a dissipation potential linking the variational structure to energy loss. For the full compressible Euler equations, a variational formulation of nonequilibrium thermodynamics together with suitable variational and phenomenological constraints recovers the Rankine-Hugoniot relations for mass, momentum, and energy, yielding a unified vari

What carries the argument

A modified action principle augmented by localized discontinuity contributions, interpreted as a dissipation potential, from which Rankine-Hugoniot conditions follow via unrestricted variations.

If this is right

  • Rankine-Hugoniot conditions for mass and momentum arise without any continuity assumption across shocks in the barotropic case.
  • The dissipation potential interpretation connects the variational principle to energy dissipation at discontinuities.
  • Extension via nonequilibrium thermodynamics yields the complete jump relations including energy conservation.
  • The approach distinguishes barotropic models from full compressible models in their treatment of entropy at shocks.
  • Structure-preserving numerical schemes for shock dynamics become possible within this variational setting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This variational structure could enable integrators that automatically satisfy jump conditions without explicit shock tracking or artificial viscosity.
  • Similar localized terms might apply to other hyperbolic conservation laws with discontinuities, such as magnetohydrodynamics.
  • Numerical tests on multi-dimensional shock interactions would reveal whether the framework preserves additional invariants beyond the basic jumps.
  • The distinction in entropy handling suggests that full compressible models may require extra phenomenological constraints to close the variational system at shocks.

Load-bearing premise

The additional localized term in the action functions as a dissipation potential that correctly encodes energy loss at shocks while preserving the overall variational structure.

What would settle it

A standard Riemann problem for the Euler equations whose shock speed or post-shock states obtained from this variational principle deviate from the known exact Rankine-Hugoniot solution would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.20635 by Cheng Yang, Fran\c{c}ois Gay-Balmaz.

Figure 1
Figure 1. Figure 1: Singular surface (shock front) in a domain [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
read the original abstract

Hamilton's principle plays a central role in fluid mechanics as a fundamental tool for deriving governing equations, analyzing conservation laws, and designing structure-preserving numerical schemes. However, its classical formulation is restricted to smooth solutions and does not directly accommodate shock discontinuities. Addressing this limitation within a variational framework has long been a challenging issue. In this paper, we develop a variational framework that extends Hamilton's principle to shock solutions in compressible fluid dynamics. For the barotropic Euler equations, we introduce a modified action principle that incorporates additional contributions localized at discontinuities. This allows the Rankine--Hugoniot conditions for mass and momentum to emerge directly from unrestricted variations, without imposing continuity across shocks. The additional term admits a natural interpretation as a dissipation potential, linking the variational structure to energy loss at shocks. We then extend the approach to the full compressible Euler equations. Using a variational formulation of nonequilibrium thermodynamics together with suitable variational and phenomenological constraints, we recover the Rankine--Hugoniot relations for mass, momentum, and energy. This yields a unified variational description of shock dynamics in compressible fluids and highlights a fundamental distinction between barotropic and full compressible models in the treatment of energy and entropy at discontinuities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a variational extension of Hamilton's principle for shock solutions in the compressible Euler equations. For the barotropic case, it augments the action with a discontinuity-localized term whose variations yield the Rankine-Hugoniot jump conditions for mass and momentum without assuming continuity. The term is interpreted as a dissipation potential. For the full compressible system, a variational nonequilibrium thermodynamics approach with constraints recovers the full set of Rankine-Hugoniot relations including energy.

Significance. If the localized terms are derived from first principles rather than constructed to match known jumps, this framework could offer a new variational perspective on shock dynamics, potentially aiding in the development of variational integrators for discontinuous flows and clarifying the role of dissipation at shocks. The distinction between barotropic and full models is highlighted as a strength.

major comments (2)
  1. [§3 (Barotropic Euler)] §3 (Barotropic Euler): The specific form of the additional localized contribution to the action must be justified independently. The first variation appears to be designed to cancel the boundary terms from integration by parts across the shock surface, raising the question of whether this is a derivation or a reverse-engineering of the Rankine-Hugoniot conditions.
  2. [§5 (Extension to full compressible Euler)] §5 (Extension to full compressible Euler): The use of variational formulation of nonequilibrium thermodynamics and phenomenological constraints needs explicit verification that the energy jump condition emerges naturally rather than being imposed via the constraints. Please clarify if the constraints presuppose the jump relations.
minor comments (2)
  1. [Abstract] Abstract: The abstract mentions 'suitable variational and phenomenological constraints' without specifying them; a brief indication would improve clarity.
  2. [Throughout] Throughout: Ensure all notation for the discontinuity surface and its variations is consistently defined early in the paper.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and thoughtful report. The comments highlight important points regarding the motivation and derivation of our variational framework, and we address them point by point below, indicating planned revisions for clarity.

read point-by-point responses

  1. Referee: §3 (Barotropic Euler): The specific form of the additional localized contribution to the action must be justified independently. The first variation appears to be designed to cancel the boundary terms from integration by parts across the shock surface, raising the question of whether this is a derivation or a reverse-engineering of the Rankine-Hugoniot conditions.

    Authors: We agree that an independent physical justification is essential. The localized term is introduced as a dissipation potential, motivated by the irreversible energy loss at shocks in the barotropic model (where entropy is not explicitly tracked). This draws from classical variational principles with dissipation, such as Rayleigh's dissipation function, adapted to a surface-localized contribution that encodes the jump in the Bernoulli invariant. The form is not chosen merely to cancel integration-by-parts terms but follows from requiring the first variation to reproduce the weak form of the conservation laws while accounting for dissipation. That said, the manuscript would benefit from a more explicit derivation of the term from the dissipation principle. We will add a dedicated paragraph in §3 deriving the coefficient from the entropy production rate across the discontinuity and clarifying that the variation yields the jumps as a consequence rather than by construction. revision: partial

  2. Referee: §5 (Extension to full compressible Euler): The use of variational formulation of nonequilibrium thermodynamics and phenomenological constraints needs explicit verification that the energy jump condition emerges naturally rather than being imposed via the constraints. Please clarify if the constraints presuppose the jump relations.

    Authors: The constraints in our variational nonequilibrium thermodynamics approach are imposed on the admissible class of variations (virtual displacements and thermodynamic processes at the discontinuity), following standard treatments of constrained variational principles in irreversible thermodynamics. They encode the nonequilibrium character and entropy production but do not directly encode the Rankine-Hugoniot relations. The full set of jump conditions, including energy, then follows from requiring stationarity of the augmented action. To make this transparent, we will expand §5 with a step-by-step calculation of the first variation, explicitly separating the contributions from the thermodynamic potential, the constraints, and the resulting natural boundary conditions at the shock. This will demonstrate that the energy jump arises from the variational stationarity condition rather than being presupposed. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected; modified action generates RH conditions rather than presupposing them.

full rationale

The provided abstract and context describe the introduction of a localized dissipation term in the action for barotropic Euler, with the claim that unrestricted variations then produce the Rankine-Hugoniot jump conditions for mass and momentum. The term is motivated by an interpretation as a dissipation potential linked to energy loss, and the full compressible case uses a separate variational nonequilibrium thermodynamics setup plus constraints. No quoted equation or step shows the added term being defined in terms of the target jumps (or vice versa), nor any self-citation chain, fitted parameter renamed as prediction, or ansatz smuggled from prior work that reduces the central result to its inputs by construction. The derivation chain therefore remains self-contained against external benchmarks such as the known RH relations, which are derived rather than assumed. This aligns with an honest non-finding of circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard variational calculus plus two domain-specific modeling choices: localized discontinuity contributions and a variational nonequilibrium thermodynamics setup.

axioms (2)
  • domain assumption Additional contributions localized at discontinuities can be added to the action while preserving the variational structure.
    Core modeling step stated in the abstract for both barotropic and full cases.
  • domain assumption A variational formulation of nonequilibrium thermodynamics together with suitable variational and phenomenological constraints exists and is compatible with the Euler system.
    Invoked explicitly for recovering the energy Rankine-Hugoniot relation.
