arxiv: 2604.20857 · v1 · submitted 2026-02-28 · 💻 cs.IR · cs.AI

Recognition: no theorem link

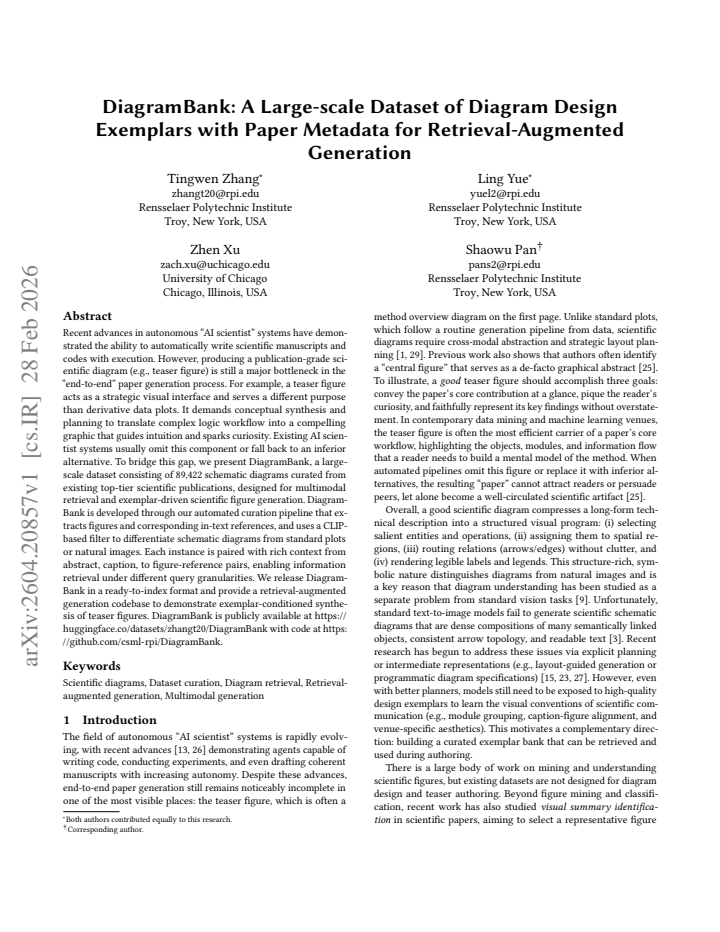

DiagramBank: A Large-scale Dataset of Diagram Design Exemplars with Paper Metadata for Retrieval-Augmented Generation

Tingwen Zhang , Ling Yue , Zhen Xu , Shaowu Pan

Authors on Pith no claims yet

Pith reviewed 2026-05-15 18:47 UTC · model grok-4.3

classification 💻 cs.IR cs.AI

keywords diagram datasetretrieval-augmented generationscientific figuresschematic diagramsAI scientist systemsmultimodal retrievalfigure generationdataset curation

0 comments

The pith

DiagramBank curates 89,422 schematic diagrams from scientific publications to enable retrieval-augmented generation of high-quality figures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents DiagramBank, a dataset of 89,422 schematic diagrams extracted from top-tier scientific publications. It addresses the bottleneck in AI scientist systems where generating publication-grade diagrams, such as teaser figures, remains challenging despite advances in writing manuscripts and code. The dataset is built via an automated pipeline that pulls figures along with their in-text references and uses CLIP to filter for schematics over plots or natural images. Each entry includes context from abstracts, captions, and figure references, supporting retrieval at varying levels of detail. The authors also release a codebase showing how to use the dataset for exemplar-conditioned figure synthesis.

Core claim

We present DiagramBank, a large-scale dataset consisting of 89,422 schematic diagrams curated from existing top-tier scientific publications, designed for multimodal retrieval and exemplar-driven scientific figure generation. DiagramBank is developed through our automated curation pipeline that extracts figures and corresponding in-text references, and uses a CLIP-based filter to differentiate schematic diagrams from standard plots or natural images. Each instance is paired with rich context from abstract, caption, to figure-reference pairs, enabling information retrieval under different query granularities.

What carries the argument

The automated curation pipeline that extracts figures and in-text references, combined with a CLIP-based filter to identify schematic diagrams, and the pairing with rich context from abstracts, captions, and figure-reference pairs.

If this is right

AI scientist systems gain access to exemplars that support conceptual synthesis in teaser figure generation.
Multimodal retrieval becomes possible across query types from abstract summaries to specific figure references.
Exemplar-conditioned synthesis of publication-grade diagrams becomes a practical component in end-to-end paper generation.
The ready-to-index release format allows direct integration into existing retrieval-augmented pipelines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The curation approach could be adapted to collect other visual types such as data plots or experimental images for broader coverage.
Pairing the dataset with text-generation models might enable fully automated manuscript production that includes figures.
The collection of diagrams with metadata could support studies of effective visual communication patterns across scientific fields.

Load-bearing premise

The CLIP-based filter and automated extraction pipeline can reliably select high-quality schematic diagrams that are representative and useful without introducing substantial noise or selection bias.

What would settle it

A manual review of a random sample from the dataset revealing that a large fraction consists of standard plots, natural images, or low-quality figures rather than true schematic diagrams would undermine the claim of a high-quality, usable resource.

Figures

Figures reproduced from arXiv: 2604.20857 by Ling Yue, Shaowu Pan, Tingwen Zhang, Zhen Xu.

**Figure 1.** Figure 1: DiagramBank-RAG framework (self-generated example). The above workflow diagram is automatically generated by [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

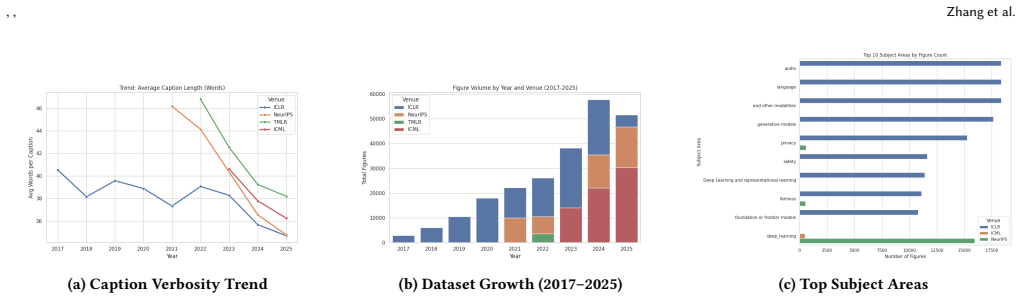

**Figure 2.** Figure 2: Statistical Overview of the Dataset. (a) The average caption length (number of words) has steadily decreased from [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: Hierarchical Three-Stage Retrieval Pipeline. The system uses a coarse-to-fine filtering strategy to ensure domain [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

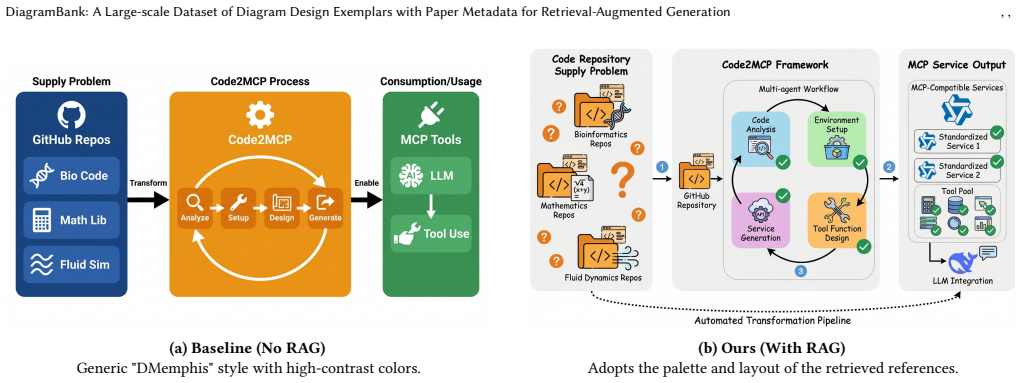

**Figure 4.** Figure 4: Impact of Retrieval. Comparing the baseline generation (a) against our RAG-augmented approach (b). The RAG model [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

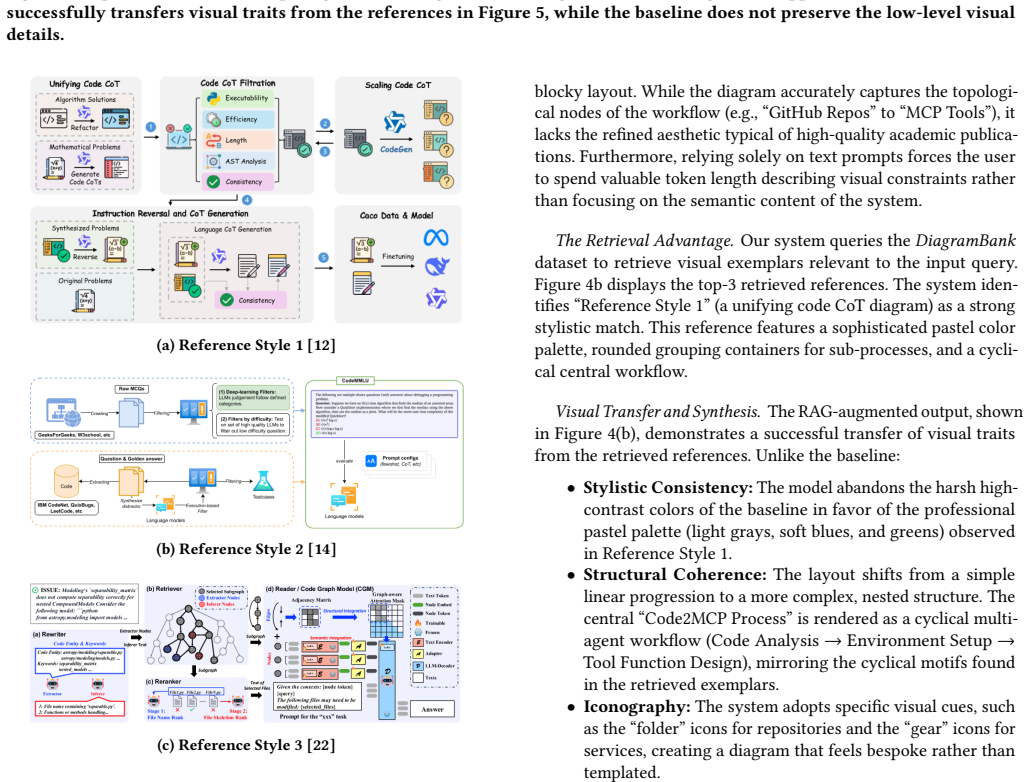

**Figure 5.** Figure 5: Retrieved References. The top three retrieved ex [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

read the original abstract

Recent advances in autonomous ``AI scientist'' systems have demonstrated the ability to automatically write scientific manuscripts and codes with execution. However, producing a publication-grade scientific diagram (e.g., teaser figure) is still a major bottleneck in the ``end-to-end'' paper generation process. For example, a teaser figure acts as a strategic visual interface and serves a different purpose than derivative data plots. It demands conceptual synthesis and planning to translate complex logic workflow into a compelling graphic that guides intuition and sparks curiosity. Existing AI scientist systems usually omit this component or fall back to an inferior alternative. To bridge this gap, we present DiagramBank, a large-scale dataset consisting of 89,422 schematic diagrams curated from existing top-tier scientific publications, designed for multimodal retrieval and exemplar-driven scientific figure generation. DiagramBank is developed through our automated curation pipeline that extracts figures and corresponding in-text references, and uses a CLIP-based filter to differentiate schematic diagrams from standard plots or natural images. Each instance is paired with rich context from abstract, caption, to figure-reference pairs, enabling information retrieval under different query granularities. We release DiagramBank in a ready-to-index format and provide a retrieval-augmented generation codebase to demonstrate exemplar-conditioned synthesis of teaser figures. DiagramBank is publicly available at https://huggingface.co/datasets/zhangt20/DiagramBank with code at https://github.com/csml-rpi/DiagramBank.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

DiagramBank supplies a sizable set of schematic diagrams with paper metadata for retrieval-based figure generation, but the CLIP filter that defines its quality has no reported accuracy numbers.

read the letter

The main point is that this paper releases DiagramBank, a collection of 89,422 schematic diagrams pulled from top-tier scientific papers, each tied to abstracts, captions, and in-text references. The goal is to give retrieval systems concrete exemplars for generating conceptual figures like teaser images, which current AI scientist pipelines still handle poorly compared to data plots. They also ship a ready-to-index version on Hugging Face plus sample retrieval-augmented generation code, which makes the resource immediately testable. That combination of scale, schematic focus, and paired metadata is the concrete addition. It directly targets a workflow gap rather than re-deriving existing figure extraction methods. The curation pipeline description is clear enough on paper: extract figures, apply CLIP to keep schematics over plots or photos, and retain the surrounding text. For anyone building multimodal retrieval or automated scientific writing tools, this is usable material. The citation choices are standard and do not overclaim prior coverage. The soft spot is the missing validation on the filter itself. The abstract and description state that CLIP separates schematics, yet no precision, recall, threshold ablations, or human agreement scores appear. Without those, the fraction of actual high-quality diagrams versus misclassified items stays unknown, and that directly limits how much weight the downstream use case can carry. The rest of the paper stays proportionate and does not overstate what the release proves. This is for readers working on retrieval-augmented generation, scientific document AI, or multimodal datasets who need real schematic examples with context. It is not a methods breakthrough but a practical data artifact. I would bring it to a reading group as maybe, to discuss curation choices and how the data performs in actual retrieval setups. I would not cite the paper itself in the next year unless I start using the dataset. It deserves peer review because the resource addresses a documented bottleneck and the release lowers the barrier for others to test it; reviewers can press on the filter validation without the work being dismissed outright.

Referee Report

1 major / 1 minor

Summary. The paper introduces DiagramBank, a dataset of 89,422 schematic diagrams extracted from top-tier scientific publications via an automated pipeline that performs figure extraction, pairs them with metadata (abstracts, captions, figure references), and applies a CLIP-based filter to separate schematics from plots or natural images. The authors release the dataset in a ready-to-index format and supply a retrieval-augmented generation codebase to demonstrate exemplar-driven teaser-figure synthesis.

Significance. If the curation pipeline reliably yields low-noise, representative schematics, DiagramBank would fill a practical gap in AI-scientist pipelines by supplying high-quality visual exemplars for multimodal retrieval and conditioned generation. The combination of scale, rich metadata, and accompanying RAG code makes the resource immediately usable for downstream research on scientific figure synthesis.

major comments (1)

[Curation Pipeline] The description of the automated curation pipeline (including the CLIP-based schematic-vs-plot filter) reports no quantitative validation: no precision/recall figures, no human-agreement scores on a labeled hold-out set, and no ablation on the similarity threshold. Because the central claim is that the released collection contains 89,422 high-quality schematics suitable for retrieval-augmented generation, the absence of these metrics leaves the utility of the dataset unverified.

minor comments (1)

[Abstract] The abstract and release statement mention the Hugging Face and GitHub URLs but do not specify the exact JSON schema or indexing format of the released files; adding a short table or example record would improve reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We are grateful for the referee's review, which highlights an important aspect of our work. Below we respond to the major comment and commit to revisions that will enhance the manuscript.

read point-by-point responses

Referee: [Curation Pipeline] The description of the automated curation pipeline (including the CLIP-based schematic-vs-plot filter) reports no quantitative validation: no precision/recall figures, no human-agreement scores on a labeled hold-out set, and no ablation on the similarity threshold. Because the central claim is that the released collection contains 89,422 high-quality schematics suitable for retrieval-augmented generation, the absence of these metrics leaves the utility of the dataset unverified.

Authors: We agree with the referee that quantitative validation is necessary to confirm the quality of the curated dataset. In the revised manuscript, we will add a dedicated section on the curation pipeline validation. Specifically, we will provide precision and recall metrics for the CLIP-based schematic filter based on a human-annotated test set of 500 figures. We will also report the inter-annotator agreement score and include an ablation analysis on the effect of different similarity thresholds on the number and quality of retained schematics. These additions will directly address the concern and strengthen the evidence for the dataset's utility in retrieval-augmented generation tasks. revision: yes

Circularity Check

0 steps flagged

No circularity: dataset curation paper with no derivations or fitted predictions

full rationale

The paper is a data release describing the construction of DiagramBank via figure extraction and a CLIP-based filter. No equations, predictions, first-principles results, or model fittings are present that could reduce to the inputs by construction. The 89,422 count and downstream utility claims rest on the pipeline description rather than any self-referential logic or self-citation chain. This is a standard non-circular contribution of curated data and code.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the assumption that schematic diagrams can be automatically distinguished from other figure types and that the extracted examples are suitable exemplars for generation tasks.

axioms (1)

domain assumption CLIP embeddings can reliably separate schematic diagrams from plots and natural images in scientific publications.
The curation pipeline invokes this distinction to filter the collected figures.
