A Tendon-Driven Wrist Abduction-Adduction Joint Improves Performance of a 5 DoF Upper Limb Exoskeleton -- Implementation and Experimental Evaluation

Juwairiya S. Khan , Mostafa Mohammadi , Alexander L. Ammitzb{\o}ll , Ellen-Merete Hagen , Jakob Blicher , Izabella Ob\'al , Ana S. S. Cardoso , Oguzhan Kirtas
show 3 more authors
Rasmus L. K{\ae}seler John Rasmussen Lotte N.S. Andreasen Struijk
Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:03 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords upper limb exoskeletonwrist abduction-adductiontendon-driven jointactivities of daily livingrehabilitation roboticstask performanceALS evaluation
0
0 comments X

The pith

Adding active wrist abduction-adduction to a 5-DoF exoskeleton cuts drinking spills from 56% to 3% and raises scratching success from 28% to 75%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether adding an active wrist joint for abduction and adduction improves performance of everyday tasks when users wear a five-degree-of-freedom upper limb exoskeleton. Researchers integrated a compact tendon-driven module that provides powered abduction and spring-return adduction, then ran randomized trials with eight healthy adults and one person with ALS on drinking and scratching tasks. Enabling the wrist motion produced large gains in task success without lengthening completion times. The work matters because wrist motion is required for most activities of daily living, yet many exoskeletons omit this degree of freedom.

Core claim

A compact, lightweight wrist module with tendon-driven abduction and spring-driven adduction was integrated into the EXOTIC exoskeleton. When the wrist Ab-Ad DoF was enabled, spill incidence during the drinking task fell from 56% to 3% and leveling success for the scratching task rose from 28% to 75%. The added joint improved key functional outcomes without increasing execution time.

What carries the argument

Compact tendon-driven wrist module that supplies active abduction and spring-driven adduction, integrated as the sixth degree of freedom in the five-DoF EXOTIC2 exoskeleton.

If this is right

  • Spill incidence drops sharply in drinking tasks when wrist abduction-adduction is active.
  • Leveling accuracy rises markedly in scratching tasks with the added joint.
  • Task completion times stay the same despite the extra freedom.
  • The design supplies direct experimental evidence that wrist Ab-Ad assistance can enhance ADL performance in exoskeletons.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Exoskeleton designs for rehabilitation may need to treat wrist abduction-adduction as a standard rather than optional degree of freedom if the measured gains hold in wider use.
  • The tendon-spring approach could be adapted to other missing joints in wearable robots where space and weight are limited.
  • Future tests on additional ADLs such as dressing or grooming would show whether the benefit pattern repeats beyond the two tasks studied.

Load-bearing premise

Gains measured in eight healthy adults and one ALS patient on two specific tasks will generalize to broader populations with severe motor impairments and to other daily activities.

What would settle it

A larger study with severely impaired users that finds no drop in spill rates or no rise in leveling success when the wrist joint is unlocked would falsify the performance claim.

Figures

Figures reproduced from arXiv: 2604.20898 by Alexander L. Ammitzb{\o}ll, Ana S. S. Cardoso, Ellen-Merete Hagen, Izabella Ob\'al, Jakob Blicher, John Rasmussen, Juwairiya S. Khan, Lotte N.S. Andreasen Struijk, Mostafa Mohammadi, Oguzhan Kirtas, Rasmus L. K{\ae}seler.

Figure 1
Figure 1. Figure 1: CAD model of EXOTIC2 exoskeleton and ROM of 5 DoFs. (a) side view with shoulder FE, elbow FE and wrist Ab-Ad and indications of adjustable links (upper arm, forearm and hand), (b) a view with shoulder IE rotation and forearm supination/pronation. (c) Wrist joint with finger slots for passive hand closing. A. Hardware The EXOTIC exoskeleton is a 5-DoF wearable arm system developed to support shoulder and el… view at source ↗
Figure 2
Figure 2. Figure 2: (a) System overview during experimental evaluation. I: [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Experimental Protocol for NMD participants indicating two tasks (a) drinking with a cup (placed in a container) and leveling scratching stick, (b) Trial start positions, (c) Conditions: With and without wrist Ab-Ad joint, (d) image series of the experimental trial performed by the participant and (e) the trial outcomes [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

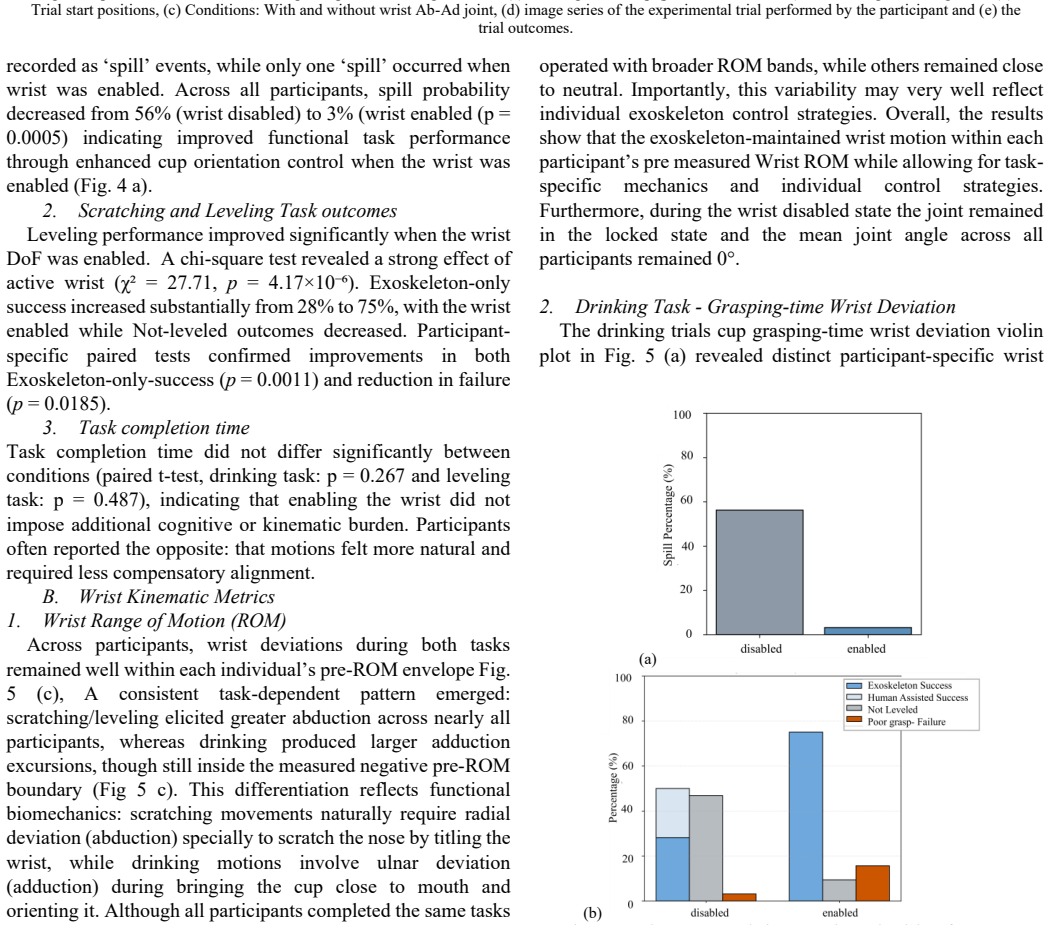

Figure 4
Figure 4. Figure 4: Task outcomes during experimental trials of NMD [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Wrist function is essential in performing activities of daily living (ADLs). However, there is limited experimental evidence on the functional impact of wrist Abduction-Adduction (Ab-Ad) joint assistance in upper limb exoskeletons (ULEs) for rehabilitation. This study evaluates the effect of implementing an active wrist Ab-Ad joint in a five degree of freedom (DoF) ULE, EXOTIC2 exoskeleton, to support individuals with severe motor impairments. Methods: A compact, lightweight wrist module with tendon-driven abduction and spring-driven adduction was integrated into the EXOTIC exoskeleton. Eight adults with no motor disabilities completed drinking and scratching tasks under randomized wrist-enabled and wrist-locked conditions along with a preliminary feasibility test in one individual with Amyotrophic lateral sclerosis (ALS). Kinematic and task performance metrics including wrist range of motion, task completion time, spillage and leveling metrics were assessed. Results: Implementing the wrist Ab-Ad DoF improved task success metrics. Spill incidence during the drinking task decreased from 56% to 3%, and leveling success for scratching task improved from 28% to 75%. Conclusion: Integrating wrist Ab-Ad assistance improved key functional task outcomes without increasing execution time. Significance: The study provides the experimental evidence that active wrist Ab-Ad control enhances task-level performance in exoskeleton-assisted ADLs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the integration of a compact tendon-driven wrist abduction-adduction (Ab-Ad) module into the EXOTIC2 five-degree-of-freedom upper limb exoskeleton. Through a randomized within-subject experiment with eight healthy adults performing drinking and scratching tasks under wrist-enabled and wrist-locked conditions, plus a preliminary test with one ALS patient, the authors report substantial improvements in task success: spill incidence in drinking decreased from 56% to 3%, and leveling success in scratching increased from 28% to 75%. The central claim is that active wrist Ab-Ad assistance enhances functional performance in exoskeleton-assisted activities of daily living without increasing execution time.

Significance. If the results hold, this work supplies direct experimental evidence that adding an active wrist Ab-Ad DoF can measurably improve ADL task outcomes in an upper-limb exoskeleton. The randomized within-subject design and concrete before-after metrics (spillage, leveling) constitute a strength, as does the compact tendon-plus-spring hardware implementation. Such data can usefully inform design trade-offs in rehabilitation robotics even if broader clinical generalization requires further study.

major comments (2)
  1. [Results] Results section: the headline metrics (spill incidence 56% to 3%, leveling success 28% to 75%) are reported as raw percentages without statistical tests, confidence intervals, or effect sizes. With n=8 healthy participants and a within-subject design, the absence of these details leaves open the possibility that observed differences reflect order effects, learning, or sampling variability rather than a robust effect of the Ab-Ad module.
  2. [Methods / Discussion] Methods and Discussion: the primary evidence derives from healthy adults whose wrists were artificially locked. This proxy does not reproduce the spasticity, selective weakness, fatigue, or trunk/shoulder compensation patterns characteristic of the target population with severe motor impairments (e.g., ALS). The single preliminary ALS case is insufficient to validate translation; the functional claim for clinical users therefore rests on an untested extrapolation.
minor comments (2)
  1. [Abstract] Abstract: the statement that performance improved 'without increasing execution time' is not accompanied by any quantitative time data or statistical comparison; a brief supporting clause would strengthen the claim.
  2. [Methods] Methods: the randomization procedure, exact task protocols, sensor placement, and data-processing pipeline are described at a high level only. Adding these details would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment below and indicate the revisions we will incorporate.

read point-by-point responses

  1. Referee: [Results] Results section: the headline metrics (spill incidence 56% to 3%, leveling success 28% to 75%) are reported as raw percentages without statistical tests, confidence intervals, or effect sizes. With n=8 healthy participants and a within-subject design, the absence of these details leaves open the possibility that observed differences reflect order effects, learning, or sampling variability rather than a robust effect of the Ab-Ad module.

    Authors: We agree that statistical support is needed to strengthen the results presentation. Although the magnitude of the observed changes is large, we will add appropriate paired statistical tests (McNemar's test for the binary success/spillage outcomes), 95% confidence intervals, and effect sizes in the revised Results section. We will also note the randomized order to address potential learning or order effects. revision: yes

  2. Referee: [Methods / Discussion] Methods and Discussion: the primary evidence derives from healthy adults whose wrists were artificially locked. This proxy does not reproduce the spasticity, selective weakness, fatigue, or trunk/shoulder compensation patterns characteristic of the target population with severe motor impairments (e.g., ALS). The single preliminary ALS case is insufficient to validate translation; the functional claim for clinical users therefore rests on an untested extrapolation.

    Authors: The locked-wrist protocol in healthy subjects was deliberately selected to isolate the functional contribution of the wrist Ab-Ad DoF under controlled conditions. We present the single ALS case only as preliminary feasibility evidence. We accept that this does not capture the full range of clinical impairments. In revision we will expand the Discussion to state these limitations more explicitly, qualify the claims as applying to the controlled experimental setting, and emphasize the need for future patient studies. revision: partial

Circularity Check

0 steps flagged

No circularity: direct empirical hardware evaluation

full rationale

The paper reports results from a controlled user study comparing wrist-enabled versus wrist-locked conditions on measured task outcomes (spill incidence, leveling success, completion time) in eight healthy adults plus one ALS case. No equations, fitted models, parameter estimations, or derivation chains appear in the provided text or abstract. Claims rest on observed performance differences rather than any self-referential construction, self-citation load-bearing premise, or renaming of prior results. This is a standard empirical engineering evaluation whose central findings are independent of the inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is an applied experimental engineering study. It introduces no new free parameters, mathematical derivations, or postulated entities. It rests on standard domain assumptions about task representativeness and metric validity in rehabilitation robotics.

axioms (1)
  • domain assumption The chosen tasks (drinking and scratching) and metrics (spillage, leveling success, completion time) are valid indicators of functional wrist assistance benefit in activities of daily living.
    This assumption underpins the interpretation of the reported improvements as evidence of enhanced performance.
