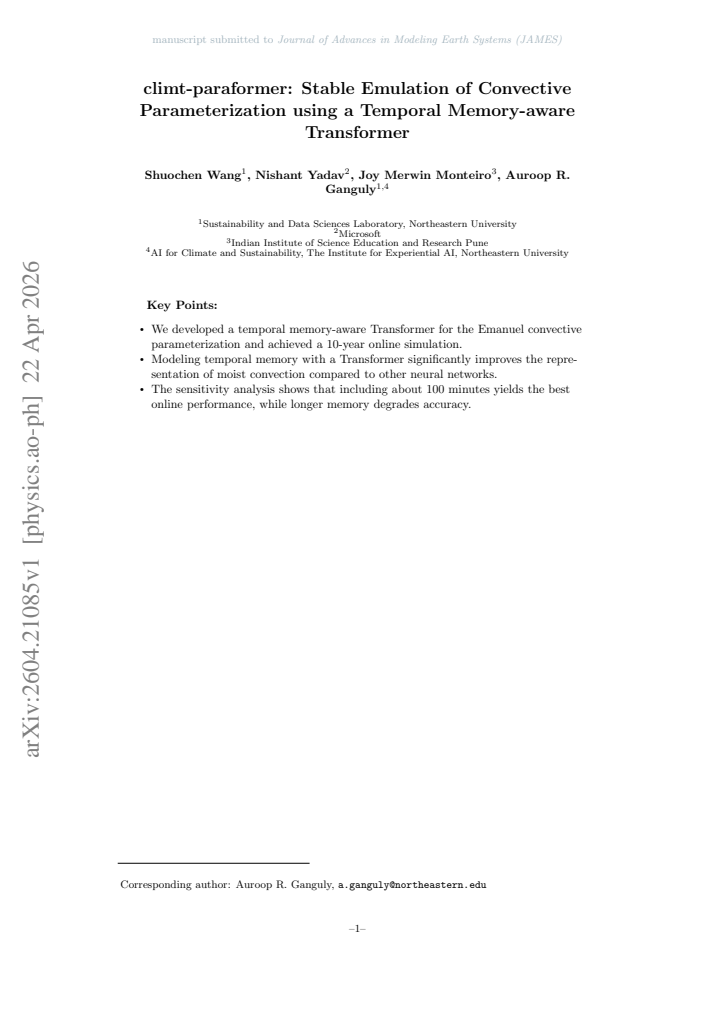

climt-paraformer: Stable Emulation of Convective Parameterization using a Temporal Memory-aware Transformer
Pith reviewed 2026-05-09 22:10 UTC · model grok-4.3
The pith
A Transformer emulator for convective parameterization that models temporal memory achieves lower errors and stays stable over 10-year single-column simulations.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The temporal memory-aware Transformer emulator for the Emanuel convective parameterization captures correlations and nonlinear interactions across consecutive atmospheric states, yielding lower offline errors than memory-less multilayer perceptron or LSTM baselines. Sensitivity analysis shows best performance at a memory length of approximately 100 minutes, with longer memory degrading results. When inserted into long-term coupled single-column model simulations, the emulator remains stable over 10 years.
What carries the argument
temporal memory-aware Transformer that processes sequences of atmospheric states via attention to predict convective tendencies
If this is right
- Lower point-wise errors in predicting convective heating and moistening tendencies from atmospheric profiles.
- Decade-long stability in coupled single-column integrations without the instabilities sometimes seen in earlier neural emulators.

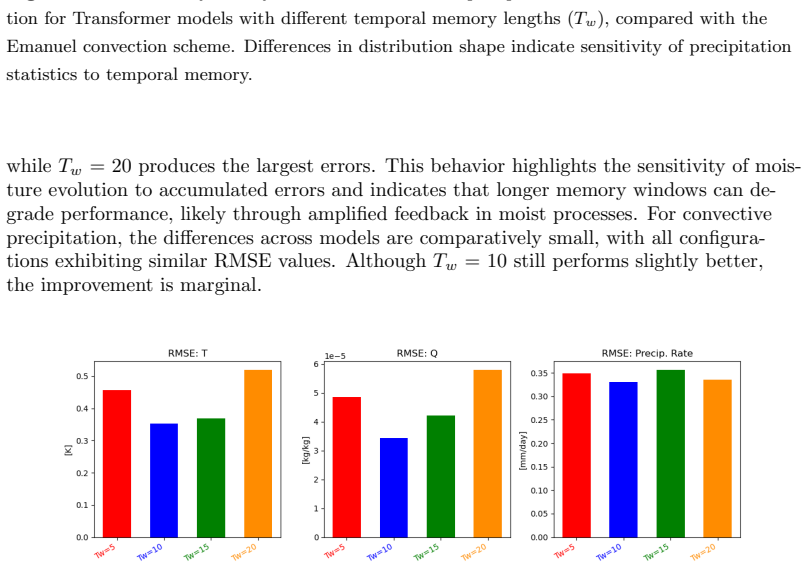

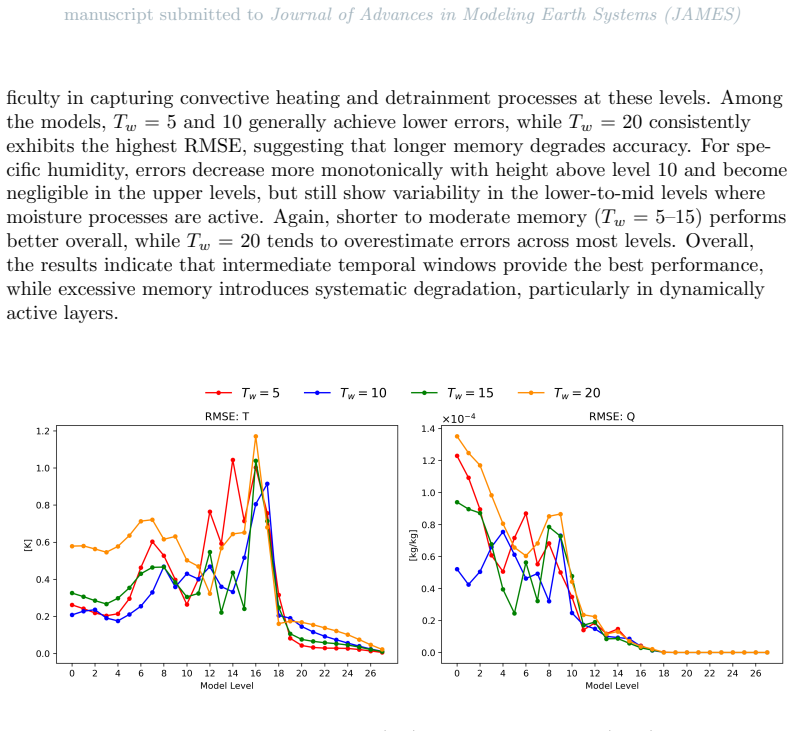

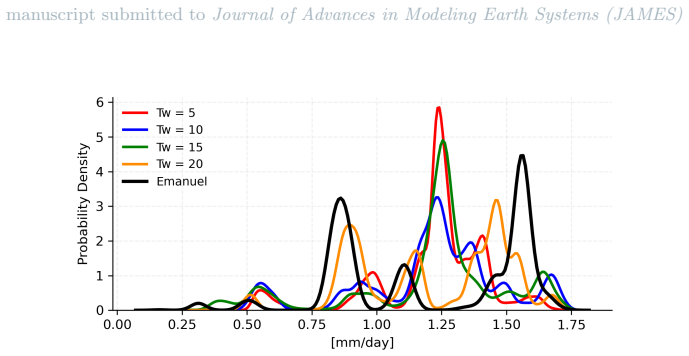

- Performance peaks at a memory window of roughly 100 minutes and declines for substantially longer windows.
- Explicit sequence modeling via attention outperforms both memory-less networks and standard recurrent architectures for this task.
Where Pith is reading between the lines
- The same sequence-modeling strategy could be applied to other sub-grid processes such as cloud microphysics or radiation that also depend on recent history.
- An adaptive memory length that varies with local conditions might remove the need to tune a fixed window of 100 minutes.
- If the single-column stability carries over, the emulator could replace expensive convective schemes inside operational global models and thereby free compute for higher resolution or ensemble size.
Load-bearing premise
Superior offline accuracy and decade-scale stability seen in single-column model tests will continue without degradation when the emulator is placed inside full three-dimensional global climate models.
What would settle it
A 10-year integration of the emulator inside a full global climate model that produces growing drift in temperature, humidity, or precipitation fields, or offline errors that exceed those of the original Emanuel scheme on independent data.
Figures
read the original abstract
Accurate representation of moist convective sub-grid-scale processes remains a major challenge in global climate models, as traditional parameterization schemes are both computationally expensive and difficult to scale. Neural network (NN) emulators offer a promising alternative by learning efficient mappings between atmospheric states and convective tendencies while retaining fidelity to the underlying physics. However, most existing NN-based parameterizations are memory-less and rely only on instantaneous inputs, even though convection evolves over time and depends on prior atmospheric states. Recent studies have begun to incorporate convective memory, but they often treat past states as independent features rather than modeling temporal dependencies explicitly. In this work, we develop a temporal memory-aware Transformer emulator for the Emanuel convective parameterization and evaluate it in a single-column climate model (SCM) under both offline and online configurations. The Transformer captures temporal correlations and nonlinear interactions across consecutive atmospheric states. Compared with baseline emulators, including a memory-less multilayer perceptron and a recurrent long short-term memory model, the Transformer achieves lower offline errors. Sensitivity analysis indicates that a memory length of approximately 100 minutes yields the best performance, whereas longer memory degrades performance. We further test the emulator in long-term coupled simulations and show that it remains stable over 10 years. Overall, this study demonstrates the importance of explicit temporal modeling for NN-based parameterizations.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript develops a temporal memory-aware Transformer to emulate the Emanuel convective parameterization. It is trained and evaluated in a single-column model (SCM) under offline and online configurations, claiming lower offline errors than memory-less MLP and LSTM baselines, an optimal memory length of ~100 minutes, and 10-year stability in long-term coupled simulations.
Significance. If the performance and stability advantages generalize beyond the SCM, the work would usefully demonstrate the benefit of explicit temporal modeling via Transformers for sub-grid convective processes. This could support more efficient and physically consistent emulators in climate modeling, with the memory-length sensitivity analysis offering practical guidance for related efforts.
major comments (2)
- [Abstract and Results] Abstract and online evaluation sections: The central claims of lower offline errors and 10-year stability are presented without quantitative error metrics (e.g., RMSE values), training/validation split details, baseline implementation specifics, or statistical significance tests. This prevents assessment of whether the reported improvements are meaningful or reproducible.
- [Online evaluation / coupled simulations] Online evaluation and coupled simulations: Stability over 10 years is demonstrated only within an SCM. The abstract and introduction position the emulator as an alternative for global climate models, yet no tests incorporate 3D dynamics, horizontal advection, or multi-column interactions. Because these feedbacks can introduce instabilities absent in SCM, the extrapolation is load-bearing for the applicability claim and requires either scope clarification or additional full-GCM experiments.
minor comments (3)
- [Abstract] Clarify the precise definition of 'coupled simulations' and whether they include any 3D components.
- [Methods] Expand the methods description of the Transformer architecture (layers, heads, memory implementation) and loss function for full reproducibility.
- [Results] Add error bars or significance tests to any comparison figures or tables showing baseline performance.
Simulated Author's Rebuttal
We thank the referee for their thoughtful review and constructive comments on our manuscript. We address each major comment below and describe the revisions we will incorporate.
read point-by-point responses
-
Referee: [Abstract and Results] Abstract and online evaluation sections: The central claims of lower offline errors and 10-year stability are presented without quantitative error metrics (e.g., RMSE values), training/validation split details, baseline implementation specifics, or statistical significance tests. This prevents assessment of whether the reported improvements are meaningful or reproducible.
Authors: We agree that quantitative details are necessary for assessing the significance and reproducibility of the results. In the revised manuscript, we will add specific RMSE values comparing the Transformer to the MLP and LSTM baselines, explicit descriptions of the training/validation splits used, details on baseline model implementations, and statistical significance tests (such as paired t-tests or bootstrap confidence intervals) to support the reported improvements. revision: yes
-
Referee: [Online evaluation / coupled simulations] Online evaluation and coupled simulations: Stability over 10 years is demonstrated only within an SCM. The abstract and introduction position the emulator as an alternative for global climate models, yet no tests incorporate 3D dynamics, horizontal advection, or multi-column interactions. Because these feedbacks can introduce instabilities absent in SCM, the extrapolation is load-bearing for the applicability claim and requires either scope clarification or additional full-GCM experiments.
Authors: We acknowledge that the 10-year stability demonstration is limited to SCM experiments, which exclude 3D dynamical feedbacks, horizontal advection, and multi-column interactions. The work intentionally uses the SCM to isolate the convective parameterization emulator. We will revise the abstract and introduction to clarify the study scope, explicitly noting that the emulator is evaluated within an SCM framework as a controlled testbed and that full incorporation of 3D effects remains future work. This will ensure the applicability claims are appropriately scoped. revision: yes
Circularity Check
No circularity: empirical NN emulation evaluated on held-out data
full rationale
The paper trains a Transformer on atmospheric states and convective tendencies generated by the Emanuel parameterization in an SCM, then measures offline error and online stability directly against that data and against independent baselines (MLP, LSTM). No equation, parameter fit, or self-citation reduces the reported performance metrics or stability claim to the training inputs by construction; the results are standard held-out evaluation of a learned mapping. The work is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (1)
- memory length
axioms (1)
- domain assumption Convective processes depend on prior atmospheric states over time scales of minutes to hours
Reference graph
