arxiv: 2604.21175 · v1 · submitted 2026-04-23 · 💻 cs.LG · cs.DS

Graph Neural Network-Informed Predictive Flows for Faster Ford-Fulkerson and PAC-Learnability

Eleanor Wiesler , Trace Baxley This is my paper

Pith reviewed 2026-05-09 22:13 UTC · model grok-4.3

classification 💻 cs.LG cs.DS
keywords graph neural networksmax-flow computationFord-Fulkerson algorithmimage segmentationaugmenting pathspriority queuesPAC learnability
0
0 comments X

The pith

A graph neural network assigns probabilities to edges to guide augmenting path selection in Ford-Fulkerson, reducing the number of iterations while preserving max-flow optimality.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method that trains a graph neural network once on an image-derived grid flow network to predict which edges are likely to belong to high-capacity cuts. These predictions populate a priority queue that steers a modified Ford-Fulkerson search toward promising paths first, using Edmonds-Karp style breadth-first search with bottleneck-aware tie-breaking. The resulting procedure still terminates with the correct maximum flow and minimum cut, yet reaches that point after fewer augmentations on the instances tested. A single forward pass of the network suffices for the entire run, avoiding repeated inference on changing residual graphs. The authors also sketch a theoretical link between the quality of the learned probabilities and the reduction in steps, measured by a weighted permutation distance.

Core claim

The central claim is that a Message Passing Graph Neural Network can produce edge probabilities that reliably identify high-value augmenting paths early in the optimization, so that a priority-queue-guided variant of Ford-Fulkerson computes the same maximum flow as the standard algorithm but with fewer augmentations in practice on grid-based image segmentation instances.

What carries the argument

A Message Passing GNN that performs coupled node-and-edge embedding updates to encode residual capacities, bottlenecks, and global cut structure, then outputs per-edge probabilities used to order path searches.

Load-bearing premise

The GNN predictions must identify high-capacity augmenting paths early enough to produce a net reduction in total augmentations that exceeds the overhead of the priority queue and the initial inference step.

What would settle it

On standard image segmentation benchmarks, if the total wall-clock time of the GNN-guided procedure exceeds that of plain Edmonds-Karp, the practical-acceleration claim is false.

Figures

Figures reproduced from arXiv: 2604.21175 by Eleanor Wiesler, Trace Baxley.

Figure 1

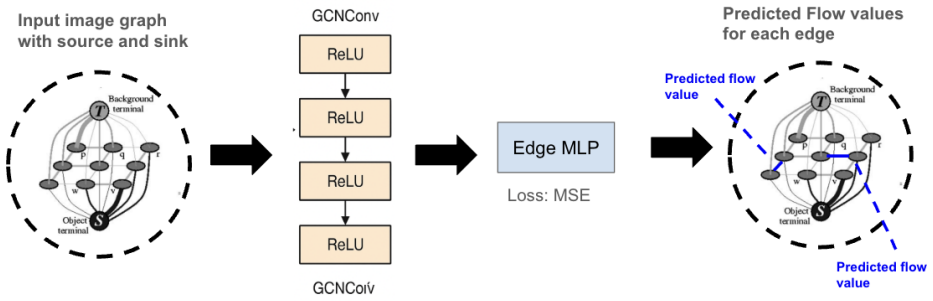

Figure 1. Figure 1: GCN for Algorithm 1: Graph convolution architecture for obbtaining edge-level [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

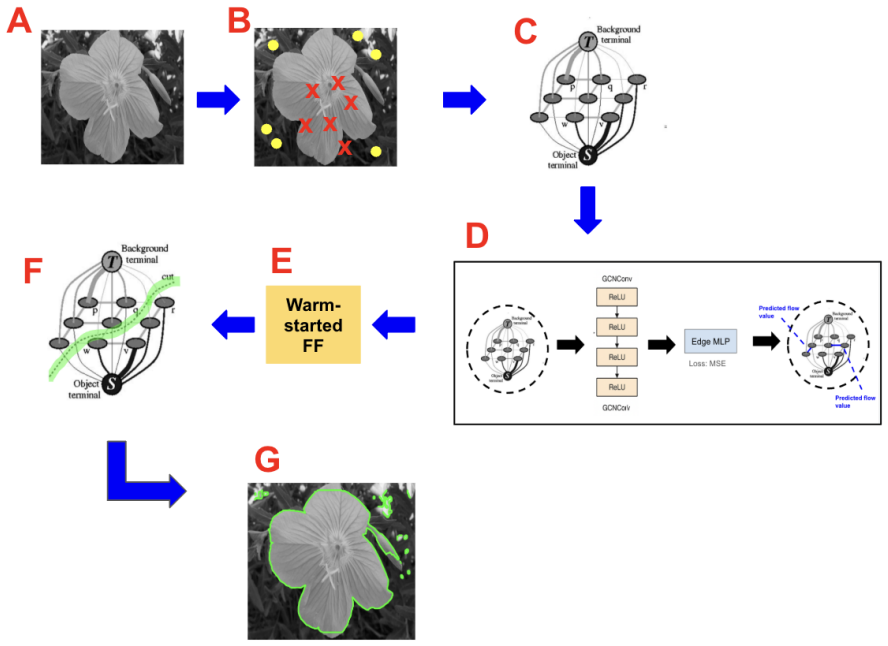

Figure 2. Figure 2: Algorithm 1 Implementation: Training of GCN-based Warm-start of Ford Fulker [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

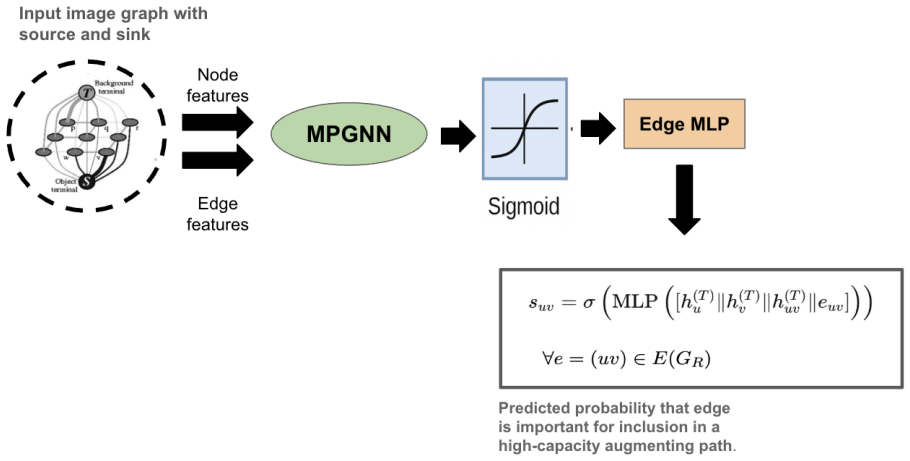

Figure 3. Figure 3: MPGNN Framework for Algorithm 2 4.2 Augmenting Path Selection With Message Passing Graph Neu￾ral Networks Let G = (V, E) be a flow network with integral capacities c ∈ Z |E| ≥0 , and let f denote a feasible flow. The residual graph Gres = (V, Eres) is constructed at each iteration of the Ford–Fulkerson algorithm. To accelerate the search for augmenting paths, we introduce a predictive model based on a mess… view at source ↗
Figure 4

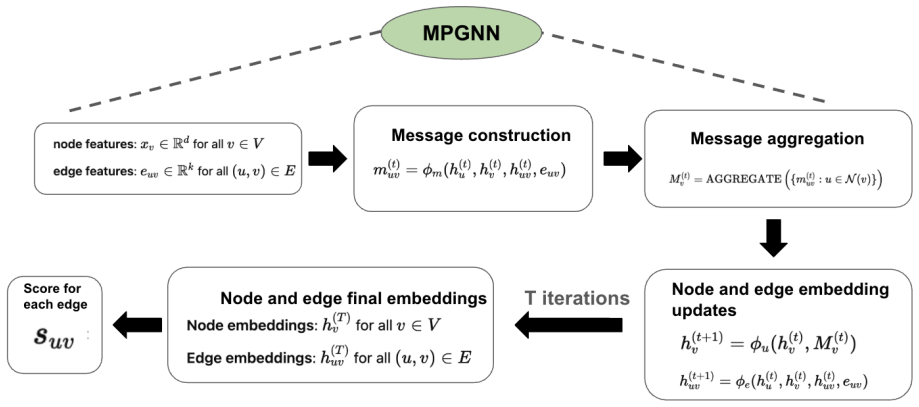

Figure 4. Figure 4: MPGNN-specific steps for node and edge embeddings and [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

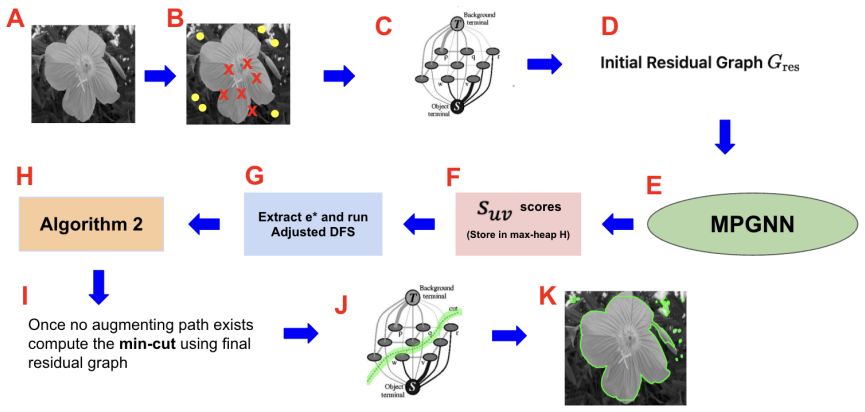

Figure 5. Figure 5: Algorithm 3 Implementation message passing. These scores are cached in a priority queue and used to guide an adjusted DFS traversal. At inference, we select the highest-scoring edge e ∗ = arg max e∈Eres p(e), and compute a full augmenting path by performing two DFS traversals: from the source to v and from w to the sink, where e ∗ = (v, w). DFS is modified to prioritize edges in descending order of p(e) fr… view at source ↗
read the original abstract

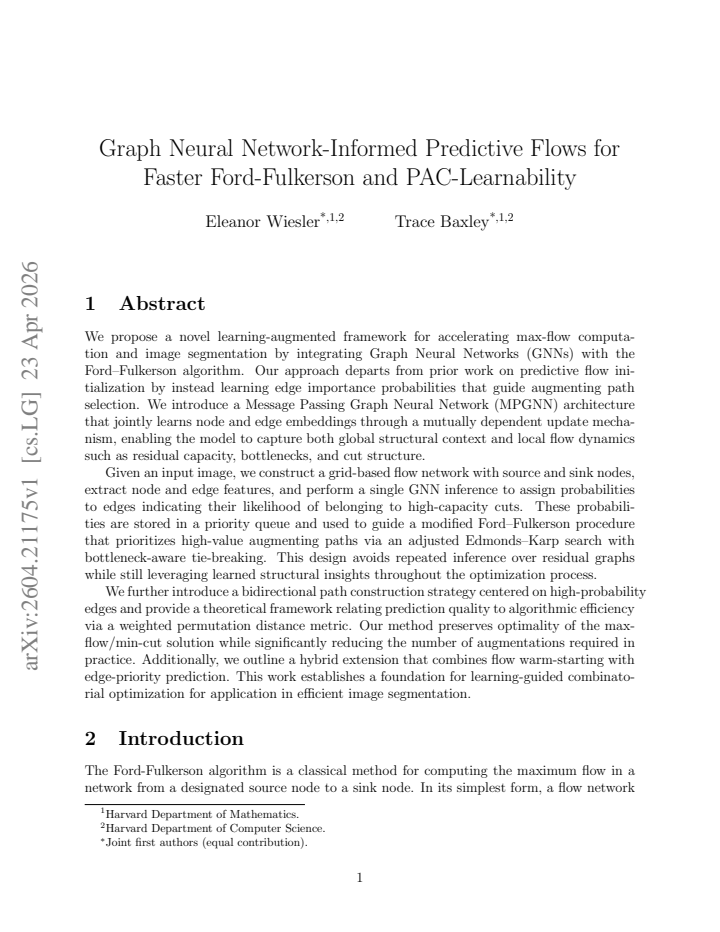

We propose a learning-augmented framework for accelerating max-flow computation and image segmentation by integrating Graph Neural Networks (GNNs) with the Ford-Fulkerson algorithm. Rather than predicting initial flows, our method learns edge importance probabilities to guide augmenting path selection. We introduce a Message Passing GNN (MPGNN) that jointly learns node and edge embeddings through coupled updates, capturing both global structure and local flow dynamics such as residual capacity and bottlenecks. Given an input image, we propose a method to construct a grid-based flow network with source and sink nodes, extract features, and perform a single GNN inference to assign edge probabilities reflecting their likelihood of belonging to high-capacity cuts. These probabilities are stored in a priority queue and used to guide a modified Ford-Fulkerson procedure, prioritizing augmenting paths via an Edmonds-Karp-style search with bottleneck-aware tie-breaking. This avoids repeated inference over residual graphs while leveraging learned structure throughout optimization. We further introduce a bidirectional path construction strategy centered on high-probability edges and provide a theoretical framework relating prediction quality to efficiency via a weighted permutation distance metric. Our method preserves max-flow/min-cut optimality while reducing the number of augmentations in practice. We also outline a hybrid extension combining flow warm-starting with edge-priority prediction, establishing a foundation for learning-guided combinatorial optimization in image segmentation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper proposes integrating a Message Passing Graph Neural Network (MPGNN) with the Ford-Fulkerson algorithm for max-flow computation in grid-based image segmentation networks. A single GNN inference on the initial graph produces fixed edge importance probabilities that are stored in a priority queue to guide an Edmonds-Karp-style search augmented with bottleneck-aware tie-breaking and a bidirectional path construction strategy centered on high-probability edges. The authors claim this reduces the number of augmentations in practice while preserving max-flow/min-cut optimality, supported by a weighted permutation distance metric relating prediction quality to efficiency gains, and outline a hybrid warm-start extension.

Significance. If the optimality preservation and net reduction in augmentations can be rigorously shown, the single-inference design would be a practical contribution to learning-augmented combinatorial optimization, avoiding the cost of repeated GNN calls on changing residual graphs. The theoretical metric could help formalize how prediction quality translates to runtime savings in path-based algorithms.

major comments (3)
  1. [Abstract] Abstract and method description: the claim that max-flow/min-cut optimality is preserved is load-bearing but unsupported. The bidirectional path construction and fixed-probability priority queue are described only at high level; it is not shown that they perform a complete search of the residual graph rather than restricting exploration to high-probability subgraphs, which would allow low-probability augmenting paths to be missed across iterations.
  2. [Theoretical framework] Theoretical framework section (implied by the weighted permutation distance): the metric is introduced without derivation or proof that it correctly bounds the number of augmentations or relates prediction error to runtime improvement. Because probabilities are never updated on the residual graph, any such bound must explicitly account for the compounding incompleteness risk.
  3. [Abstract] No empirical results, training protocol, runtime measurements, or ablation studies are supplied to substantiate the claim of fewer augmentations in practice. The central efficiency assertion therefore rests entirely on the unverified assumption that GNN predictions will consistently surface high-value paths early enough to offset priority-queue overhead.
minor comments (1)
  1. [Abstract] The acronym MPGNN is expanded on first use but the precise message-passing update rules and feature construction for residual capacity and bottlenecks are not detailed enough for reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

Thank you for the constructive feedback on our manuscript. We value the referee's insights into the presentation of our optimality claims, theoretical metric, and the need for empirical support. We provide point-by-point responses below and commit to substantial revisions to address the concerns.

read point-by-point responses

  1. Referee: [Abstract] Abstract and method description: the claim that max-flow/min-cut optimality is preserved is load-bearing but unsupported. The bidirectional path construction and fixed-probability priority queue are described only at high level; it is not shown that they perform a complete search of the residual graph rather than restricting exploration to high-probability subgraphs, which would allow low-probability augmenting paths to be missed across iterations.

    Authors: We thank the referee for highlighting this critical point. Upon reflection, the manuscript's description of the search procedure is indeed high-level and could be misinterpreted as potentially incomplete. In fact, our method implements a complete search of the residual graph at each iteration: the priority queue orders candidate edges for path construction, but the bidirectional strategy and Edmonds-Karp-style BFS ensure that all possible paths are considered until an augmenting path is found or the graph is exhausted. The fixed probabilities only influence the order and tie-breaking, not the set of explorable edges. Consequently, the algorithm terminates with the exact max-flow/min-cut, identical to standard Ford-Fulkerson. We will revise the abstract and method section to include detailed pseudocode demonstrating the exhaustive nature of the search and a short proof of optimality preservation. This will also clarify that low-probability paths are not missed but may be selected later in the process. revision: yes

  2. Referee: [Theoretical framework] Theoretical framework section (implied by the weighted permutation distance): the metric is introduced without derivation or proof that it correctly bounds the number of augmentations or relates prediction error to runtime improvement. Because probabilities are never updated on the residual graph, any such bound must explicitly account for the compounding incompleteness risk.

    Authors: We agree that the weighted permutation distance requires a formal derivation and proof. The metric is designed to measure the misalignment between the GNN-predicted ordering of edges and the ordering that would minimize the number of augmentations for a given graph. We will add a dedicated subsection deriving the metric from first principles, including a theorem that bounds the expected number of augmentations as a function of the distance, under the assumption of grid-like graphs common in image segmentation. Importantly, because our search remains complete (see response to first comment), there is no incompleteness or compounding risk of missing paths; the bound reflects only the potential increase in augmentation count due to suboptimal ordering. We will explicitly state this in the revised theoretical framework and provide the proof sketch. revision: yes

  3. Referee: [Abstract] No empirical results, training protocol, runtime measurements, or ablation studies are supplied to substantiate the claim of fewer augmentations in practice. The central efficiency assertion therefore rests entirely on the unverified assumption that GNN predictions will consistently surface high-value paths early enough to offset priority-queue overhead.

    Authors: The manuscript as submitted emphasizes the novel framework, the single GNN inference design to avoid repeated calls on residual graphs, and the PAC-learnability analysis. The efficiency claims are supported theoretically via the permutation distance but, as the referee correctly notes, lack direct empirical backing in the current version. We will perform a major revision to include comprehensive experiments: details on the MPGNN architecture and training on synthetic grid graphs and real image segmentation datasets (e.g., from medical imaging), runtime benchmarks comparing augmentation counts and wall-clock time against baseline Ford-Fulkerson/Edmonds-Karp, ablations varying the prediction accuracy, and analysis of priority queue overhead. These additions will substantiate that the learned priorities lead to net reductions in practice for the targeted application domain. revision: yes

Circularity Check

2 steps flagged

Efficiency claims reduce to GNN fit via newly introduced metric; optimality preservation asserted without shown completeness guarantee

specific steps
  1. fitted input called prediction [Abstract]
    "We further introduce a bidirectional path construction strategy centered on high-probability edges and provide a theoretical framework relating prediction quality to efficiency via a weighted permutation distance metric. Our method preserves max-flow/min-cut optimality while reducing the number of augmentations in practice."

    The GNN is trained to output edge probabilities (fitted input); these are then used in a priority-based search whose claimed efficiency gain is related to prediction quality only through the newly introduced weighted permutation distance metric. The reduction in augmentations is therefore statistically forced by how well the fit orders paths, rather than an independent derivation of speedup.

  2. self definitional [Abstract]
    "provide a theoretical framework relating prediction quality to efficiency via a weighted permutation distance metric"

    The framework is introduced by the paper itself to connect GNN output quality directly to algorithmic efficiency. Without an external derivation or benchmark showing the metric independently predicts runtime, the claimed theoretical relation holds by the definition of the metric rather than from first principles.

full rationale

The paper's central efficiency claim is tied to GNN-predicted probabilities guiding path selection, with a custom weighted permutation distance metric introduced to theoretically link prediction quality to fewer augmentations. This metric is not derived from independent first principles but defined to quantify the relationship, making the 'prediction' of runtime improvement equivalent to the quality of the learned model by construction. The optimality preservation is stated but the bidirectional high-probability-centered search risks incompleteness on residual graphs (probabilities fixed after one inference), yet no equation or proof excerpt demonstrates that all augmenting paths are still found. This matches partial circularity (score 6) without full reduction to self-citation.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 2 invented entities

The central claim depends on the max-flow min-cut theorem (standard) and on the unproven assumption that learned probabilities correlate with actual bottleneck structure. The GNN weights are free parameters fitted to data. The MPGNN and bidirectional strategy are new postulated components without independent evidence supplied.

free parameters (1)
  • GNN model weights
    Learned parameters of the message-passing network that produce the edge probabilities; central to all claimed speedups.
axioms (1)
  • standard math Max-flow min-cut theorem
    Invoked to guarantee that the modified search still returns an optimal flow.
invented entities (2)
  • Message Passing GNN (MPGNN) no independent evidence
    purpose: Jointly learns node and edge embeddings to output edge importance probabilities for path prioritization.
    New architecture variant introduced for this task; no independent evidence given.
  • Bidirectional path construction strategy no independent evidence
    purpose: Builds augmenting paths centered on high-probability edges.
    New search heuristic; no independent evidence given.
