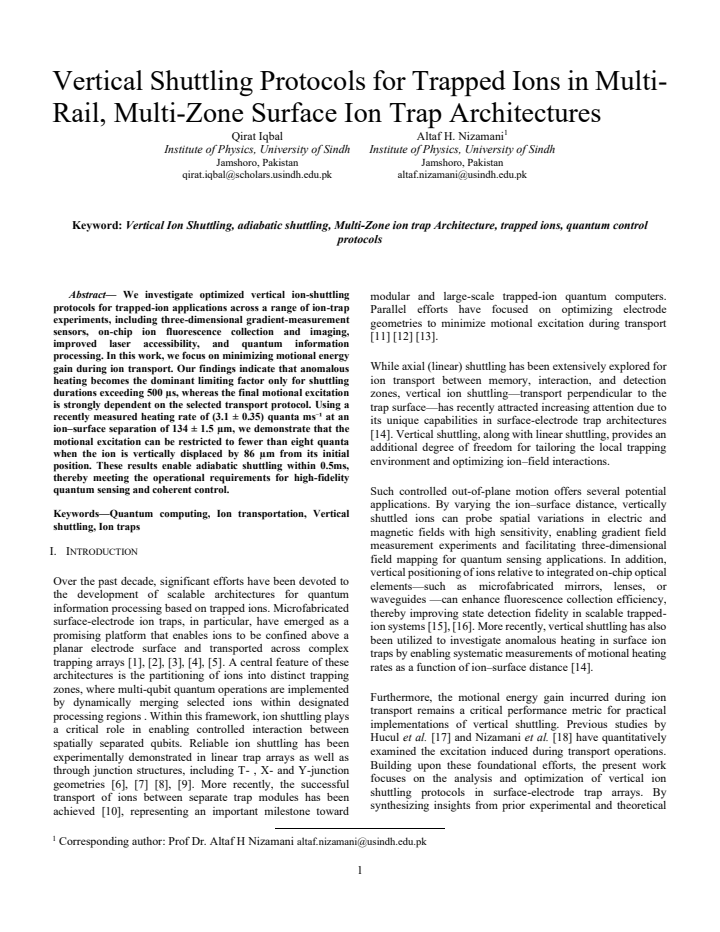

Low-Excitation Vertical Ion Shuttling in Scalable Multi-Rail Ion Trap Architectures

Qirat Iqbal , Altaf H. Nizamani This is my paper

Pith reviewed 2026-05-12 01:51 UTC · model grok-4.3

classification 🪐 quant-ph
keywords vertical ion shuttlingmotional excitationanomalous heatingtrapped ionsmulti-rail ion trapsquantum sensingquantum information processingscalable architectures
0
0 comments X

The pith

Trapped ions can be moved vertically in multi-rail traps while gaining fewer than eight motional quanta in 500 microseconds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper explores protocols for shifting ions up and down between rails in ion traps to support applications like better sensing and quantum computing. A key concern is avoiding extra motion in the ion that would cause errors or reduce precision. The authors calculate that for moves taking more than 500 microseconds, heating from the trap surfaces dominates the energy gain, yet different movement paths lead to different final energy levels. Using an observed heating rate of about three quanta per millisecond, they identify a protocol that limits the added motion to less than eight quanta for a shift of 48 micrometers. This finding indicates that vertical ion movement can be done gently enough to preserve the conditions needed for accurate quantum work.

Core claim

Using a measured heating rate of (3.1 ± 0.35) quanta ms^{-1} at 134 μm ion-surface separation, the optimized shuttling protocol restricts motional excitation to fewer than eight quanta for vertical displacement from 134 μm to 86 μm in 500 μs in multi-rail ion trap architectures.

What carries the argument

The shuttling protocol for vertical ion transport that minimizes the final motional excitation by controlling the speed and path of the displacement.

Load-bearing premise

The anomalous heating rate stays the same or scales predictably as the ion moves closer to the surface, without extra heating caused by the specific multi-rail electrode setup.

What would settle it

An experiment that performs the vertical shuttling and then measures the ion's motional quanta to check if it is indeed below eight after 500 microseconds.

Figures

Figures reproduced from arXiv: 2604.21350 by Altaf H. Nizamani, Qirat Iqbal.

Figure 2
Figure 2. Figure 2: (a) Top view of the optimized multi region trap design. (b) Illustrates the pseudo potential along with the local minima generated due to applied VRF to the RF electrodes [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
