Architectures for Robust Self-Organizing Energy Systems under Information and Control Constraints

Emilie Frost , Astrid Nie{\ss}e This is my paper

Pith reviewed 2026-05-08 13:32 UTC · model grok-4.3

classification 💻 cs.MA cs.AI
keywords observer/controller architecturecontrolled self-organizationcyber-physical energy systemsinformation constraintscontrol constraintsrobustnessagent-based systemscyber attacks
0
0 comments X

The pith

Observer/controller architecture variants adapted to information and control limits enable robust controlled self-organization in agent-based energy systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes that introducing an observer/controller architecture into agent-based cyber-physical energy systems allows self-organization while permitting intervention during disturbances such as cyber attacks. It develops specific variants of these architectures that respect restrictions on information access stemming from privacy of distributed resources and regulatory constraints on data exchange and actions. The evaluation of controller actions across these variants demonstrates that accounting for such constraints is essential to achieve robustness suitable for practical deployment in real energy systems.

Core claim

By presenting architecture variants for the observer and controller that incorporate restrictions on access to information and limited actions, the work establishes that controlled self-organization remains feasible in CPES even under privacy, regulatory, and data exchange constraints, thereby supporting system robustness against threats like cyber attacks.

What carries the argument

Observer/controller architecture variants designed to operate under information access restrictions and limited control actions in distributed energy systems.

If this is right

  • Agent-based CPES can maintain self-organizing behavior while retaining the capacity for external intervention when required.
  • Privacy of local energy resources and regulatory limits can be accommodated without sacrificing overall system robustness.
  • Evaluation of possible controller actions reveals viable options within each architecture variant for responding to disturbances.
  • Different architecture choices offer distinct trade-offs in monitoring capability and intervention power.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar architecture adaptations could prove useful in other domains with distributed agents facing information and control constraints, such as transportation networks.
  • Practical testing in simulated environments that model specific regulatory restrictions would help validate the architectures' effectiveness.

Load-bearing premise

The architecture variants can be implemented in actual energy systems in a way that still allows effective intervention under the given information and control restrictions.

What would settle it

A demonstration in a simulated or real CPES where one of the proposed architecture variants fails to detect a cyber attack or cannot execute a necessary corrective action due to the imposed information or control limits.

Figures

Figures reproduced from arXiv: 2604.21529 by Astrid Nie{\ss}e, Emilie Frost.

Figure 1
Figure 1. Figure 1: Architectures for anomaly detection in agent systems (presented in [11]) view at source ↗
Figure 2
Figure 2. Figure 2: Proposed multi-leveled observer architecture (presented in [11]) view at source ↗

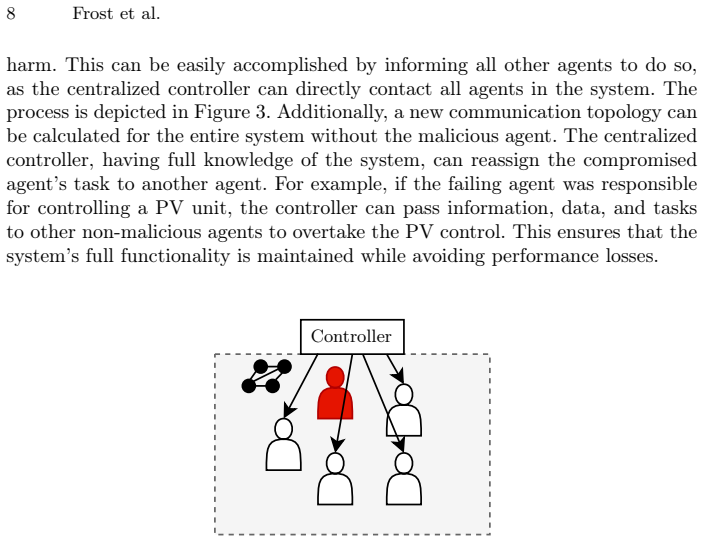

Figure 3
Figure 3. Figure 3: Reaction to the malicious agent: the centralized controller sends a new view at source ↗
Figure 4
Figure 4. Figure 4: Reaction to the malicious agent: the decentralized controller informs its view at source ↗

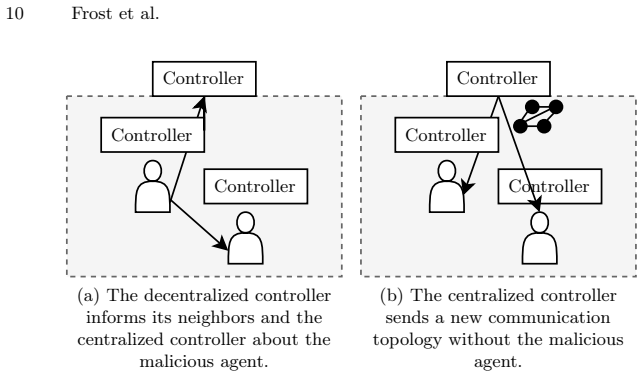

Figure 5
Figure 5. Figure 5: Reaction to the malicious agent: multi-leveled controller. view at source ↗
Figure 6
Figure 6. Figure 6: Centralized controller: convergence speed (optimization duration) for nor view at source ↗

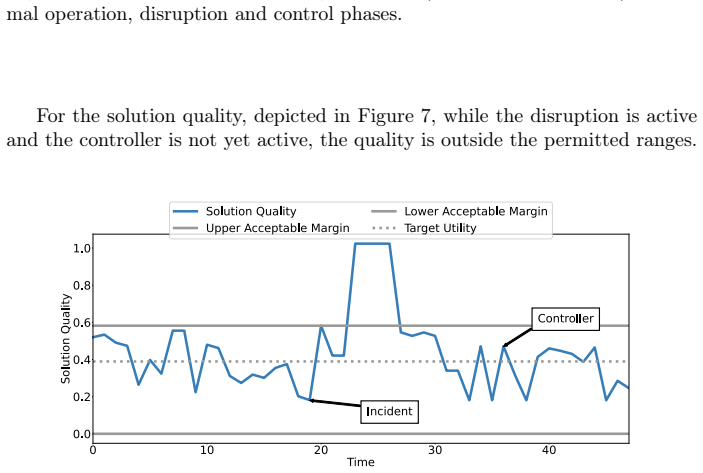

Figure 7
Figure 7. Figure 7: Centralized controller: solution quality (performance) for normal opera view at source ↗
Figure 8
Figure 8. Figure 8: Centralized controller: number of exchanged messages for normal opera view at source ↗
Figure 9
Figure 9. Figure 9: Decentralized controller: convergence speed (optimization duration) for view at source ↗
Figure 10
Figure 10. Figure 10: Decentralized controller: solution quality (performance) for normal op view at source ↗

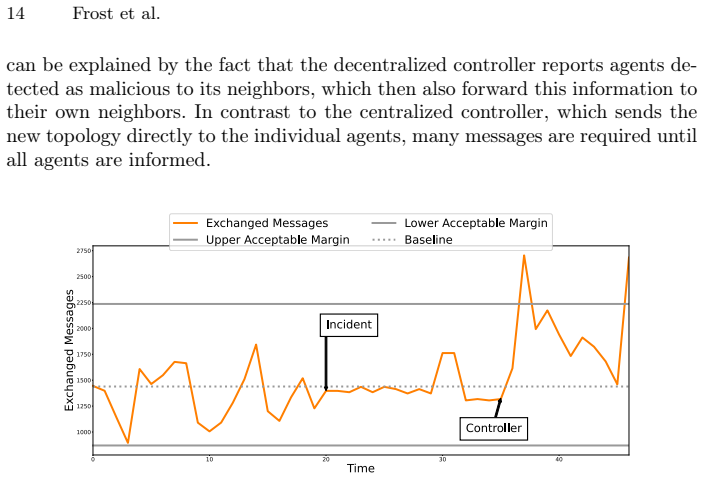

Figure 11
Figure 11. Figure 11: Decentralized controller: number of exchanged messages for normal op view at source ↗

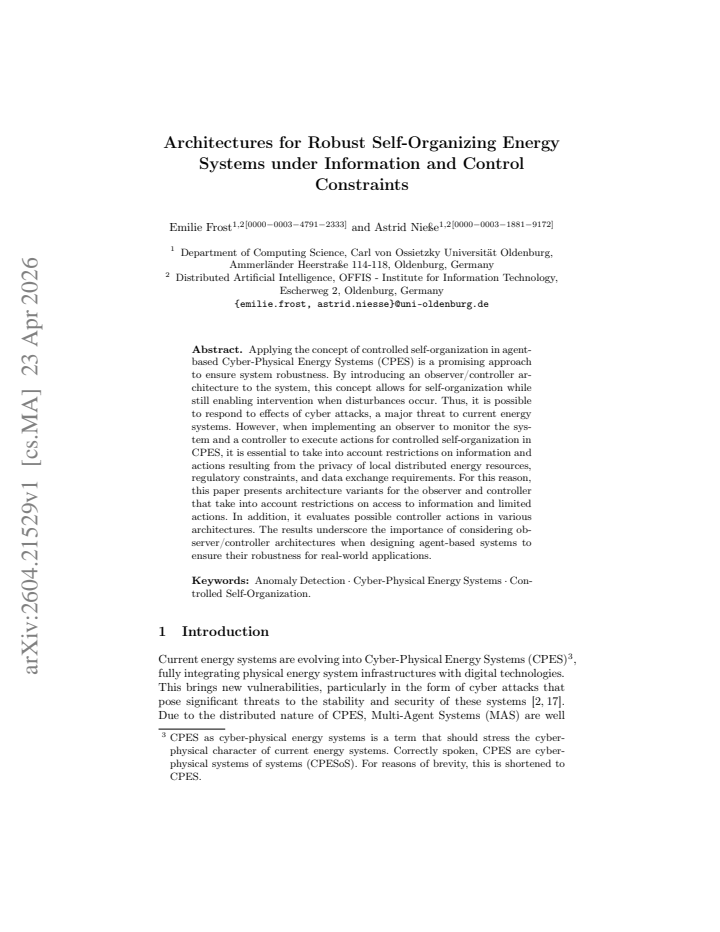

read the original abstract

Applying the concept of controlled self-organization in agent-based Cyber-Physical Energy Systems (CPES) is a promising approach to ensure system robustness. By introducing an observer/controller architecture to the system, this concept allows for self-organization while still enabling intervention when disturbances occur. Thus, it is possible to respond to effects of cyber attacks, a major threat to current energy systems. However, when implementing an observer to monitor the system and a controller to execute actions for controlled self-organization in CPES, it is essential to take into account restrictions on information and actions resulting from the privacy of local distributed energy resources, regulatory constraints, and data exchange requirements. For this reason, this paper presents architecture variants for the observer and controller that take into account restrictions on access to information and limited actions. In addition, it evaluates possible controller actions in various architectures. The results underscore the importance of considering observer/controller architectures when designing agent-based systems to ensure their robustness for real-world applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes variants of observer/controller architectures for agent-based Cyber-Physical Energy Systems (CPES) designed to respect constraints on information access and control actions stemming from privacy of distributed energy resources, regulatory limits, and data-exchange rules. These variants aim to support controlled self-organization while still permitting timely intervention against disturbances such as cyber attacks. The manuscript describes the architectures, evaluates possible controller actions under the restrictions, and concludes that such architectures are important for ensuring robustness in real-world applications.

Significance. If the architectures can be shown to preserve effective intervention, the work would offer practical design guidance for balancing decentralized self-organization with supervisory control in energy systems, addressing a key tension in multi-agent CPES under realistic constraints.

major comments (1)
  1. [Evaluation of controller actions] The central claim that the proposed architectures enable controlled self-organization and timely intervention under information and control restrictions is load-bearing for the robustness conclusion, yet the evaluation of controller actions provides only descriptive enumeration of possible actions without simulation results, reachability analysis, performance metrics, or other quantitative evidence that intervention capability is preserved rather than nullified by the restrictions (see the section on evaluation of controller actions).
minor comments (2)
  1. [Abstract] The abstract could more explicitly state that the contribution is conceptual and that no empirical or formal validation of intervention effectiveness is included.
  2. Notation for the observer and controller components and their interfaces could be introduced earlier and used consistently to improve readability of the architecture variants.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the paper's significance. We address the single major comment below and will revise the manuscript to strengthen the evaluation section.

read point-by-point responses

  1. Referee: The central claim that the proposed architectures enable controlled self-organization and timely intervention under information and control restrictions is load-bearing for the robustness conclusion, yet the evaluation of controller actions provides only descriptive enumeration of possible actions without simulation results, reachability analysis, performance metrics, or other quantitative evidence that intervention capability is preserved rather than nullified by the restrictions (see the section on evaluation of controller actions).

    Authors: We agree that the evaluation section currently offers a qualitative enumeration of feasible controller actions under each architecture variant, showing that certain supervisory interventions remain available despite privacy, regulatory, and data-exchange constraints. This descriptive analysis supports the claim that the architectures preserve the possibility of timely intervention rather than nullifying it entirely. However, we acknowledge that the absence of quantitative evidence such as simulations, reachability analysis, or performance metrics leaves the central claim less strongly substantiated than it could be. In the revised manuscript, we will add simulation results that quantify intervention effectiveness, including metrics on response latency and robustness under the constrained architectures. revision: yes

Circularity Check

0 steps flagged

No significant circularity; conceptual presentation without derivations or self-referential reductions

full rationale

The paper presents observer/controller architecture variants for agent-based CPES that respect privacy, regulatory, and data-exchange restrictions on information and actions, then evaluates possible controller actions under those constraints. No equations, mathematical derivations, fitted parameters, or predictive reductions appear in the text. The central claim—that such architectures are important for real-world robustness—rests on the descriptive design of variants that satisfy the stated limits while still permitting intervention, without any step that equates outputs to inputs by construction, renames known results, or relies on load-bearing self-citations whose validity is assumed rather than independently verified. The argument is self-contained as a conceptual framing exercise and does not reduce to tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper rests on domain assumptions about the benefits of controlled self-organization and the necessity of respecting privacy and regulatory constraints; no free parameters or invented entities are introduced.

axioms (2)
  • domain assumption Controlled self-organization via observer/controller architecture enhances robustness in CPES against disturbances such as cyber attacks.
    Stated as a promising approach in the abstract.
  • domain assumption Restrictions on information access and control actions must be incorporated due to privacy of distributed energy resources and regulatory requirements.
    Described as essential when implementing observer and controller.

pith-pipeline@v0.9.0 · 5463 in / 1096 out tokens · 76573 ms · 2026-05-08T13:32:26.164880+00:00 · methodology
