arxiv: 2604.21580 · v1 · submitted 2026-04-23 · 💻 cs.IT · math.IT

Robust Beamforming for MIMO Radar with Imperfect Prior Distribution Information

Yizhuo Wang , Shuowen Zhang This is my paper

Pith reviewed 2026-05-08 13:45 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords MIMO radarrobust beamformingimperfect prior distributionposterior Cramér-Rao boundconvex optimizationS-procedureTaylor approximationtarget angle estimation
0
0 comments X

The pith

A second-order Taylor approximation and the S-procedure enable convex optimization of robust transmit beamforming for MIMO radar with imperfect knowledge of the target's angle prior PDF.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies transmit beamforming design in MIMO radar when the probability density function describing the unknown random angle of a point target is known only approximately. The actual PDF is treated as an unknown perturbation of the imperfect known PDF, confined inside a ball of given radius. The goal is to choose the beamformer that minimizes the largest posterior Cramér-Rao bound that can occur for any PDF inside that ball. To make the problem tractable the authors replace the exact PCRB by a quadratic expression obtained from a second-order Taylor expansion and convert the continuum of constraints into one linear matrix inequality via the S-procedure. The resulting convex program can be solved in polynomial time and recovers the globally optimal robust solution when the uncertainty radius shrinks to zero.

Core claim

We derive a tractable quadratic approximation of the PCRB via second-order Taylor expansion, and leverage the S-procedure to equivalently transform the infinite constraints into a linear matrix inequality, based on which the problem is reformulated into a convex optimization problem solvable with polynomial time complexity. The obtained solution approaches the globally optimal robust beamforming solution as the uncertainty radius decreases.

What carries the argument

Quadratic approximation of the PCRB obtained by second-order Taylor expansion, combined with the S-procedure that converts the semi-infinite worst-case constraints into a single linear matrix inequality.

If this is right

  • The robust beamforming vector can be obtained by a standard convex solver in polynomial time.
  • When the uncertainty radius is small the returned solution converges to the globally optimal robust design.
  • The minimized approximate PCRB supplies an explicit upper bound on the worst-case mean-squared error of angle estimation.
  • The formulation directly accommodates any continuous family of prior PDFs that lie inside a Euclidean ball of given radius.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same approximation-plus-S-procedure pattern could be tried for other Bayesian performance measures that lack closed forms.
  • The method may transfer to robust waveform design in communications or sonar when distributional priors are uncertain.
  • Practical deployment would benefit from empirical checks that the chosen uncertainty ball accurately reflects the range of real target appearance patterns.
  • As uncertainty grows the quadratic approximation may degrade, suggesting a natural next step of higher-order expansions or iterative refinement.

Load-bearing premise

The second-order Taylor expansion of the PCRB remains sufficiently accurate for every possible PDF inside the uncertainty ball, so that minimizing the approximate worst-case value also minimizes the true worst-case value.

What would settle it

Compute the exact PCRB numerically at many points throughout the uncertainty ball and check whether the quadratic approximation stays close to the true maximum; large pointwise errors would show that the convex program does not reliably control the actual worst-case performance.

Figures

Figures reproduced from arXiv: 2604.21580 by Shuowen Zhang, Yizhuo Wang.

Figure 1
Figure 1. Figure 1: Illustration of a MIMO radar system with imperfect prior information. view at source ↗
Figure 3

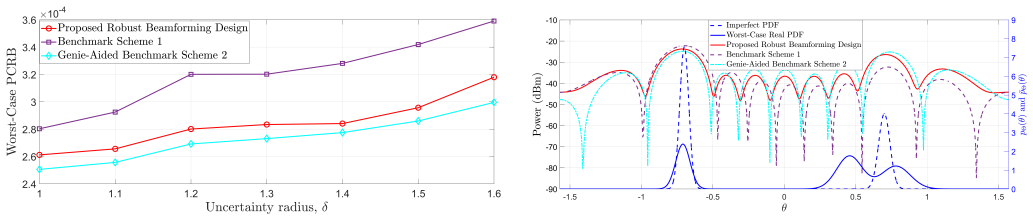

Figure 3. Figure 3: Radiated power patterns of different schemes under view at source ↗

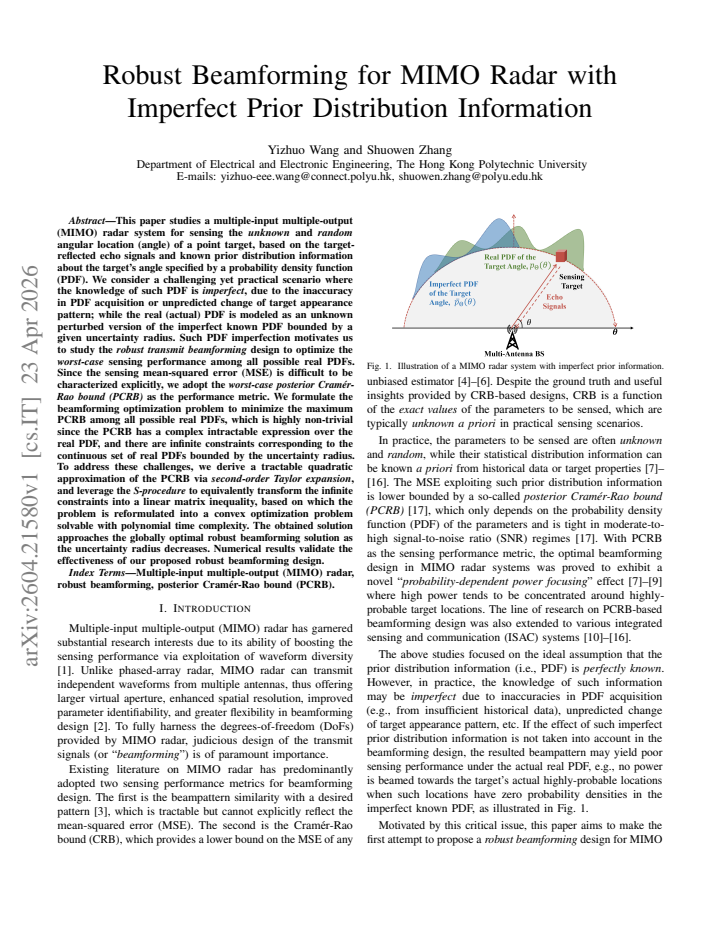

read the original abstract

This paper studies a multiple-input multiple-output (MIMO) radar system for sensing the unknown and random angular location (angle) of a point target, based on the target-reflected echo signals and known prior distribution information about the target's angle specified by a probability density function (PDF). We consider a challenging yet practical scenario where the knowledge of such PDF is imperfect, due to the inaccuracy in PDF acquisition or unpredicted change of target appearance pattern; while the real (actual) PDF is modeled as an unknown perturbed version of the imperfect known PDF bounded by a given uncertainty radius. Such PDF imperfection motivates us to study the robust transmit beamforming design to optimize the worst-case sensing performance among all possible real PDFs. Since the sensing mean-squared error (MSE) is difficult to be characterized explicitly, we adopt the worst-case posterior Cram\'{e}r-Rao bound (PCRB) as the performance metric. We formulate the beamforming optimization problem to minimize the maximum PCRB among all possible real PDFs, which is highly non-trivial since the PCRB has a complex intractable expression over the real PDF, and there are infinite constraints corresponding to the continuous set of real PDFs bounded by the uncertainty radius. To address these challenges, we derive a tractable quadratic approximation of the PCRB via second-order Taylor expansion, and leverage the S-procedure to equivalently transform the infinite constraints into a linear matrix inequality, based on which the problem is reformulated into a convex optimization problem solvable with polynomial time complexity. The obtained solution approaches the globally optimal robust beamforming solution as the uncertainty radius decreases. Numerical results validate the effectiveness of our proposed robust beamforming design.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. This paper addresses robust transmit beamforming for MIMO radar when the prior PDF of the target's angular location is imperfectly known, modeled as a bounded perturbation of the known PDF. The goal is to minimize the worst-case posterior Cramér-Rao bound (PCRB) over all possible real PDFs within the uncertainty ball. The authors derive a quadratic approximation of the PCRB using second-order Taylor expansion, apply the S-procedure to reformulate the infinite constraints as a linear matrix inequality, and obtain a convex optimization problem solvable in polynomial time. The resulting beamformer is shown to approach the globally optimal robust solution as the uncertainty radius tends to zero.

Significance. If the second-order approximation accurately represents the PCRB over the uncertainty set, the paper offers a practical, computationally efficient approach to robust beamforming design in MIMO radar systems with uncertain priors. The polynomial-time solvability via convex optimization is a notable strength, as is the explicit acknowledgment of asymptotic optimality for vanishing uncertainty. This could advance robust signal processing techniques for radar applications where prior information is unreliable. The use of the S-procedure for handling the continuous uncertainty set is a standard yet effective technique here.

major comments (1)
  1. [the section deriving the tractable quadratic approximation of the PCRB via second-order Taylor expansion] The central claim depends on the second-order Taylor expansion providing a sufficiently accurate quadratic approximation of the PCRB uniformly over the uncertainty ball of radius ε. However, the manuscript provides neither an explicit bound on the higher-order remainder terms nor numerical validation of the approximation error at the specific uncertainty radii used in the simulations. This is a load-bearing issue for the validity of the worst-case optimization, as noted in the abstract where only asymptotic optimality as ε → 0 is claimed.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for the constructive and insightful comments on our manuscript. We address the major comment point by point below, acknowledging the valid concerns raised and outlining the revisions we will undertake.

read point-by-point responses

  1. Referee: The central claim depends on the second-order Taylor expansion providing a sufficiently accurate quadratic approximation of the PCRB uniformly over the uncertainty ball of radius ε. However, the manuscript provides neither an explicit bound on the higher-order remainder terms nor numerical validation of the approximation error at the specific uncertainty radii used in the simulations. This is a load-bearing issue for the validity of the worst-case optimization, as noted in the abstract where only asymptotic optimality as ε → 0 is claimed.

    Authors: We thank the referee for highlighting this important point. The second-order Taylor expansion is employed to derive a quadratic approximation that enables the convex reformulation via the S-procedure. The manuscript indeed claims only asymptotic optimality as the uncertainty radius ε approaches zero, which holds because the remainder terms vanish in that limit. Regarding an explicit bound on the higher-order terms, such a bound would necessitate additional assumptions on the smoothness and boundedness of the higher-order derivatives of the PCRB expression with respect to the PDF, which we avoided to maintain generality. However, we agree that numerical validation of the approximation accuracy is necessary to support the practical applicability. In the revised manuscript, we will add numerical results showing the relative error between the true PCRB and its quadratic approximation for the values of ε employed in our simulations. This will confirm that the approximation is sufficiently accurate within the considered uncertainty ranges, thereby bolstering the validity of the proposed robust beamforming design. revision: partial

standing simulated objections not resolved
  • Providing an explicit analytical bound on the higher-order remainder terms of the Taylor expansion without imposing further restrictive assumptions on the PCRB derivatives.

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper derives a quadratic approximation of the PCRB via second-order Taylor expansion around the known PDF, then applies the S-procedure to convert the infinite worst-case constraints over the uncertainty ball into an LMI, yielding a convex SDP. These steps are direct algebraic manipulations of the given PCRB integral expression and the ball constraint; they do not reduce any output quantity to a fitted parameter, self-definition, or prior self-citation by construction. The statement that the solution approaches the global optimum as the radius tends to zero is a standard limiting property of the Taylor remainder, not a circular reduction. No load-bearing self-citations or ansatz smuggling appear in the provided derivation outline.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The approach rests on a domain assumption about the form of PDF uncertainty and an ad-hoc approximation chosen for tractability; no new physical entities are introduced.

free parameters (1)
  • uncertainty radius
    Exogenous bound on the perturbation between known and actual PDF; treated as a given design parameter.
axioms (2)
  • domain assumption The real PDF lies within a bounded uncertainty set around the known PDF.
    Models the imperfection due to acquisition error or changing target patterns.
  • ad hoc to paper A second-order Taylor expansion yields a sufficiently accurate quadratic approximation of the PCRB over the uncertainty set.
    Invoked to obtain a tractable expression that permits convex reformulation.

pith-pipeline@v0.9.0 · 5596 in / 1364 out tokens · 55656 ms · 2026-05-08T13:45:09.752997+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages

  1. [1]

    MIMO radar: An idea whose time has come,

    E. Fishler, A. Haimovich, R. Blum, D. Chizhik, L. Cimini, and R. Valenzuela, “MIMO radar: An idea whose time has come,” inProc. IEEE Radar Conf., Apr. 2004, pp. 71–78

    work page 2004

  2. [2]

    Li and P

    J. Li and P. Stoica,MIMO Radar Signal Processing. Wiley, New York, 2008

    work page 2008

  3. [3]

    On probing signal design for MIMO radar,

    P. Stoica, J. Li, and Y . Xie, “On probing signal design for MIMO radar,” IEEE Trans. Signal Process., vol. 55, no. 8, pp. 4151–4161, Aug. 2007

    work page 2007

  4. [4]

    Range compression and waveform optimization for MIMO radar: A Cram ´er-Rao bound based study,

    J. Li, L. Xu, P. Stoica, K. W. Forsythe, and D. W. Bliss, “Range compression and waveform optimization for MIMO radar: A Cram ´er-Rao bound based study,”IEEE Trans. Signal Process., vol. 56, no. 1, pp. 218–232, Jan. 2008

    work page 2008

  5. [5]

    Cram ´er-Rao bound optimization for joint radar-communication beamforming,

    F. Liu, Y .-F. Liu, A. Li, C. Masouros, and Y . C. Eldar, “Cram ´er-Rao bound optimization for joint radar-communication beamforming,”IEEE Trans. Signal Process., vol. 70, pp. 240–253, Dec. 2022

    work page 2022

  6. [6]

    MIMO integrated sensing and communication: CRB-rate tradeoff,

    H. Hua, T. X. Han, and J. Xu, “MIMO integrated sensing and communication: CRB-rate tradeoff,”IEEE Trans. Wireless Commun., vol. 23, no. 4, pp. 2839–2854, Apr. 2024

    work page 2024

  7. [7]

    MIMO radar transmit signal optimization for target localization exploiting prior information,

    C. Xu and S. Zhang, “MIMO radar transmit signal optimization for target localization exploiting prior information,” inProc. IEEE Int. Symp. Inf. Theory (ISIT), Jun. 2023, pp. 310–315

    work page 2023

  8. [8]

    MIMO integrated sensing and communication exploiting prior information,

    C. Xu and S. Zhang, “MIMO integrated sensing and communication exploiting prior information,”IEEE J. Sel. Areas Commun., vol. 42, no. 9, pp. 2306–2311, Sep. 2024

    work page 2024

  9. [9]

    Optimal transmit signal design for multi-target MIMO sensing exploiting prior information,

    J. Yao and S. Zhang, “Optimal transmit signal design for multi-target MIMO sensing exploiting prior information,” inProc. IEEE Global Commun. Conf. (Globecom), Dec. 2024, pp. 4920–4925

    work page 2024

  10. [10]

    Optimal beamforming for secure integrated sensing and communication exploiting target location distribution,

    K. Hou and S. Zhang, “Optimal beamforming for secure integrated sensing and communication exploiting target location distribution,”IEEE J. Sel. Areas Commun., vol. 42, no. 11, pp. 3125–3139, Nov. 2024

    work page 2024

  11. [11]

    Optimal beamforming for multi-target multi- user ISAC exploiting prior information: How many sensing beams are needed?

    J. Yao and S. Zhang, “Optimal beamforming for multi-target multi-user ISAC exploiting prior information: How many sensing beams are needed?” [Online]. Available: https://arxiv.org/abs/2503.03560

    work page arXiv

  12. [12]

    RIS-assisted joint sensing and communications via fractionally constrained fractional programming,

    Y . Liu, K. M. Attiah, and W. Yu, “RIS-assisted joint sensing and communications via fractionally constrained fractional programming,” IEEE Trans. Wireless Commun., vol. 25, pp. 1674–1689, 2025

    work page 2025

  13. [13]

    Hybrid beamforming optimization for MIMO ISAC based on prior distribution information,

    Y . Wang and S. Zhang, “Hybrid beamforming optimization for MIMO ISAC based on prior distribution information,” [Online]. Available: https://arxiv.org/abs/2506.07869

    work page arXiv

  14. [14]

    Beyond diagonal intelligent reflecting surface aided integrated sensing and communication,

    S. Zheng and S. Zhang, “Beyond diagonal intelligent reflecting surface aided integrated sensing and communication,”IEEE Trans. Cogn. Commun. Netw., vol. 11, no. 5, pp. 2864–2878, Oct. 2025

    work page 2025

  15. [15]

    How many simultaneous beamformers are needed for integrated sensing and communications?

    K. M. Attiah and W. Yu, “How many simultaneous beamformers are needed for integrated sensing and communications?” [Online]. Available: https://doi.org/10.48550/arXiv.2507.14982

    work page doi:10.48550/arxiv.2507.14982

  16. [16]

    Active uplink sensing beamformer design via Bayesian Cram´er-Rao bound dual optimization,

    N. Ghaddar and W. Yu, “Active uplink sensing beamformer design via Bayesian Cram´er-Rao bound dual optimization,” inProc. IEEE Int. Conf. Commun. (ICC), Jun. 2025, pp. 5736–5741

    work page 2025

  17. [17]

    H. L. Van Trees,Detection, Estimation, and Modulation Theory, part I. Wiley, New York, 1968

    work page 1968

  18. [18]

    A robust maximin approach for MIMO communications with imperfect channel state information based on convex optimization,

    A. Pascual-Iserte, D. P. Palomar, A. I. P ´erez-Neira, and M. ´A. Lagunas, “A robust maximin approach for MIMO communications with imperfect channel state information based on convex optimization,”IEEE Trans. Signal Process., vol. 54, no. 1, pp. 346–360, Jan. 2006

    work page 2006

  19. [19]

    Robust linear MIMO in the downlink: A worst-case optimization with ellipsoidal uncertainty regions,

    G. Zheng, K.-K. Wong, and T.-S. Ng, “Robust linear MIMO in the downlink: A worst-case optimization with ellipsoidal uncertainty regions,” EURASIP J. Adv. Signal Process., vol. 2008, no. 1, pp. 1–15, 2008

    work page 2008

  20. [20]

    Robust and secure resource allocation for ISAC systems: A novel optimization framework for variable-length snapshots,

    D. Xu, X. Yu, D. W. K. Ng, A. Schmeink, and R. Schober, “Robust and secure resource allocation for ISAC systems: A novel optimization framework for variable-length snapshots,”IEEE Trans. Commun., vol. 70, no. 12, pp. 8196–8214, Dec. 2022

    work page 2022

  21. [21]

    Performance bounds for parameter estimation under misspecified models: Fundamental findings and applications,

    S. Fortunati, F. Gini, M. S. Greco, and C. D. Richmond, “Performance bounds for parameter estimation under misspecified models: Fundamental findings and applications,”IEEE Signal Process. Mag., vol. 34, no. 6, pp. 142–157, Nov. 2017

    work page 2017

  22. [22]

    Multivariate nonnegative quadratic mappings,

    Z.-Q. Luo, J. F. Sturm, and S. Zhang, “Multivariate nonnegative quadratic mappings,”SIAM J. Optim., vol. 14, no. 4, pp. 1140–1162, Jan. 2004

    work page 2004

  23. [23]

    Boyd and L

    S. Boyd and L. Vandenberghe,Convex Optimization. Cambridge, U.K.: Cambridge Univ. Press, 2004

    work page 2004

  24. [24]

    Grant and S

    M. Grant and S. Boyd. (Jun. 2015).CVX: MATLAB Software for Disciplined Convex Programming. [Online]. Available: http: //cvxr.com/cvx/
