γ Z-exchange contribution in elastic ep scattering by perturbative QCD

Qian-Qian Guo , Hui-Yun Cao , Hai-Qing Zhou

Authors on Pith no claims yet

Pith reviewed 2026-05-09 21:53 UTC · model grok-4.3

classification ✦ hep-ph

keywords perturbative QCDelastic ep scatteringgamma Z exchangedispersion relationsasymptotic behaviorparity violationproton distribution amplitudes

0 comments

The pith

The dispersion relation for the axial-vector part of γZ-exchange amplitudes in elastic ep scattering must be modified to a once-subtracted form at high Q².

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper computes the γZ-exchange contributions to elastic electron-proton scattering at large momentum transfers using perturbative QCD. It provides analytical expressions for the amplitudes and analyzes their asymptotic behaviors at high Q² along with that of the parity-violating asymmetry A_PV. These behaviors indicate that the unsubtracted dispersion relation typically applied to the axial-vector amplitude is invalid at high momentum transfer. Consequently, a once-subtracted dispersion relation is required, and the high-energy properties impose constraints on assumptions made in low-energy dispersion relations within the pQCD framework and chosen proton distribution amplitudes.

Core claim

Within perturbative QCD applied to the γZ-exchange in elastic ep scattering, the amplitudes' asymptotic behaviors at high momentum transfer require that the dispersion relation for the axial-vector component be altered from the standard unsubtracted form to a once-subtracted one. This modification is determined by the high-Q² properties derived from the proton distribution amplitudes, which also yield nontrivial constraints on low-energy dispersion relation assumptions.

What carries the argument

The γZ-exchange amplitude contributions calculated in perturbative QCD, whose high-Q² asymptotics dictate the subtraction order in the dispersion relations satisfied by the amplitudes, especially for the axial-vector part.

If this is right

The physical quantity A_PV exhibits specific asymptotic behavior at high momentum transfer.
Analytical expressions are derived for the γZ-exchange contributions to the amplitudes.
High-energy properties provide constraints on low-energy DR assumptions using the adopted proton distribution amplitudes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This suggests that previous calculations relying on the unsubtracted DR for axial-vector amplitudes at high energies may need revision.
It could impact the interpretation of parity-violating experiments in the transition region between low and high Q².

Load-bearing premise

The perturbative QCD approach is applicable at the considered large but finite Q² values, and the proton distribution amplitudes correctly describe the asymptotic amplitude behaviors.

What would settle it

A direct calculation or measurement showing that the axial-vector amplitude continues to satisfy an unsubtracted dispersion relation at high Q² would falsify the need for modification.

Figures

Figures reproduced from arXiv: 2604.21610 by Hai-Qing Zhou, Hui-Yun Cao, Qian-Qian Guo.

**Figure 1.** Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

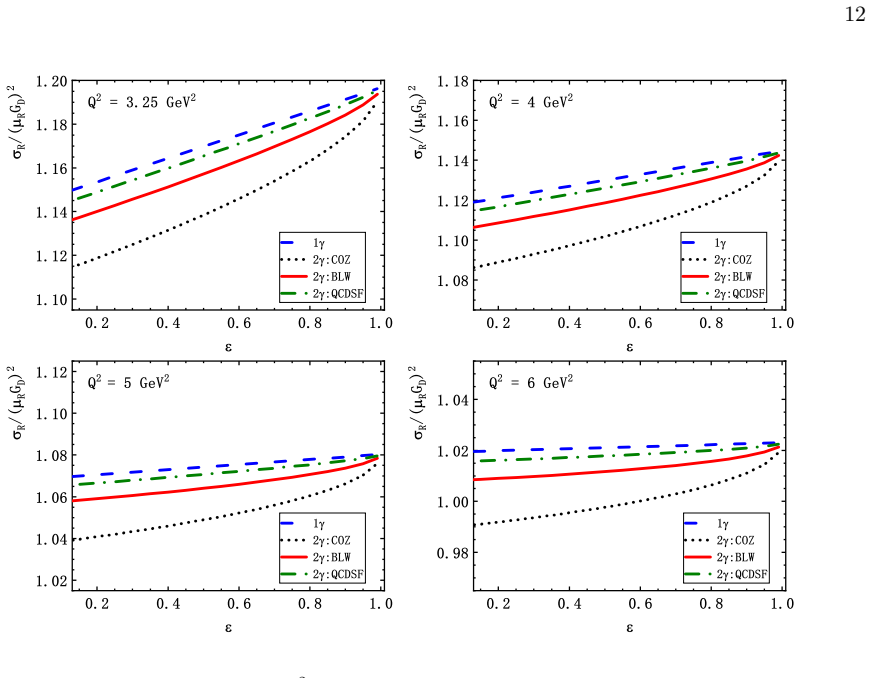

**Figure 3.** Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

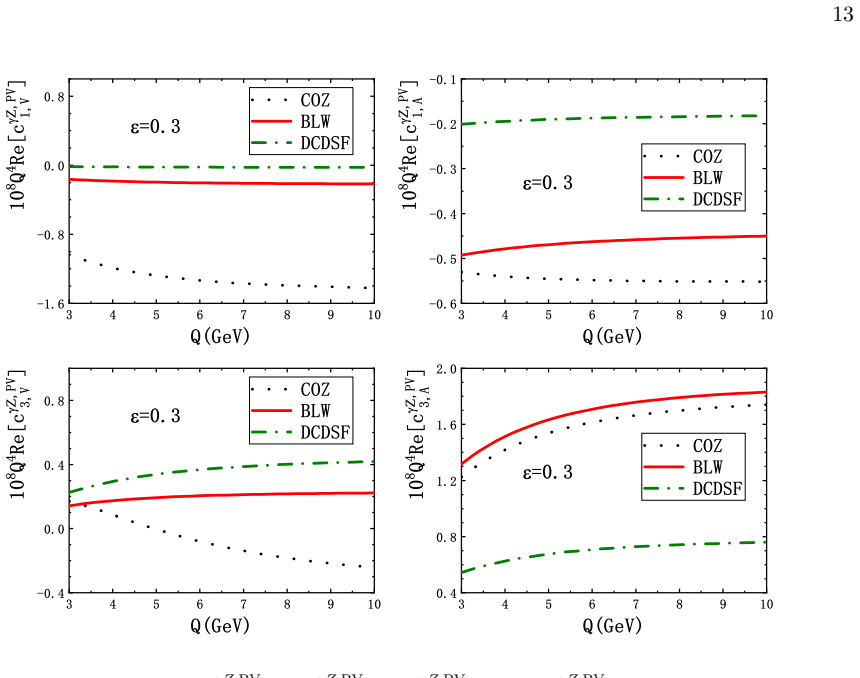

**Figure 4.** Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗

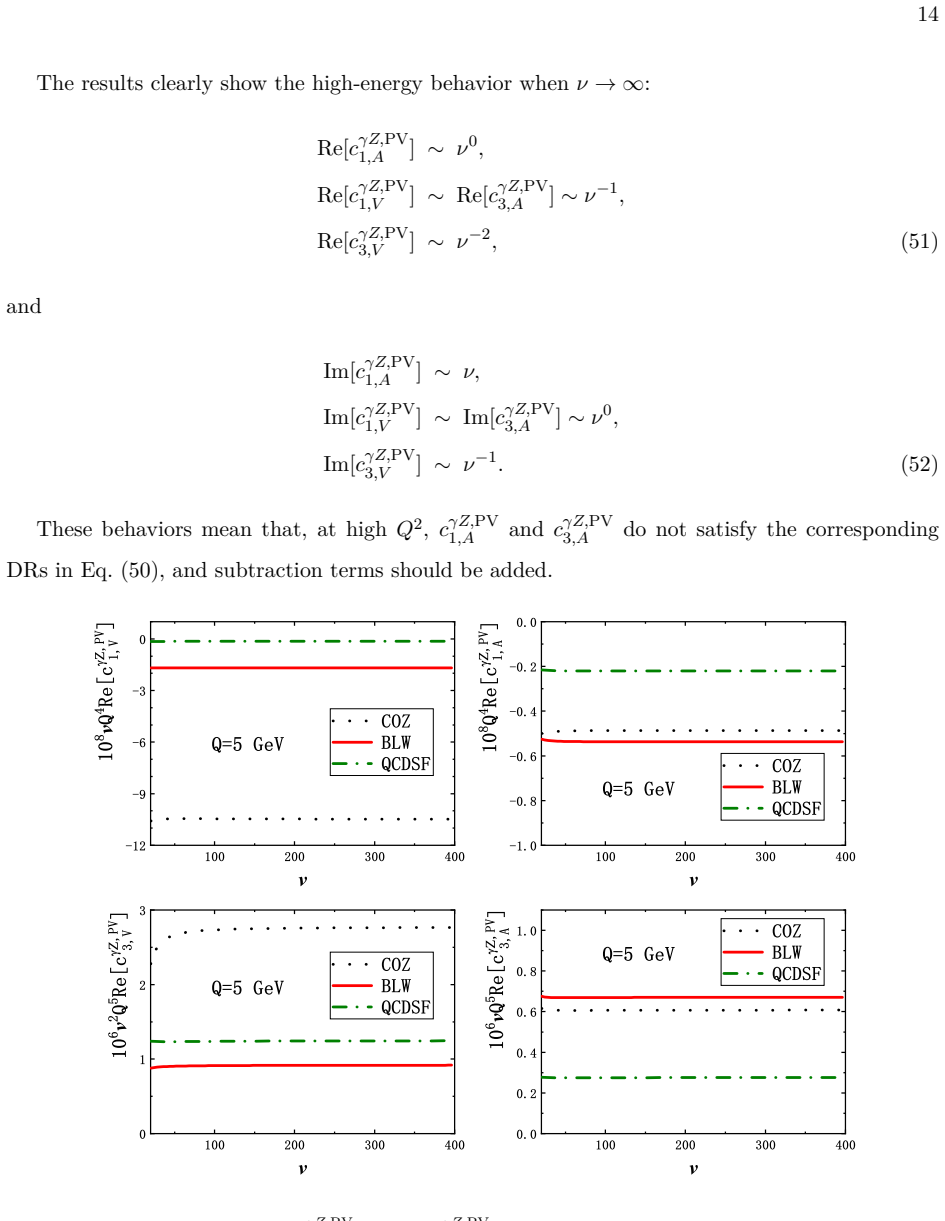

**Figure 5.** Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗

**Figure 7.** Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗

read the original abstract

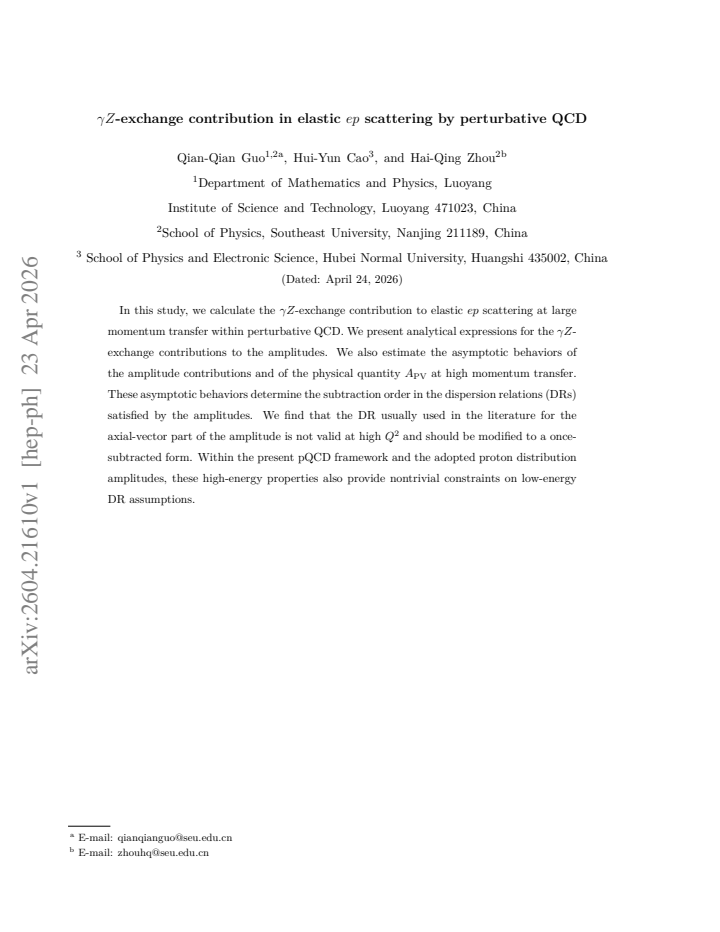

In this study, we calculate the $\gamma Z$-exchange contribution to elastic $ep$ scattering at large momentum transfer within perturbative QCD. We present analytical expressions for the $\gamma Z$-exchange contributions to the amplitudes. We also estimate the asymptotic behaviors of the amplitude contributions and of the physical quantity $A_{\text{PV}}$ at high momentum transfer. These asymptotic behaviors determine the subtraction order in the dispersion relations (DRs) satisfied by the amplitudes. We find that the DR usually used in the literature for the axial-vector part of the amplitude is not valid at high $Q^2$ and should be modified to a once-subtracted form. Within the present pQCD framework and the adopted proton distribution amplitudes, these high-energy properties also provide nontrivial constraints on low-energy DR assumptions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper computes γZ-exchange amplitudes in pQCD at large Q² and claims the usual axial-vector dispersion relation must be once-subtracted, but that conclusion depends on the leading asymptotic term holding up under the chosen DAs.

read the letter

The central point is that the authors extend perturbative QCD calculations of two-photon exchange to the γZ case in elastic ep scattering. They give analytical expressions for the amplitudes, work out the high-Q² power-law behaviors, and conclude from those that the standard unsubtracted dispersion relation for the axial-vector part fails and needs a once-subtracted form. Within their setup this also imposes some constraints on low-energy DR assumptions. That is the new piece relative to earlier pQCD work on two-photon exchange and to the usual treatment in parity-violation analyses.

Referee Report

2 major / 2 minor

Summary. The paper computes the γZ-exchange contributions to the amplitudes in elastic ep scattering at large momentum transfer within perturbative QCD. It derives analytical expressions for these contributions, estimates the high-Q² asymptotic behaviors of the amplitudes and the parity-violating asymmetry A_PV, and uses the resulting power-law behaviors to determine the required subtraction order in dispersion relations (DRs). The central claim is that the unsubtracted DR commonly employed in the literature for the axial-vector amplitude is invalid at high Q² and must be replaced by a once-subtracted form; within the adopted pQCD framework and proton distribution amplitudes, the high-energy asymptotics also impose nontrivial constraints on low-energy DR assumptions.

Significance. If the pQCD-derived asymptotics are reliable, the result would provide a first-principles QCD justification for revising the subtraction order in DRs used for γZ-exchange corrections, with direct implications for precision extractions of nucleon form factors and parity-violating observables in experiments at facilities such as Jefferson Lab. The analytical expressions and explicit asymptotic estimates constitute a concrete advance over purely phenomenological treatments.

major comments (2)

[asymptotic behaviors section (following the analytical expressions)] The central claim that the usual unsubtracted DR for the axial-vector amplitude fails at high Q² rests on the leading power-law behavior extracted from the pQCD calculation with the chosen proton DAs. However, the manuscript does not quantify the possible contamination of this leading term by higher-twist or non-perturbative contributions at the finite (though large) Q² values under consideration, nor does it demonstrate that the adopted DAs correctly reproduce the true asymptotic limit without residual model dependence. This assumption is load-bearing for both the high-Q² modification and the low-energy constraints.
[discussion of DR constraints] The paper states that the high-energy properties provide nontrivial constraints on low-energy DR assumptions, but does not show an explicit matching or numerical illustration of how the modified once-subtracted DR alters low-energy predictions relative to the standard form. Without this, the practical impact of the proposed change remains unclear.

minor comments (2)

[abstract and introduction] The abstract and introduction would benefit from a brief statement of the specific proton distribution amplitudes employed and the range of Q² considered, to allow immediate assessment of the kinematic domain.
[amplitude definitions] Notation for the various amplitude components (e.g., vector vs. axial-vector) should be defined consistently in a single table or equation block for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and insightful comments on our manuscript. We address each major comment below and have revised the manuscript accordingly to strengthen the presentation and clarify the assumptions.

read point-by-point responses

Referee: The central claim that the usual unsubtracted DR for the axial-vector amplitude fails at high Q² rests on the leading power-law behavior extracted from the pQCD calculation with the chosen proton DAs. However, the manuscript does not quantify the possible contamination of this leading term by higher-twist or non-perturbative contributions at the finite (though large) Q² values under consideration, nor does it demonstrate that the adopted DAs correctly reproduce the true asymptotic limit without residual model dependence. This assumption is load-bearing for both the high-Q² modification and the low-energy constraints.

Authors: Within the perturbative QCD framework employed in our work, the leading asymptotic behavior is determined by the leading-twist contribution, which is calculated explicitly using the hard kernel and the proton distribution amplitudes (DAs). Higher-twist effects are power-suppressed at large Q², consistent with the standard pQCD counting. We acknowledge that at finite Q², such as those accessible experimentally, non-perturbative contributions could in principle contaminate the leading term, but quantifying this precisely would require a full higher-twist analysis, which lies outside the scope of the present study. Regarding the DAs, the ones we adopt are chosen to satisfy the known asymptotic properties, and the power-law behavior we derive for the amplitudes is a direct consequence of the pQCD factorization. To address this concern, we have added a discussion in the revised manuscript emphasizing the leading-twist approximation and the expected suppression of higher twists, along with a note on the model dependence inherent to the choice of DAs. revision: partial
Referee: The paper states that the high-energy properties provide nontrivial constraints on low-energy DR assumptions, but does not show an explicit matching or numerical illustration of how the modified once-subtracted DR alters low-energy predictions relative to the standard form. Without this, the practical impact of the proposed change remains unclear.

Authors: We agree that an explicit illustration would help clarify the practical implications. In the revised manuscript, we have added a new paragraph in the discussion section providing a schematic numerical example of how the once-subtracted dispersion relation, constrained by the pQCD asymptotics, modifies the low-energy behavior of the axial-vector amplitude compared to the unsubtracted form. This example uses a simple parametrization to demonstrate the difference in the predicted parity-violating asymmetry at moderate Q² values. revision: yes

Circularity Check

0 steps flagged

No significant circularity; pQCD asymptotics are computed outputs, not tautological inputs

full rationale

The paper performs an explicit perturbative QCD calculation of the γZ-exchange amplitudes in elastic ep scattering, deriving analytical expressions for the contributions and extracting their high-Q² asymptotic power-law behaviors from the chosen proton distribution amplitudes. These computed asymptotics are then used to determine the convergence properties and thus the required subtraction order in the dispersion relations for the axial-vector amplitude. This chain does not reduce to self-definition, fitted inputs renamed as predictions, or load-bearing self-citations: the high-energy scaling is an output of the pQCD framework rather than presupposed by the DR modification claim. The dependence on specific DAs is treated as an input assumption whose consequences are explored, not a circular redefinition. No ansatz is smuggled via citation, and no uniqueness theorem from the authors' prior work is invoked to force the result. The derivation remains self-contained against external benchmarks such as the pQCD formalism itself.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the applicability of perturbative QCD at large but finite Q² and on the correctness of the adopted proton distribution amplitudes for determining asymptotic behavior. No new free parameters or invented entities are introduced.

axioms (2)

domain assumption Perturbative QCD remains valid and factorizable for the γZ-exchange amplitudes at the large but finite Q² values of interest.
The entire calculation is performed inside the pQCD framework.
domain assumption The specific proton distribution amplitudes chosen correctly determine the leading asymptotic behavior of the amplitudes.
The constraints on dispersion relations are derived from these asymptotics.
