Multi-Fidelity Monte-Carlo Estimation of Satellite Drag in Very-Low-Earth Orbit

Jovan Boskovic , Marcel Pfeifer , Andrea Beck This is my paper

Pith reviewed 2026-05-10 02:54 UTC · model grok-4.3

classification ⚛️ physics.space-ph
keywords multi-fidelity Monte Carlodrag coefficientsatellite aerodynamicsDSMCuncertainty quantificationvery low Earth orbitcontrol variates
0
0 comments X

The pith

Multi-fidelity Monte Carlo using panel methods reduces error in satellite drag moment estimates by several factors at fixed high-fidelity cost.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a multi-fidelity Monte Carlo estimator for the mean and second moment of satellite drag coefficients in the rarefied flow regime of very low Earth orbit. It pairs an expensive direct simulation Monte Carlo solver with two cheaper panel-method models that act as control variates. When the low-fidelity predictions track the high-fidelity ones closely, the combined estimator cuts relative root-mean-square error in the two moments by several times while using the same amount of high-fidelity computation. The approach is demonstrated on a CubeSat validation case and on SOAR, GOCE, and CHAMP geometries under realistic thermospheric variability and angle-of-attack uncertainty. The resulting moments then yield the drag variance through a simple subtraction.

Core claim

The authors construct a multi-fidelity Monte Carlo estimator for E[C_D] and E[C_D^2] where a DSMC solver serves as the high-fidelity model and two variants of the ADBSat panel method serve as low-fidelity control variates. High-fidelity reference values are obtained from long DSMC sequences that meet objective convergence criteria. On both toy problems and realistic satellite geometries, the estimator yields relative RMSE reductions of several times for the moments whenever the low-fidelity models exhibit high correlation with the high-fidelity model, at equal high-fidelity computational effort.

What carries the argument

The multi-fidelity Monte Carlo estimator that employs low-fidelity panel-method drag predictions as control variates to reduce the variance of high-fidelity DSMC estimates of drag coefficient moments.

Load-bearing premise

The low-fidelity panel methods must remain sufficiently correlated with the high-fidelity DSMC solver for both the drag coefficient and its square across the range of atmospheric and attitude conditions considered.

What would settle it

Running the MFMC estimator on a satellite geometry or flow condition where the panel-method correlations with DSMC drop significantly below the levels seen in the tested cases, and observing that the relative RMSE for E[C_D] and E[C_D^2] no longer improves or worsens relative to plain Monte Carlo at the same high-fidelity cost.

Figures

Figures reproduced from arXiv: 2604.21943 by Andrea Beck, Jovan Boskovic, Marcel Pfeifer.

Figure 1
Figure 1. Figure 1: Analytic toy-model verification (Sec. 3.1): empirical versus predicted RMSE of ̂𝜇 and ̂𝑚2 versus total cost for HF-only Monte Carlo and MFMC. The close agreement confirms the numerical correctness of the MFMC implementation for both first and second moments. (a) Cube geometry: correlation between PICLAS and the two LF models at 200, 300 and 400 km. (b) SOAR geometry: correlation between PICLAS and the two … view at source ↗
Figure 2
Figure 2. Figure 2: Correlation scatter between PICLas and the two LF models (Sentman and CLL). Boskovic et al.: Preprint submitted to Elsevier Page 15 of 14 [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 3

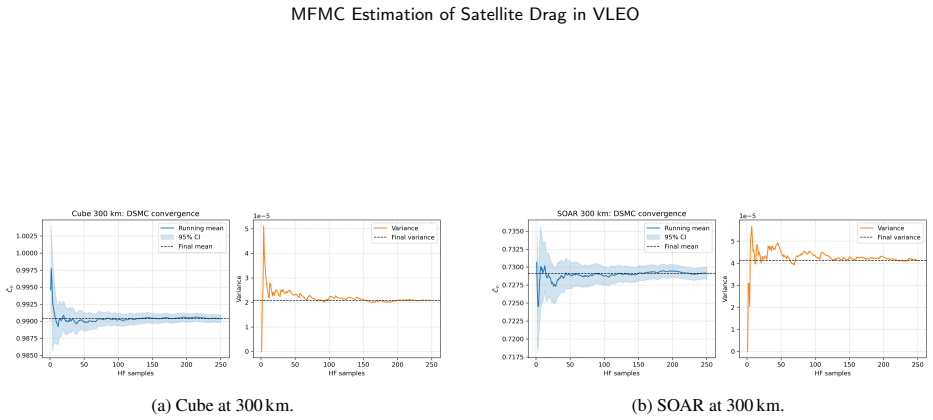

Figure 3. Figure 3: Convergence of DSMC reference statistics for the Cube (left) and SOAR (right) geometry at 300 km altitude. Each panel shows the running mean (left) and variance (right) of 𝐶D together with a 95% CI-Interval band and the final converged value. (a) GOCE at 250 km. (b) CHAMP at 454 km [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4

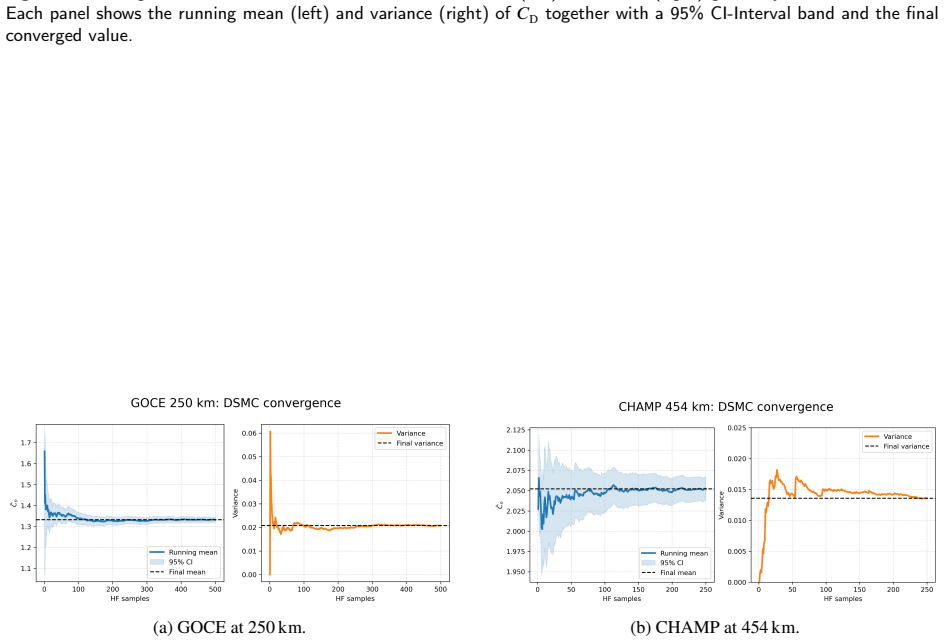

Figure 4. Figure 4: Convergence of DSMC reference statistics for the GOCE (left) and CHAMP (right) missions. Each panel shows the running mean (left) and variance (right) of 𝐶D together with a 95% CI-Interval band and the final converged value. Boskovic et al.: Preprint submitted to Elsevier Page 16 of 14 [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Validation on the Cube geometry at 200 km, 300 km, and 400 km. Each column is an altitude, each row is a statistic (𝔼[𝐶𝐷], 𝔼[𝐶 2 𝐷 ], and Var(𝐶𝐷)), and the x-axis is the HF-equivalent sample count 𝑛eq = 𝐵∕𝑤HF. MFMC results (blue) use only the Corr_calc data and aggregate 𝑅 = 10 independent repeats per budget; PICLas-only (orange) is a bootstrap baseline with 𝑅 = 10 resamples per budget. Boskovic et al.: Pr… view at source ↗
Figure 6
Figure 6. Figure 6: Verification on the SOAR 3U geometry at 200 km, 300 km, and 400 km. Plot layout and conventions are identical to [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Verification on operational conditions: GOCE at 250 km. The three panels report relRMSE for 𝔼[𝐶𝐷], 𝔼[𝐶 2 𝐷 ], and Var(𝐶𝐷) versus the HF-equivalent sample count 𝑛eq = 𝐵∕𝑤HF. Boskovic et al.: Preprint submitted to Elsevier Page 18 of 14 [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Verification on operational conditions: CHAMP at 454 km. The three panels report relRMSE for 𝔼[𝐶𝐷], 𝔼[𝐶 2 𝐷 ], and Var(𝐶𝐷) versus the HF-equivalent sample count 𝑛eq = 𝐵∕𝑤HF. Boskovic et al.: Preprint submitted to Elsevier Page 19 of 14 [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
read the original abstract

Very-low-Earth orbit drag uncertainty quantification in the rarefied/transitional Knudsen-number regime requires estimating not only the mean drag coefficient but also higher-order moments under atmospheric variability, which becomes prohibitively expensive when high-fidelity kinetic solvers are required. This work develops a multi-fidelity Monte Carlo (MFMC) estimator for the drag coefficient using a DSMC solver (PICLas) as the high-fidelity model and two free-molecular panel-method variants (ADBSat with Sentman and Cercignani-Lampis-Lord (CLL) gas-surface interaction models) as low-fidelity control variates. We treat E[C_D] and E[C_D^2] as the primary estimation targets and form the physically induced variance only afterwards via Var(C_D)=E[C_D^2]-(E[C_D])^2. High-fidelity reference moments are obtained from long DSMC sequences using objective convergence criteria based on sliding-window stability and 95% confidence intervals. The MFMC implementation is first numerically verified on an analytic toy model with closed-form moments, then assessed on a canonical CubeSat geometry (validation) and on SOAR, GOCE, and CHAMP configurations (verification) under MSIS-derived thermospheric variability and angle-of-attack uncertainty. When low-fidelity correlations are high for both C_D and C_D^2, MFMC reduces the relative RMSE of E[C_D] and E[C_D^2] by factors of several at matched high-fidelity-equivalent cost; improvements for Var(C_D) remain more case-dependent due to cancellation sensitivity. Overall, the study identifies practical drivers (moment correlations, cost ratios, and weight stability) that govern when panel models serve as effective control variates for DSMC-based drag uncertainty quantification.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper claims to develop a multi-fidelity Monte Carlo (MFMC) estimator for the first and second moments of the satellite drag coefficient C_D in the rarefied/transitional regime. DSMC (PICLas) serves as the high-fidelity model while two free-molecular panel-method variants (ADBSat with Sentman and CLL gas-surface interaction models) act as low-fidelity control variates. The approach is first verified on an analytic toy model possessing closed-form moments, then applied to a CubeSat geometry for validation and to SOAR, GOCE, and CHAMP configurations for verification under MSIS-derived thermospheric variability and angle-of-attack uncertainty. When low-fidelity correlations are high for both moments, MFMC reduces relative RMSE of E[C_D] and E[C_D^2] by factors of several at matched high-fidelity cost; Var(C_D) improvements are more case-dependent owing to cancellation.

Significance. If the reported high correlations between DSMC and the panel models hold under the tested conditions, the MFMC framework offers a practical route to reduce the computational burden of drag uncertainty quantification in VLEO, with direct relevance to orbit prediction, lifetime estimation, and satellite design. The numerical verification against an analytic toy model with known moments is a clear strength that anchors the performance claims, and the explicit identification of governing factors (moment correlations, cost ratios, weight stability) supplies actionable guidance for practitioners. This combination of verification workflow and application to operational satellite geometries enhances the potential impact within space-physics and astrodynamics.

major comments (2)
  1. [Satellite verification results] The central performance claim is conditional on high low-fidelity correlations for both E[C_D] and E[C_D^2]; however, the manuscript does not tabulate the achieved correlation coefficients for each satellite configuration (CubeSat, SOAR, GOCE, CHAMP), making it difficult to assess how often the 'high correlation' regime is realized and how this drives the reported RMSE reductions.
  2. [Results and discussion] Var(C_D) is formed post hoc via E[C_D^2] - (E[C_D])^2; the acknowledged sensitivity to cancellation is load-bearing for the claim that improvements remain 'more case-dependent,' yet no quantitative breakdown (e.g., relative contribution of each moment's variance to the final Var(C_D) error) is provided for the operational satellite cases.
minor comments (3)
  1. [Abstract and Methods] The abstract states that high-fidelity reference moments use 'objective convergence criteria based on sliding-window stability and 95% confidence intervals'; the precise implementation (window length, stability threshold, CI construction) should be stated explicitly in the methods to support reproducibility.
  2. [Figures] Figure captions for the RMSE comparisons should indicate the exact number of high-fidelity samples used in both the standard MC and MFMC estimators so that the 'matched high-fidelity-equivalent cost' condition can be verified by readers.
  3. [MFMC formulation] The optimization procedure for the MFMC control-variate weights is mentioned but not cross-referenced to the specific equation or algorithm; adding this pointer would clarify how the weights are obtained in both the toy-model and satellite sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation for minor revision. We address each major comment point by point below, agreeing where changes are warranted and explaining our approach.

read point-by-point responses

  1. Referee: [Satellite verification results] The central performance claim is conditional on high low-fidelity correlations for both E[C_D] and E[C_D^2]; however, the manuscript does not tabulate the achieved correlation coefficients for each satellite configuration (CubeSat, SOAR, GOCE, CHAMP), making it difficult to assess how often the 'high correlation' regime is realized and how this drives the reported RMSE reductions.

    Authors: We agree that tabulating the correlation coefficients would improve clarity and allow readers to directly link the reported RMSE reductions to the correlation values. Although the manuscript emphasizes the role of high correlations and presents the resulting performance gains, the explicit per-configuration values were not included. In the revised manuscript we will add a table in the satellite verification section that reports the Pearson correlation coefficients for both E[C_D] and E[C_D^2] between the DSMC high-fidelity model and each of the two low-fidelity panel methods, for the CubeSat, SOAR, GOCE, and CHAMP cases. This addition will make the conditions for the observed benefits transparent. revision: yes

  2. Referee: [Results and discussion] Var(C_D) is formed post hoc via E[C_D^2] - (E[C_D])^2; the acknowledged sensitivity to cancellation is load-bearing for the claim that improvements remain 'more case-dependent,' yet no quantitative breakdown (e.g., relative contribution of each moment's variance to the final Var(C_D) error) is provided for the operational satellite cases.

    Authors: The referee correctly notes that the post-hoc variance calculation introduces cancellation sensitivity, which underpins our statement that Var(C_D) improvements are more case-dependent. While we mention this sensitivity qualitatively, we did not supply a quantitative decomposition of how errors in the two moment estimates propagate to the variance error for the satellite geometries. In the revision we will add a short quantitative analysis in the results and discussion section, for example by reporting the relative magnitudes of the moment variances and their covariance contribution to the Var(C_D) estimator error, or by including a supplementary breakdown for the key operational cases. This will strengthen the explanation without altering the overall conclusions. revision: yes

Circularity Check

0 steps flagged

Minor self-citation not load-bearing; central claims independently verified

full rationale

The derivation applies standard MFMC control-variate estimators to E[C_D] and E[C_D^2], with Var(C_D) formed afterwards by the usual identity. High-fidelity references are obtained from long DSMC runs with explicit convergence criteria; the MFMC performance is then demonstrated on an analytic toy model possessing closed-form moments and on external satellite geometries under MSIS variability. These numerical verifications are independent of the paper's own fitted values. Any self-citations are peripheral and do not substitute for the reported RMSE reductions or correlation requirements.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The approach relies on empirical correlation between low- and high-fidelity models rather than first-principles derivation; convergence criteria and moment definitions are standard but the effectiveness hinges on case-specific correlation strength.

free parameters (1)
  • MFMC control variate weights
    Optimized from sample correlations between low- and high-fidelity models; not derived from first principles.
axioms (2)
  • domain assumption Low-fidelity panel models exhibit high correlation with DSMC for both first and second moments of drag coefficient under the tested atmospheric and attitude variability
    Invoked as the condition for MFMC efficiency gains; verified numerically in the reported cases but not proven generally.
  • standard math Objective convergence criteria based on sliding-window stability and 95% confidence intervals suffice to establish high-fidelity reference moments
    Standard statistical practice for Monte Carlo convergence.
