The Simons Observatory: Improved Cryogenic Struts for use in the Large Aperture Telescope Receiver
Pith reviewed 2026-05-08 14:03 UTC · model grok-4.3
The pith
Threaded profiles from set screws change glue joint failure to cohesive, raising strength in cryogenic struts.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

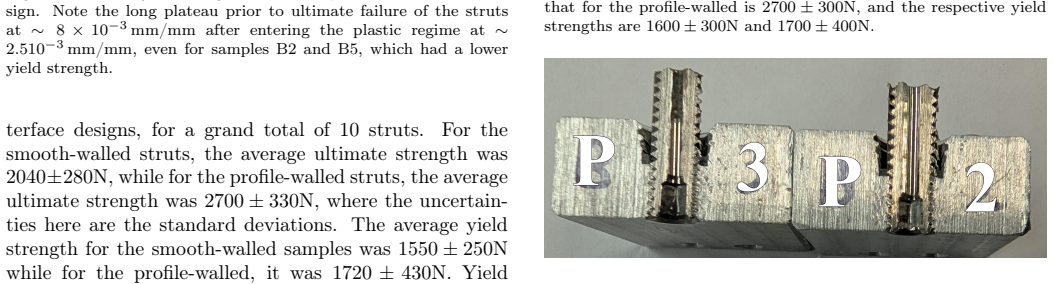

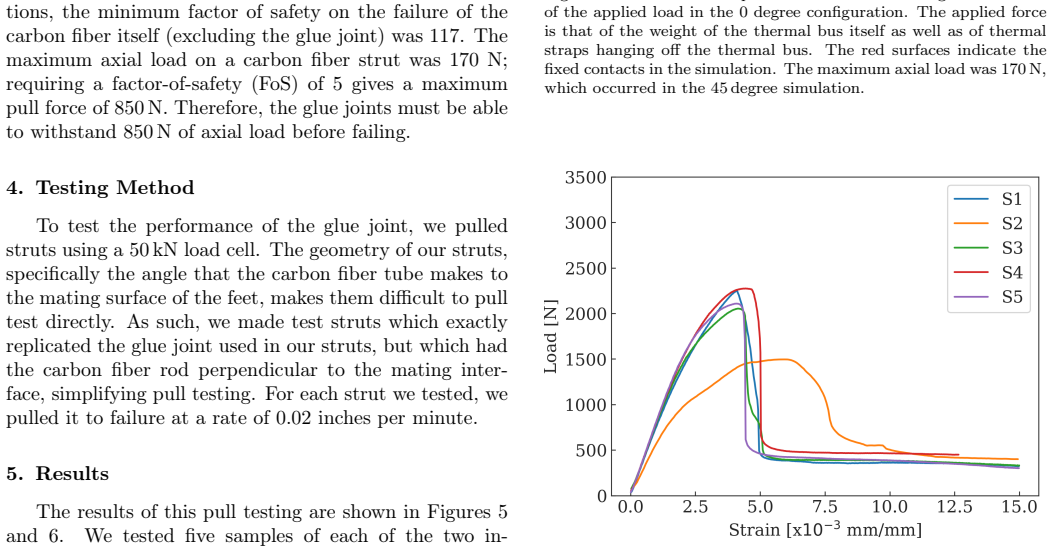

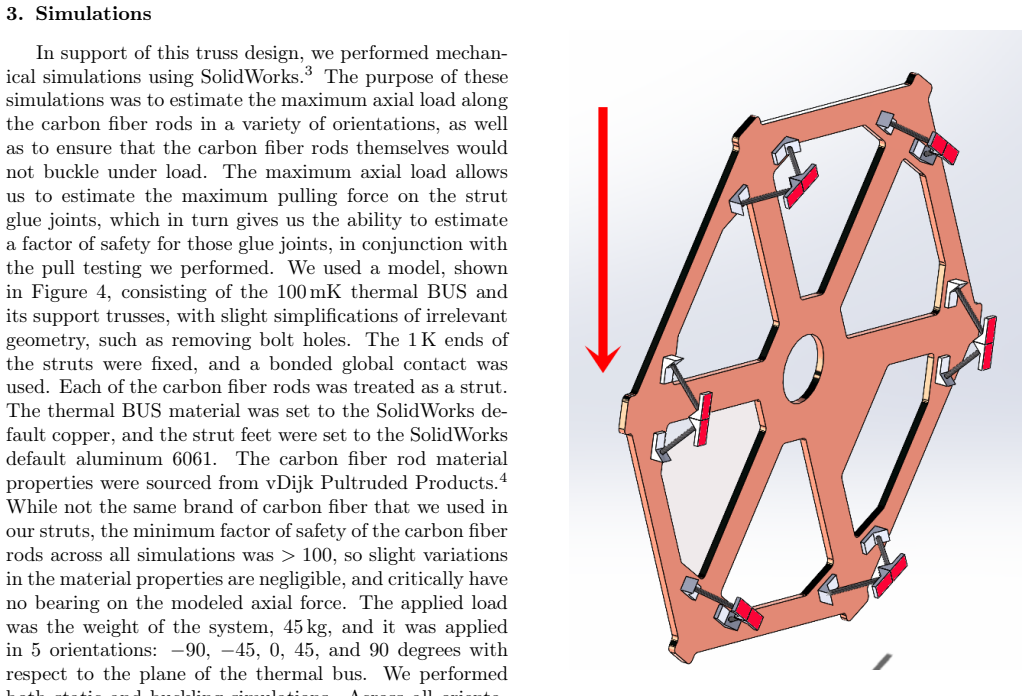

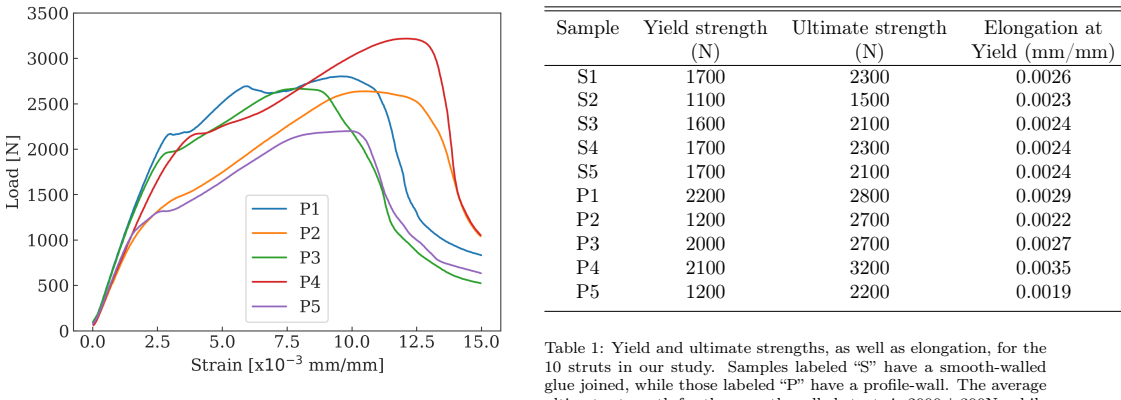

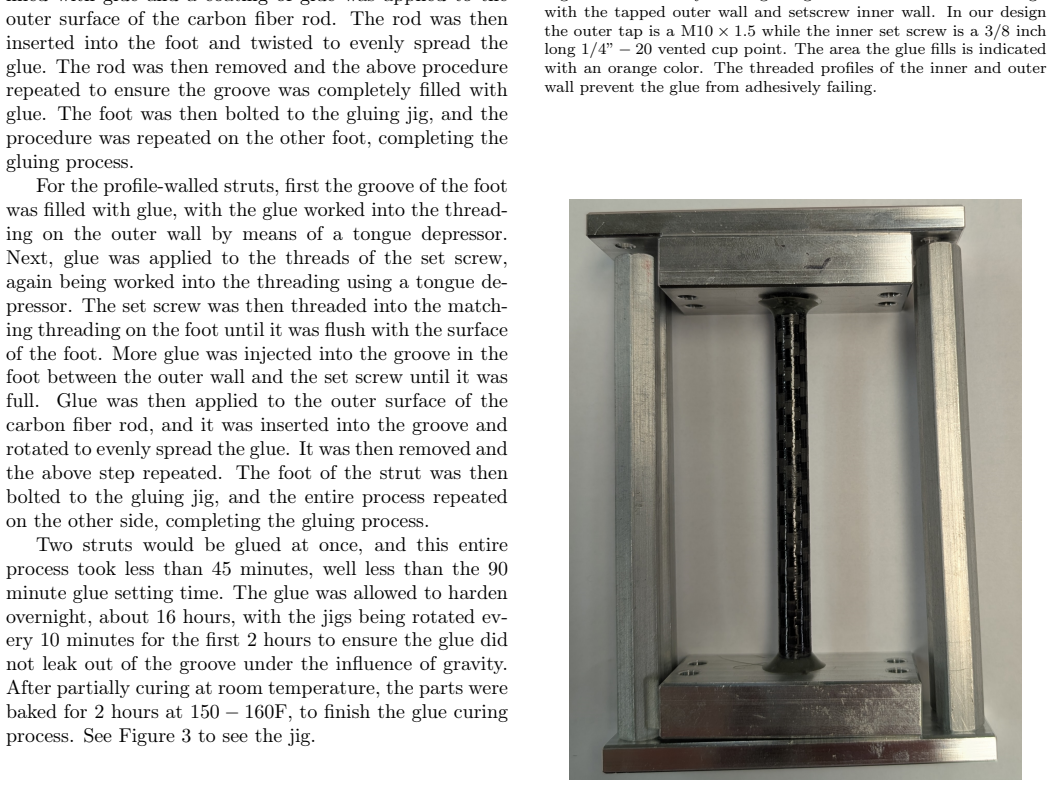

The paper establishes that imprinting a threaded profile on both the exterior and interior walls of the glue joint using a tapped hole and set screw causes the joint to fail cohesively within the glue rather than adhesively at the interface, producing a yield strength 10% higher and an ultimate strength 33% higher than a comparable smooth-walled design and a factor of safety of 7 relative to simulated loads.
What carries the argument
The set-screw-induced threaded surface profile that forces cohesive failure in the glue joint.
If this is right
- The struts provide the required stiffness and thermal isolation for the detector array.
- The joint maintains integrity after repeated cooling from 300 K to 100 mK.
- The higher strength allows safe operation under the predicted axial loads with substantial margin.
- The design has been successfully deployed in the telescope receiver.
Where Pith is reading between the lines
- The technique could extend to other composite structures in cryogenic environments where glue strength is critical.
- Longer-term monitoring beyond three years would test resistance to aging and fatigue.
- Optimized profiles might further increase the strength gain or reduce material use.
Load-bearing premise
The surface profile created by the set screw will keep enforcing cohesive failure under all actual cryogenic operating conditions and over extended periods without introducing new failure modes.
What would settle it
A test showing the glue joint failing adhesively at a load below the measured yield strength after further thermal cycling would indicate that the profile does not reliably produce the claimed failure mode.
Figures
read the original abstract

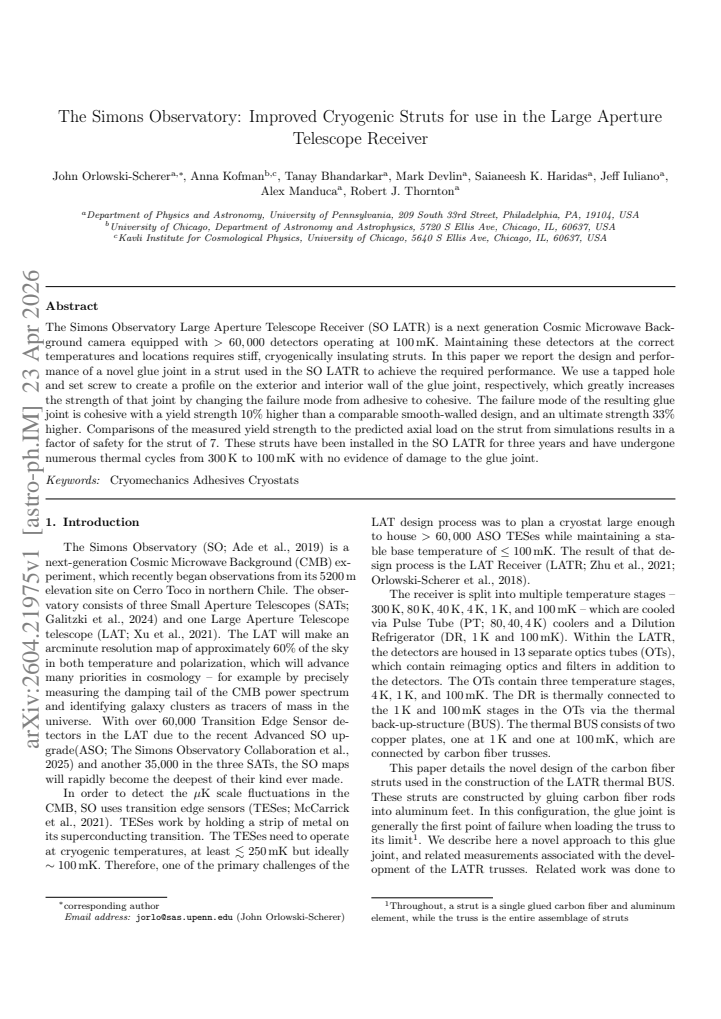

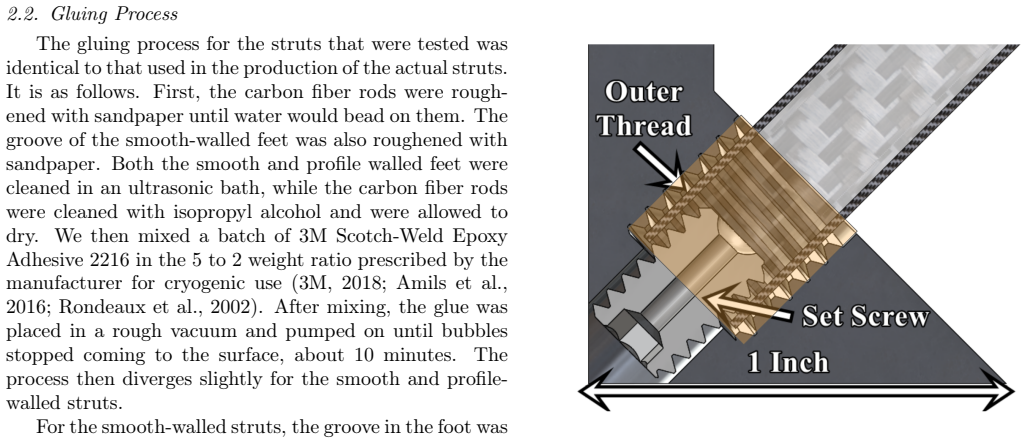

The Simons Observatory Large Aperture Telescope Receiver (SO LATR) is a next generation Cosmic Microwave Background camera equipped with > 60, 000 detectors operating at 100 mK. Maintaining these detectors at the correct temperatures and locations requires stiff, cryogenically insulating struts. In this paper we report the design and performance of a novel glue joint in a strut used in the SO LATR to achieve the required performance. We use a tapped hole and set screw to create a profile on the exterior and interior wall of the glue joint, respectively, which greatly increases the strength of that joint by changing the failure mode from adhesive to cohesive. The failure mode of the resulting glue joint is cohesive with a yield strength 10% higher than a comparable smooth-walled design, and an ultimate strength 33% higher. Comparisons of the measured yield strength to the predicted axial load on the strut from simulations results in a factor of safety for the strut of 7. These struts have been installed in the SO LATR for three years and have undergone numerous thermal cycles from 300 K to 100 mK with no evidence of damage to the glue joint.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript describes the design and performance of a novel glue joint for cryogenic struts in the Simons Observatory Large Aperture Telescope Receiver (SO LATR). A tapped hole and set screw create surface profiles on the exterior and interior walls of the joint, shifting the failure mode from adhesive to cohesive. This yields a measured yield strength 10% higher and ultimate strength 33% higher than a comparable smooth-walled design, with a factor of safety of 7 relative to simulated axial loads. The struts have been installed and operated in the SO LATR for three years, undergoing repeated thermal cycles from 300 K to 100 mK with no observed damage to the glue joint.
Significance. If the reported measurements and operational record hold, the work provides a practical, empirically validated improvement in cryogenic strut design for large-scale CMB instruments. The combination of laboratory strength testing with three years of in-situ performance under actual thermal cycling and loads offers direct evidence of reliability, which may inform similar mechanical solutions in other low-temperature precision systems.
minor comments (2)
- [Abstract] Abstract and results section: the exact geometry, sample sizes, number of test specimens, and error bars or statistical measures for the 10% yield and 33% ultimate strength gains relative to the smooth-walled comparison should be stated explicitly to support reproducibility and allow independent verification of the factor-of-safety calculation.
- [Results] The manuscript would benefit from a brief description of the test protocol (e.g., loading rate, temperature at which strength measurements were performed, and how the cohesive failure mode was confirmed) even if the three-year operational record provides the primary long-term validation.
Simulated Author's Rebuttal
We thank the referee for their positive assessment of the manuscript, the clear summary of our results, and the recommendation to accept. No major comments were raised.
Circularity Check
No significant circularity in the derivation chain
full rationale
The paper describes an empirical mechanical design and testing process for cryogenic struts. Central claims rest on direct measurements of glue joint yield/ultimate strength, comparison of those measurements to independent load simulations for a factor of safety, and three-year in-situ operational data with thermal cycling. No equations, fitted parameters, self-referential derivations, or load-bearing self-citations appear in the provided text. The results are self-contained empirical observations and validations without reduction to inputs by construction.
